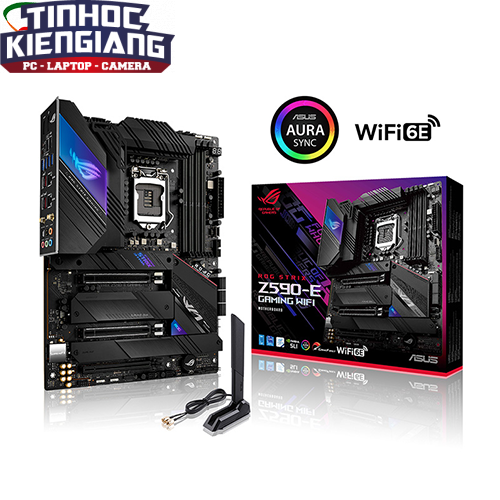

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-E GAMING WIFI

CPU

Intel® Socket 1200 for 10th Gen Intel^® Xeon^® Core^™ , Pentium^® Gold and Celeron^® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® W480

Memory

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
ECC Memory (ECC mode) support varies by CPU.

Thunderbolt

2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards´ resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12  Thunderbolt devices
Up to 5V/3A, 15W charging support

Graphic

Integrated Graphics Processor
1  x DisplayPort 1.4 **
1  x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *¹
Intel^® W480 Chipset
1 x PCIe 3.0 x16 (x4 mode) *²
2 x PCIe 3.0 x1

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® W480 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*⁴
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

LAN

Intel® I225-LM 2.5Gb Ethernet
Realtek® RTL8117

Audio

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

Intel® Thunderbolt™ 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C^®)
Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7  )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C^®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)

Operating System Support

Windows® 10 64-bit

Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance And Power Saving Utility
- TPU
- EPU
- Digi+ VRM
- EZ update
- Fan Xpert 4
- Turbo app
IT Management software supported
- ASUS Control Center Express(ACCE)
AI Charger
ASUS Turbo LAN
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

ASUS Special Features

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED
- ASUS Q-Shield
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool II
- SafeSlot
Out-of-band Management
- BIOS Update Indicator LED
- LAN Initialization Indicator LED

Back I/O Ports

2 x Thunderbolt 3 ports TypeC^™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (RJ45) port(s)
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Accessories

1 x ACC Express Activation Key Card
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x DisplayPort cable
User manual
1 x CPU Fan Holder
1 x 2-in-1 Rubber pad

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12  inch x 9.2  inch ( 30.5  cm x 23.4  cm )
