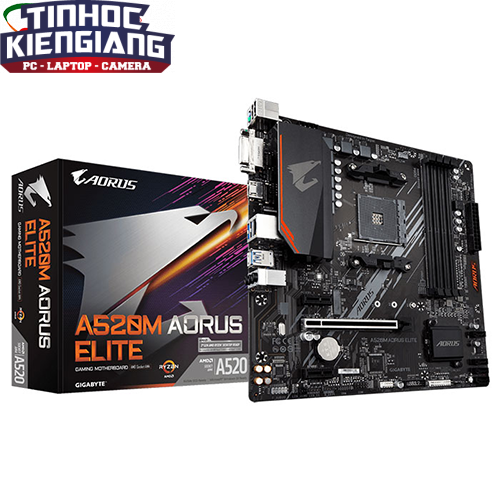

Bo Mạch Chủ – Mainboard Gigabyte A520M Aorus Elite

Liên hệ

CPU AMD Socket AM4, hỗ trợ cho: Bộ xử lý AMD Ryzen ™ thế hệ thứ 3 / AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™
Chipset AMD A520
Bộ nhớ
  1. 4 x Socket DDR4 DIMM hỗ trợ bộ nhớ hệ thống lên đến 128 GB (dung lượng 32 GB đơn DIMM)
  2. Bộ xử lý AMD Ryzen ™ thế hệ thứ 3:
    Hỗ trợ các mô-đun bộ nhớ DDR4 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz
  3. AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™:
    Hỗ trợ DDR4 4733 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667 / Mô-đun bộ nhớ 2400/22133 MHz
  4. Kiến trúc bộ nhớ kênh đôi
  5. Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 không đệm ECC
  6. Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 / 1Rx16 không phải ECC Un-buffer
  7. Hỗ trợ mô-đun bộ nhớ Extreme Memory Profile (XMP)
Đồ họa Được tích hợp trong AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™:



  1. 1 x cổng DVI-D, hỗ trợ độ phân giải tối đa 1920×1200 @ 60 Hz
    * Cổng DVI-D không hỗ trợ kết nối D-Sub bằng bộ chuyển đổi.
  2. 1 x cổng HDMI, hỗ trợ độ phân giải tối đa 4096×2160 @ 60 Hz
    * Hỗ trợ phiên bản HDMI 2.1, HDCP 2.3 và HDR.

Bộ nhớ chia sẻ tối đa 16 GB
Âm thanh
  1. Bộ giải mã Realtek ® ALC887
  2. Âm thanh độ nét cao
  3. 2/4 / 5.1 / 7.1 kênh
    * Để định cấu hình âm thanh 7.1 kênh, bạn cần mở phần mềm âm thanh và chọn Cài đặt nâng cao của thiết bị> Thiết bị phát lại để thay đổi cài đặt mặc định trước. Vui lòng truy cập trang web của GIGABYTE để biết chi tiết về cách định cấu hình phần mềm âm thanh.
LAN Chip Realtek ® GbE LAN (1000 Mbit / 100 Mbit)
Khe mở rộng CPU:



  1. 1 x khe cắm PCI Express x16, hỗ trợ PCIe 3.0 và chạy ở x16

Bộ chip:

  1. 2 x khe cắm PCI Express x1, hỗ trợ PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Giao diện lưu trữ CPU:



  1. 1 x đầu nối M.2 (Socket 3, M key, loại 2242/2260/2280 SATA và hỗ trợ SSD PCIe 3.0 x4 / x2)

Bộ chip:

  1. 4 x đầu nối SATA 6Gb / s
  2. Hỗ trợ RAID 0, RAID 1 và RAID 10
Kết nối I / O nội bộ
  1. 1 x đầu nối nguồn chính ATX 24 chân
  2. 1 x đầu nối nguồn ATX 12V 8 chân
  3. 1 x đầu cắm quạt CPU
  4. 2 x đầu cắm quạt hệ thống
  5. 2 x đầu cắm dải LED có thể định địa chỉ
  6. 2 x đầu cắm dải LED RGB
  7. 1 x đầu nối M.2 Socket 3
  8. 4 x đầu nối SATA 6Gb / s
  9. 1 x tiêu đề bảng điều khiển phía trước
  10. 1 x tiêu đề âm thanh mặt trước
  11. 1 x đầu cắm USB 3.2 Gen 1
  12. 1 x đầu cắm USB 2.0 / 1.1
  13. 1 x tiêu đề Mô-đun nền tảng đáng tin cậy (TPM) (chân 2×6, chỉ dành cho mô-đun GC-TPM2.0_S)
  14. 1 x tiêu đề cổng nối tiếp
  15. 1 x Clear CMOS jumper
  16. 1 x nút Q-Flash Plus
Kết nối bảng mặt sau
  1. 1 x cổng PS / 2 bàn phím / chuột
  2. 1 x cổng DVI-D
  3. 1 x cổng HDMI
  4. 4 x cổng USB 3.2 Gen 1
  5. 2 x cổng USB 2.0 / 1.1
  6. 1 x cổng RJ-45
  7. 3 x giắc cắm âm thanh
BIOS
  1. 1 x 128 Mbit flash
  2. Sử dụng AMI UEFI BIOS được cấp phép
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hệ điều hành Hỗ trợ cho Windows 10 64-bit
Yếu tố hình thức Micro ATX; 24,4cm x 24,4cm
