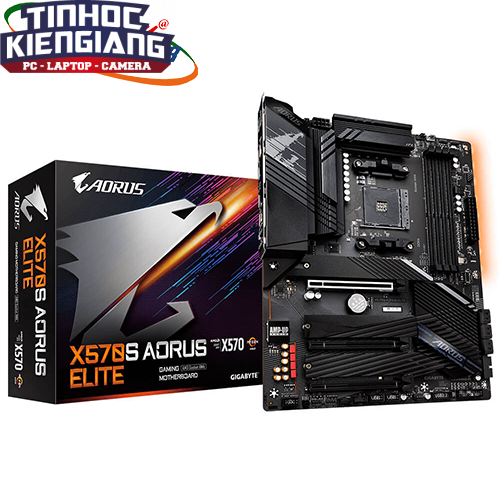

Bo Mạch Chủ – Mainboard Gigabyte X570S AORUS ELITE

Liên hệ

  • Hãng sản xuất: Gigabyte
  • Tình trạng: mới 100%
  • Bảo hành: 36 tháng
  • Khe ram tối đa: 4 khe
  • Hỗ trợ RAM: DDR4 , tối đa 128GB
  • Chuẩn mainboard: ATX
  • Socket: AM4 , Chipset : X570
  • CPU hỗ trợ:
    – AMD Socket AM4, hỗ trợ: AMD Ryzen ™ 5000 Series / Ryzen ™ 5000 G-Series / AMD Ryzen ™ 4000 G-Series / AMD Ryzen ™ 3000 Series / AMD Ryzen ™ 3000 G-Series / AMD Ryzen ™ 2000 Series / AMD Ryzen ™ Bộ xử lý 2000 G-Series
  • RAM hỗ trợ:
    – Bộ xử lý AMD Ryzen ™ 5000 G-Series:
    Hỗ trợ DDR4 5300 (OC) / 5100 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC ) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) ) / 3200/2933/2667/2400/2133 MHz mô-đun bộ nhớ
    – Bộ xử lý AMD Ryzen ™ 5000 Series:
    Hỗ trợ DDR4 5100 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200/2933/2667 / 2400/2133 MHz mô-đun bộ nhớ
    – Bộ xử lý AMD Ryzen ™ 4000 G-Series:
    Hỗ trợ DDR4 5400 (OC) / 5200 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC ) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) ) / 3200/2933/2667/2400/2133 MHz mô-đun bộ nhớ
    – Bộ xử lý AMD Ryzen ™ 3000 Series:
    Hỗ trợ DDR4 5200 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200/2933/2667 / 2400/2133 MHz mô-đun bộ nhớ
    – Bộ xử lý AMD Ryzen ™ 3000 G-Series / Bộ xử lý AMD Ryzen ™ 2000 Series / Bộ xử lý AMD Ryzen ™ 2000 G-Series:
    Hỗ trợ DDR4 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 ( Các mô-đun bộ nhớ OC) / 3200 (OC) / 2933/2667/2400/2133 MHz
    – 4 x ổ cắm DDR4 DIMM hỗ trợ bộ nhớ hệ thống lên đến 128 GB (32 GB dung lượng DIMM đơn)
    Kiến trúc bộ nhớ kênh đôi
    Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 không đệm của ECC
    Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 / 1Rx16 không có bộ đệm ECC Un-buffer
    Hỗ trợ mô-đun bộ nhớ Extreme Memory Profile (XMP)
  • Âm thanh
    – Realtek ® ALC1220-VB codec
    * Giắc cắm đầu ra của bảng điều khiển phía sau hỗ trợ âm thanh DSD.
    – Âm thanh độ nét cao
    – 2/4 / 5.1 / 7.1 kênh
    – Hỗ trợ S / PDIF Out
  • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Khe mở rộng:
    – 1 x khe cắm PCI Express x16 (PCIEX16), được tích hợp trong CPU:
    Bộ xử lý AMD Ryzen ™ 5000 Series / 3000 Series hỗ trợ chế độ PCIe 4.0 x16
    Bộ xử lý AMD Ryzen ™ 5000 G-Series / 4000 G-Series / 2000 Series hỗ trợ chế độ PCIe 3.0 x16
    Bộ xử lý AMD Ryzen ™ 3000 G-Series / 2000 G-Series hỗ trợ chế độ PCIe 3.0 x8
    * Để có hiệu suất tối ưu, nếu chỉ lắp một card đồ họa PCI Express, hãy đảm bảo lắp nó vào khe PCIEX16.
    – 1 x khe cắm PCI Express x16 (PCIEX4), được tích hợp trong Chipset:
    Hỗ trợ chế độ PCIe 4.0 (Lưu ý) / 3.0 x4
    – 1 x khe cắm PCI Express x16 (PCIEX2), được tích hợp trong Chipset:
    Hỗ trợ chế độ PCIe 4.0 (Lưu ý) / 3.0 x2
    * Khe PCIEX4 chia sẻ băng thông với khe PCIEX2. Khi khe PCIEX2 được điền, khe PCIEX4 sẽ hoạt động ở chế độ lên đến x2.
  • Công nghệ đa đồ họa:
    – Hỗ trợ công nghệ AMD Quad-GPU CrossFire ™ và AMD CrossFire ™ 2 chiều
    (Lưu ý) Chỉ dành cho Bộ xử lý AMD Ryzen ™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 2000 Series.
  • Lưu trữ
    – 1 x đầu nối M.2 (M2A_CPU), tích hợp trong CPU, hỗ trợ Socket 3, M key, SSD loại 2260/2280/22110:
    Bộ xử lý AMD Ryzen ™ 5000 Series / 3000 Series hỗ trợ SSD SATA và PCIe 4.0 x4 / x2
    Bộ xử lý AMD Ryzen ™ 5000 G-Series / 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series hỗ trợ SSD SATA và PCIe 3.0 x4 / x2
    – 2 x đầu nối M.2 (M2B_SB / M2C_SB), tích hợp trong Chipset, hỗ trợ Socket 3, phím M, SSD loại 2260/2280/22110:
    Hỗ trợ SSD SATA và PCIe 4.0 (Lưu ý) / 3.0 x4 / x2
    – 6 x đầu nối SATA 6Gb / s, tích hợp trong Chipset:
    Hỗ trợ RAID 0, RAID 1 và RAID 10
  • Cổng I/O nội bộ:
    – 1 x đầu nối nguồn chính ATX 24 chân
    – 1 x đầu nối nguồn ATX 12V 8 chân
    – 1 x đầu cắm quạt CPU
    – 1 x đầu cắm quạt tản nhiệt nước CPU
    – 3 x đầu cắm quạt hệ thống
    – 1 x đầu cắm quạt hệ thống / máy bơm làm mát nước
    – 2 x đầu cắm dải LED có thể định địa chỉ
    – 2 x đầu cắm dải LED RGB
    – 1 x dải LED làm mát CPU / đầu cắm dải LED RGB
    – 3 x đầu nối M.2 Socket 3
    – 6 x đầu nối SATA 6Gb / s
    – 1 x bảng điều khiển phía trước
    – 1 x âm thanh bảng điều khiển phía trước
    – 1 x đầu cắm USB Type-C ® , với hỗ trợ USB 3.2 Gen 2
    – 2 x đầu cắm USB 3.2 Thế hệ 1
    – 2 x đầu cắm USB 2.0 / 1.1
    – 1 x Mô-đun (TPM) (chân 2×6, chỉ dành cho mô-đun GC-TPM2.0_S)
    – 1 x đầu nối thẻ bổ trợ Thunderbolt ™
    – 1 x Clear CMOS jumper
  • Cổng I/O:
    – 4 x cổng USB 2.0 / 1.1
    – 1 x cổng HDMI
    – 4 x cổng USB 3.2 Gen 1
    – 1 x nút Q-Flash Plus
    – 1 x cổng USB Type-C®, với hỗ trợ USB 3.2 Gen 2×2
    – 3 x Cổng USB 3.2 Gen 2 Loại A (màu đỏ)
    – 1 x cổng RJ-45
    – 1 x đầu nối quang S / PDIF Out
    – 5 x giắc cắm âm thanh
Danh mục:

Sản phẩm tương tự

Bo Mạch Chủ - Mainboard Gigabyte X570S AERO G

Bo Mạch Chủ – Mainboard Gigabyte X570S AERO G

  • CPU

    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD X570

  • Memory

    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors:
      Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
    2. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors:
      Support for DDR4 2933/2667/2400/2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
      * Support for drawing tablets and 20V@3A of power delivery.
      * Support for DisplayPort 1.4 version and HDCP 2.3
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
    * For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only.

  • Audio

    1. Realtek® ALC1220-VB Audio CODEC
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out

  • LAN

    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Intel® Wi-Fi 6 AX200
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.

  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode
    3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode
    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x8 mode
    2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x8 mode
    3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 4.0* /3.0 x4 mode
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
      * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.

  • Multi-Graphics Technology

    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.

  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1. Supporting PCIe 4.0* /3.0 x4/x2 SSDs
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
    1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    6 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  • USB

    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports on the back panel
    Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+2 USB 2.0 Hubs:
    1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 4 x M.2 Socket 3 connectors
    12. 6 x SATA 6Gb/s connectors
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    16. 2 x USB 3.2 Gen 1 headers
    17. 2 x USB 2.0/1.1 headers
    18. 1 x noise detection header
    19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    20. 1 x Thunderbolt™ add-in card connector
    21. 1 x serial port header
    22. 1 x Clear CMOS jumper
    23. 2 x temperature sensor headers
    24. 1 x Q-Flash Plus button

  • Back Panel Connectors

    1. 2 x USB 2.0/1.1 ports
    2. 2 x SMA antenna connectors (2T2R)Š Š 1 x HDMI port
    3. 1 x DisplayPort In port
    4. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    5. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    6. 4 x USB 3.2 Gen 2 Type-A ports (red)
    7. 2 x USB 3.2 Gen 1 ports
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 5 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. cFosSpeed

  • Operating System

    1. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte X570S AERO G

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte X670 AORUS ELITE AX

Bo Mạch Chủ – Mainboard Gigabyte X670 AORUS ELITE AX

  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD X670

  • Memory

    1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MHz memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    AMD Wi-Fi 6E RZ616 (MT7922A22M)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

  • Storage Interface

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
      (Note) Actual support may vary by CPU.
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports on the back panel
    CPU + USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x CPU cooler LED strip/RGB LED strip header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 4 x SATA 6Gb/s connectors
    10. 4 x M.2 Socket 3 connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x THB_U4 add-in card connector
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x power button
    19. 1 x reset button
    20. 1 x Clear CMOS button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

  • Back Panel Connectors

    1. 1 x Q-Flash Plus button
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x HDMI port
    4. 6 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 2 x USB 3.2 Gen 2 Type-A ports (red)
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte X670 AORUS ELITE AX

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte A520I AC

Bo Mạch Chủ – Mainboard Gigabyte A520I AC

Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

Gigabyte

Model

 A520I AC (rev. 1.0)

CPU hỗ trợ

 AMD Socket AM4, hỗ trợ cho: Bộ xử lý AMD Ryzen™ thế hệ thứ 3 / AMD Ryzen™ thế hệ thứ 3 với bộ xử lý Đồ họa tích hợp Radeon

Chipset

 AMD A520

RAM hỗ trợ

2 x khe cắm DDR4 DIMM hỗ trợ bộ nhớ hệ thống lên đến 64 GB (32 GB dung lượng DIMM / khe)

Bộ xử lý AMD Ryzen ™ thế hệ thứ 3:
Hỗ trợ DDR4 5100 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667 / 2400/2133 MHz mô-đun bộ nhớ


AMD Ryzen ™ thế hệ thứ 3 với bộ vi xử lý Đồ họa Radeon ™:
Hỗ trợ DDR4 5300 (OC) / 5200 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz mô-đun bộ nhớ


Kiến trúc bộ nhớ kênh đôi
Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 không đệm ECC
Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 / 1Rx16 không phải ECC Un-buffer
Hỗ trợ mô-đun bộ nhớ Extreme Memory Profile (XMP)

Cổng xuất hình onboard

Được tích hợp trong AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™:



1 x cổng DisplayPort, hỗ trợ độ phân giải tối đa 5120x2880 @ 60 Hz
* Hỗ trợ phiên bản DisplayPort 1.4, HDCP 2.3 và HDR.
2 x cổng HDMI, hỗ trợ độ phân giải tối đa 4096x2160 @ 60 Hz
* Hỗ trợ phiên bản HDMI 2.1, HDCP 2.3 và HDR.


Hỗ trợ tối đa 3 màn hình cùng lúc
Bộ nhớ chia sẻ tối đa 16 GB

Âm Thanh

Bộ giải mã Realtek ® ALC887
Âm thanh độ nét cao
2/4 / 5.1 / 7.1 kênh


* Để định cấu hình âm thanh 7.1 kênh, bạn cần mở phần mềm âm thanh và chọn Cài đặt nâng cao của thiết bị> Thiết bị phát lại để thay đổi cài đặt mặc định trước. Vui lòng truy cập trang web của GIGABYTE để biết chi tiết về cách định cấu hình phần mềm âm thanh.

LAN

 Chip Realtek ® GbE LAN (1000 Mbit / 100 Mbit)
Không dây

Intel ® Wi-Fi AC 3168
WIFI 802.11a / b / g / n / ac, hỗ trợ Băng tần kép 2,4 / 5 GHz


BLUETOOTH 4.2
Hỗ trợ chuẩn không dây 11ac và tốc độ dữ liệu lên đến 433 Mbps


* Tốc độ dữ liệu thực tế có thể thay đổi tùy theo môi trường và thiết bị.

Khe mở rộng

CPU:
1 x khe cắm PCI Express x16, hỗ trợ PCIe 3.0 và chạy ở x16

Ổ cứng hỗ trợ

CPU:
1 x đầu nối M.2 (Socket 3, M key, hỗ trợ SATA loại 2260/2280 và PCIe 3.0 x4 / x2 SSD)


Chipset:
4 x đầu nối SATA 6Gb / s
Hỗ trợ RAID 0, RAID 1 và RAID 10

USB

CPU:
4 x cổng USB 3.2 Gen 1 ở mặt sau


Chipset:

2 x cổng USB 3.2 Gen 1 khả dụng thông qua đầu cắm USB bên trong
4 x cổng USB 2.0 / 1.1 (2 cổng ở mặt sau, 2 cổng có sẵn thông qua đầu cắm USB bên trong)

Cổng kết nối ( I/O bên trong)

 1 x đầu nối nguồn chính ATX 24 chân
1 x đầu nối nguồn ATX 12V 8 chân
1 x đầu cắm quạt CPU
2 x đầu cắm quạt hệ thống
1 x tiêu đề dải LED có thể định địa chỉ
1 x đầu cắm dải LED RGB
1 x đầu nối M.2 Socket 3
4 x đầu nối SATA 6Gb / s
1 x tiêu đề bảng điều khiển phía trước
1 x tiêu đề âm thanh mặt trước
1 x đầu cắm loa
1 x đầu cắm USB 3.2 Gen 1
1 x đầu cắm USB 2.0 / 1.1
1 x tiêu đề Mô-đun nền tảng đáng tin cậy (TPM) (chân 2x6, chỉ dành cho mô-đun GC-TPM2.0_S)
1 x serial port header
1 x Clear CMOS jumper

Cổng kết nối ( I/O Phía sau)

 1 x DisplayPort
2 x cổng HDMI
4 x cổng USB 3.2 Gen 1
2 x cổng USB 2.0 / 1.1
1 x nút Q-Flash Plus
1 x cổng RJ-45
2 x đầu nối ăng ten SMA (1T1R)
3 x giắc cắm âm thanh

BIOS

 1 x 128 Mbit flash
Sử dụng AMI UEFI BIOS được cấp phép
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Các tính năng độc đáo

Support for APP Center


* Các ứng dụng có sẵn trong Trung tâm APP có thể thay đổi theo mô hình bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ.



@BIOS
EasyTune
Fast Boot
Game Boost
ON / OFF Charge
RGB Fusion
Smart Backup
System Viewer
Hỗ trợ Q-Flash Plus
Hỗ trợ Q-Flash
Hỗ trợ cài đặt Xpress

Kích cỡ

 Mini-ITX; 17,0cm x 17,0cm

Ghi chú

Do điều kiện hỗ trợ Linux khác nhau do các nhà cung cấp chipset cung cấp, vui lòng tải xuống trình điều khiển Linux từ trang web của nhà cung cấp chipset hoặc trang web của bên thứ ba.


Hầu hết các nhà cung cấp phần cứng / phần mềm có thể không còn cung cấp trình điều khiển để hỗ trợ Win9X / ME / 2000 / XP. Nếu trình điều khiển có sẵn từ các nhà cung cấp, chúng tôi sẽ cập nhật chúng trên trang web GIGABYTE.

Bo Mạch Chủ – Mainboard Gigabyte A520I AC

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte B650M AORUS ELITE

Bo Mạch Chủ – Mainboard Gigabyte B650M AORUS ELITE

  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD B650

  • Bộ nhớ

    1. Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Card đồ họa tích hợp

    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

  • Âm thanh

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out

  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Khe cắm mở rộng

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  • Giao diện lưu trữ

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
      * Actual support may vary by CPU.
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU + USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back pane

  • Kết nối I/O bên trong

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x M.2 Socket 3 connectors
    11. 4 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x serial port header
    18. 1 x THB_U4 add-in card connector
    19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    20. 1 x reset button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

  • Kết nối bảng phía sau

    1. 1 x Q-Flash Plus button
    2. 1 x DisplayPort
    3. 1 x HDMI 2.0 port
    4. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    5. 2 x USB 3.2 Gen 2 Type-A ports (red)
    6. 5 x USB 3.2 Gen 1 ports
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 2 x audio jacks

  • Điều khiển I/O

    1. iTE® I/O Controller Chip

  • Theo dõi phần cứng

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Tính năng duy nhất

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus

  • Gói phần mềm

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Hệ điều hành

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Hệ số khuôn

    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte B650M AORUS ELITE

Liên hệ
Mainboard Gigabyte TRX50 AI TOP

Mainboard Gigabyte TRX50 AI TOP

THÔNG SỐ KỸ THUẬT:

  • CPU

    AMD Socket sTR5, support for:
    AMD Ryzen™ Threadripper™ PRO 7000 processors/
    AMD Ryzen™ Threadripper™ 7000 Series processors
    (Go to GIGABYTE's website for the latest CPU support list.)

  • Chipset

    AMD TRX50

  • Memory

    Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
    8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
    - AMD Ryzen™ Threadripper™ PRO 7000 Processors support 8-Channel memory architecture
    - AMD Ryzen™ Threadripper™ 7000 Processors support Quad Channel memory architecture
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

  • Audio

    Realtek® ALC4080 CODEC (rear panel audio)
    - Support for DTS:X® Ultra
    - High Definition Audio
    - 2-channel
    Realtek® ALC897 CODEC (front panel audio)

  • LAN

    2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

  • Wireless Communication module

    Qualcomm® Wi-Fi 7 QCNCM865
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
    - AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode
    - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 5.0 x16 mode
    (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
    1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
    - AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode
    - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x16 mode

  • Storage Interface

    3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    - AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD
    - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x4/x2 SSD
    1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    - AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD
    * The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 7000 Processors.

    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+Intel® USB4® controller:
    - 2 x USB4® USB Type-C® ports on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+USB 3.2 Gen 1 Hub:
    - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    4 x PCIe power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    2 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x Clear CMOS button
    1 x reset button
    1 x reset jumper
    2 x temperature sensor headers
    1 x Clear CMOS jumper

  • Back Panel Connectors

    1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort In port
    1 x USB4® USB Type-C® port (DisplayPort)
    1 x USB4® USB Type-C® port
    6 x USB 3.2 Gen 2 Type-A ports (red)
    2 x RJ-45 port
    2 x audio jacks

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


    Noise detection

  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup

  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit
    (Go to GIGABYTE's website for operating system support information.)

  • Form Factor

    E-ATX Form Factor; 30.5cm x 33.0cm

Mainboard Gigabyte TRX50 AI TOP

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte A520M K V2 AM4

Bo Mạch Chủ – Mainboard Gigabyte A520M K V2 AM4

Thông số kỹ thuật:



CPU Socket AM4, hỗ trợ AMD Ryzen™ 5000 G-Series, Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 và Ryzen™ 3000 G-Series
Chipset AMD A520
Bộ nhớ 2 x DDR4 DIMM, hỗ trợ tối đa 64 GB (32 GB mỗi DIMM), hỗ trợ tốc độ từ 2133 MHz đến 5100(O.C.)
Card đồ họa tích hợp AMD Radeon™ Graphics, hỗ trợ 1 x D-Sub, độ phân giải tối đa 1920x1200@60Hz và 1 x HDMI, độ phân giải tối đa 4096x2160@60Hz
Âm thanh Realtek® Audio CODEC, âm thanh HD 2/4/5.1/7.1 kênh
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Khe cắm mở rộng 1 x PCI Express x16, 1 x PCI Express x1
Giao diện lưu trữ 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors, hỗ trợ RAID 0, 1, 10
USB 4 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 1 internal, 6 x USB 2.0/1.1
Kết nối I/O bên trong 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan header, 4 x SATA 6Gb/s, 1 x TPM header
Kết nối bảng phía sau 1 x PS/2 port, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks
BIOS 128 Mbit flash, AMI UEFI BIOS
Hệ điều hành Hỗ trợ Windows 11 64-bit, Windows 10 64-bit
Hệ số khuôn Micro ATX, 23.3cm x 19.8cm

Bo Mạch Chủ – Mainboard Gigabyte A520M K V2 AM4

Liên hệ
Mainboard Gigabyte X870E AORUS MASTER

Mainboard Gigabyte X870E AORUS MASTER

Mainboard Gigabyte X870E AORUS MASTER

Liên hệ

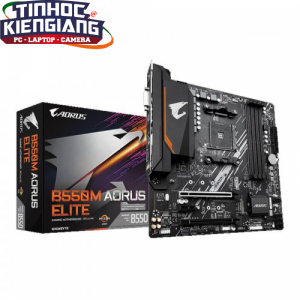

Bo Mạch Chủ - Mainboard Gigabyte B550M AORUS ELITE AM4

Bo Mạch Chủ – Mainboard Gigabyte B550M AORUS ELITE AM4

  • CPU

    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD B550

  • Memory

    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB

  • Audio

    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

  • LAN

    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

  • Expansion Slots

    1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 3.0 x4 mode
    1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode

  • Storage Interface

    1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10

  • USB

    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 2 x addressable LED strip headers
    6. 2 x RGB LED strip headers
    7. 1 x CPU cooler LED strip/RGB LED strip header
    8. 2 x M.2 Socket 3 connectors
    9. 4 x SATA 6Gb/s connectors
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x USB 3.2 Gen 1 header
    13. 1 x USB 2.0/1.1 header
    14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    15. 1 x serial port header
    16. 1 x Clear CMOS jumper
    17. 1 x Q-Flash Plus button

  • Back Panel Connectors

    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

  • Operating System

    1. Support for Windows 10 64-bit

  • Form Factor

    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte B550M AORUS ELITE AM4

Liên hệ
