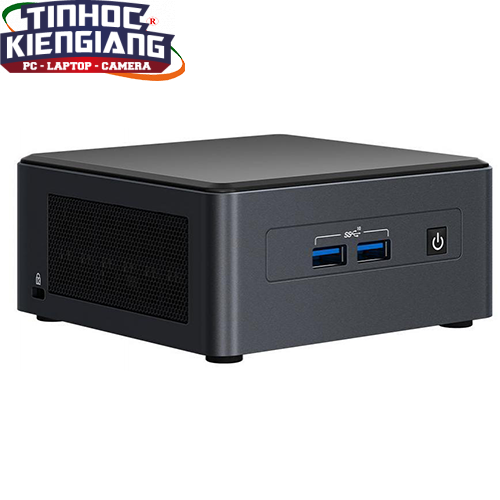

Máy Tính Bộ PC – MINI PC Intel i5-1145G7/Intel Iris Xe Graphics/Wifi 6 + Bluetooth/Ram Option/Ổ cứng Option (BNUC11TNHV50000)

Sản phẩm

Máy tính đồng bộ

Hãng sản xuất

Intel NUC

Model

RNUC11PAHI30000

Bộ vi xử lý

Intel® Core™ i3-1115G4 (Upto 4.10GHz, 2 nhân 4 luồng, 6MB Cache)

RAM

Không kèm sẵn, DDR4-3200 1.2V SO-DIMM tối đa 64GB

Ổ cứng

Không kèm sẵn, HDD & SSD, 2.5,M.2

Card đồ họa

Intel® UHD Graphics

Ô đĩa

Không có

Kết nối mạng

Ethernet Technology: 2.5 Gigabit Ethernet
Wireless LAN: Yes
Bluetooth: Yes

Keyboard & Mouse

Không có

Cổng kết nối

HDMI: Yes
Total Number of USB Ports: 7
Number of USB 3.1 Gen 2 Ports (Rear): 2
Number of Onboard USB 2.0 Ports: 1
USB Type-C (Rear): Yes
USB Type-C Detail: 2x Type-c
Number of SATA Interfaces: 2
Number of Thunderbolt 3 Ports: 2

Hệ điều hành

No OS

Bảo hành

36 tháng

ESSENTIALS

Supported Operating Systems

Windows 11 Home*, Windows 11 Pro*, Windows 10 Home, 64-bit*, Windows   10 IoT Enterprise*, Windows 10 Pro, 64-bit*, Red Hat Linux*, Ubuntu 20.04   LTS*

Board Number

NUC11TNBv7

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

3

TDP

28 W

DC Input Voltage Supported

12-20 VDC

Processor Included

Intel® Core™ i7-1185G7 Processor (12M Cache, up to 4.80 GHz, with   IPU)

Intel vPro® Platform Eligibility

Yes

Total Cores

4

Total Threads

8

Lithography

10 nm SuperFin

Max Turbo Frequency

4.80 GHz

MEMORY & STORAGE

Max Memory Size (dependent on memory type)

64 GB

Memory Types

DDR4-3200 1.2V SO-DIMMs

Max # of Memory Channels

2

Max # of DIMMs

2

ECC Memory Supported

No

PROCESSOR GRAPHICS

Integrated Graphics

Yes

Graphics Output

Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C

# of Displays Supported

4

EXPANSION OPTIONS

PCI Express Revision

Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations

PCIe x4 Gen 4: M.2 22x80 (key M)

PCIe x1 Gen 3: M.2 22x42 (key B)

PCIe x1: M.2 22x30 (key E)

M.2 Card Slot (wireless)

22x30 (E)

M.2 Card Slot (storage)

22x80 NVMe (M); 22x42 SATA (B)

I/O SPECIFICATIONS

# of USB Ports

4

USB Configuration

Front: 2x USB 3.2

Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0

Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)

Total # of SATA Ports

1

Serial Port via Internal Header

Yes

Integrated LAN

Intel® Ethernet Controller i225-LM

Integrated Wireless

Intel® Wi-Fi 6 AX201

Integrated Bluetooth

Yes

Additional Headers

Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power   connector

# of Thunderbolt™ Ports

1x Thunderbolt™ 4, 1x Thunderbolt™ 3

ADVANCED TECHNOLOGIES

Intel® Optane™ Memory Supported

No

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel vPro® Platform Eligibility

Yes

Intel® ME Firmware Version

15

TPM

Yes

TPM Version

2.0

Intel® Virtualization Technology (VT-x)

Yes

SECURITY & RELIABILITY

Intel® AES New Instructions

Yes

Intel® Trusted Execution Technology

Yes
