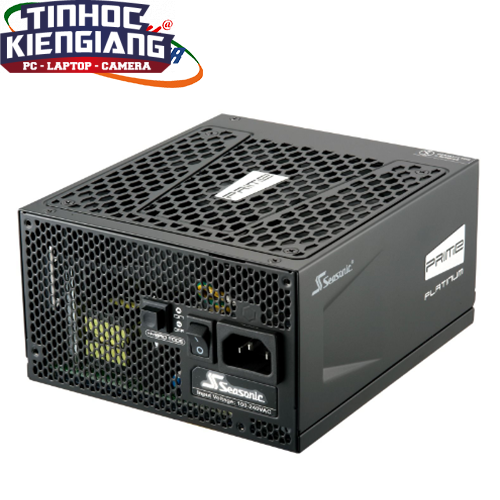

Nguồn máy tính SEASONIC Prime Ultra 750PD 750W 80 PLUS PLATINUM

Liên hệ

TỔNG CÔNG SUẤT: 750W

CHỨNG NHẬN: 80 PLUS®Platinum

DC OUTPUT: 12V 108A (MAX. 750W)

FAN: FDB 135mm, Premium Hybrid Fan Control – điều khiển tốc độ thông minh

CÁP: dạng RỜI (toàn bộ), sợi dẹt màu đen

Active PFC Full Range: 100 ~ 240V

KÍCH THƯỚC: 150 mm (W) x 170 mm (L) x 86 mm (H)

KẾT NỐI: MB 20+4pin * 1 / CPU 4+4pin * 2 / PCI-E * 12 / SATA * 12 / Molex 4pin * 5

Danh mục: Nguồn - SEASONIC

Nguồn máy tính SEASONIC Focus Plus GX-1000 1000W 80 PLUS GOLD

Technical Specifications
80PLUS®		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S3FC - Fanless until 30 % load
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 13 - 6.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	83 A	0.3 A	3 A
	Maximum Power	125 W		996 W	3.6 W	15 W
	Total continuous power	1000 W

Nguồn máy tính SEASONIC Focus Plus GX-1000 1000W 80 PLUS GOLD

Liên hệ

Nguồn máy tính SEASONIC Focus Plus GX-850 White 850W 80 PLUS GOLD

Công suất tiêu thụ	850 W
Nguồn đầu vào	100-240 V
Hiệu suất	80 Plus Gold
Quạt làm mát	1 x 120 mm
Cổng cắm	24-pin Main x 1
Cổng cắm	8-pin (4+4) EPS x 2
Cổng cắm	8-pin (6+2) PCIE x 6
Cổng cắm	SATA x 10
Thương hiệu	Seasonic
Thời gian bảo hành (tháng)	60
Đơn vị tính	Chiếc
Model	GX-850 White (SSR-850FX)

Nguồn máy tính SEASONIC Focus Plus GX-850 White 850W 80 PLUS GOLD

Liên hệ

Nguồn máy tính SEASONIC Focus GM-750 750W 80 PLUS GOLD

Technical Specifications
80PLUS^®		Gold
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-modular
Cable Information	Cable type	Webbed cables (attached) Flat black cables(modular)
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		5 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 10 - 5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
	Maximum Power	100 W		744 W	3.6 W	15 W
	Total continuous power	750 W

Nguồn máy tính SEASONIC Focus GM-750 750W 80 PLUS GOLD

Liên hệ

Nguồn máy tính SEASONIC Focus Plus GX-1000 White 1000W 80 PLUS GOLD

Technical Specifications
80PLUS®		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S3FC - Fanless until 30 % load
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 13 - 6.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	83 A	0.3 A	3 A
	Maximum Power	125 W		996 W	3.6 W	15 W
	Total continuous power	1000 W

Nguồn máy tính SEASONIC Focus Plus GX-1000 White 1000W 80 PLUS GOLD

Liên hệ

Nguồn máy tính SEASONIC Focus Plus GX-750 White 750W 80 PLUS GOLD

Mã hàng: SSR-750GX
Bảo hành: 60 Tháng
Hãng sản xuất: SEASONIC

TỔNG CÔNG SUẤT: 750W
CHỨNG NHẬN: 80 PLUS®Gold
DC OUTPUT: 12V 62A (MAX. 744W)
FAN: FDB 120mm, Hybrid Silent Fan Control - điều khiển tốc độ thông minh
CÁP: dạng RỜI (toàn bộ), sợi dẹt màu đen
Active PFC Full Range: 100 ~ 240V
KÍCH THƯỚC: 150 mm (W) x 140 mm (L) x 86 mm (H)
KẾT NỐI: MB 20+4pin * 1 / CPU 4+4pin * 2 / PCI-E * 4 / SATA * 8 / Molex 4pin * 3

Nguồn máy tính SEASONIC Focus Plus GX-750 White 750W 80 PLUS GOLD

Liên hệ

Nguồn máy tính SEASONIC Focus Plus GX-750 750W 80 PLUS GOLD

Mã hàng: SSR-750GX
Bảo hành: 60 Tháng
Hãng sản xuất: SEASONIC

Nguồn máy tính SEASONIC Focus Plus GX-750 750W 80 PLUS GOLD

Liên hệ

Nguồn máy tính SEASONIC Prime Ultra 750PD 750W 80 PLUS PLATINUM
