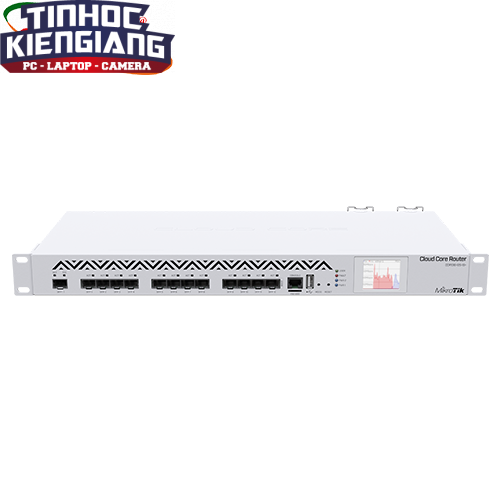

Router Mikrotik CCR1016-12S-1S+
Liên hệ
| Product Code | CCR1016-12S-1S+ |
| Ethernet | 12 x 10/100/1000 Ethernet ports |
| SFP DDMI | Yes |
| SFP ports | 12 |
| SFP+ ports | 1 |
| Architecture | TILE |
| CPU | TLR4-01680CG-12CE-A3a |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| CPU temperature monitor | Yes |
| Current monitor | Yes |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Operating System | RouterOS v6 |
| Number of USB ports | 1 |
| Serial port | RS232 |
| Voltage Monitor | Yes |
| Power jack | 2 |
| USB slot type | microUSB type AB |
| Max Power consumption | 44W |
| Tested ambient temperature | -20ºC ~ +60ºC |
Sản phẩm tương tự
Router Mikrotik RB4011iGS+RM
| Specifications | |
| Product code | RB4011iGS+RM |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1400 MHz |
| Dimensions | 228 x 120 x 30 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
| PoE out | Passive PoE up to 57V |
| PoE-out ports | Ether10 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 400 mA |
| Max out per port output (input | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 33 W |
| Max power consumption without attachments | 18 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 10 |
| Fiber | |
| SFP+ ports | 1 |
| Peripherals | |
| Serial port | RJ45 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Liên hệ
Router Mikrotik RB760iGS
| Specifications | |
| Product code | RB760iGS |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| Dimensions | 113 x 89 x 28 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| PoE out | Passive PoE up to 57V |
| PoE-out ports | Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 500 mA |
| Max out per port output (input | 500 mA |
| Max total out (A) | 500 mA |
| Max power consumption | 24 W |
| Max power consumption without attachments | 6 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| SFP ports | 1 |
| Peripherals | |
| Memory card type | microSD |
| Memory Cards | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Liên hệ
Router Mikrotik RB1100AHx4
| Product code | RB1100AHx4 |
| CPU | AL21400, 4 cores, 1.4 GHz |
| Size of RAM | 1 GB |
| Storage type | NAND |
| Storage size | 128 MB |
| 10/100/1000 Ethernet ports | 13 |
| Ethernet bypass | Ethernet 11/12 |
| Power jack | 2x IEC. 100 V - 240 V |
| DC telecom power | 20 V - 57 V (-48 V supported) |
| PoE input | Passive, 802.3at. 20 V - 57 V |
| Redundant power supply | Yes |
| Voltage monitor | Yes |
| PCB temperature monitor | Yes |
| Current monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Operating temperature | -40°C .. +70°C tested |
| Operating system | RouterOS, level 6 license |
| Max Power consumption | 20 W |
| microSD | 1 |
| Serial port | RS232 |
| Beeper | Yes |
Liên hệ
Router Mikrotik CCCR1016-12G
| Specifications | |
| Product code | CCR1016-12G |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 355x145x44mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 42 W |
| Max power consumption without attachments | 37 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 12 |
| Peripherals | |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Liên hệ
Router Mikrotik RB962UiGS-5HacT2HnT
| Product Code | RB962UiGS-5HacT2HnT |
| Ethernet | 5 x 10/100/1000 Ethernet ports |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| CPU | QCA9558 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Operating System | RouterOS |
| License level | 4 |
| PCB temperature monitor | Yes |
| Wireless 2.4 GHz chip model | QCA9558 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz standards | 802.11ac |
| PoE in | Passive PoE |
| PoE Out | Passive PoE |
| PoE-out ports | Ether5 |
| Number of USB ports | 1 |
| Number of chains | 3 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| SFP Port | 1 |
| Voltage Monitor | Yes |
| Max Power consumption | 17W |
| Power Jack | 1 |
| DC Jack | 11-57V |
| Tested ambient temperature | -20ºC .. +60ºC |
| Dimensions | 114 x 137 x 29 mm |
Router Mikrotik RB2011UiAS-IN
Specifications
| Details | |
|---|---|
| Product code | RB2011UiAS-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 214mm x 86mm for PCB |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $119.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 6 W |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input | 510 mA |
| Max total out (A) | 510 mA |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 2 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE/RED, EAC, ROHS |
Liên hệ
Router Mikrotik RBD52G-5HacD2HnD-TC
| Specifications | |
| Product code | RBD52G-5HacD2HnD-TC |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 34 x 119 x 98mm |
| License level | 4 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 50°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-30 V |
| Max power consumption | 21 W |
| Max power consumption without attachments | 16 W |
| Wireless | |
| AC speed | AC1200 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Router Mikrotik CCR1036-12G-4S
| Product Code | CCR1036-12G-4S-EM |
| Ethernet | 12 x 10/100/1000 Ethernet ports |
| SFP DDMI | Yes |
| SFP ports | 4 |
| Architecture | TILE |
| CPU | TLR4-03680CG-12CE-A3b |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| CPU temperature monitor | Yes |
| Current monitor | Yes |
| Size of RAM | 16 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Operating System | RouterOS v6 (64bit) |
| PCB temperature monitor | Yes |
| Number of USB ports | 1 |
| Serial port | RS232 |
| Voltage Monitor | Yes |
| Power jack | 1 |
| USB slot type | microUSB type AB |
| Memory cards | 1 micro SD |
| Max Power consumption | 60W |
| Tested ambient temperature | -20ºC ~ +60ºC |
| Dimensions | 355 x 145 x 44 mm |
Liên hệ
