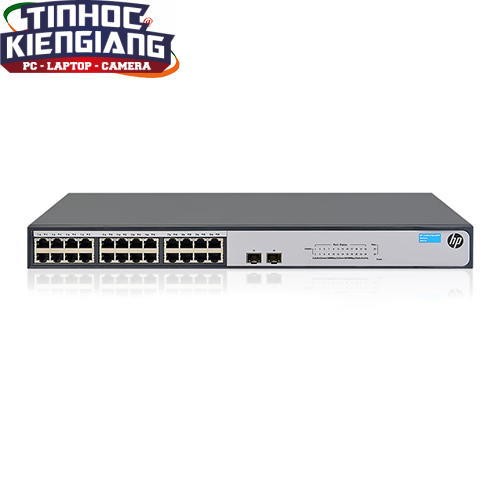

Thiết bị chuyển mạch Switch HP 24 Ports 1420-24G-2SFP+ JH018A
Liên hệ
| odel | JH018A |
| Type | HPE Officeconnect 1420 24G 2SFP Switch |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only 2 fixed 1000/10000 SFP+ ports |
| Throughput | up to 65.5 Mp/s (64-byte packets) |
| Switching capacity | 88 Gb/s |
| Dimensions | 4.4 x 4.4 x 23.8 cm(1.73 x 17.32 x 9.37in) (1U height) |
| Weight | 2.9 kg (4.85 lb) |
Sản phẩm tương tự
Thiết bị chuyển mạch Switch HP Aruba 2530-24-PoE+ Switch – J9779A
|
I/O ports and slots |
24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full |
|
|
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
||
|
2 fixed Gigabit Ethernet SFP ports |
||
|
1 dual-personality (RJ-45 or USB micro-B) serial console port |
||
|
Physical characteristics |
Dimensions |
17.4(w) x 12.7(d) x 1.75(h) in (44.2 x 32.26 x 4.45 cm) (1U height) |
|
Weight |
8.4 lb (3.81 kg) |
|
|
Memory and processor |
Processor |
ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
|
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
|
|
Performance |
IPv6 Ready Certified |
|
|
100 Mb Latency |
|
|
|
1000 Mb Latency |
|
|
|
Throughput |
up to 9.5 million pps (64-byte packets) |
|
|
Switching capacity |
12.8 Gbps |
|
|
MAC address table size |
16000 entries |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Non-operating/ |
-40°F to 158°F (-40°C to 70°C) |
|
|
Storage temperature |
||
|
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
|
|
Altitude |
up to 10,000 ft (3 km) |
|
|
Acoustic |
Power: 31.7 dB, Pressure: 40.4 dB |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
99 BTU/hr (104.45 kJ/hr), (switch only: 99 BTU/hr; combined switch + max. PoE devices: 809 BTU/hr) |
|
|
AC voltage |
100-127/200-240 VAC |
|
|
Current |
2.8/1.4 A |
|
|
Maximum power rating |
237 W |
|
|
Idle power |
21.8 W |
|
|
PoE power |
195 W |
|
|
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
|
|
Emissions |
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A |
|
|
Immunity |
Generic |
EN 55024, CISPR 24 |
|
EN |
EN 55024, CISPR 24 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Management |
IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); |
|
|
IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
||
|
Notes |
IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision 'B' or later (product number ends with the letter 'B' or later, e.g., J4858B, J4859C) are required. |
|
Thiết bị chuyển mạch Switch HP 1950-24G-2SFP+-2XGT JG960A
|
Differentiator |
Smart web-managed Gigabit Ethernet switch with 28 total ports: 24-ports Gigabit 10/100/1000, 2-ports 10-Gigabit 10GBASE-T and 2-ports 10-Gigabit SFP+. Layer 3 static routing, ACLs, three forms of Spanning Tree, 802.1X network login. True stacking. |
|
Ports |
(24) RJ45 auto-negotiating 10/100/1000 ports |
|
(2) SFP+ fixed 1000/10000 SFP+ ports |
|
|
(2) RJ45 1/10GBASE-T ports |
|
|
Memory and processor |
128 MB flash |
|
Packet buffer size: 1.5 MB |
|
|
1 GB SDRAM |
|
|
Latency |
100 Mb Latency: |
|
1000 Mb Latency: |
|
|
10 Gbps Latency: |
|
|
Throughput |
Up to 95.2 Mpps |
|
Routing/ Switching capacity |
128 Gbps |
|
Stacking capabilities |
Virtual |
|
4 switches |
|
|
Minimum dimensions |
43.6 x 16 x 4.4 cm |
|
Weight |
3 kg |
Thiết bị chuyển mạch Switch HP Aruba Instant On 1930 24G 4SFP/SFP+ (JL682A)
| Model | Aruba Instant On 1930 24G 4SFP/SFP+ (JL682A) |
| I/O ports and slots | - 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only - 4 SFP+ 1/10GbE ports |
| Physical Characteristics | |
| Dimensions | 17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm) (1U height) |
| Weight | 5.32 lb (2.41 kg) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Performance | |
| 100 Mb Latency | |
| packet size | 64B |
| 1000 Mb Latency | |
| packet size | 64B |
| 10000 Mb Latency | |
| packet size | 64B |
| Throughput (Mpps) | 95.23 Mpps |
| packet size | 64B |
| switching capacity | 128 Gbps |
| Routing Table size (# of static entries) |
32 static entries |
| MAC Address table size (# of entries) |
16,000 entries |
| Reliability MTBF (years) | 158 |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Power: 0 dB no fan |
| Electrical Characteristics | |
| Frequency | 50/60 Hz |
| AC voltage | 100 - 127 / 200 - 240 VAC |
| Current | 0.5/0.3 A |
| Maximum power rating | 22.6 W |
| Idle power | 9.3 W |
| PoE power | |
| Power Supply | Internal power supply |
Thiết bị chuyển mạch Switch HP Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch – JL684A
| Model | Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W (JL684A) |
| I/O ports and slots | - 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only - 4 SFP+ 1/10GbE ports |
| Physical Characteristics | |
| Dimensions | 17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height) |
| Weight | 8.10 lb (3.67kg) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Performance | |
| 100 Mb Latency | |
| packet size | 64B |
| 1000 Mb Latency | |
| packet size | 64B |
| 10000 Mb Latency | |
| packet size | 64B |
| Throughput (Mpps) | 95.23 Mpps |
| packet size | 64B |
| switching capacity | 128 Gbps |
| Routing Table size (# of static entries) |
32 static entries |
| MAC Address table size (# of entries) |
16,000 entries |
| Reliability MTBF (years) | 71 |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Pressure: 32.2 dBA Power: 58.5 dB |
| Electrical Characteristics | |
| Frequency | 50/60 Hz |
| AC voltage | 100 - 127 / 200 - 240 VAC |
| Current | 4.8/2.4 A |
| Maximum power rating | 439.0 W |
| Idle power | 20.9 W |
| PoE power | 370 W Class 4 PoE |
| Power supply | Internal power supply |
Thiết bị chuyển mạch Switch HP Aruba 2530 8G 8Ports – J9777A
|
/O ports and slots |
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; |
|
|
1000BASE-T: full only |
||
|
2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports |
||
|
1 dual-personality (RJ-45 or USB micro-B) serial console port |
||
|
Physical characteristics |
Dimensions |
10(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) |
|
Weight |
2.0 lb (0.91 kg) |
|
|
Memory and processor |
Processor |
ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
|
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
|
|
Performance |
IPv6 Ready Certified |
|
|
100 Mb Latency |
|
|
|
1000 Mb Latency |
|
|
|
Throughput |
up to 14.8 million pps (64-byte packets) |
|
|
Switching capacity |
20 Gbps |
|
|
MAC address table size |
16000 entries |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Non-operating/ |
-40°F to 158°F (-40°C to 70°C) |
|
|
Storage temperature |
||
|
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
|
|
Altitude |
up to 10,000 ft (3 km) |
|
|
Acoustic |
Power: 0 dB, Pressure: 0 dB |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
63 BTU/hr (66.46 kJ/hr), (switch only: 63 BTU/hr) |
|
|
AC voltage |
100-127/200-240 VAC |
|
|
Current |
0.5 A |
|
|
Maximum power rating |
18.6 W |
|
|
Idle power |
13.6 W |
|
|
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
|
|
Emissions |
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A |
|
|
Immunity |
Generic |
EN 55024, CISPR 24 |
|
EN |
EN 55024, CISPR 24 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Management |
IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
|
|
Notes |
IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision 'B' or later (product number ends with the letter 'B' or later, e.g., J4858B, J4859C) are required. |
|
Thiết bị chuyển mạch Switch HP 48 Ports OfficeConnect 1920S 48G 4SFP – JL382A
| Model | JL382A |
| Device Type | Switch - 48 ports - L3 - Managed |
| Ports | (48) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports |
| Processor | ARM Cortex-A9 @ 400 MHz |
| RAM | 256 MB SDRAM |
| Flash | 64 MB |
| Packet buffer size | 1.5 MB |
| Latency | 100 Mb Latency: 1000 Mb Latency: |
| Throughput | 77.3 Mpps |
| Routing/Switching capacity | 104 Gbps |
| MTBF | 61.7 years |
| MAC address size | 16K entries |
| Routing table entries | 32 entries |
| Jumbo frame support | 9216 bytes |
| Features | Flow control, auto-negotiation, auto-uplink (auto mdi/mdi-x), IGMP snooping, ipv6 support, half duplex mode, full duplex mode, spanning tree protocol (STP), rapid spanning tree protocol (RSTP), multiple spanning tree protocol, ACL, QoS, fanless, DHCP relay, DHCP client, port isolation, CoS, link aggregation, NTP, LLDP-MED |
| Layer 3 Routing | IGMP, Static IPv4 routing |
| Voltage | AC 120/230 V (50/60 HZ) |
| Power Consumption | 32.2W |
| Operating temperature | 0°C to 40°C |
| Operating relative humidity | 15% to 95%, noncondensing |
| Dimensions | 44.25 x 24.61 x 4.39 cm |
| Weight | 3.31kg |
Thiết bị chuyển mạch Switch HP OfficeConnect 1420 8G PoE+ (64W) – JH330A
| Model | JH330A |
| Ports | 8 RJ-45 autosensing 10/100/1000 ports Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Throughput | 11.8 Mpps |
| Routing/Switching | 16 Gbps |
| Latency | 100 Mb Latency: 1000 Mb Latency: |
| MAC address size | 4096 entries |
| Packet buffer size | 1.5 MB |
| Power over Ethernet | PoE+ |
| Power Budget | 64W |
| Voltage | 100-240 VAC, 50/60Hz |
| Max. Power rating | 80W |
| Operating temperature | 0°C to 40°C |
| Operating relative humidity | 15% to 95%, noncondensing |
| Mounting & Enclosure | Desktop (rear port) |
| Acoustic | Fanless |
| Dimensions | 23.47 x 10.49 x 2.69 cm (1U height) |
| Weight | 0.7kg |
Thiết bị chuyển mạch Switch HP OfficeConnect 1420 24G PoE+ (124W) Switch – JH019A
| Model | JH019A |
| Type | HPE Officeconnect 1420 24G POE+ (124W) Switch |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only supports a maximum of 24 autosensing 10/100/1000 ports |
| Throughput | up to 35.7 Mp/s (64-byte packets) |
| Switching capacity | 48 Gb/s |
| Dimensions | 4.4 x 4.4 x 23.8 cm(1.73 x 17.32 x 9.37in) (1U height) |
| Weight | 3.3 kg (4.85 lb) |
