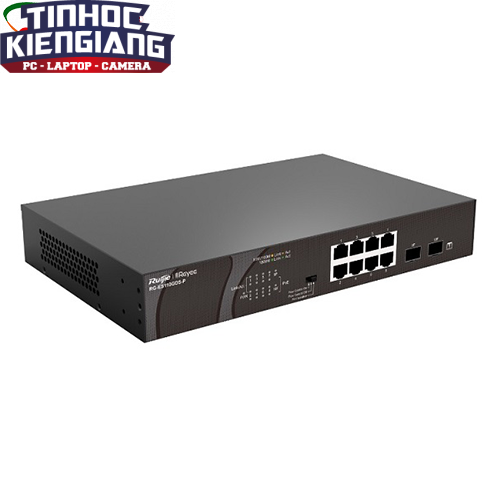

Thiết bị chuyển mạch Switch RUIJIE RG-ES110GDS-P 8-Port GE PoE + 2-Port GE SFP
Liên hệ
– Support 8 x 10/100/1000M copper ports and 2 x 1000M uplink SFP ports: 8 ports for PoE/PoE+, with the maximum PoE power up to 120W; unmanaged switch.
– Max. PoE budget: 120W.
– Layer Type: Unmanaged.
– Switching capacity: 20Gbps.
– Forwarding rate: 14.88Mpps.
– Dimensions (W x D x H): 280 x 180 x 44 mm.
Specifications
| Basic | |
| Downlink Ports | 8 x 10/100/1000BASE-T |
| Uplink Ports | 2 x 1000BASE-X SFP |
| PoE/PoE+ ports | 8 |
| Max. PoE budget | 120W |
| Layer Type | Unmanaged |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 4000 |
| Dimensions (W x D x H) | 280 mm x 180 mm x 44 mm |
| Weight (With package) | 2.26 kg |
| Software Features | |
| Auto/Full/Half Duplex Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Switching model | Store-and-forward |
| Cloud Management | Cloud monitoring |
| Hardware Features | |
| Flow Control | Yes |
| Port Isolation | Yes |
| Power Consumption | ≤130W |
| Power Supplies | 100V AC to 240V AC, 2.5A |
| Surge Protection | 6kV |
| Fan | Fanless |
| Operating Temperature | 0°C to 45°C (32°F to 109°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Certificate | CE, RoHS |
