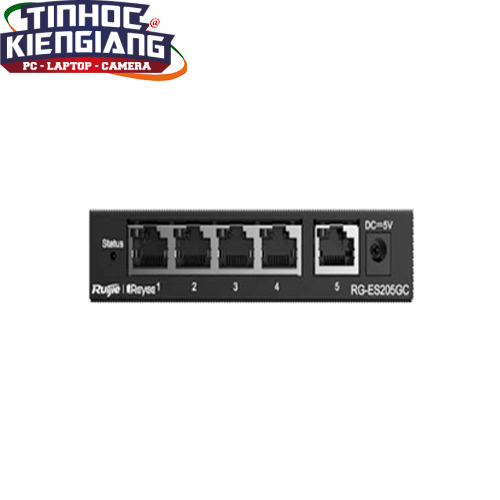

Thiết bị chuyển mạch Switch RUIJIE RG-ES205GC 5-Port Gigabit Smart
Liên hệ
5-Port Gigabit Smart Switch, 5 Gigabit RJ45 Ports, Desktop Steel Case
Sản phẩm tương tự
Thiết bị chuyển mạch Switch RUIJIE RG-EG105G-P V3 5-port Gigabit Cloud Managed
| Model | RG-EG105G-P |
| Port | 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports, LAN3 can be switched to WAN1 port) |
| RAM | 128MB |
| Flash | 16MB |
| Maximum number of clients | Up to 100 concurrent clients |
| Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled) |
| Local power supply | Support 220V AC local power supply |
| Power consumption | |
| Network | |
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
| Other protocols | DHCP Server, DHCP Client, DHCP Option43/ 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
| Gateway | |
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
| Traffic audit | Real-time traffic audit, IP traffic visualization |
| Behavior management | Time-based and IP policy-based access control |
| VPN | IPsec VPN (8 tunnels) server and client |
| Wireless management | |
| Management capacity | In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches: 128 |
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
| Upgrade management | Per-device upgrade, batch upgrade |
| Value added features | |
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
| Management | Eweb and Ruijie Cloud |
| Physical | |
| Dimensions | 206.5×108.5×28 (mm) |
| Weight | 0.84kg |
| Working Temperature | 0℃~40℃ |
| Storage temperature | -10℃~70℃ |
| Working humidity | 10%~90% RH non-condensing |
| Storage humidity | 5%~95% RH non-condensing |
Thiết bị chuyển mạch Switch RUIJIE RG-S5750C-28SFP4XS-H 28-port GE SFP + 8-port Combo GE RJ45 SFP+
- Hỗ trợ 8 (Combo) GE RJ45.
- Hỗ trợ 28 cổng GE SFP, 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 222Mpps.
- Kích thước (WxDxH): 440×300×44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28SFP4XS-H |
| Fixed port | GE RJ45 port: 8 (Combo) GE SFP port: 28 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 222Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 300 x 44 mm Unit weight: 4.2kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 140W - Idle power rating: 55W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1, IEC 60950-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 506320 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-EG310GH-P-E 10-Port High Performance Cloud Managed PoE
- 1.5Gbps throughput high-performance VPN router for office network.
- Provide powerful VPN for branches and remote workers.
- Provide traffic visualization monitoring, everything in a glance.
- New efficient way of bandwidth management based on application and user.
- Unbreakable multi-WAN, intelligent load balancing.
Specifications
| Physical Basic | |
| Fixed WAN Port | 1×10/100/1000 Base-T |
| Fixed LAN Port(s) | 6×10/100/1000 Base-T |
| LAN/WAN Switchable Port(s) | 3×10/100/1000 Base-T |
| Performance | 1.5Gbps (1518 Byte, NAT+Flow Audit) 1000Mbps (1518 Byte, NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control) |
| Throughput | 1.5Gbps |
| Recommended Clients | 300 |
| Power Consumption | ≤ 130W (With PoE full load) |
| Hardware Feature | |
| CPU | 2 Cores, 1.35 GHz |
| SDRAM/RAM | 512 MB |
| Flash Memory | 256 MB SPI NAND FLASH |
| Power Supplies | DC 54V/2.4A (Adapter included) |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 110 W |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm (Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.39 in. ) |
| Indicator | 1×system LED indicator |
| Buttons | 1×Reset button |
| Dimensions (W × D × H) | 202 mm x 28 mm x 108 mm |
| Weight | 0.55 kg |
| Installation | Desk-mounted |
| Dissipation Mode | Air-cooled Heat Dissipation |
| Fan | Fansless |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% Noncondensing |
| Storage Humidity | 5% to 90% Noncondensing |
| Port Surge | 4 kV |
| IP(Ingress Protection) | IP20 |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-ES118S-LP 16 Port 100Mbps + 2 Gigabit RJ45/SFP
4-Port 10/100Mbps + 2 Uplink port 10/100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 58W, unmanaged switch, desktop
Thiết bị chuyển mạch Switch Ruijie RG-ES08G-L (8 port/ 10/100/1000 Mbps)
| Tính năng |
Chống sét 4kV |
| Tốc độ |
10/100/1000 Mbps |
| Nguồn |
5 V DC power adapter, 1 A (5 W) |
| Cổng kết nối |
8 x 10/100/1000 Mbps LAN RJ-45 |
| Nhiệt độ hoạt động |
0°C đến 40°C |
| MAC Address Table |
4K |
| Kích thước |
124 mm x 60 mm x 24 mm |
| Khối lượng |
0.27 kg |
| Bảo hành |
36 tháng |
| Nhiệt độ lưu trữ |
-40°C đến 70°C |
| Độ ẩm hoạt động |
10% đến 20%, không ngưng tụ |
| Độ ẩm lưu trữ |
10% đến 20%, không ngưng tụ |
| Băng thông chuyển mạch |
16 Gbps |
Thiết bị chuyển mạch Switch RUIJIE RG-S5750-48GT4XS-HP-H 48-port 10/100/1000BASE-T PoE+ 4-port 10GE SFP+
- Hỗ trợ 48 cổng 10/100/1000BASE-T PoE+.
- Hỗ trợ 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 132Mpps.
- Công suất PoE: 1480W (với 2 RG-PA1150P-F).
- Kích thước (WxDxH): 440 x 420 x 44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28SFP4XS-H |
| Fixed port | GE RJ45 port: 48 10GE SFP+ port: 4 |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 132Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Power over Ethernet | Maximum PoE power budget: 1480W (w/2 RGPA1150P-F) PoE/PoE+ enabled port: 48 Standard: IEEE802.3af/at |
| Physical | Dimensions (WxDxH): 440 x 420 x 44 mm/ 440 x 450 x 44mm w/ PGPA1150P-F Unit weight: 6.1kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 2300W - Idle power rating: 70W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 451400 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-EG3250 8-port 1000BASE-T Smart
- 8 cổng 1000BASE-T ports
- 1 SFP port và 1 SFP+ port (Non-combo)
- Hỗ trợ lên đến 6 cổng WAN
- Memory: 2G
- Flash: 8M SPIFLASH
- Cache: 100GB
- Hỗ trợ 2000 user
- Dễ dàng quản lý và cấu hình qua Ruijie cloud
- Tích hợp sẵn ổ cứng 1TB
- Hỗ trợ 1000 kênh VPN (IPsec)
- Hỗ trợ quảng cáo
- Cân bằng tải giữa các đường truyền internet
- Các ứng dụng cấp doanh nghiệp: HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS, ...
- Hỗ trợ cập nhật thư viện signature của các ứng dụng mobile/windows (facebook, youtube, torrent..) để quản lý/ngăn chặn
- Nguồn điện: 100-240VAC, 50-60Hz, 0.65A
- Kích thước: 440 × 200 × 43.6 mm
- Nhiệt độ hoạt động: 0°C~40°C
Thiết bị chuyển mạch Switch RUIJIE RG-S5750C-28GT4XS-H 28-port GE RJ45 + 4-port 10GE SFP+
- Hỗ trợ 28 cổng GE RJ45 port.
- Hỗ trợ 4 (Combo) cổng GE SFP.
- Hỗ trợ 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 222Mpps.
- Kích thước (WxDxH): 440 x 280 x 44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28GT4XS-H |
| Fixed port | GE RJ45 port: 28 GE SFP port: 4 (Combo) 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 222Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 280 x44 mm Unit weight: 3.9kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 140W - Idle power rating: 45W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1, IEC 60950-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 555960 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.
