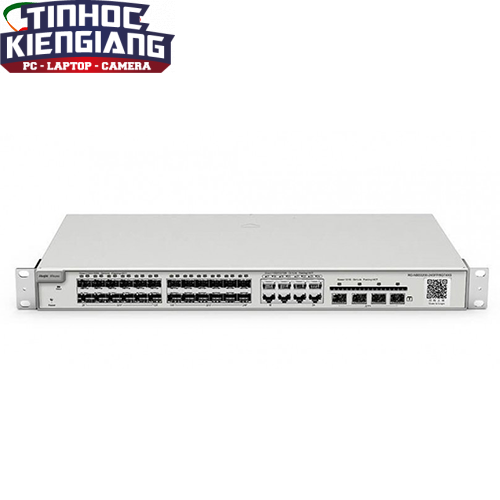

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-24SFP/8GT4XS 24-Port SFP L2 Managed Switch

Liên hệ



Model RG-NBS3200-24SFP/8GT4XS
Fixed ports 24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports
Switching capacity 336Gbps
Packet forwarding rate 96Mpp
MAC address Support static MAC address, MAC address filtering
MAC address table size 16K
Number of VLANs 4094
Link aggregation Support
Port mirroring Many-to-one mirroring
Spanning tree STP, RSTP
LLDP Support
ACL IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP)
QoS Port-based speed limit (ingress/egress)
Security Port protection
  Hardware CPP
Management Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP DHCP snooping
EEE Support
Physical specifications
Dimensions 440×267.5×43.6mm
Temperature Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 70 ℃
Humidity Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH
