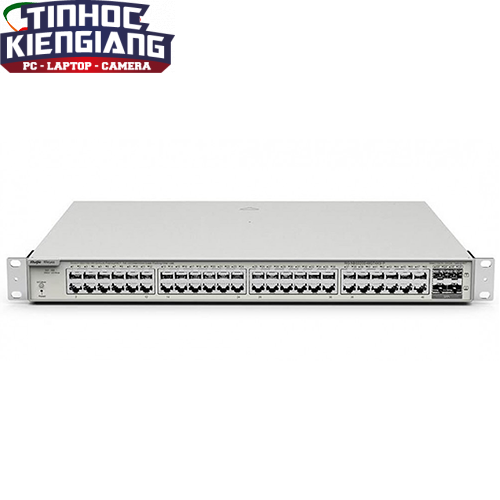

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-48GT4XS-P 48-Port 10G L2 Managed POE
Liên hệ
| Model | RG-NBS3200-48GT4XS-P |
| Fixed ports | 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 132Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×357.6×43.6mm |
| PoE | 48 Base-T ports (support PoE and PoE+) |
| Maximum PoE / PoE+ output power per switch: 370W | |
| Maximum output power per port: 30W | |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |
Sản phẩm tương tự
Thiết bị chuyển mạch Switch RUIJIE RG-S5750-48GT4XS-HP-H 48-port 10/100/1000BASE-T PoE+ 4-port 10GE SFP+
- Hỗ trợ 48 cổng 10/100/1000BASE-T PoE+.
- Hỗ trợ 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 132Mpps.
- Công suất PoE: 1480W (với 2 RG-PA1150P-F).
- Kích thước (WxDxH): 440 x 420 x 44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28SFP4XS-H |
| Fixed port | GE RJ45 port: 48 10GE SFP+ port: 4 |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 132Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Power over Ethernet | Maximum PoE power budget: 1480W (w/2 RGPA1150P-F) PoE/PoE+ enabled port: 48 Standard: IEEE802.3af/at |
| Physical | Dimensions (WxDxH): 440 x 420 x 44 mm/ 440 x 450 x 44mm w/ PGPA1150P-F Unit weight: 6.1kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 2300W - Idle power rating: 70W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 451400 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-WS6008
- Thiết bị điều khiển WIFI thế hệ mới.
- Hỗ trợ 6 cổng 1000BASE-T.
- Hỗ trợ 2 cổng 1000BASE-T/1000BASE-X combo.
- Hỗ trợ 1 cổng Console Port.
- Hỗ trợ 1 cổng USB ports.
- Tích hợp sẵn license cho 32 Access Point wifi (Tối đa mở rộng lên đến 224 APs hoặc 448 wall APs).
- Hỗ trợ tối đa: 6.400 users.
- Hỗ trợ 4,094 VLAN.
- LAN Protocols: ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s.
- 802.11 LAN Protocols: 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac.
- Các chứng nhận: GB9254, EN301 489, GB4943, EN/IEC 60950-1.
Thiết bị chuyển mạch Switch RUIJIE RG-ES106D-P 4-Port POE + 2 Uplink port 10/100Mbps
4-Port 10/100Mbps + 2 Uplink port 10/100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 58W, unmanaged switch, desktop
Thiết bị chuyển mạch Switch RUIJIE RG-EG305GH-P-E 5-Port High Performance Cloud Managed PoE
- 1.5Gbps throughput high-performance VPN router for office network.
- Provide powerful VPN for branches and remote workers.
- Provide traffic visualization monitoring, everything in a glance.
- New efficient way of bandwidth management based on application and user.
- Unbreakable multi-WAN, intelligent load balancing.
Specifications
| Physical Basic | |
| Fixed WAN Port | 1×10/100/1000 Base-T |
| Fixed LAN Port(s) | 1×10/100/1000 Base-T |
| LAN/WAN Switchable Port(s) | 3×10/100/1000 Base-T |
| Performance | 1.5Gbps (1518 Byte, NAT+Flow Audit) 1000Mbps (1518 Byte, NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control) |
| Throughput | 1.5Gbps |
| Recommended Clients | 300 |
| Power Consumption | ≤ 80 W (With PoE full load) |
| Hardware Feature | |
| CPU | 2 Cores, 1.35 GHz |
| SDRAM/RAM | 512 MB |
| Flash Memory | 256 MB SPI NAND FLASH |
| Power Supplies | DC 54V/1.48A (Adapter included) |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 60W |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm (Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.39 in. ) |
| Indicator | 1×system LED indicator |
| Buttons | 1×Reset button |
| Dimensions (W × D × H) | 202 mm x 28 mm x 108 mm |
| Weight | 0.5 kg |
| Installation | Desk-mounted |
| Dissipation Mode | Air-cooled Heat Dissipation |
| Fan | Fansless |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% Noncondensing |
| Storage Humidity | 5% to 90% Noncondensing |
| Port Surge | 4 kV |
| IP(Ingress Protection) | IP20 |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch Ruijie RG-ES08G-L (8 port/ 10/100/1000 Mbps)
| Tính năng |
Chống sét 4kV |
| Tốc độ |
10/100/1000 Mbps |
| Nguồn |
5 V DC power adapter, 1 A (5 W) |
| Cổng kết nối |
8 x 10/100/1000 Mbps LAN RJ-45 |
| Nhiệt độ hoạt động |
0°C đến 40°C |
| MAC Address Table |
4K |
| Kích thước |
124 mm x 60 mm x 24 mm |
| Khối lượng |
0.27 kg |
| Bảo hành |
36 tháng |
| Nhiệt độ lưu trữ |
-40°C đến 70°C |
| Độ ẩm hoạt động |
10% đến 20%, không ngưng tụ |
| Độ ẩm lưu trữ |
10% đến 20%, không ngưng tụ |
| Băng thông chuyển mạch |
16 Gbps |
Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-24GT8XS-X 24-Port 10/100/1000BASE-T + 8-Port 1G/10G SFP+
- 24 x 10/100/1000BASE-T, 8 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
- Switching Capacity: 880 Gbps/7.92 Tbps.
- MAC Address: 64K.
- Power Consumption (full load): 60W.
- Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 24x 10/100/1000BASE-T, 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 60W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
- Bảo hành: 3 năm.
Thiết Bị Mạng Switch 16-port Ruijie (RG-ES118FGS-LP)
Thông Số Kỹ Thuật:
- 16 cổng 10/100 BASE-T PoE/PoE+, tổng công suất PoE 120W.
- 2 cổng đồng uplink 10/100/1000Mbps Base-T với 2 cổng combo.
- Tốc độ chuyển mạch: 7.2 Gbps.
- Tốc độ chuyển gói tin: 5.35 Mpps.
- Half-duplex, full-duplex, auto-negotiation mode, support auto MDI/MDIX.
- Hỗ trợ 3 mode: Flow Control On, Flow Control Off, Port Isolation.
- Địa chỉ MAC: 8K.
- Bảo hành: 36 Tháng
Thiết bị chuyển mạch Switch RUIJIE RG-EG209GS 9-Port Gigabit Cloud Managed SFP
- LAN/WAN switchable SFP port for adding optical fiber connectivity.
- User friendly configuration, easy to learn.
- Intelligent load balancing and link redundancy between multiple WAN ports.
- New efficient way of bandwidth management based on application and user.
- Network interface: 8 x 10/100/1000 Base-T, 1 × 1G Base-X SFP.
- Max. WAN Ports: 4 × 10/100/1000 Base-T.
- CPU: Dual Cores, 880MHz.
- RAM: 256MB DDRIII.
- Recommended Concurrent Users: 200.
- Recommended Bandwidth: 600Mbps.
- Dimension: 202 x 108 x 28 mm.
- Weight: 0.5kg.
- Power Supply: 100~240V AC, 50/60Hz.
- Power Consumption:
- Certifications: CE, ROHS.
- Operating Temperature: 0°C~40°C.
- Bảo hành: 3 năm.
