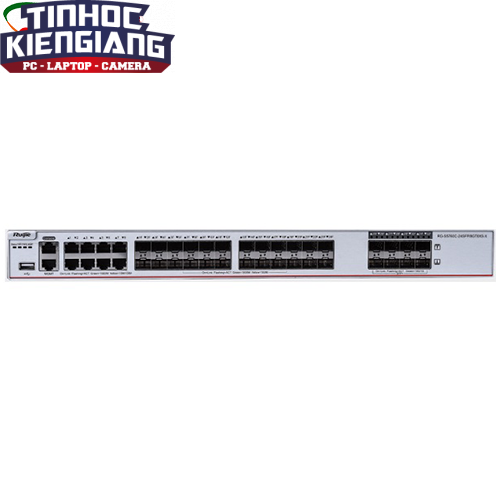

Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-24SFP/8GT8XS-X 24-Port Gigabit SFP + 8-Port 10/100/1000BASE-T + 8-Port 1G/10G SFP+
Liên hệ
– 24 x 1000M SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 x 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
– Switching Capacity: 880 Gbps/7.92 Tbps.
– MAC Address: 64K.
– Power Consumption (full load): 77W.
– Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 24 x Gigabit SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 77 W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
– Bảo hành: 3 năm.
