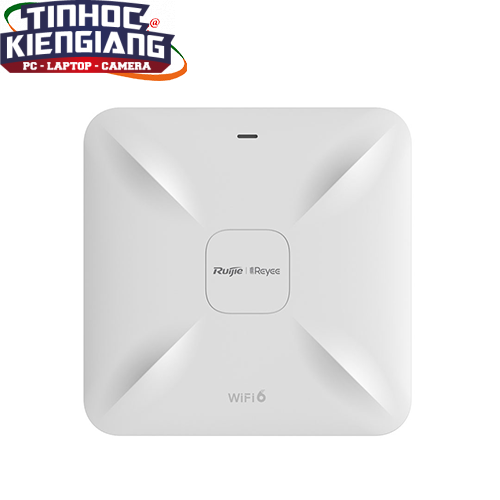

Thiết bị mạng – Router Wi-Fi RUIJIE RG-RAP2260(E) AX3200 Wi-Fi 6 ốp trần hoặc gắn tường
Liên hệ
– Tốc độ lên đến 1775Mbps
– Hỗ trợ 2 băng tần 2.4GHz và 5GHz
– Chuẩn 802.11a/b/g/n/ac Wave1/Wave2, MU-MIMO
– Hỗ trợ tối đa 512 người dùng | 8 SSID
– Số lượng người dùng truy cập đồng thời đề xuất là 120
– Thiết bị mạng Wifi RUIJIE RG-RAP2260 (E) có 1 cổng 2.5GE, 1 cổng 1G, PoE LAN1.
– Hỗ trợ nguồn 802.3af (15.4W) hoặc 802.3at (30W) PoE
– Hỗ trợ nguồn DC 12V 1.5A
– Hỗ trợ Roamming Layer 2, Layer 3
– Thiết bị đã bao gồm chân đế gắn tường (Mount-kit)
* Thiết bị chưa bao bao gồm nguồn
Sản phẩm tương tự
Bộ cấp nguồn PoE RUIJIE RG-E-130(GE)
- Công suất 30W/53V DC.
- Tương thích chuẩn IEEE 802.3af.
- Safe: Low Power Devices Receive Only the Power They Need.
- Hỗ trợ 1 cổng PoE (1000Base-T, PoE+/ 802.3at).
- Thiết kế nhỏ gọn, dể dàng lắp đặt với các thiết bị wifi.
- Chứng nhận: FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1.
- Nguồn Poe dùng cho các Model WIFI RG-AP730L.
Thiết bị mạng – Router Wi-Fi RUIJIE RG-EW1200R 1200Mbps Dual-band Mesh Wi-Fi Extender
|
Wi-Fi Standards |
Wi-Fi 5 (802.11ac) |
|
Max. Wi-Fi Speed |
2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps |
|
MIMO |
2.4 GHz: 2×2, 5 GHz: 2×2 |
|
Max. Users |
64 |
|
Recommended Users |
24 |
|
Antennas |
2 |
|
Antenna Gain |
2.4 GHz: 4 dBi, 5 GHz: 4 dBi |
|
WAN/LAN Port(s) |
1 10/100 Base-T Port |
|
Operating Mode |
Repeater, Router, AP, WISP, WPS |
|
Advanced Technology |
YES |
|
MESH |
YES |
|
IPTV |
NO |
|
Parental Control |
YES |
|
APP Management |
YES |
|
Firewall |
NO |
|
Dimensions (W x D x H) |
128 mm x 102 mm x 60 mm |
|
Weight |
0.25 kg (packages not included) |
|
Power Supply |
100-240V~50/60Hz 0.5A |
Thiết bị mạng – Router Wi-Fi RUIJIE RG-EW1200 Dual-band AC1200 MU-MIMO
Bộ phát Smart Home WiFi Dual-band AC1200 MU-MIMO hỗ trợ Mesh
- Tốc độ lên đến 1167Mbps
- Hỗ trợ 2 băng tần (2x2.4G 300Mbps + 2x5G 867Mbps) 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
- 1 cổng WAN 10/100, 3 cổng LAN 10/100 (Auto MDI/MDIX)
- 4 anten liền đẳng hướng (ommi) x 5dBi
- Hỗ trợ mạng WiFi khách riêng biệt, SmartHome WiFi, SSID ẩn.
- Số lượng người dùng truy cập đồng thời đề xuất 24+ Wireless/48 max Clients
- Tách hoặc gộp SSID 2.4G/5Ghz riêng biệt hoặc gộp thành một SSID duy nhất, ưu tiên băng tần 5Ghz
- Hỗ trợ Mesh 3 node. Easy Mesh thông qua một phím cứng trên bộ phát
- Đèn LED thông báo tính trạng hoạt động, đèn báo tín hiệu LAN/WAN
- Các tính năng qua Ruijie Cloud: Quản lý người dùng, cấu hình, Optimize Network, Bandwitdth, NAT, Whitelist/Blacklist, Roaming,...
- Nguồn đi kèm 12V/1.5A
Thiết bị mạng – Router Wi-Fi RUIJIE RG-RAP2260 WiFi 6 ốp trần 1775Mbps, Tải 500user, 1 Cổng PoE chuẩn Gigabit
THÔNG SỐ KỸ THUẬT:
Hãng modelRuijie RG-RAP2260
Tốc độ Wi-Fi1775Mbps
SóngDual-band (2.4Ghz/5Ghz) hỗ trợ MU-MIMO
Chịu tải500user
Kết nối1 cổng 2.5GE, 1 cổng 1G, 1 cổng PoE LAN giagbit
Mở rộngHỗ trợ Roamming Layer 2, Layer 3.
Quản lýRuijie Cloud
Nguồn điện802,3at PoE, bộ chuyển đổi DC 12V/1,5A
Kích thước (mm)194 mm × 194 mm × 35 mm
Trọng lượng0,56kg (không kể bộ dụng cụ lắp)
Sử dụngỐp trần, gắn tường
* Thiết bị chưa bao bao gồm nguồn
Thiết bị mạng – Router Wi-Fi RUIJIE RG-AP100-MNT 300Mbps
- Access point wifi gắn tường RUIJIE RG-AP100-MNT.
- Tốc độ lên đến 300Mbps@2.4GHz chuẩn 802.11 b/n/g.
- Dòng sản phẩm phù hợp sử dụng cho khách sạn, văn phòng, căn hộ.
- 1 cổng 10/100M Ethernet LAN, 1 cổng 10/100M Uplink.
- Hỗ trợ nguồn 802.3af PoE
- Hỗ trợ dịch vụ Ruijie Cloud miễn phí giúp cấu hình từ xa cực kỳ đơn giản.
- Hỗ trợ tối đa 32 người dùng | 8 BSSID.
- Hỗ trợ tính năng cân bằng tải thông minh dựa vào số lượng người dùng và lưu lượng.
- Thiết bị mạng wifi Ruijie RG-AP100-MNT có thiết kế phù hợp với kích thước ổ cắm chuẩn 86-type.
- Hỗ trợ các tính năng WIFI marketing:
+ Giao diện đăng nhập dạng trang chào, cho phép tuỳ biến theo logo, hình ảnh doanh nghiệp, thông điệp quảng bá, nút click trỏ đến trang đích là fanpage hoặc website của doanh nghiệp.
+ Đăng nhập facebook, like facebook fanpage.
+ Thiết bị Wifi Ruijie RG-AP100-MNT giúp quản lý lưu lượng của người dùng, thời gian, dung lượng data, số lượt truy cập trong ngày.
- Các chứng nhận: GB4943, EN/IEC 60950-1, GB9254, EN301 489, EN 62311, EN300 328, EN301 893, EC60068-2-31, ETSI EN300 019, NEBS GR-63-CORE.
Thiết bị mạng – Router Wi-Fi RUIJIE RG-AP820-L(V3) 2 băng tần AX3000 Wi-Fi 6
- Thiết bị phát Wi-Fi treo trần hoặc gắn tường (Wi-Fi 6).
- Hỗ trợ 2 băng tần 2.4GHz và 5GHz.
- Tốc độ tối đa 2.976Gbps.
- Chuẩn 802.11a/n/ac/ax và 802.11b/g/n/ax hỗ trợ MU-MIMO.
- 1 cổng 10/100/1000M uplink port hỗ trợ cấp nguồn PoE, 1 cổng 1G/2.5G SFP, 1 cổng RJ45 Console.
- Hỗ trợ tối đa 1024 người dùng, 32 BSSID, số lượng người dùng truy cập đồng thời đề xuất là 120+.
- Hỗ trợ nguồn 802.3af PoE
- Thiết kế hỗ trợ treo trần hoặc gắn tường linh hoạt.
- Hỗ trợ Roamming Layer 2, Layer 3.
- Hỗ trợ tính cấp doanh nghiệp:
o Voucher, Account cho người dùng (phù hợp quán cà phê, khách sạn, nhà trọ, ký túc xá,...)
o PPSK cho phép cấp quyền truy cập Wi-Fi cho các thiết bị xác định trước (phù hợp cho Văn phòng,..)
- Hỗ trợ các tính năng Wi-Fi marketing: trang chào xác thực, SMS,…
- Hỗ trợ dịch vụ Ruijie Cloud miễn phí cho phép cài đặt nhanh, quản lý giám sát và bảo trì từ xa.
- Thiết bị đã bao gồm chân đế gắn tường (Mount-kit).
- Dòng sản phẩm phù hợp sử dụng cho khách sạn, văn phòng, trường học, chuỗi bán lẻ,...
- Thiết bị chưa bao gồm nguồn.
Đặc tính kỹ thuật
| Model | RG-AP820-L(V3) |
| Physical | |
| Dimensions (W × D × H) | 220×220×49mm |
| Weight | 0.6kg |
| Installation | Ceiling / Wall |
| Anti-theft Lock | Support |
| Radio | |
| Radio | Dual-radio dual-band: Radio1: 2.4GHz 11ax, 2×2 MIMO Radio2: 5GHz 11ax, 2×2 MIMO |
| Max Throughput | Radio1: 2.4GHz, 0.574Gbps Radio2: 5GHz, 2.402Gbps Maximum throughput per AP: 2.4GHz+5GHz, 2.976Gbps |
| Antenna Type | Integrated Omnidirectional |
| Antenna Gain | 2.4GHz: 2dBi 5GHz: 2dBi |
| Transmit Power | 20dBm |
| Adjustable Power | 1dBm |
| Interfaces | |
| Interfaces | 1 x 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af/at) Full Spectrum Operation in IEEE 802.3af Mode 1 x 1G/2.5G SFP Port |
| Management Port | 1 RJ45 Console Port |
| LED Indicator | 1 LED Indicator |
| Reset Button | Support |
| Power | |
| Power Supply | Local Power Supply (DC 48V/0.6A) PoE (IEEE 802.3af Standard) - Full Spectrum Operation |
| Power Consumption | 12.95W |
| Environment | |
| Temperature | Operating Temperature: -10°C~50°C Storage Temperature: -40°C~70°C |
| Humidity | Operating Humidity: 5%~95% (non-condensing) Storage Temperature: 5%~95% (non-condensing) |
| IP Rating | IP41 |
| Software | |
| WLAN | Maximum Recommended Clients:120 (For General Usage) Maximum Recommended Clients:64 (For HD Video) SSID Hiding: Support 5G Priority (Band Steering): Support Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support Remote Intelligent Perception Technology (RIPT): Support Intelligent Device Recognition Technology: Support Intelligent Load Balancing Based on the Number of Users or Traffic: Support STA Limit Control: SSID/Radio based Bandwidth Control: STA/SSID/AP-based |
| Security | Support PSK and Web authentication Data Encryption: WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP( 64/128bits) PPSK authentication: Support 802.1X authentication: Support PEAP authentication: Support Data Frame Filtering: Allowlist, Static/Dynamic Blocklist User Isolation: Support Rogue AP Detection and Countermeasure: Support Dynamic ACL Assignment: Support RADIUS: Support CPU Protection Policy (CPP) Support Network Foundation Protection Policy (NFPP): Support |
| IP | IPv4: Support Static and DHCP IP Address Support Multicast to Unicast Conversion DHCP Service: Support DHCP Snooping, Option 82, Server, Client |
| Operation & Management | Support Wireless LAN Controllers: Ruijie RG-WS Series Wireless Controller Ruijie Cloud (Public Cloud) Ruijie Private Cloud Management Protocol: Telnet, SSH, TFTP, FTP, Web Wireless Intelligent AI Optimization Service (WIS): Support SNMP: Support V1, V2c, V3 Syslog / Debug: Support FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud Managed (Ruijie Public/Private Cloud) Management |
- Bảo hành: 3 năm.
Thiết bị mạng – Router Wi-Fi RUIJIE RG-AP810-L 2 băng tần AX1800 Wifi 6 ốp tần
- Ruijie RG-AP810-L is a cost-effective entry level wireless access point with Wi-Fi 6 dual-radio, dual-band design. It not only has the simplicity and flexibility for small and medium sized enterprise, but the features, functionality, and performance quality to scale up to large-enterprise network deployments.
- Ruijie RG-AP810-L supports maximum of 1.775Gbps wireless throughput when 80MHz bandwidth in 5G radio mode adopted (HE80). It fully complies with Wi-Fi 6 features and guarantees minimal signal interference and maximum 512 clients.
- Maximum ROI (Lifetime free cloud management & WIS optimization service).
- HE80 Supported for Higher Throughput with Latest Wi-Fi 6 Chipsets.
- Hybrid Management (Cloud/Controller/Standalone).
- Automated Radio Optimization by Artificial Intelligence.
Specifications
| Physical | |
| Dimensions (W × D × H) | 220mm×220mm×49mm |
| Weight | Device: 0.6kg Mounting Kit: 0.2kg |
| Installation | Ceiling / Wall |
| Anti-theft Lock | Support |
| Radio | |
| Radio | Dual-radio dual-band: Radio1: 2.4GHz 11ax, 2×2 MIMO Radio2: 5GHz 11ax, 2×2 MIMO |
| Operating Band | Radio 1: 802.11b/g/n/ax, 2.4GHz~2.483GHz, HE40 Radio 2: 802.11a/n/ac/ax, 5.150GHz~5.350GHz, HE80 802.11a/n/ac, 5.470GHz~5.725GHz, 5.725GHz~5.850GHz, HE80 Note: vary depending on different countries |
| Max Throughput | Radio 1: 2.4GHz, 0.574Gbps Radio 2: 5GHz, 1.201Gbps Maximum throughput per AP: 2.4GHz+5GHz, 1.775Gbps |
| Antenna Type | Integrated Omnidirectional |
| Antenna Gain | 2.4GHz: 2dBi 5GHz: 2dBi |
| Transmit Power | 20dBm Note: vary depending on different countries |
| Adjustable Power | 1dBm |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA |
| Interfaces | |
| Interfaces | 1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af) Full Spectrum Operation in IEEE 802.3af Mode |
| Bluetooth | BT 5.1 |
| Management Port | 1 RJ45 Console Port |
| LED Indicator | 1 LED Indicator |
| Reset Button | Support |
| Power | |
| Power Supply | Local Power Supply (DC 48V/0.6A) Note: DC power adapters should be purchased separately from third-party vendors if needed. PoE (IEEE 802.3af Standard) - Full Spectrum Operation |
| Power Consumption | 12.95W |
| Environment | |
| Temperature | Operating Temperature: -10°C~50°C Storage Temperature: -40°C~70°C |
| Humidity | Operating Humidity: 5%~95% (non-condensing) Storage Temperature: 5%~95% (non-condensing) |
| IP Rating | IP41 |
| Safety Standard | GB 4943.1-2011, IEC 62368-1 |
| EMC Standard | EN 300386, GB/T 19286-2015, GB/T 17618-2015 |
- Bảo hành: 3 năm.
Thiết bị mạng – Router Wi-Fi Ruijie RG-EW300N tốc độ 300Mbps
| Loại thiết bị | Bộ phát Wifi |
| Hỗ trợ | – Giao diện: 1 cổng WAN x 10/100 Base-T, 3 cổng LAN x 10/100 Base-T – Công nghệ Tiên tiến: Ruijie DDNS – Ăng ten: 2 – Các Tiêu chuẩn Wi-Fi: Wi-Fi 4 (802.11n) – Tốc độ Wi-Fi: 2,4 GHz 300 Mbps – Độ lợi Ăng-ten: 2,4 GHz: 5 dBi – MIMO: 2,4 GHz: 2×2 – Người dùng đồng thời: 8 |
| Nguồn cấp | DC 5V/1,0A |
| – Trọng lượng | 0,18 kg (không gồm bao bì) |
| Kích thước (DxRxC) | 180 mm × 120 mm × 27 mm |
