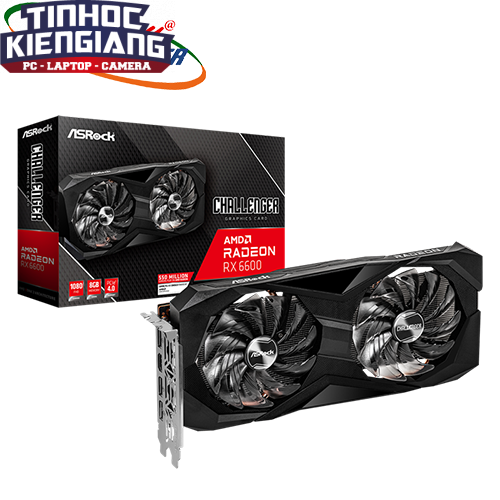

VGA Asrock Radeon RX 6600 Challenger D 8GB GDDR6 (RX6600 CLD 8G)
Liên hệ
| Graphics Engine | AMD Radeon™ RX 6600 |
| Bus Standard | PCI® Express 4.0 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 8GB GDDR6 |
| Engine Clock | – Boost Clock: Up to 2491 MHz – Game Clock: Up to 2044 MHz – Base Clock: 1626 MHz |
| Stream Processors | 1792 |
| Memory Clock | 14 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface | – 1 x HDMI™ 2.1 VRR – 3 x DisplayPort™ 1.4 with DSC |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 500W |
| Power Connector | 1 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 269 x 132 x 41 mm |
| Net Weight | 627 g |
Sản phẩm tương tự
VGA ASRock Radeon RX 6600 Challenger White 8GB GDDR6 RX6600 CLW 8G
| Graphics Engine | AMD Radeon™ RX 6600 |
| Bus Standard | PCI® Express4.0 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 8GB GDDR6 |
| Engine Clock | Boost Clock: Up to 2491 MHz Game Clock: Up to 2044 MHz Base Clock: 1626 MHz |
| Stream Processors | 1792 |
| Clock bộ nhớ | 14 Gbps |
| Giao diện bộ nhớ | 128-bit |
| Độ phân giải | Digital Max Resolution: 7680 x 4320 |
| Giao diện | 1 x HDMI™ 2.1 VRR 3 x DisplayPort™ 1.4 with DSC |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 500W |
| Power Connector | 1 x 8-pin |
| Phụ kiện | 1 x Quick Installation Guide |
| Kích thước | 269 x 132 x 41 mm |
| Net Weight | 627 g |
VGA Asrock Radeon RX 6700 XT Challenger Pro 12GB OC (RX6700XT CLP 12GO)
| Graphics Engine | AMD Radeon™ RX 6700 XT Graphics |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 12GB |
| Engine Clock | Boost Clock: Up to 2620 MHz Game Clock: 2474 MHz Base Clock: 2375 MHz |
|
Stream Processors |
2560 |
| Memory Clock | 16 Gbps |
|
Memory Bus |
192-bit |
| Resolution | Digital Max Resolution: 7680x4320 |
| Interface | 1 x HDMI™ 2.1 VRR 3 x DisplayPort™ 1.4 with DSC |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 700W |
|
Power Connector |
2 x 8-pin |
|
Accessories |
1 x Quick Installation Guide |
|
Dimensions |
303x131x45mm |
| Net Weight | 890g |
VGA Asrock Radeon RX 6800 XT Phantom Gaming D 16G OC (RX6800XT PGD 16GO)
| Graphics Engine | - AMD Radeon™ RX 6800 XT Graphics |
| Bus Standard | - PCI® Express 4.0 x16 |
| DirectX | - 12 Ultimate |
| OpenGL | -4.6 |
| Memory | - GDDR6 16GB |
| Engine Clock | - Boost Clock: Up to 2310 MHz |
| - Game Clock: 2065 MHz | |
| - Base Clock: 1875 MHz | |
| Stream Processors | -4608 |
| Compute Units | -72 |
| Memory Clock | - 16 Gbps |
| Memory Bus | - 256-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 |
| Interface | - 1 x HDMI™ 2.1 VRR |
| - 3 x DisplayPort™ 1.4 with DSC | |
| HDCP | - Yes |
| Multi-view | -4 |
| Recommended PSU | - 800W |
| Power Connector | - 3 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 330 x 140 x 56 mm, 2.8-slot |
| Net Weight | - 1784 g |
Card Màn Hình – VGA ASROCK A580 Challenger 8GB OC (A580 CL 8GO)
-
Công cụ đồ họa- Đồ họa Intel ® Arc™ A580
-
Tiêu chuẩn xe buýt- PCI ® Express 4.0 x16
-
DirectX- 12 Tối thượng
-
OpenGL- 4.6
-
Ký ức- 8GB GDDR6
-
Đồng hồ động cơ- 2000 MHz
-
Động cơ Intel ® XMX- 384
-
Tốc độ bộ nhớ- 16 Gbps
-
Giao diện bộ nhớ- 256-bit
-
Nghị quyết- Độ phân giải kỹ thuật số tối đa: 7680x4320
-
Giao diện- 3 x DisplayPort™ 2.0 lên đến UHBR 10 *
- 1 x HDMI™ 2.0b
* Được thiết kế cho DP 2.0, đang chờ chứng nhận VESA CTS Release. -
HDCP- Đúng
-
Nhiều chế độ xem- 4
-
PSU được đề xuất- 650W
-
Đầu nối nguồn- 2 x 8 chân
-
Phụ kiện- 1 x Hướng dẫn cài đặt nhanh
-
Kích thước- 271 x 132 x 48 mm, 2,4 khe cắm
-
Trọng lượng tịnh- 785 g
VGA Asrock Radeon RX550 Phantom Gaming 4GB
VGA Asrock Radeon RX550 Phantom Gaming 4GB
-
Graphics Engine
- AMD Radeon RX 550
-
Bus Standard
- PCI Express x16 Gen3 (uses x8)
-
DirectX
- 12
-
OpenGL
- OpenGL 4.5
-
Memory
- GDDR5 4GB
-
Engine Clock
- Up to 1100 MHz
-
Stream Processors
- 512
-
Memory Clock
- 6000 MHz
-
Memory Interface
- 128-bit
-
Resolution
- Digital Max Resolution: 5120 x 2880 @ 60Hz
-
Interface
- 1 x Dual-link DVI-D
- 1 x HDMI 2.0
- 1 x DisplayPort 1.4 -
HDCP
- Yes
-
Multi-view
- 3
-
Accessories
- 1 x Support CD
- 1 x Quick Installation Guide -
Dimensions
- 169.58 x 130.89 x 42.05mm
VGA Asrock Radeon RX 6800 XT Taichi X 16G OC (RX6800XT TCX 16GO)
-
Graphics Engine - AMD Radeon™ RX 6800 XT Graphics Bus Standard - PCI® Express 4.0 x16 DirectX - 12 Ultimate OpenGL -4.6 Memory - GDDR6 16GB Engine Clock - Boost Clock: Up to 2360 MHz - Game Clock: 2110 MHz - Base Clock: 1925 MHz Stream Processors -4608 Compute Units -72 Memory Clock - 16 Gbps Memory Bus - 256-bit Resolution - Digital Max Resolution: 7680 x 4320 Interface - 1 x HDMI™ 2.1 VRR - 2 x DisplayPort™ 1.4 with DSC - 1 x USB-C® HDCP - Yes Multi-view -4 Recommended PSU - 800W Power Connector - 3 x 8-pin Accessories - 1 x Sticker, 1 x Coaster, 1 x Door Hanger, 1 x Quick Installation Guide Dimensions - 330 x 140 x 56 mm, 2.8-slot Net Weight - 1815 g
VGA Asrock Radeon RX 6700 XT Phantom Gaming D 12GB OC (RX6700XT PGD 12GO)
| Graphics Engine | AMD Radeon™ RX 6700 XT Graphics |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 12GB |
| Engine Clock | |
|
Stream Processors |
2560 |
| Memory Clock | Boost Clock: Up to 2622 MHz Game Clock: 2548 MHz Base Clock: 2457 MHz |
|
Memory Clock |
16 Gbps |
|
Memory Bus |
192-bit |
| Resolution | Digital Max Resolution: 7680x4320 |
| Interface | 3 x DisplayPort™ 1.4 with DSC 1 x HDMI™ 2.1 VRR |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 700W |
|
Power Connector |
2 x 8-pin |
|
Accessories |
1 x Quick Installation Guide |
|
Dimensions |
305 x 131 x 55 mm, 2.75-slot |
| Net Weight | 1187g |
