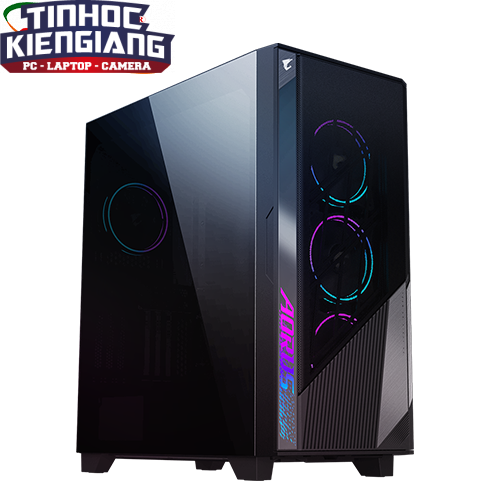

Vỏ máy tính Gigabyte Aorus C500 Glass

Case Form Factor

Mid Tower

M/B Type

mini-ITX/m-ATX/ATX

Color

Black

Materials

Steel, Plastic, Glass

Dimensions

H= 469 W= 211 D= 458mm (Within ± 1% error)

Expansion slots

7 or 2 (Requires PCIE Riser Cable)

5.25" Driver Bays

None

3.5“/2.5” Drive Bays

2

2.5" Driver Bays

3(Behind the MB tray)

I/O Panel

HDMI x1
USB 3.1 Gen2 Type-C x1
USB 3.0 x2
Audio In & Out (Supports AC97 / HD Audio)

Fan Support

"Front : 120mm x3 / 140mm x2
Top : 120mm x2 / 140mm x2
Rear : 120mm x1
(Pre-installed: Rear 120mm x 1, Front 120mm x 1)

Radiator Support

Front : 360mm / 280mm / 240mm
Rear : 120mm

Power Supply Type

Standard ATX (Not included)

Maximum Compatibility

CPU Height : 170mm
GPU Length : 400mm
PSU Length : 180mm

Vertical GPU Mount

Yes

Dust Filters

Top, Front, Bottom

RGB Lighting

Yes (Support RGB Fusion 2.0)

Weight

N.W. 8 Kg

Package Dimensions

H=542 W=309 D=541 mm

Accessories

1. Manual
2. Accessory Kit

Case Form Factor

Full Tower

M/B Type

Mini ITX / Micro ATX / ATX / E-ATX

Color

Black

Materials

Aluminum, Steel, Plastic, Glass

Dimensions

H=714 W=301 D=671 mm (Within ± 1% error)

Expansion slots

8 + 2 (Requires PCI-E Riser Cable)

5.25" Drive Bays

None

3.5“/2.5” Drive Bays

4

2.5" Drive Bays

6

I/O Panel

USB 3.1 Gen-2 Type-C x1
USB 3.0 x4
HDMI x1
RGB SW Button
Fan Speed Button
Audio In & Out (supports AC97 /HD Audio)

Pre-installed Fan

Front : 120mm x3 (PWM)
Rear : 120mm x2 (ARGB&PWM)

Fan Support

Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x3
Rear : 120mm x2 / 140mm x1

Radiator Support

Front : Max 360mm
Top : Max 420mm
Rear : Max 140mm

Power Supply Type

Standard ATX (Not included)

Maximum Compatibility

CPU Height : 198mm
GPU Length : 490mm
PSU Length : 200mm

Vertical GPU Mount

Yes
*54mm total clearance, standard 2-slot GPU (

Dust Filters

Bottom

RGB Lighting

Yes (Support RGB Fusion 2.0)

Weight

N.W. 19.2 Kg

Package Dimensions

H=773 W=406 D=820 mm

Accessories

1. Manual
2. Accessories kit
