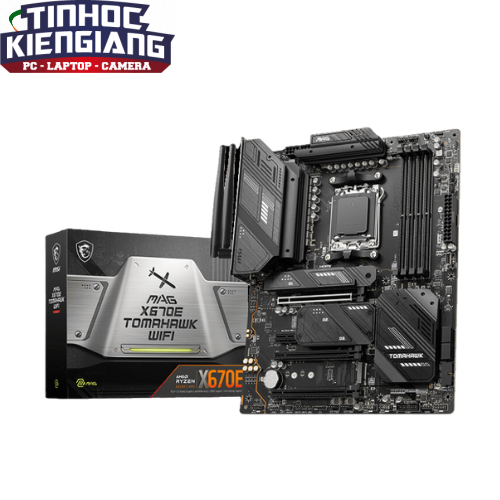

Bo Mạch Chủ MAG X670E TOMAHAWK WIFI DDR5

Sản phẩm

Main - Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

AM4 socket 3rd Gen AMD Ryzen processors, và CPU AMD Ryzen

tương lai bằng cách nâng cấp BIOS.

Chipset

AMD B550 Chipset

RAM hỗ trợ

4x DDR4 memory slots, hỗ trợ lên tới 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066

/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866

/4000 /4133 /4266/  4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ

2DPC 1R max speed 3866MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Cổng xuất hình onboard

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz,

 1920x1200 @60Hz

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

Âm Thanh

Realtek ALC892 Codec

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

Intel

Chipset

INTEL B760

RAM hỗ trợ

2x DDR5, Maximum Memory Capacity 96GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz

Khe cắm mở rộng

1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Ổ cứng hỗ trợ

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

BACK PANEL

1. USB 3.2 Gen 1 5Gbps
2. Display Port
3. USB 3.2 Gen 2 10Gbps
4. 2.5G LAN
5. Audio Connectors
6. HDMI™
7. USB 3.2 Gen 2 10Gbps (Type-C)
8. USB 2.0
9. Wi-Fi / Bluetooth

LAN / Wireless

Realtek^® RTL8125BG 2.5Gbps LAN

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA

Kích cỡ

Mini-ITX
170mmx170mm
