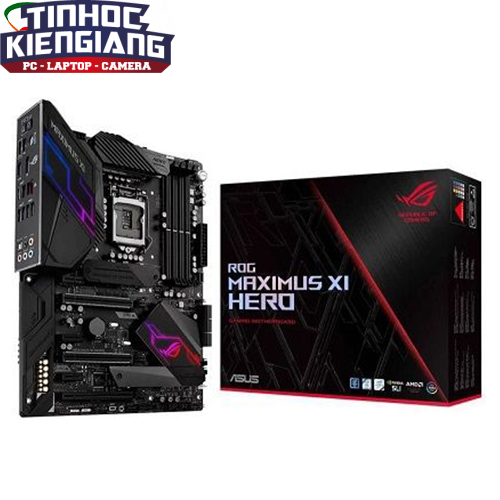

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS XI HERO (WIFI)

Liên hệ

Tên gọi	ASUS ROG MAXIMUS XI HERO
CPU hỗ trợ	– Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors – Supports Intel® 14 nm CPU – Supports Intel® Turbo Boost Technology 2.0
Chipset / Socket	Intel® Z390
Bộ nhớ (RAM)	– 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory – Dual Channel Memory Architecture
Công nghệ đa GPU	– Supports NVIDIA® 2-Way SLI™ Technology – Supports AMD 3-Way CrossFireX™ Technology
Khe cắm mở rộng	– 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) – 1 x PCIe 3.0 x16 (x4 mode) ¹ – 3 x PCIe 3.0 x1 – 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)² – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) – 6 x SATA 6Gb/s port(s) – Support Raid 0, 1, 5, 10 – Intel® Optane™ Memory Ready
LAN	– Intel® Wireless-AC 9560 – Wi-Fi 802.11 a/b/g/n/ac – Supports dual band frequency 2.4/5 GHz – Supports MU-MIMO – Supports channel bandwidth: HT20/HT40/HT80/HT160
Âm thanh	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – SupremeFX Shielding Technology – ESS® ES9023P – Supports up to 32-Bit/192kHz playback *³ Audio Feature : – Gold-plated jacks – Optical S/PDIF out port(s) at back panel – Sonic Radar III – Sonic Studio III + Sonic Studio Link
Cổng kết nối (Internal)	– 2 x Aura Addressable Strip Header(s) – 2 x Aura RGB Strip Headers – 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) – 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) – 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) – 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) – 1 x TPM connector(s) – 6 x SATA 6Gb/s connector(s) – 1 x CPU Fan connector(s) (1 x 4 -pin) – 1 x CPU OPT Fan connector(s) (1 x 4 -pin) – 3 x Chassis Fan connector(s) (3 x 4 -pin) – 1 x AIO_PUMP connector (1 x 4 -pin) – 1 x H_AMP fan connector – 1 x W_PUMP+ connector (1 x 4 -pin) – 1 x 24-pin EATX Power connector(s) – 1 x 8-pin EATX 12V Power connectors – 1 x 4-pin ATX 12V Power connector(s) – 1 x Front panel audio connector(s) (AAFP) – 1 x MemOK! II switch(es) – 1 x Reset button(s) – 1 x ReTry button – 1 x System panel connector – 1 x EXT_Fan header – 1 x W_IN header – 1 x W_OUT header – 1 x W_FLOW header – 1 x Thermal sensor connector – 1 x Start button – 1 x USB 3.1 Gen 2 front panel connector
Cổng kết nối (Back Panel)	– 1 x PS/2 keyboard/mouse combo port(s) – 1 x DisplayPort – 1 x HDMI – 1 x LAN (RJ45) port(s) – 4 x USB 3.1 Gen 2 1 x Type-C+3 x Type-A – 2 x USB 3.1 Gen 1 (blue) Type-A, – 2 x USB 2.0 – 1 x Optical S/PDIF out – 1 x Clear CMOS button(s) – 1 x USB BIOS Flashback Button(s) – 1 x ASUS Wi-Fi Module – 5 x Gold-plated audio jacks
Công nghệ độc quyền	ReTry Button Start Button Reset Button Extreme Engine Digi+ : – MicroFine Alloy Chokes – 10K Black Metallic Capacitors – OptiMOS™ MOSFET Mem TweakIt Extreme Tweaker ROG Exclusive Software – Mem Tweakit – RAMCache III – RAMDisk – CPU-Z – GameFirst V – Sonic Studio III + Sonic Studio Link – Sonic Radar III ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : – 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : – Aura Lighting Control – Aura RGB Strip Headers – Aura Lighting Effects Synchronization with compatible ASUS ROG devices – Aura Addressable Strip Header(s) ASUS Exclusive Features : – USB BIOS Flashback – MemOK! II – AI Suite 3 – Ai Charger – ASUS CrashFree BIOS 3 – Armoury Crate – Pre-mounted I/O Shield – ASUS NODE: hardware control interface – OptiMem II – ASUS EZ Flash 3 – ASUS C.P.R.(CPU Parameter Recall) – BUPDATER – BIOS Flashback Button – Clear CMOS Button – Reset Button ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 ASUS Q-Design : – ASUS Q-Code – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector Overclocking Protection : – ASUS C.P.R.(CPU Parameter Recall)
Phụ kiện đi kèm	– Hướng dẫn sử dụng – 2 x cáp SATA 6Gb / s – I/O Shield – 1 x Gói Đinh vít M.2 – 1 x Nhãn dính TUF Gaming – 1 x Chứng nhận TUF – 1 x SCD
Hệ điều hành khuyến nghị	– Microsoft^® Windows^® 10 64-bit
Chuẩn kích cỡ	– ATX – 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Danh mục: MainBoard Asus

Bo Mạch Chủ – MainBoard ASUS H610M-K PRIME (D5)

Model

PRIME H610M-K

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header

Software Features

ASUS Exclusive Software
Armoury Crate
- Fan Xpert 2+
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Anchor
Documentation
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Bo Mạch Chủ – MainBoard ASUS H610M-K PRIME (D5)

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-F GAMING WIFI

Tên gọi	ASUS ROG STRIX Z590-F GAMING WIFI
CPU hỗ trợ	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset / Socket	Intel® Z590 Chipset
Bộ nhớ (RAM)	Memory Channels:4xDDR4 (Dual channel) Max Memory Size:128GB DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Công nghệ đa GPU
Khe cắm mở rộng	2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th support PCIe 4.0 x16 or x8/x4 mode(s) - Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)*
LAN / Wireless	1 x Intel® 2.5Gb Ethernet
Âm thanh	- SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Intel® Wi-Fi 6E 1 x Intel® I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Công nghệ độc quyền	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software - AIDA64 Extreme (60 days free trial) ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Phụ kiện đi kèm	Cables 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Fan holder Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual
Hệ điều hành khuyến nghị	Windows® 10 64-bit
Chuẩn kích cỡ	ATX Form Factor

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-F GAMING WIFI

Liên hệ

Bo Mạch Chủ – Mainboard ASUS TUF GAMING Z590-PLUS

Mainboard ASUS TUF GAMING Z590-PLUS
Loại sản phẩm	Mainboard - Bo mạch chủ
CPU hỗ trợ	Tích hợp Intel® Socket 1200 cho Intel® Core™ thế hệ 10 và 11
Chipset	Intel^® Z590 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5133(OC) Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Hình ảnh	1 x DisplayPort 1.4 1 x HDMITM 2.0* * Graphics specifications may vary between CPU types. Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. * Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution.
Khe cắm mở rộng	Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports * Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. **** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
LAN	1 x Intel® I225-V 2.5Gb Ethernet TUF LANGuard
USB	Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Âm Thanh	"Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover
Cổng kết nối (I/O Phía sau)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
Cổng kết nối (I/O bên trong)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Tính năng đặc biệt	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - TUF LANGuard - Overvoltage Protection ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Phần mềm độc quyền	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Phụ kiện	Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual
Hệ điều hành	Windows® 10 64-bit
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Mã sản xuất	TUF-Gaming-Z590-PLUS

Bo Mạch Chủ – Mainboard ASUS TUF GAMING Z590-PLUS

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-E GAMING WIFI

Tên gọi	ASUS ROG STRIX Z590-E GAMING WIFI
CPU hỗ trợ	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset / Socket	Intel® Z590 Chipset
Bộ nhớ (RAM)	Memory Channels:4xDDR4 (Dual channel) Max Memory Size:128GB DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Công nghệ đa GPU	Supports NVIDIA 2-Way SLI® Technology
Khe cắm mở rộng	Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) - Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel® Z590 Chipset
LAN / Wireless	2 x Intel® I225-V 2.5Gb Ethernet
Âm thanh	- SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover
Cổng kết nối (Internal)	1 x Thunderbolt 4 (onboard) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Q Code 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Intel® Wi-Fi 6E 2 x Intel® I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Công nghệ độc quyền	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate -AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Phụ kiện đi kèm	Cables 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Assistant fan (40mm) 1 x Screw package for cooling kit Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG Graphics card holder 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual
Hệ điều hành khuyến nghị	Windows® 10 64-bit
Chuẩn kích cỡ	ATX Form Factor

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-E GAMING WIFI

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-A

CPU	Intel® Socket LGA1200 dành cho bộ xử lý Intel® Core ™ thế hệ thứ 11 và bộ xử lý Intel® Core ™, Pentium® Gold và Celeron® thế hệ thứ 10 hỗ trợ CPU Intel® 14 nm Hỗ trợ công nghệ Intel® Turbo Boost 2.0 và công nghệ Intel® Turbo Boost Max 3.0 **
Chipset	Bộ chip Intel® Z590
Bộ nhớ	4 x DIMM, Tối đa 128GB, DDR4 DDR4 5333 (OC) / 5133 (OC) / 5000 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400 / 2133 MHz Không phải ECC, Bộ nhớ không đệm * Kiến trúc bộ nhớ kênh đôi hỗ trợ cấu hình bộ nhớ Intel® Extreme (XMP) OptiMem II * Bộ xử lý Intel® Core ™ i7 / i9 thế hệ thứ 10 hỗ trợ 2933/2800/2666/2400/2133 nguyên bản, những cái khác sẽ chạy ở tốc độ truyền tối đa của DDR4 2666MHz. * Bộ xử lý Intel® Core ™ thế hệ thứ 11 hỗ trợ 3200/2933/2800/2666/2400/2133 nguyên bản.
Đồ họa	1 x DisplayPort 1.4 1 x HDMITM 2.0 *
Khe cắm mở rộng	Bộ xử lý Intel® thế hệ thứ 11 & thứ 10 3 x khe cắm PCIe 4.0 / 3.0 x16 * – Bộ xử lý Intel® Core ™ thứ 11 hỗ trợ PCIe 4.0 x16 – Bộ xử lý Intel® thứ 10 hỗ trợ PCIe 3.0 x16 Chipset Intel® Z590 1 x khe cắm PCIe 3.0 x4
Lưu trữ	Total hỗ trợ 3 khe cắm M.2 và 6 cổng SATA 6Gb / s Bộ xử lý thế hệ thứ 11 Khe cắm M.2_1 (Khóa M), loại 2242/2260/2280/22110 – Chỉ bộ xử lý Intel® Core ™ thứ 11 hỗ trợ PCIe 4.0 x4 chế độ này, khe cắm này sẽ bị vô hiệu hóa đối với các CPU khác Khe cắm Chipset Intel® Z590 M.2_2 (Phím M), loại 2242/2260/2280/22110 (hỗ trợ chế độ PCIe 3.0 x4 & SATA) * Khe cắm M.2_3 (Phím M ), loại 2242/2260/22110 (hỗ trợ chế độ PCIe 3.0 x4 & SATA) ** 6 x cổng SATA 6Gb / s * Chức năng đột kích cho SSD chế độ PCIe trong Công nghệ lưu trữ nhanh Intel® khả dụng với 1. SSD Intel® được cài đặt trong cả hai khe gắn CPU và gắn với PCH, hoặc 2. bất kỳ SSD nào khác của bên thứ 3 được lắp trong các khe gắn PCH. Để bật Bộ nhớ Intel® Optane ™ (Thiết bị lưu trữ kết hợp), nó phải được lắp đặt trong các khe gắn PCH với Công nghệ lưu trữ nhanh Intel®. * M.2_2 chia sẻ băng thông với SATA6G_2. Khi M.2_2 chạy chế độ SATA, SATA6G_2 sẽ bị tắt. **** M.2_3 chia sẻ băng thông với SATA6G_6. Khi M.2_6 chạy chế độ SATA, SATA6G_6 sẽ bị vô hiệu hóa.
LAN	1 x Intel® I225-V 2.5Gb Ethernet
Âm thanh	Âm thanh vòm Realtek S1220A 7.1 CODEC Âm thanh độ nét cao
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Dạng thiết kế	Hệ số hình thức ATX 12 inch x 9,6 inch (30,5 cm x 24,4 cm)

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-A

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-A GAMING WIFI

Mainboard ASUS ROG STRIX Z590-A GAMING WIFI
Loại sản phẩm	Mainboard - Bo mạch chủ
CPU hỗ trợ	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® Z590 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5333(OC) Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hình ảnh	1 x DisplayPort 1.4** 1 x HDMI 2.0 * Graphics specifications may vary between CPU types. " For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. Please refer to www.intel.com for any update. " * For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution.
Khe cắm mở rộng	3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4) Intel® 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s) - Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot * Supports PCIe bandwidth bifurcation for RAID on CPU function.
Ổ cứng hỗ trợ	Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. When M.2_2 is operating in SATA device, SATA6G_2 will be disabled. *When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.
LAN	1 x Intel® I225-V 2.5Gb Ethernet
USB	Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C®) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Âm Thanh	"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - audio jacks - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover
Cổng kết nối (I/O Phía sau)	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C®) 1 x HDMI™ port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
Cổng kết nối (I/O bên trong)	1 x Thunderbolt 4 header Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x TPM-M header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z590-A GAMING WIFI

Liên hệ

Bo Mạch Chủ – Mainboard ASUS EX-B760M-V5 DDR4

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	EX-B760M-V5 DDR4
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC) 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
Cổng kết nối (Back Panel)	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 3 x Audio jacks 1 x Realtek 2.5Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	1 x Realtek 2.5Gb Ethernet
Kích cỡ	mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)

Bo Mạch Chủ – Mainboard ASUS EX-B760M-V5 DDR4

Liên hệ

Bo Mạch Chủ – Mainboard ASUS Z590 WIFI GUNDAM EDITION

CPU	Hỗ trợ CPU Intel® 14 nm Hỗ trợ Công nghệ Intel® Turbo Boost 2.0 và Công nghệ Intel® Turbo Boost Max 3.0 **
Chipset	Bộ chip Intel® Z590
Memory	DDR4 5133 (OC) / 5000 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un -bộ nhớ đệm * Kiến trúc bộ nhớ kênh đôi Hỗ trợ cấu hình bộ nhớ cao cấp Intel® (XMP) OptiMem II * Bộ xử lý Intel® Core ™ i7 / i9 thế hệ thứ 10 hỗ trợ 2933/2800/2666/2400/2133 nguyên bản, các bộ xử lý khác sẽ chạy ở tốc độ truyền tối đa là DDR4 2666MHz. * Bộ xử lý Intel® thế hệ thứ 11 hỗ trợ 3200/2933/2800/2666/2400/2133 nguyên bản.
Đồ họa	1 x DisplayPort 1.4 1 x HDMITM 2.0
Khe mở rộng	Bộ xử lý Intel® thế hệ thứ 11 & thứ 10 1 x khe cắm PCIe 4.0 / 3.0 x16 * – Bộ xử lý Intel® thứ 11 hỗ trợ PCIe 4.0 x16 – Bộ xử lý thứ 10 của Intel hỗ trợ PCIe 3.0 x16 Bộ chip Intel® Z590 1 x khe cắm PCIe 3.0 x16 (hỗ trợ chế độ x4) 2 x khe cắm PCIe 3.0 x1
Không dây & Bluetooth	Intel® Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a / b / g / n / ac / ax) Hỗ trợ dải tần 2,4 / 5GHz Bluetooth v5.0 trở lên
USB	USB phía sau: Tổng số 7 cổng 1 x Cổng USB 3.2 Gen 2×2 (1 x USB Type-C®)2 x cổng USB 3.2 Gen 2 (2 x Type-A)2 x cổng USB 3.2 Gen 1 (2 x Type-A)2 x cổng USB 2.0 (2 x Type-A)1 x đầu nối USB 3.2 Gen 1 (hỗ trợ USB Type-C®)1 x đầu cắm USB 3.2 Gen 1 hỗ trợ thêm 2 cổng USB 3.2 Gen 12 đầu cắm USB 2.0 hỗ trợ thêm 4 cổng USB 2.0
BIOS	192 (128 + 64) Mb Flash ROM, UEFI AMI BIOS
Hệ điều hành	Windows 10 64bit
Yếu tố hình thức	ATX 12 inch x 9,6 inch (30,5 cm x 24,4 cm)

Bo Mạch Chủ – Mainboard ASUS Z590 WIFI GUNDAM EDITION

Liên hệ
