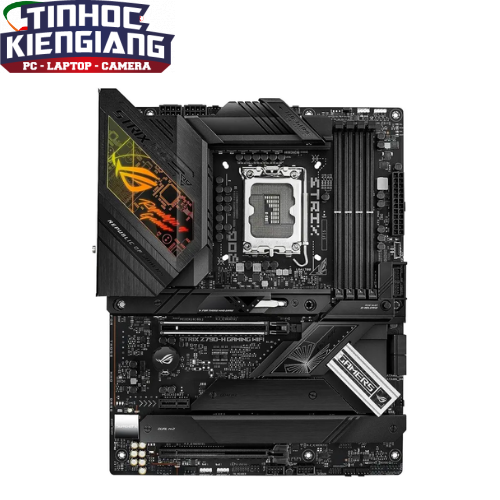

Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z790-H GAMING WIFI
Liên hệ
Thông số kỹ thuật:
| Loại Ram |
DDR5 |
| Chipset |
Intel Z790 Chipset |
| Socket |
LGA 1700 |
| Khe Ram |
4 khe cắm Ram |
| Dung lượng Ram hỗ trợ tối đa |
192 GB |
| Tốc độ Bus |
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Cổng xuất hình |
1 x DisplayPort, 1 x HDMI |
| Wifi |
Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Bluetooth |
5.3 |
| Kết nối mạng LAN |
1 x Intel 2.5Gb Ethernet, ASUS LANGuard |
| Khe cắm |
4 x M.2, 4 x SATA 6Gb/s |
| Giao Tiếp VGA |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Số cổng USB |
1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen (2 x Type-A + 1 x Type-C), 4 x USB 3.2 Gen 1 (4 x Type-A), 2 x USB 2.0 (2 x Type-A) |
| Hệ điều hành hỗ trợ |
Windows 11, Windows 10 64-bit |
| Kích thước |
30.5 mm x 24.4 mm, ATX |
| Bảo hành |
36 tháng |
