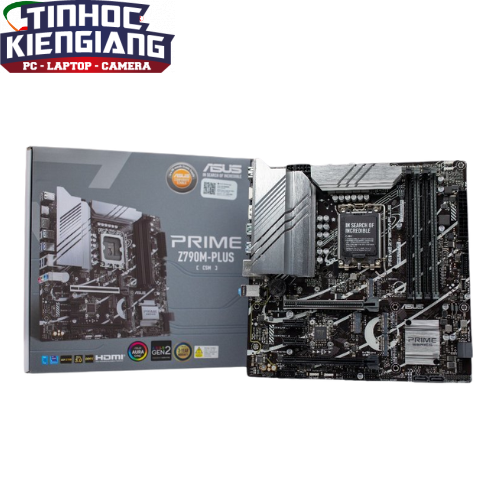

Bo Mạch Chủ – Mainboard Asus Prime Z790M-PLUS-CSM

Liên hệ

Thông số kỹ thuật:

Loại sản phẩm Main – Bo mạch chủ
Hãng sản xuất Asus
Model PRIME Z790M-PLUS
Tên sản phẩm  Mainboard Asus PRIME Z790M PLUS CSM DDR5
Socket Intel LGA 1700
Kích thước MATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Hỗ trợ CPU Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors
Khe cắm RAM 4 khe ram
Bus RAM hỗ trợ 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Thông số (Lan/Wireless) 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Khe cắm trong Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Khe cắm mở rộng Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
Cổng giao tiếp ngoài 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
Socket Intel LGA 1700
Hỗ trợ CPU Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors
Chipset Intel Z790
Khe cắm RAM 4 khe ram
Card đồ họa 1 x DisplayPort
1 x HDMI® port
Âm thanh Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Kích thước MATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Phụ kiện kèm theo Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
