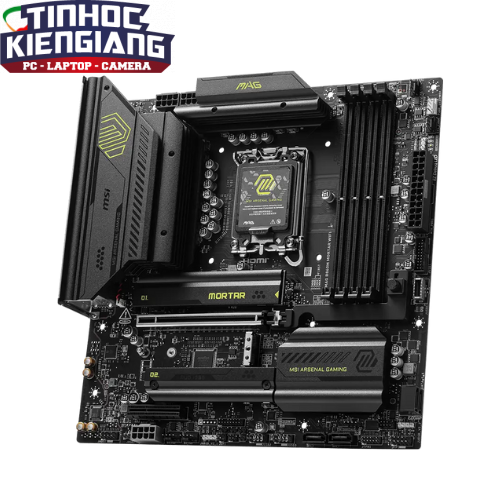

Bo Mạch Chủ – Mainboard MSI MAG B860M MORTAR WIFI DDR5

Liên hệ

Thông số kỹ thuật:

Tên thông số	Giá trị
Nhà sản xuất	MSI
Model	MSI-MAG-B860M-MORTAR-WIFI
Mainboard Form Factor	mATX
Chipset	Intel B860
Socket CPU	LGA 1851
CPU Hỗ trợ	Intel Core Ultra Processor (Series 2)
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	256GB
Khe cắm mở rộng	1x PCIe_1 5.0 x16 (CPU) 1x PCIe_2 4.0 x4 (Chipset)
Lưu trữ mở rộng	1x M.2_1 2280/2260/2242 PCIe 5.0 x4 (CPU) 1x M.2_2 2280/2260 PCIe 4.0 x4 (Chipset) 1x M.2_3 2280/2260 PCIe 4.0 x4 (Chipset) 4x SATA 6Gb/s
Kết nối không dây	Wi-Fi 7 Bluetooth 5.4
Cổng kết nối phía sau	1x DisplayPort 4x USB-A 2.0 3x USB-A 3.2 Gen 2 1x LAN 5Gb 2x Wi-Fi/Bluetooth 2x Audio Jack 1x HDMI 1x Thunderbolt 4 1x BIOS Flashback Button 1x Clear CMOS Button 1x USB-C 3.2 Gen 2 1x Optical S/PDIF Out
Phụ kiện	1x EZ Front Panel Cable 1x 1 to 2 EZ Conn-Cable (V1) 1x EZ WiFi Antenna 1x EZ M.2 Clips II Remover 2x EZ M.2 Clips II 1x SATA 6Gb/s cables 1x Quick start guide
Thời gian bảo hành	36 tháng

Danh mục: MainBoard MSI SK1851

Mainboard MSI B860M GAMING PLUS WIFI DDR5 (Socket 1851)

Loại Ram	DDR5
Chipset	INTEL B860
Socket	LGA 1851
Khe Ram	4 khe cắm
Dung lượng Ram hỗ trợ tối đa	256 GB
Tốc độ Bus	8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Cổng xuất hình	1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x Type-C DisplayPort 2.1
Wifi	Intel Killer BE1750x Wi-Fi 7
Bluetooth	5.4
Kết nối mạng LAN	Intel Killer E5000 5Gbps LAN
Giao Tiếp VGA	4 x PCI-E x16
Số cổng USB	2 x USB 2.0, 2 x USB 5Gbps Type A, 1 x USB 5Gbps Type C, 1 x USB 10Gbps Type A
Hệ điều hành hỗ trợ	Windows 11 64-bit
Kích thước	Micro ATX (243.84 mm x 243.84 mm)
Bảo hành	36 tháng

Mainboard MSI B860M GAMING PLUS WIFI DDR5 (Socket 1851)

Liên hệ

Bo Mạch Chủ – Mainboard MSI MAG B860 TOMAHAWK WIFI DDR5

Thông số kỹ thuật:

Tên thông số	Giá trị
Nhà sản xuất	MSI
Model	MSI-MAG-B860-TOMAHAWK-WIFI
Mainboard Form Factor	ATX
Chipset	Intel B860
Socket CPU	LGA 1851
CPU Hỗ trợ	Intel Core Ultra Processor (Series 2)
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	256GB
Khe cắm mở rộng	1x PCIe_1 5.0 x16 (CPU) 1x PCIe_2 4.0 x1 (Chipset) 1x PCIe_3 4.0 x4 (Chipset)
Lưu trữ mở rộng	1x M.2_1 2280/2260 PCIe 5.0 x4 (CPU) 1x M.2_2 22110/2280/2260 PCIe 4.0 x4 (Chipset) 1x M.2_3 2280/2260/2242 PCIe 4.0 x4 (Chipset) 4x SATA 6Gb/s
Kết nối không dây	Bluetooth 5.4 Wi-Fi 7
Cổng kết nối phía sau	1x Clear CMOS Button 1x DisplayPort 1x USB 2.0 (Flash BIOS Port) 1x LAN 5Gb 4x USB-A 3.2 Gen 2 2x Audio Jack 1x BIOS Flashback Button 1x Thunderbolt 4 1x HDMI 3x USB-A 2.0 1x USB-C 3.2 Gen 2 1x Wi-Fi/Bluetooth 1x Optical S/PDIF Out
Phụ kiện	1x EZ Front Panel Cable 1x 1 to 2 EZ Conn-Cable (V1) 1x EZ WiFi Antenna 1x M.2 Clip II Remove 1x EZ M.2 Clips II 1x SATA 6Gb/s cables 1x Quick start guide
Thời gian bảo hành	36 tháng

Bo Mạch Chủ – Mainboard MSI MAG B860 TOMAHAWK WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI PRO B860M-C EX DDR5

Chipset	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel^® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel^® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 over USB Type-C^®, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. *This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled.
Slot	1x PCI-E x16 slot 2x PCI-E x1 slot 1x PCI slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN	Realtek^® 8125 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	COM Port VGA Keyboard / Mouse USB 5Gbps Type-A 2.5G LAN Audio Connectors DisplayPort HDMI™ DVI-D USB 2.0 USB 10Gbps Type-A USB 10Gbps Type-C (Type-C Display port)
OPERATING SYSTEM	Support for Windows^® 11 64-bit
PCB Info	mATX 243.84mmx220mm

Bo Mạch Chủ – Mainboard MSI PRO B860M-C EX DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI PRO B860-P DDR5

Thông số kỹ thuật:

Tên thông số	Giá trị
Nhà sản xuất	MSI
Model	MSI-PRO-B860-P
Mainboard Form Factor	ATX
Chipset	Intel B860
Socket CPU	LGA 1851
CPU Hỗ trợ	Intel Core Ultra Processor (Series 2)
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	256GB
Khe cắm mở rộng	1x PCIe_1 5.0 x16 (CPU) 1x PCIe_2 4.0 x1 (Chipset) 1x PCIe_3 4.0 x4 (Chipset) 1x PCIe_4 4.0 x1 (Chipset)
Lưu trữ mở rộng	1x M.2_1 2280/2260 PCIe 5.0 x4 (CPU) 1x M.2_2 2280/2260/2242 PCIe 4.0 x4 (Chipset) 1x M.2_3 2280/2260 PCIe 4.0 x2 (Chipset) 4x SATA 6Gb/s
Cổng kết nối phía sau	1x LAN 5Gb 1x DisplayPort 4x USB-A 2.0 2x USB-A 3.2 Gen 1 3x Audio Jack 1x HDMI 1x Thunderbolt 4 2x USB-A 3.2 Gen 2 1x Clear CMOS Button
Phụ kiện	1x SATA 6Gb/s cables 3x EZ M.2 Clips II 1x M.2 Clip II Remove 1x Quick start guide
Thời gian bảo hành	36 tháng

Bo Mạch Chủ – Mainboard MSI PRO B860-P DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI MPG Z890I EDGE TI WIFI DDR5

Thông tin Sản Phẩm:

CPU SUPPORT	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
CHIPSET	Intel^® Z890 Chipset
MEMORY	2x DDR5, Maximum Memory Capacity 128GB Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/sSupports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM• The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
ONBOARD GRAPHICS	1x HDMI™ Support HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort Thundebolt^TM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
AUDIO	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
STORAGE	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G•M.2_4 & 2x SATA are supported by 5-in-1 XPANDER •Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
ONBOARD THUNDERBOLT	2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	1x Intel^® Killer™ E5000B 5G LAN
WIFI & BLUETOOTH	Intel^® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
INTERNAL I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows^® 11 64-bit

PCB DIMENSION

Mini-ITX
170mmx170mm

Bo Mạch Chủ – Mainboard MSI MPG Z890I EDGE TI WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI PRO Z890-S WIFI DDR5

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	Mainboard MSI
Model	PRO Z890-S WIFI
CPU hỗ trợ	Intel
Chipset	INTEL Z890
RAM hỗ trợ	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s
Khe cắm mở rộng	4x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Ổ cứng hỗ trợ	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Cổng kết nối (Internal)	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Cổng kết nối (Back Panel)	DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 20Gbps Type-C USB 5Gbps Type-A
LAN / Wireless	Realtek^® 8125D 2.5Gbps LAN Intel^® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4**, MLO, 4KQAM
Kích cỡ	ATX 243.84mmx304.8mm

Bo Mạch Chủ – Mainboard MSI PRO Z890-S WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI PRO B860-P WIFI DDR5

Thông số kỹ thuật:

Tên thông số	Giá trị
Nhà sản xuất	MSI
Model	MSI-PRO-B860-P-WIFI
Mainboard Form Factor	ATX
Chipset	Intel B860
Socket CPU	LGA 1851
CPU Hỗ trợ	Intel Core Ultra Processor (Series 2)
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	256GB
Khe cắm mở rộng	1x PCIe_1 5.0 x16 (CPU) 1x PCIe_2 4.0 x1 (Chipset) 1x PCIe_3 4.0 x4 (Chipset) 1x PCIe_4 4.0 x1 (Chipset)
Lưu trữ mở rộng	1x M.2_1 2280/2260 PCIe 5.0 x4 (CPU) 1x M.2_2 2280/2260/2242 PCIe 4.0 x4 (Chipset) 1x M.2_3 2280/2260 PCIe 4.0 x2 (Chipset) 4x SATA 6Gb/s
Kết nối không dây	Wi-Fi 7 Bluetooth 5.4
Cổng kết nối phía sau	1x LAN 5Gb 1x DisplayPort 4x USB-A 2.0 2x USB-A 3.2 Gen 1 2x Wi-Fi/Bluetooth 3x Audio Jack 1x HDMI 1x Thunderbolt 4 2x USB-A 3.2 Gen 2 1x Clear CMOS Button
Phụ kiện	1x SATA 6Gb/s cables 1x EZ WiFi Antenna 3x EZ M.2 Clips II 1x M.2 Clip II Remove 1x Quick start guide
Thời gian bảo hành	36 tháng

Bo Mạch Chủ – Mainboard MSI PRO B860-P WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI PRO B860M-A WIFI DDR5

Thông số kỹ thuật:

Tên thông số	Giá trị
Nhà sản xuất	MSI
Model	MSI-PRO-B860M-A-WIFI
Mainboard Form Factor	mATX
Chipset	Intel B860
Socket CPU	LGA 1851
CPU Hỗ trợ	Intel Core Ultra Processor (Series 2)
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	256GB
Khe cắm mở rộng	1x PCIe_1 5.0 x16 (CPU) 1x PCIe_2 4.0 x1 (Chipset) 1x PCIe_3 4.0 x1 (Chipset) 1x PCIe_4 4.0 x4 (Chipset)
Lưu trữ mở rộng	1x M.2_1 2280/2260/2242 PCIe 5.0 x4 (CPU) 1x M.2_2 2280/2260 PCIe 4.0 x4 (Chipset) 1x M.2_3 2280 PCIe 4.0 x2 (Chipset) 4x SATA 6Gb/s
Kết nối không dây	Wi-Fi 7 Bluetooth 5.4
Cổng kết nối phía sau	1x DisplayPort 1x Mouse / Keyboard PS/2 2x USB-A 3.2 Gen 1 1x LAN 5Gb 2x Wi-Fi/Bluetooth 3x Audio Jack 1x HDMI 2.0 1x Thunderbolt 4 2x USB-A 2.0 1x Clear CMOS Button 1x USB-A 3.2 Gen 2 1x USB-C 3.2 Gen 1
Phụ kiện	1x SATA 6Gb/s cables 1x EZ WiFi Antenna 2x EZ M.2 Clips II 1x EZ M.2 Clips II Remover 2x M.2 Screw and Standoff Set 1x Quick start guide
Thời gian bảo hành	36 tháng

Bo Mạch Chủ – Mainboard MSI PRO B860M-A WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard MSI MAG B860M MORTAR WIFI DDR5

Thông số kỹ thuật:
