Card Mạng TP-LINK PCIe 2.5 Gigabit TX201
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Chuẩn và Giao thức | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x |
| Giao diện | 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port |
| Mạng Media | 2.5GBASE-T/1000BASE-T/100BASE-TX |
| LED | 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act |
| Tốc độ dữ liệu | 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode, 20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode |
| Kích thước ( R x D x C ) | 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in) |
| Kiểm soát lưu lượng | 802.3x |
| KHÁC | |
|---|---|
| Chứng chỉ | FCC, CE, RoHS |
| Sản phẩm bao gồm | 2.5 Gigabit PCIe Network Adapter (TX201) Standard/Low-Profile Brackets Quick Installation Guide Resource CD |
| System Requirements | Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux |
| Môi trường | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Card PCI ghi hình nội soi, siêu âm cao cấp AverMedia C725
- AVerMedia C725B kết nối qua chuẩn PCI-E x1 hỗ trợ các cổng kết nối Composite , AV (RCA), S-video và âm thanh stereo đầu vào cho số hóa Video từ tín hiệu Analog sang định dạng AVI không nén 25/30 fps.
- Card ghi hình (Card capture) Được sử dụng rất nhiều trong nghành Y Tế trong bệnh viện, các phòng khám siêu âm, nội soi . Hỗ trợ tiêu chuẩn video PAL, NTSC và SECAM
- Card PCI AverMedia C725 Sử dụng trực tiếp trên máy tính cổng PCI-E x1 giúp ghi hình, thu lại tín hiệu hình ảnh, âm thanh như: Đầu DVD, Android set-top-box, Máy nội soi, Máy siêu âm…Hỗ trợ định dạng Video AVI, WMV..Hình ảnh chụp thông qua định dạng: BMP, JPG
- Độ phân giải đầu vào hỗ trợ 2 chuẩn AV (RCA), S-Video: 160×120 / 176×144 / 240×180 / 240×176 / 320×240 / 352×240 / 352×288 (PAL only) / 640×240 / 640×288 / 640×480/ 704×576 (PAL only) / 720×240 / 720×288 / 720×480 / 720×576 (PAL only)
Thông số kĩ thuật Card nội soi, siêu âm Avermedia C725:
– Hãng SX: AverMedia
– Model: C725B
– Khe cắm: PCI-Express x1
– Kết nối: S-Video, AV thiết bị đầu cuối (RCA)
– Độ phân giải: NTSC :720×480 @ 60i,
PAL: 720×576 @ 50i
– Hỗ trợ HĐH: XP, Vista, 7 / 8, 8.1 (32 bit, 64 bit)
– Kích thước: 93.5(L) x 68.78(W) x 1.57(H)
– Tương thích với các phần mềm phổ biến:
• Telestream Wirecast
• Adobe Flash Media Live Encoder 3
• UStream Producer
• XSplit
• Microsoft Windows Media Encoder 9
• Microsoft Express Encoder
• GraphEdit
• Corel VideoStudio
• CyberLink PowerDirector
• CyberLink PowerProducer
• Real Producer (v13)
• VLC Media Player
• Any application which requires a DirectShow compliant device
– Xuất xứ: Đài Loan (Made in Taiwan)
Card Mạng D-Link DGE – 560TX
Card mạng D-Link DGE-560TX
- Card kết nối mạng LAN tốc độ 10/100/1000Mbps.
- Hỗ trợ 1 cổng RJ45 tự động dò tìm tốc độ. (10/100/1000Mbps).
- Kết nối với máy tính thông qua giao diện PCI.
- Truyền dữ liệu song công hoặc bán song công.
- Hỗ trợ chế độ Full duplex lên đến 2000Mbps.
- Tốc độ hoạt động của PCI Express Bus Architectures 32 bit và 64 bit.
- Auto MDI/MDIX.
- Điều khiển lưu lượng nhanh và truyền phát dữ liệu tin cậy với chuẩn 802.
- Cung cấp tiện ích xác định chuẩn cáp kết nối.
- Hỗ trợ khung Jumbo lên đến 9KB.
- Hỗ trợ SNMP, ACPI 2.0, TCP, UDP, IP Checksum Offload, và Segmentation, Task-offload
- Hỗ trợ các hệ điều hành máy tính Win 7, Vista, 2000, XP, Linux, DOS, MacOS.
Đặc tính kỹ thuật
|
Specifications |
802.1P Priority Tagging |
|
802.1Q VLAN Tagging |
|
|
Wake-on-Lan and ACPI 2.0 |
|
|
802.3x Flow Control |
|
|
802.3ad Link Aggregation |
|
|
Interface Options |
10Base-T |
|
100Base-TX |
|
|
1000Base-T |
|
|
RJ-45 |
|
|
Management |
SNMPv1 and Integrated Cable Diagnostics |
|
PXE |
|
|
RPL |
|
|
RFC 1157 SNMP |
|
|
Data Transfer Rate |
Gigabit |
|
Network Operation Mode |
Full Duplex (2000 Mbps) |
|
Network Protocols and Standards |
802.3 Ethernet |
|
802.3u Fast Ethernet |
|
|
802.3ab Gigabit Ethernet |
|
|
802.3x Flow Control |
|
|
802.1Q VLAN Tagging |
|
|
802.1P Priority Tagging |
|
|
802.3ad Link Aggregation |
|
|
802.1x Authentication |
|
|
Emissions |
CE |
|
VCCI |
|
|
FCC Class B |
|
|
RoHS Compliant |
|
|
Driver Support |
Microsoft Windows 7 32/ 64bit Microsoft Windows Vista 32/ 64bit Microsoft Windows XP 32/64 bit Microsoft Windows 2000 Linux for Kernel 2.4.x , 2.6.x Free BSD 7.x and 8.0 NDIS2 for DOS Novell client for DOS (ODI Client) Novell server driver (Support OS 5.X and 6.X) Mac OS 10.4, 10.5, 10.6 (x86-based Mac computer) |
|
Temperature |
Operating: 32° to 122°F (0° to 50°C) Storage: 32° to 140°F (0° to 60°C) |
|
Humidity |
Operating: 5% ~ 95% RH, Non-condensing Storage: 5% ~ 95% RH, Non-condensing |
|
Dimensions (W x D x H) |
0.1 x 3.5 x 2.2 inch (2.5 x 88.9 x 55.9mm) |
- Bảo hành: 36 tháng.

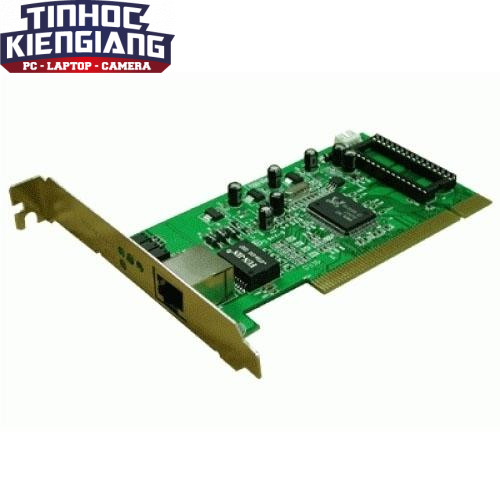

Card Mạng D-Link DGE-528T PCI 10/100/1000
Card mạng D-Link DGE - 528T PCI 10/100/1000
- Card kết nối mạng LAN tốc độ 10/100/1000Mbps.
- 1 cổng RJ45 tự động dò tìm tốc độ. (10/100/1000Mbps).
- Kết nối với máy tính thông qua giao diện PCI.
- Truyền dữ liệu song công hoặc bán song công.
- Hỗ trợ chế độ Full duplex lên đến 2000Mbps.
- Tốc độ hoạt động của PCI Bus Master 32-bit 33/66MHz.
- Tích hợp bộ nhớ đệm FIFO (8K/64K) để giảm sự quá tải khi truyền dữ liệu trên bộ nhớ máy tính.
- Auto MDI/MDIX.
- Điều khiển lưu lượng nhanh và truyền phát dữ tin cậy với chuẩn 802.
- Quản lý công suất nguồn với ACPI 2.0 WOL.
- 802.1q VLAN Tagging.
- 802.1p Priority Queues.
- Tương thích với chuẩn PCI 2.3.
- Hỗ trợ khung dữ liệu lớn lên đến 7Kb.
- Cung cấp tiện ích xác định chuẩn cáp kết nối.
- Chạy trên các hệ điều hành máy tính Win98, 2000, ME, NT, XP, NetWare, Linux, MacOS.
ĐẶC TÍNH SẢN PHẨM
High-performance Gigabit Speed
Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.
VLAN to Improve Performance and Security
The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.
Wake-On-LAN for Power Management
Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.
Flow Control to Minimize Packet Loss
The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.
Small Form Factor, Lower Power Requirement
Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
Bảo hành: 36 tháng.
