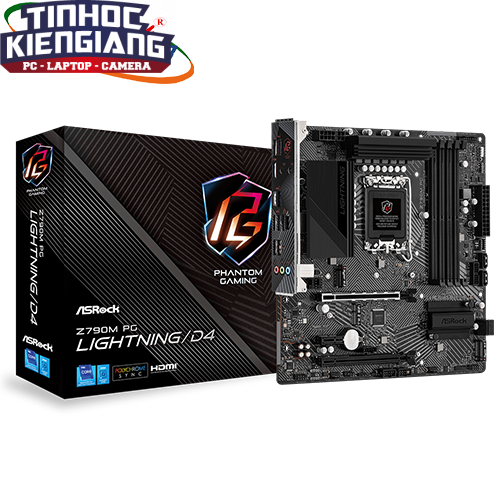

Mainboard ASROCK Z790M PG Lightning/D4 DDR4

Unieke Eigenschappen

Rock-Solid Durability
– 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
– Pre-Installed I/O Shield
EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker

CPU

– Supports 13th Gen & 12th Gen Intel^® Core™ Processors (LGA1700)
– Supports Intel^® Hybrid Technology
– Supports Intel^® Turbo Boost Max 3.0 Technology
– Supports Intel^® Thermal Velocity Boost (TVB)
– Supports Intel^® Adaptive Boost Technology (ABT)

Chipset

– Intel^® Z790

Geheugen

– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 128GB
– Supports Intel^® Extreme Memory Profile (XMP) 2.0


*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.

BIOS

– 128Mb AMI UEFI Legal BIOS with GUI support

Grafisch

– Intel^® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz


*Intel^® UHD Graphics Built-in Visuals en de VGA uitgangen kunnen enkel ondersteunt worden door processors met geïntegreerde GPU.

Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio

LAN

– Gigabit LAN 10/100/1000 Mb/s
– Intel^® I219V

Sloten

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
– 1 x PCIe 3.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™


*Supports NVMe SSD as boot disks

Opslaan

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors


*Supports Intel^® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*


*Requires additional M.2 NVMe expansion cards to support RAID 10

USB 3.1

– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)


*All USB ports support ESD Protection

Aansluitingen

– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header


*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

I/O Achterpaneel

– 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 4 x USB 3.2 Gen1 Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software en UEFI

Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer


*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accesoires

– 1 x User Manual
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets

Vorm factor

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

– Microsoft^® Windows^® 11 64-bit

Certificaten

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
