Showing all 4 results

Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305659-0-1-300x300.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305659-0-1-100x100.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305659-0-1-150x150.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305659-0-1-300x300.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305659-0-1.png)Attachment do not have sizes or watermark do not setuped(215102)Bo Mạch Chủ - Mainboard ASRock A520M-HVS (Chipset AMD A520, Socket AM4, DDR4 64GB, M-ATX)

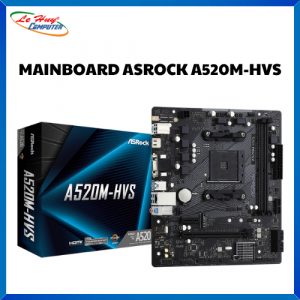

Bo Mạch Chủ – Mainboard ASRock A520M-HVS (Chipset AMD A520, Socket AM4, DDR4 64GB, M-ATX)

  • THÔNG SỐ KỸ THUẬT:

    Thương hiệu

    ASRock
    Bảo hành

    36 tháng
    Socket

    AMD AM4
    Chipset

    A520
    Bus RAM hỗ trợ

    Up to 4600+(OC)
    Khe RAM tối đa

    2 khe
    Hỗ trợ bộ nhớ tối đa

    64GB
    Khe cắm mở rộng

    – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
    – 1 x PCI Express 3.0 x1 Slot
    Khe cắm ổ cứng

    – 1 x Ultra M.2 Socket
    – 4 x SATA3 6.0 Gb/s Connectors
    Cổng xuất hình

    – 1 x D-Sub Port
    – 1 x HDMI Port
    INPUT/OUTPUT phía sau

    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x D-Sub Port
    – 1 x HDMI Port
    – 2 x USB 2.0 Ports (Supports ESD Protection)
    – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
    Đầu nối I/O nội bộ

    – 1 x SPI TPM Header
    – 1 x COM Port Header
    – 1 x Chassis Intrusion and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 4 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Kích cỡ Mainboard

    M-ATX

Bo Mạch Chủ – Mainboard ASRock A520M-HVS (Chipset AMD A520, Socket AM4, DDR4 64GB, M-ATX)

Liên hệ
Bo Mạch Chủ - Mainboard ASRock B760M Pro Rs Wifi DDR5

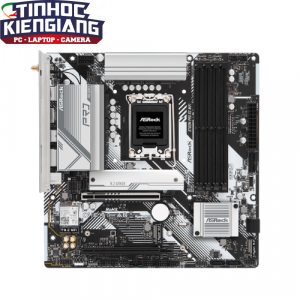

Bo Mạch Chủ – Mainboard ASRock B760M Pro Rs Wifi DDR5

  • Thông số kỹ thuật:

    Loại Ram DDR5
    Chipset Intel B760
    Socket LGA 1700
    Khe Ram 4 khe cắm Ram
    Dung lượng Ram hỗ trợ tối đa 192 GB
    Tốc độ Bus đến 7200+(OC)
    Cổng xuất hình Đang cập nhật
    Wifi 802.11axe WiFi 6E
    Bluetooth 5.3
    Kết nối mạng LAN

    2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    Khe cắm

    1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16, 1 x M.2
    Giao Tiếp VGA 1 x HDMI, 1 x DisplayPort
    Số cổng USB

    1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
    Hệ điều hành hỗ trợ

    Microsoft Windows 10 64-bit / 11 64-bit
    Kích thước

    Micro ATX (244 mm x 244 mm)

Bo Mạch Chủ – Mainboard ASRock B760M Pro Rs Wifi DDR5

Liên hệ
Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305829-0-1-300x300.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305829-0-1-100x100.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305829-0-1-150x150.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305829-0-1-300x300.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1750305829-0-1.png)Attachment do not have sizes or watermark do not setuped(215101)Bo Mạch Chủ - Mainboard ASROCK B760M PRO RS/D5

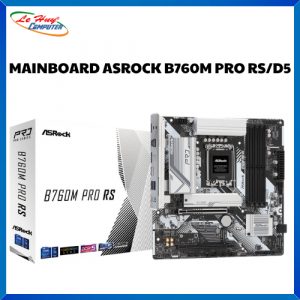

Bo Mạch Chủ – Mainboard ASROCK B760M PRO RS/D5

  • Nhà sản xuất ASRock
    Model B760M-PRO-RS
    CPU hỗ trợ
    • Intel Core 12th/13th
    • Socket LGA1700
    Chipset Intel B760
    Hỗ trợ Ram 4 x DDR5 non-ECC up to 7200+(OC) MHz (Maximum 192GB)
    Khe cắm mở rộng 1 x PCIe 5.0 x16 (PCIE1) 1 x PCIe 3.0 x16 (PCIE2) 1 x M.2 2230 WiFi Supports AMD CrossFire
    Hỗ trợ ổ cứng 1 x Hyper M.2 2242/ 2260/ 2280 PCIe Gen4 x4 2 x Hyper M.2 2280 PCIe Gen4 x4 4 x SATA 3 6.0 Gb/s Support Raid 0, 1, 5, 10.
    LAN/Wireless 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    Audio
    • Realtek ALC897 Audio Codec
    • Nahimic Audio
    Cổng kết nối bên trong  -Fan and Cooling 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) 4 x Chassis/Water Pump Fan Connectors (4-pin) -Power 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector -Storage 2 x M.2 4 x SATA 3 6Gbps -USB 2 x USB 2.0 Headers 1 x USB 3.2 Gen1 Headers -Miscellaneous 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) 1 x Front Panel Type C USB 3.2 Gen1 Header
    Cổng kết nối phía sau 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x HD Audio Jacks: Line in / Front Speaker / Microphone
    Kiểu dáng mATX (244 x 244 mm)
    Bảo hành 3 năm

Bo Mạch Chủ – Mainboard ASROCK B760M PRO RS/D5

Liên hệ

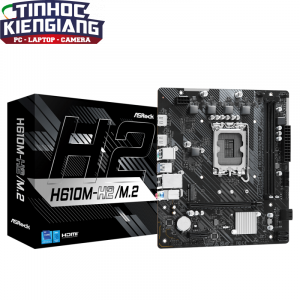

Bo Mạch Chủ - Mainboard Asrock H610M-H2/M.2 DDR4

Bo Mạch Chủ – Mainboard Asrock H610M-H2/M.2 DDR4

  • Unique Feature
    Rock-Solid Durability
    - 3+1+1 Power Phase
    EZ Update
    - ASRock Auto Driver Installer

  • CPU
    - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology

  • Chipset
    - Intel® H610

  • Bộ nhớ RAM
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 non-ECC, un-buffered memory up to 3200
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0

  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support

  • Card đồ họa
    - Intel® Xe Graphics Architecture (Gen 12)
    - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  • Card âm thanh
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Realtek 8111H

  • Khe cắm
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 3.0 x1 Slot (PCIE2)*
    * Supports NVMe SSD as boot disks

  • Kho tiềnChipset:
    - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors
    * Supports NVMe SSD as boot disks

  • USB
    - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
    - 6 x USB 2.0 (4 Rear, 2 Front)
    * All USB ports support ESD Protection

  • Cổng kết nối
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    * CPU_FAN1 supports the fan power up to 1A (12W).
    ** CHA_FAN1/WP supports the fan power up to 2A (24W).
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Bảng điều khiển Input/Output phía sau

    - 1 x PS/2 Mouse/Keyboard Port
    - 2 x HDMI Ports
    - 2 x USB 3.2 Gen1 Type-A Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Phần mềm và UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Phụ kiện
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket

  • Chuẩn vỏ máy
    - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

  • Hệ điều hành
    - Microsoft® Windows® 10 64-bit / 11 64-bit

  • Chứng nhận
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)

Bo Mạch Chủ – Mainboard Asrock H610M-H2/M.2 DDR4

Liên hệ
