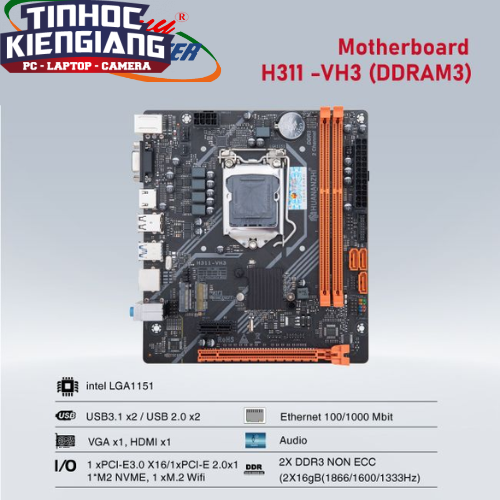

MAINBOARD HUANANZHI H311-VH3 DDRAM3 hỗ trợ RAM DDR3 1600MHz
Liên hệ
Thông số kỹ thuật:
- Mã sản phẩm: H311-VH3 DDRAM3
- Form Factor: M-ATX
- Kích thước: 190*170mm
- Khe cắm mở rộng:
- 1 x PCI-E 3.0 x16
- 1 x PCI-E 2.0 x1
- Loại bộ nhớ: 2 khe cắm DDR3 NON-ECC
- Dung lượng bộ nhớ tối đa: Hỗ trợ lên đến 32GB (2 x 16GB) với tốc độ 1866/1600/1333MHz
- Khe mở rộng:
- 1 x M.2 NVMe
- 1 x M.2 WiFi
- Socket CPU: Hỗ trợ CPU Intel LGA1151
- Âm thanh: Âm thanh vòm 5.1 cho trải nghiệm giải trí đa phương tiện sống động
- Kết nối ổ cứng: 3 x cổng SATA 3.0
- Cổng mạng: Ethernet 1000M cho tốc độ kết nối mạng nhanh và ổn định
- Đầu cấp nguồn:
- 1 x 8-pin
- 1 x 24-pin
- Cổng USB:
- 2 x USB 2.0
- 2 x USB 3.0
