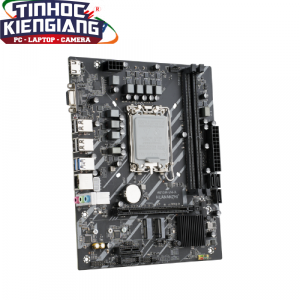

Mainboard HUANANZHI B760M-D4 A (Đen)
| Model | HUANANZHI B760M-D4 A Đen |
| Main chipset | Intel B760 |
| CPU Socket | Support Intel LGA1700 |
| Memory slot | 2 x DDR4 memory slot |
| Memory standard | Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB |
| Storage interface | 4xSATA3.0 6Gbps interfaces |
| Expansion Slots | 1xPCI Expressx16 4.0，1xPCI Expressx4 4.0 |
| Expansion interface | 2xM.2 22110 NVME PCIE X4 4.0 |
| Soud Track | Realtek High Fidelity Audio |
| Network Card | Realtek Gigabit Network Card |
| Power interface | 24pin+8pin |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| power supply | 10-phase power supply |
| PCB layers | 6-layer PCB |
| Dimension | 235*195MM M-ATX |
| Rear panel interface | 2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface |
| Front panel interface | 1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin |
| Support system | Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Packing list | 1 x Motherboard，1x SATA data cable，1xWarranty card |

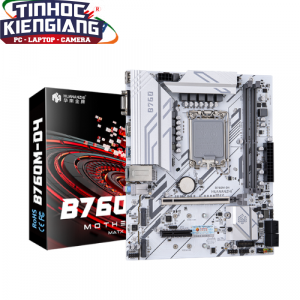

Mainboard HUANANZHI B760M-D4 B (Trắng)
| Model | HUANANZHI B760M-D4 B Trắng |
| Main chipset | Intel B760 |
| CPU Socket | Support Intel LGA1700 |
| Memory slot | 2 x DDR4 memory slot |
| Memory standard | Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB |
| Storage interface | 4xSATA3.0 6Gbps interfaces |
| Expansion Slots | 1xPCI Expressx16 4.0，1xPCI Expressx4 4.0 |
| Expansion interface | 2xM.2 22110 NVME PCIE X4 4.0 |
| Soud Track | Realtek High Fidelity Audio |
| Network Card | Realtek Gigabit Network Card |
| Power interface | 24pin+8pin |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| power supply | 10-phase power supply |
| PCB layers | 6-layer PCB |
| Dimension | 235*195MM M-ATX |
| Rear panel interface | 2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface |
| Front panel interface | 1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin |
| Support system | Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Packing list | 1 x Motherboard，1x SATA data cable，1xWarranty card |

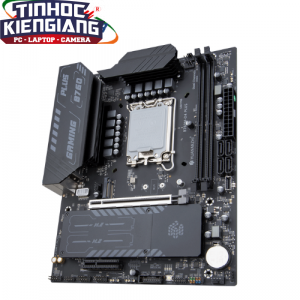

Mainboard HUANANZHI B760M-D4 PLUS
|
Model |
HUANANZHI B760M-D4 PLUS Motherboard |
|
Main chipset |
Intel B760 |
|
CPU Socket |
Support Intel LGA1700，Supports Intel 12th/13th/14th generation Core processors |
|
Memory slot |
2 x DDR4 memory slot |
|
Memory standard |
Support Dual channels DDR4 4000/3600/3200/2933/2666/2133MHz，Max support96GB |
|
Storage interface |
4xSATA3.0 6Gbps interfaces |
|
Expansion Slots |
1xPCI Express4.0 x16，1xPCI Express3.0 x4 |
|
Expansion interface |
1xM.2 2280 NVME PCIE X4 4.0，1xM.2 WIFI |
|
Soud Track |
Realtek High Fidelity Audio ALC897 |
|
Network Card |
Realtek 2.5G Gigabit network card RTL8125BG |
|
Power interface |
24pin+8pin |
|
FAN PIN |
1xCPU_FAN PIN，2xSYS_FAN PIN 3x5V ARGB PIN（HUANANZHI Official website download software to control ARGB lighting effect) |
|
power supply |
10-phase power supply |
|
PCB layers |
6-layer PCB |
|
Dimension |
235*185MM M-ATX |
|
Rear panel interface |
4xUSB2.0 480Mbps，2xUSB3.2 10Gb/s，1xType-C 5Gb/s，2xHDMI 2.1，1xDP 1.4，1x Network card interface，1x3-hole audio interface |
|
Front panel interface |
1 x USB2.0 480Mbps PIN，1 x USB3.2 5Gb/s PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin，1x Debug pin，1 xCMOSPIN 1 x TPM PIN，1 x BuzzerPIN，1 x Type-C 5Gb/s ,1 x Debugging indicator light |
|
Support system |
Windows10 Windows11(Supports incoming power on/timed power on/network wake-up/S3 sleep/network card IPV4/IPV6) |
|
BIOS |
AMI UEFI BIOS Graphics BIOS |
|
Packing list |
1 x Motherboard，1x SATA data cable，1xWarranty card |

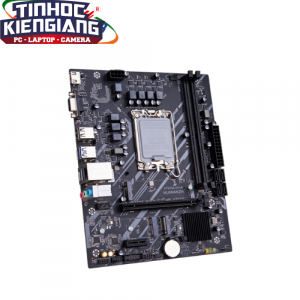

Mainboard HUANANZHI B760M-D5 PLUS
|
Model |
HUANANZHI B760M-D5 PLUS Motherboard |
|
Main chipset |
Intel B760 |
|
CPU Socket |
Support Intel LGA1700，Supports Intel 12th/13th/14th generation Core processors |
|
Memory slot |
2 x DDR5 memory slot |
|
Memory standard |
Support Dual channels DDR5 6800/6400/6000/5600/5200/4800MHz，Max support96GB |
|
Storage interface |
4xSATA3.0 6Gbps interfaces |
|
Expansion Slots |
1xPCI Express4.0 x16，1xPCI Express3.0 x4 |
|
Expansion interface |
1xM.2 2280 NVME PCIE X4 4.0，1xM.2 WIFI |
|
Soud Track |
Realtek High Fidelity Audio ALC897 |
|
Network Card |
Realtek 2.5G Gigabit network card RTL8125BG |
|
Power interface |
24pin+8pin |
|
FAN PIN |
1xCPU_FAN PIN，2xSYS_FAN PIN 3x5V ARGB PIN（HUANANZHI Official website download software to control ARGB lighting effect) |
|
power supply |
10-phase power supply |
|
PCB layers |
6-layer PCB |
|
Dimension |
235*185MM M-ATX |
|
Rear panel interface |
4xUSB2.0 480Mbps，2xUSB3.2 10Gb/s，1xType-C 5Gb/s，2xHDMI 2.1，1xDP 1.4，1x Network card interface，1x3-hole audio interface |
|
Front panel interface |
1 x USB2.0 480Mbps PIN，1 x USB3.2 5Gb/s PIN，1 x Front audio PIN，1 xCOMPIN，1 xPower on/restart pin，1x Debug pin，1 xCMOSPIN 1 x TPM PIN，1 x BuzzerPIN，1 x Type-C 5Gb/s ,1 x Debugging indicator light |
|
Support system |
Windows10 Windows11(Supports incoming power on/timed power on/network wake-up/S3 sleep/network card IPV4/IPV6) |
|
BIOS |
AMI UEFI BIOS Graphics BIOS |
|
Packing list |
1 x Motherboard，1x SATA data cable，1xWarranty card |
Mainboard HUANANZHI B760M-VH-A (Đen)
|
Model |
HUANANZHI B760M-VH-A Motherboard |
|
Chipset |
Intel B760 |
|
CPU Socket |
Supports IntelLGA1700 |
|
Memory Slot |
2 x DDR4 Memory Slot |
|
Memory Standard |
Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB |
|
Storage Interface |
4xSATA3.0 6Gbps |
|
Expansion Slots |
1xPCI Express 4.0 x16，1xPCI Express 3.0 x1 |
|
Expansion Interface |
2xM.2 2280 NVME PCIE X4 4.0 ，1xM.2 WIFI |
|
d Track |
Realtek High Definition Audio |
|
Network Card |
Realtek Gigabit Network Card |
|
Power Interface |
24PIN+8PIN |
|
FAN PIN |
1xCPU_FAN PIN，1xSYS_FAN PIN |
|
Power Supply |
8 Phase Power Supply |
|
PCB Layers |
4-layer PCB |
|
Dimension |
220*180MM M-ATX |
|
Rear Panel Interface |
2xUSB2.0 480Mbps，2xUSB3.2 10Gbps，2xUSB3.2 5Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface， 1xVGA Interface，1xHDMI 2.0Interface |
|
Front Panel Interface |
1xUSB2.0 480Mbps PIN，1xUSB3.2 5GbpsPIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN |
|
Support System |
Windows10 Windows11（Support incoming power on/timed power on/network card startup/network wake-up） |
|
BIOS |
AMI UEFI BIOS |
|
Packing List |
1xMotherboard，1xSATA Cable |

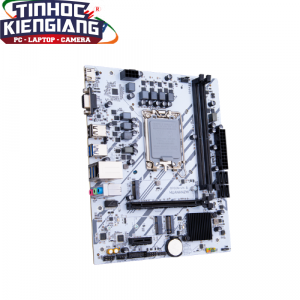

Mainboard HUANANZHI B760M-VH-B (Trắng)
|
Model |
HUANANZHI B760M-VH-B Motherboard |
|
Chipset |
Intel B760 |
|
CPU Socket |
Supports IntelLGA1700 |
|
Memory Slot |
2 x DDR4 Memory Slot |
|
Memory Standard |
Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB |
|
Storage Interface |
4xSATA3.0 6Gbps |
|
Expansion Slots |
1xPCI Express 4.0 x16，1xPCI Express 3.0 x1 |
|
Expansion Interface |
2xM.2 2280 NVME PCIE X4 4.0 ，1xM.2 WIFI |
|
d Track |
Realtek High Definition Audio |
|
Network Card |
Realtek Gigabit Network Card |
|
Power Interface |
24PIN+8PIN |
|
FAN PIN |
1xCPU_FAN PIN，1xSYS_FAN PIN |
|
Power Supply |
8 Phase Power Supply |
|
PCB Layers |
4-layer PCB |
|
Dimension |
220*180MM M-ATX |
|
Rear Panel Interface |
2xUSB2.0 480Mbps，2xUSB3.2 10Gbps，2xUSB3.2 5Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface， 1xVGA Interface，1xHDMI 2.0Interface |
|
Front Panel Interface |
1xUSB2.0 480Mbps PIN，1xUSB3.2 5GbpsPIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN |
|
Support System |
Windows10 Windows11（Support incoming power on/timed power on/network card startup/network wake-up） |
|
BIOS |
AMI UEFI BIOS |
|
Packing List |
1xMotherboard，1xSATA Cable |

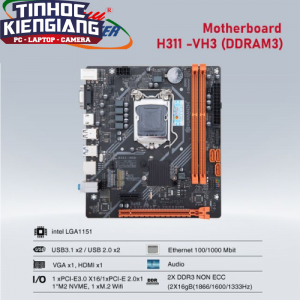

MAINBOARD HUANANZHI H311-VH3 DDRAM3 hỗ trợ RAM DDR3 1600MHz
Thông số kỹ thuật:
- Mã sản phẩm: H311-VH3 DDRAM3
- Form Factor: M-ATX
- Kích thước: 190*170mm
- Khe cắm mở rộng:
- 1 x PCI-E 3.0 x16
- 1 x PCI-E 2.0 x1
- Loại bộ nhớ: 2 khe cắm DDR3 NON-ECC
- Dung lượng bộ nhớ tối đa: Hỗ trợ lên đến 32GB (2 x 16GB) với tốc độ 1866/1600/1333MHz
- Khe mở rộng:
- 1 x M.2 NVMe
- 1 x M.2 WiFi
- Socket CPU: Hỗ trợ CPU Intel LGA1151
- Âm thanh: Âm thanh vòm 5.1 cho trải nghiệm giải trí đa phương tiện sống động
- Kết nối ổ cứng: 3 x cổng SATA 3.0
- Cổng mạng: Ethernet 1000M cho tốc độ kết nối mạng nhanh và ổn định
- Đầu cấp nguồn:
- 1 x 8-pin
- 1 x 24-pin
- Cổng USB:
- 2 x USB 2.0
- 2 x USB 3.0

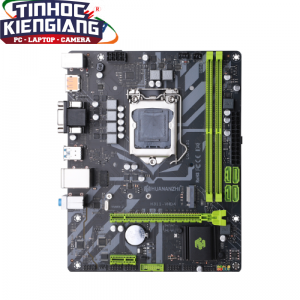

Mainboard Huananzhi H311-VHD4
Thông số kĩ thuật
| Model | Bo mạch chủ HUANANZHI H311-VHD4 |
| Bộ vi mạch | Chipset Intel dòng 100 |
| Ổ cắm CPU | Hỗ trợ bộ xử lý nền tảng Intel LGA1151 |
| Khe cắm bộ nhớ | 2 x Khe cắm bộ nhớ DDR4 |
| Tiêu chuẩn bộ nhớ | Hỗ trợ kênh đôi DDR 4 2666/2400/2133/1866MHz (do CPU quyết định), hỗ trợ tối đa 32GB |
| Giao diện lưu trữ | 4xSATA 3.0 6Gbps |
| Khe cắm mở rộng | 1xPCI Express3.0 x16，1xPCI Express 2.0 x1 |
| Giao diện mở rộng | 1x M.2 2280 NVME PCIE X4 2.0 |
| Nhạc nền | Âm thanh trung thực Realtek |
| Thẻ mạng | Thẻ mạng Gigabit |
| Giao diện nguồn | 24PIN+8PIN |
| PIN QUẠT | 1xPIN QUẠT CPU，2xPIN QUẠT SYS |
| Nguồn điện | Nguồn điện 6 pha |
| Lớp PCB | PCB 4 lớp |
| Kích thước | 215*170MM M-ATX |
| Giao diện bảng điều khiển phía sau | 2xUSB3.0, 2xUSB2.0, 1xGiao diện VGA, 1xGiao diện HDMI2.0, 1xGiao diện DP1.2 , 1xGiao diện Card mạng, Giao diện âm thanh 1x3 lỗ, 1xPIN JVGA |
| Giao diện bảng điều khiển phía trước | 2 xUSB2.0 PIN, 1 xUSB3.0 PIN, 1 x Front Audio PIN, 1 x Debug PIN, 1 x JBAT BIOS PIN 1 x PIN COM, 1 x PIN Bật/Khởi động lại |
| Hệ thống hỗ trợ | Windows7 Windows10 Windows11 |
| BIOS | BIOS AMI UEFI |
| Danh sách đóng gói | 1 x Bo mạch chủ, 1x Cáp SATA, 1x Thẻ bảo hành, 1x BẢNG IO |

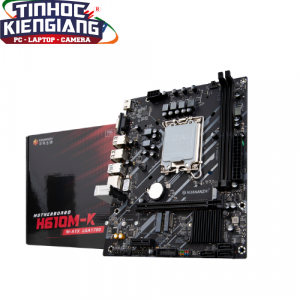

Mainboard HUANANZHI H610M-K
Model
HUANANZHI H610M-K Motherboard
Chipset
Intel H610
CPU Socket
Support Intel LGA1700 Processors
Memory Slot
2 x DDR4 Memory Slot
Memory Standard
Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB
Storage Interface
3xSATA3.0 6Gbps
Expansion Slots
1xPCIe3.0x16，1xPCIe3.0x1
Expansion Interface
1xM.2 2280 NVME PCIE X4 3.0 32Gbps@M.2 2280 NGFF SATA3.0 6Gbps，1xM.2 WIFI
Sound Track
Realtek High Definition Audio ALC897
Network Card
Realtek Gigabit Network Card RTL8111H
Power Interface
24PIN+8PIN
FAN PIN
1xCPU_FAN PIN，1xSYS_FAN PIN
Power Supply
8Phase Power Supply
PCB Layers
4-layer PCB
Dimension
220*180MM M-ATX
Rear Panel Interface
4xUSB2.0 480Mbps，2xUSB3.2 10Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface，1xVGA Interface，1xHDMI2.0 Interface
Front Panel Interface
1xUSB2.0 480Mbps PIN，1xUSB3.2 5Gbps PIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN
Support System
Windows10 Windows11
BIOS
AMI UEFI BIOS
Packing List
1xMotherboard，1xSATA Cable
Mainboard HUANANZHI H610M-VH-A ( Đen)
Mainboard
- Model: Mainboard Huananzhi H610M-VH-A/B
Chipset
- Chipset: Intel H610
Socket CPU
- Hỗ trợ CPU Intel LGA1700
Khe cắm RAM
- 2 Khe cắm DDR4
Chuẩn bộ nhớ
- Hỗ trợ kênh đôi DDR4 3200/2933/2666/2400MHz, dung lượng tối đa 64GB
Giao diện lưu trữ
- 3 cổng SATA3.0 6Gbps
Khe mở rộng
- 1x Khe PCIe 3.0 x16, 1x Khe PCIe 3.0 x1
Giao diện mở rộng
- 1x Khe cắm M.2 2280 NVMe PCIe x4 3.0 32Gbps (hỗ trợ cả chuẩn SATA3.0 6Gbps)
- 1x Khe cắm M.2 WIFI
Card âm thanh
- Realtek High Definition Audio ALC897
Card mạng
- Card mạng Gigabit Realtek RTL8111H
Nguồn điện
- Cổng kết nối nguồn 24 chân + 8 chân
Cổng quạt
- 1x Cổng quạt CPU, 1x Cổng quạt hệ thống
Cung cấp điện
- Nguồn cung cấp điện 8 pha
Mạch PCB
- Mạch 4 lớp
Kích thước
- Kích thước chuẩn M-ATX: 220*180mm
Giao diện I/O mặt sau
- 4x cổng USB2.0 480Mbps, 2x cổng USB3.2 10Gbps
- 1x Cổng mạng LAN
- 1x Cổng âm thanh 3 lỗ
- 1x Cổng VGA
- 1x Cổng HDMI 2.0
Giao diện I/O mặt trước
- 1x Khe cắm USB2.0 480Mbps
- 1x Khe cắm USB3.2 5Gbps
- 1x Khe cắm âm thanh mặt trước
- 1x Khe cắm COM
- 1x Khe cắm bật/khởi động nguồn
- 1x Khe cắm gỡ lỗi
Hệ điều hành hỗ trợ
- Windows 10, Windows 11
BIOS
- AMI UEFI BIOS
Danh sách phụ kiện
- 1x Mainboard Huananzhi H610M-VH-A/B
- 1x Dây cáp SATA

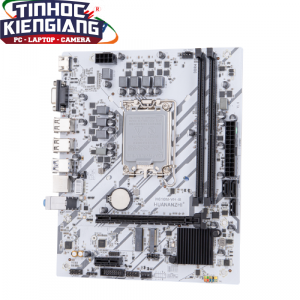

Mainboard HUANANZHI H610M-VH-B (Trắng)
Mainboard
- Model: Mainboard Huananzhi H610M-VH-B
Chipset
- Chipset: Intel H610
Socket CPU
- Hỗ trợ CPU Intel LGA1700
Khe cắm RAM
- 2 Khe cắm DDR4
Chuẩn bộ nhớ
- Hỗ trợ kênh đôi DDR4 3200/2933/2666/2400MHz, dung lượng tối đa 64GB
Giao diện lưu trữ
- 3 cổng SATA3.0 6Gbps
Khe mở rộng
- 1x Khe PCIe 3.0 x16, 1x Khe PCIe 3.0 x1
Giao diện mở rộng
- 1x Khe cắm M.2 2280 NVMe PCIe x4 3.0 32Gbps (hỗ trợ cả chuẩn SATA3.0 6Gbps)
- 1x Khe cắm M.2 WIFI
Card âm thanh
- Realtek High Definition Audio ALC897
Card mạng
- Card mạng Gigabit Realtek RTL8111H
Nguồn điện
- Cổng kết nối nguồn 24 chân + 8 chân
Cổng quạt
- 1x Cổng quạt CPU, 1x Cổng quạt hệ thống
Cung cấp điện
- Nguồn cung cấp điện 8 pha
Mạch PCB
- Mạch 4 lớp
Kích thước
- Kích thước chuẩn M-ATX: 220*180mm
Giao diện I/O mặt sau
- 4x cổng USB2.0 480Mbps, 2x cổng USB3.2 10Gbps
- 1x Cổng mạng LAN
- 1x Cổng âm thanh 3 lỗ
- 1x Cổng VGA
- 1x Cổng HDMI 2.0
Giao diện I/O mặt trước
- 1x Khe cắm USB2.0 480Mbps
- 1x Khe cắm USB3.2 5Gbps
- 1x Khe cắm âm thanh mặt trước
- 1x Khe cắm COM
- 1x Khe cắm bật/khởi động nguồn
- 1x Khe cắm gỡ lỗi
Hệ điều hành hỗ trợ
- Windows 10, Windows 11
BIOS
- AMI UEFI BIOS
Danh sách phụ kiện
- 1x Mainboard Huananzhi H610M-VH-A/B
- 1x Dây cáp SATA
