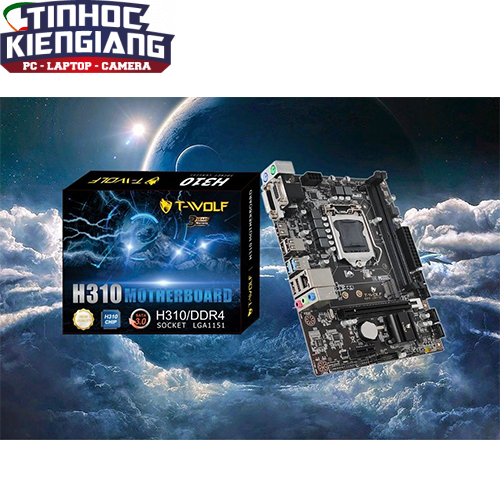

Mainboard T-WOLF H310 Chính Hãng (VGA + HDMI -DVI -SSD M.2 chuẩn PCIe)
Liên hệ
Sản phẩm tương tự
MAINBOARD T-WOLF TW-B760M4 PLUS (LGA1700/CPU Gen 12-13-14th/2*DDR4/DP-HDMI-VGA/LAN 1000/2*NVMe-M.2 Sata)/M.2 Wifi/PCIe16X/PCIe1X)
-Intel B760 Express Chipset, LGA 1700 S/p CPU Gen 12th, 13th, 14th
-RAM 2xDDR4 Dual channel 2133/2400/2800/2933/3200 MHz s/p Up to 64GB
-1xVGA port, 1xDP port, 1xHDMI port
-1xM2 NVMe, 1xM2 Sata/M2 NVMe (Auto Switch), 1xM2 WIFI
-Bảo hành: 36 tháng
AINBOARD T-WOLF Xeon TW-DU99D4 (2*LGA2011-3E5V3-V4/8*DDR4(Chạy được Ram thường)/Lan 1000/2*NVMe-M.2 Sata/2*PCIe16X/2*PCIe1X)
Intel X99 Chipset
Support LGA 2011-3 Socket Xeon E5 v3/v4 Family CPU
Support dual-channel DDR42133/2400MHz Register ECC, Memory upto 256GB
AMI BIOS
2*M.2 PCIe NVMe/NGFF slot
Thông số kỹ thuật
CPU Support LGA 2011-3 Socket Xeon E5 v3/v4 Family CPU
Chipset Intel X99 Chipset
Memory 8*288-pin DDR4 slots
Memory upto 256GB
Support dual-channel DDR42133/2400MHz Register ECC
BIOS AMI BIOS
I/O interface 2*PS/2 port
4*USB2.0 port
4*USB3.0 port
1*RJ45 port
Audio port (Line in/Line out/MIC in)
Onboard interface 1*24-pin ATX power conector
2*8-pin ATX 12V power connector
1*USB 2.0 connector (can support 2*USB 2.0)
1*USB 3.0 connector (can support 2*USB 3.0)
1*F_AUDIO connector
1*F_PANEL connector
4*FAN connector
8*SerialATA ports
Intergrated sound 7.1 channel Realtek® ALC 897 HD Audio codec
Intergrated LAN LAN 10/100/1000 Mbps onboard
Expansion slot 2*PCI Express x16 slot
2*PCI Express x1 slot
2*M.2 PCIe NVMe/NGFF slot
Dimension E-ATX (281mm x 295mm)
Mainboard T-WOLF H81 Chính Hãng (VGA + HDMI – SSD M.2 chuẩn PCIe)
THÔNG SỐ KỸ THUẬT:
Chipset Intel H81 Express, LGA 1150 S/p CPU Haswell Gen 4-5th
RAM 2xDDR3 Dualchannel 1066/1333/1600 MHz s/p Up to 16GB
VGA-HDMI, Lan 1000M, Audio 5.1, 4xUSB2.0x4, 2xUSB3.0
1xM2 NVMe, 1x PCI Express 16X, 1xPCI Express 1X, 3xSata3.0, MicroATX
MAINBOARD T-WOLF Xeon TW-X99D3M (LGA2011V3-V4/4*DDR3(Chạy được Ram thường)/Lan 1000/NVMe/PCIe16X/PCIe1X)
|
CPU Socket |
LGA (2011 V3/V4) |
|
Chipset |
BGA (X99) |
|
Graphics Interface |
1*PCIe 3.0 x16 |
|
Memory Type |
4 channel DDR3 1066/1333/1666/1866 MHZ |
|
Memory DIMMs |
4*DIMMs Upto 128GB |
|
Expansion Slots |
1*PCIe 3.0 x1 |
|
Sata USB |
3*Sata3.0+6*USB2.0+2*USB3.0 |
|
M.2 |
1*M.2 (M.2 Sata3.0/NVMe)Auto Switch |
|
Lan |
1*Realtek 100M/1000M |
|
USB Front |
1*F_USB2.0+1/F_USB3.0 |
|
Audio |
Realtel 6HD |
|
COM |
1*COM |
|
Keyboard Mouse |
PS/2 |
|
Power |
8 pin + 24 pin |
|
BIOS initial restore |
JCMOS |
|
Form Factor (mm) |
186mm x 215mm |
MAINBOARD T-WOLF Xeon TW-X99D4M (LGA2011V3-V4/4*DDR4(Chạy được Ram thường)/Lan 1000/NVMe/PCIe16X/PCIe1X)
| CPU Socket | LGA (2011 V3) |
| Chipset | BGA (X99/C61) |
| Graphics Interface | 1*PCIe 3.0 x16 |
| Memory Type | Four channel DDR4 2133/2400/2666 MHz |
| Memory DIMMs | 4*DIMMs Upto 128GB |
| Expansion Slots | 1*PCIe 3.0 x1 |
| Sata | 4*Sata3.0 |
| M.2 | · 1*M.2 (M.2 Sata3.0/NVMe)Auto Switch |
| Lan | 1*Realtek 100M/1000M |
| USB | 4*USB2.0+4*USB3.0 |
| USB Front | 1*F_USB2.0+1/F_USB3.0 |
| Audio | Realtel 6HD |
| COM | 1*COM |
| Keyboard Mouse | PS/2 |
| Power | 8 pin + 24 pin |
| BIOS initial restore | JCMOS |
| Form Factor (mm) | 190mm x 220mm |
