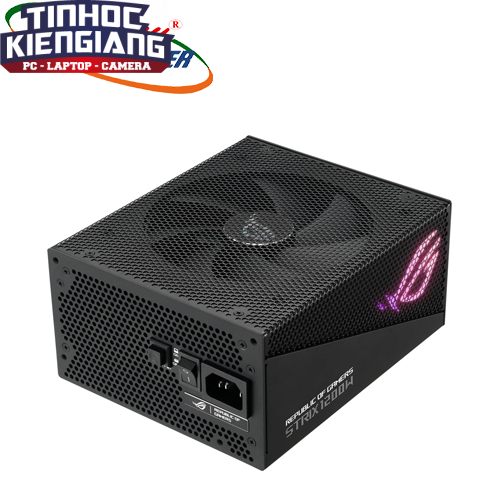

Nguồn máy tính ASUS ROG STRIX 1200W AURA GAMING 80 Plus Gold

ROG STRIX 1200W Gold Aura Edition

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX 3.0

Yes

Dimensions

180 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

22A 22A 100A 0.3A 3A

Combined Load

120W 120W 1200W 3.6W 15W

Total Output

1200W

Cable Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1

Weight

3.23 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A+

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
