Nguồn - ASUS

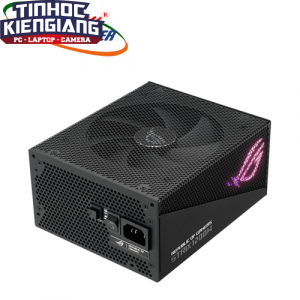

ROG STRIX 1200W Gold Aura Edition

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX 3.0

Yes

Dimensions

180 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

22A 22A 100A 0.3A 3A

Combined Load

120W 120W 1200W 3.6W 15W

Total Output

1200W

Cable Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1

Weight

3.23 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A+

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
