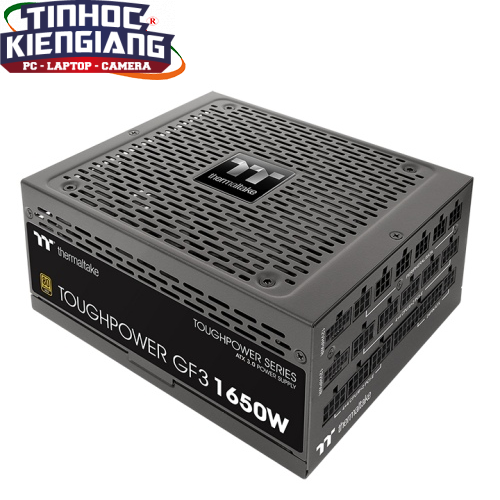

Nguồn máy tính Thermaltake TOUGHPOWER GF3 1650W 80 Plus Gold Fully Modular

Liên hệ

More Information
P/N	PS-TPD-1650FNFAGx-4
WATTS	1650W
MODEL	TPD-1650AH3FSG
MAX. OUTPUT CAPACITY	1650W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W) x 86mm(H) x 180mm(D)
WEIGHT	2.14 KG
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-250 msec
INPUT CURRENT	20 – 16A
INPUT FREQUENCY RANGE	50-60Hz
INPUT VOLTAGE	100 – 240V~
OPERATING TEMPERATURE	0°C to + 50°C
OPERATING HUMIDITY	20% to 90%,non-condensing
STORAGE TEMPERATURE	-40°C to + 70°C
STORAGE HUMIDITY	20% to 95%, non-condensing
COOLING SYSTEM	14cm hydraulic bearing fan
EFFICIENCY	Meet 80 PLUS®Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC
PCI-E 6+2PIN	9
PCIE 12+4PIN	2

Danh mục: Nguồn - THERMALTAKE

Nguồn máy tính Thermaltake Smart BX1 750W 80 Plus Bronze

P/N	PS-SPD-0750NNFABx-1
WATTS	750W
RGB FAN	No
FORM FACTOR	ATX
MODEL	SPD-750AH2NKB \| SPD-750AH2NLB \| SPD-750AH2NCB
TYPE	ATX 12V v2.3 and EPS v2.92
MAX. OUTPUT CAPACITY	750W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W) x 86mm(H) x 140mm(D)
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-500 msec
HOLD UP TIME	> 16msec at 70% of full load
INPUT CURRENT	12A max. \| 6 – 15A \| 10A max.
INPUT FREQUENCY RANGE	50Hz - 60Hz \| 47Hz - 63Hz \| 47Hz - 63Hz
INPUT VOLTAGE	100V – 240V~
OPERATING TEMPERATURE	5°C to + 40°C \| 5°C to + 40°C \| 0°C to + 40°C
OPERATING HUMIDITY	20% to 85%, non-condensing \| 20% to 85%, non-condensing \| 20% to 90%, non-condensing
STORAGE TEMPERATURE	-40°C to + 55°C \| -40°C to + 55°C \| -40°C to + 70°C
STORAGE HUMIDITY	10% to 95%, non-condensing \| 10% to 95%, non-condensing \| 5% to 95%, non-condensing
COOLING SYSTEM	12cm Hydraulic bearing fan
EFFICIENCY	Meet 80 PLUS®Bronze at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2PIN	4

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER GF A3 1050W 80 Plus Gold Fully Modular

P/N	PS-TPD-1050FNFAGx-H
WATTS	1050W
MODEL	TTP-1050AH2FKG
MAX. OUTPUT CAPACITY	1050W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-250 msec
HOLD UP TIME	> 17msec
INPUT CURRENT	15A Max.
INPUT FREQUENCY RANGE	50Hz - 60Hz
INPUT VOLTAGE	100 - 240Vac
OPERATING TEMPERATURE	0°C to + 45°C
OPERATING HUMIDITY	5% to 85%,non-condensing
STORAGE TEMPERATURE	-40°C to + 70°C
STORAGE HUMIDITY	5% to 95%, non-condensing
COOLING SYSTEM	12cm FDB Fan
EFFICIENCY	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-E 6+2PIN	5
PCIE 12+4PIN	1(600W)

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER GT 850W SNOW

Model	PS-TPT-0850FNFAGE-W
Công suất đầu ra tối đa	850W
Màu sắc	Trắng
Kích thước	150mm(W)x86mm(H)x140mm(D)
PFC (Hiệu chỉnh hệ số công suất)	Active PFC
Nhiệt độ bảo quản	-40°C to + 70°C
Hệ thống làm mát	12cm FDB Fan
Hiệu suất	Đạt chuẩn 80 PLUS Gold
Chứng nhận an toàn	CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
Các tính năng bảo vệ	OVP/UVP/OCP/OPP/OTP/SCP

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER GT 850W –

Model	PS-TPT-0850FNFAGE-W
Công suất đầu ra tối đa	850W
Màu sắc	Đen
Kích thước	150mm(W)x86mm(H)x140mm(D)
PFC (Hiệu chỉnh hệ số công suất)	Active PFC
Nhiệt độ bảo quản	-40°C to + 70°C
Hệ thống làm mát	12cm FDB Fan
Hiệu suất	Đạt chuẩn 80 PLUS Gold
Chứng nhận an toàn	CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
Các tính năng bảo vệ	OVP/UVP/OCP/OPP/OTP/SCP

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER GF A3 750W 80 Plus Gold Fully Modular

P/N	PS-TPD-750FNFAGx-H
WATTS	750W
MODEL	TTP-750AH2FKG
MAX. OUTPUT CAPACITY	750W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-250 msec
HOLD UP TIME	> 17msec
INPUT CURRENT	10A Max.
INPUT FREQUENCY RANGE	50Hz - 60Hz
INPUT VOLTAGE	100 - 240Vac
OPERATING TEMPERATURE	0°C to + 45°C
OPERATING HUMIDITY	5% to 85%,non-condensing
STORAGE TEMPERATURE	-40°C to + 70°C
STORAGE HUMIDITY	5% to 95%, non-condensing
COOLING SYSTEM	12cm FDB Fan
EFFICIENCY	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-E 6+2PIN	4
PCIE 12+4PIN	1(300W)

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER SFX 1000W 80 Plus Gold Fully Modular

More Information
P/N	PS-STP-1000FNFAGx-1
WATTS	1000W
MODEL	SFX-1000AH2FKG
MAX. OUTPUT CAPACITY	1000W
COLOR	Black
DIMENSION ( W / H / D )	125mm(W)x63.5mm(H)x126mm(D)
WEIGHT	1.2 KG
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-500 msec
HOLD UP TIME	> 17msec at 100% of full load
INPUT CURRENT	15A Max.
INPUT FREQUENCY RANGE	50 - 60Hz
INPUT VOLTAGE	100V – 240V~
OPERATING TEMPERATURE	0°C to + 45°C
OPERATING HUMIDITY	5% to 85%,non-condensing
STORAGE TEMPERATURE	-40°C to + 70°C
STORAGE HUMIDITY	5% to 95%, non-condensing
COOLING SYSTEM	12cm FDB Fan
EFFICIENCY	Meet 80 PLUS®Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-E 6+2PIN	4
PCIE 12+4PIN	1

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER GF A3 850W 80 Plus Gold Fully Modular

P/N	PS-TPD-850FNFAGx-H
WATTS	850W
MODEL	TTP-850AH2FKG
MAX. OUTPUT CAPACITY	850W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-250 msec
HOLD UP TIME	> 17msec
INPUT CURRENT	10A Max.
INPUT FREQUENCY RANGE	50Hz - 60Hz
INPUT VOLTAGE	100 - 240Vac
OPERATING TEMPERATURE	0°C to + 45°C
OPERATING HUMIDITY	5% to 85%,non-condensing
STORAGE TEMPERATURE	-40°C to + 70°C
STORAGE HUMIDITY	5% to 95%, non-condensing
COOLING SYSTEM	12cm FDB Fan
EFFICIENCY	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-E 6+2PIN	4
PCIE 12+4PIN	1(450W)

Liên hệ

Nguồn máy tính Thermaltake TOUGHPOWER GF3 1200W 80 Plus Gold Fully Modular

More Information
P/N	PS-TPD-1200FNFAGx-4
WATTS	1200W
MODEL	TPD-1200AH3FCG
MAX. OUTPUT CAPACITY	1200W
COLOR	Black
DIMENSION ( W / H / D )	150mm(W) x 86mm(H) x 160mm(D)
WEIGHT	1.88 KG
PFC (POWER FACTOR CORRECTION)	Active PFC
POWER GOOD SIGNAL	100-150 msec
HOLD UP TIME	> 17msec at 100% of full load
INPUT CURRENT	15.0A / 7.0A
INPUT FREQUENCY RANGE	50/60Hz
INPUT VOLTAGE	100V – 240V~
OPERATING TEMPERATURE	0°C to + 40°C
OPERATING HUMIDITY	20% to 90%,non-condensing
STORAGE TEMPERATURE	-20°C to + 70°C
STORAGE HUMIDITY	5% to 95%, non-condensing
COOLING SYSTEM	13.5cm fluid bearing fan
EFFICIENCY	Meet 80 PLUS®Gold at 115Vac input.
MTBF	100,000 hrs minimum
SAFETY APPROVAL	CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E 6+2PIN	PCIe 6+2pin X 4 PCIe 12+4pin X 1
PROTECTION	OCP, OVP, UVP, OPP, SCP, OTP
