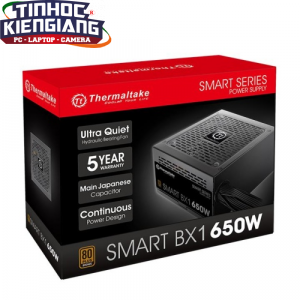

Nguồn máy tính Thermaltake Smart BX1 650W 80 Plus Bronze
| P/N | PS-SPD-0650NNFABx-1 |
|---|---|
| WATTS | 650W |
| RGB FAN | No |
| FORM FACTOR | ATX |
| MODEL | SPD-650AH2NKB | SPD-650AH2NLB | SPD-650AH2NCB |
| TYPE | ATX 12V v2.3 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 650W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 70% of full load |
| INPUT CURRENT | 12A max. | 6 – 12A | 10A max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |47Hz - 63Hz | 47Hz - 63Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 5°C to + 40°C | 5°C to + 40°C | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C | -40°C to + 55°C | -40°C to + 70°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/CB/TUV/ UL/ FCC/ BSMI |
| PCI-E 6+2PIN | 2 |

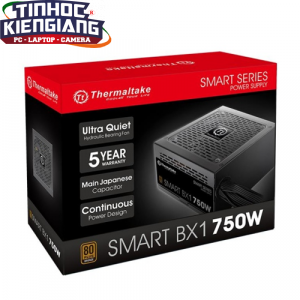

Nguồn máy tính Thermaltake Smart BX1 750W 80 Plus Bronze
| P/N | PS-SPD-0750NNFABx-1 |
|---|---|
| WATTS | 750W |
| RGB FAN | No |
| FORM FACTOR | ATX |
| MODEL | SPD-750AH2NKB | SPD-750AH2NLB | SPD-750AH2NCB |
| TYPE | ATX 12V v2.3 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 750W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 70% of full load |
| INPUT CURRENT | 12A max. | 6 – 15A | 10A max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz | 47Hz - 63Hz | 47Hz - 63Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 5°C to + 40°C | 5°C to + 40°C | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C | -40°C to + 55°C | -40°C to + 70°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/CB/TUV/ UL/ FCC/ BSMI |
| PCI-E 6+2PIN | 4 |

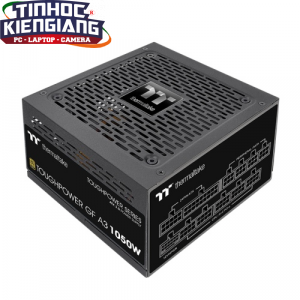

Nguồn máy tính Thermaltake TOUGHPOWER GF A3 1050W 80 Plus Gold Fully Modular
| P/N | PS-TPD-1050FNFAGx-H |
|---|---|
| WATTS | 1050W |
| MODEL | TTP-1050AH2FKG |
| MAX. OUTPUT CAPACITY | 1050W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 15A Max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 5 |
| PCIE 12+4PIN | 1(600W) |

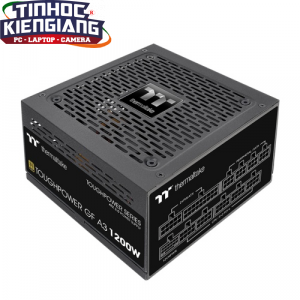

Nguồn máy tính Thermaltake TOUGHPOWER GF A3 1200W 80 Plus Gold Fully Modular
| P/N | PS-TPD-1200FNFAGx-H |
|---|---|
| WATTS | 1200W |
| MODEL | TTP-1200AH2FKG |
| MAX. OUTPUT CAPACITY | 1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 15A Max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 5 |
| PCIE 12+4PIN | 1(600W) |

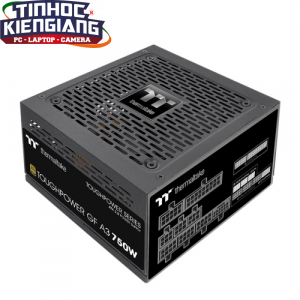

Nguồn máy tính Thermaltake TOUGHPOWER GF A3 750W 80 Plus Gold Fully Modular
| P/N | PS-TPD-750FNFAGx-H |
|---|---|
| WATTS | 750W |
| MODEL | TTP-750AH2FKG |
| MAX. OUTPUT CAPACITY | 750W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 10A Max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 4 |
| PCIE 12+4PIN | 1(300W) |
Nguồn máy tính Thermaltake TOUGHPOWER GF A3 850W 80 Plus Gold Fully Modular
| P/N | PS-TPD-850FNFAGx-H |
|---|---|
| WATTS | 850W |
| MODEL | TTP-850AH2FKG |
| MAX. OUTPUT CAPACITY | 850W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 10A Max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 4 |
| PCIE 12+4PIN | 1(450W) |

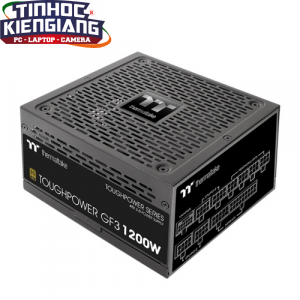

Nguồn máy tính Thermaltake TOUGHPOWER GF3 1200W 80 Plus Gold Fully Modular
| P/N | PS-TPD-1200FNFAGx-4 |
|---|---|
| WATTS | 1200W |
| MODEL | TPD-1200AH3FCG |
| MAX. OUTPUT CAPACITY | 1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| WEIGHT | 1.88 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 15.0A / 7.0A |
| INPUT FREQUENCY RANGE | 50/60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 13.5cm fluid bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC |
| PCI-E 6+2PIN | PCIe 6+2pin X 4 PCIe 12+4pin X 1 |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |

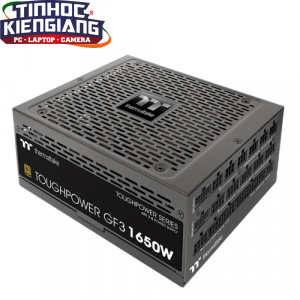

Nguồn máy tính Thermaltake TOUGHPOWER GF3 1650W 80 Plus Gold Fully Modular
| P/N | PS-TPD-1650FNFAGx-4 |
|---|---|
| WATTS | 1650W |
| MODEL | TPD-1650AH3FSG |
| MAX. OUTPUT CAPACITY | 1650W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 180mm(D) |
| WEIGHT | 2.14 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| INPUT CURRENT | 20 – 16A |
| INPUT FREQUENCY RANGE | 50-60Hz |
| INPUT VOLTAGE | 100 – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 50°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 20% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC |
| PCI-E 6+2PIN | 9 |
| PCIE 12+4PIN | 2 |

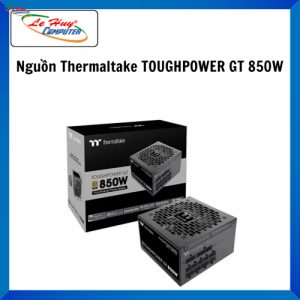

Nguồn máy tính Thermaltake TOUGHPOWER GT 850W –
|
Model |
PS-TPT-0850FNFAGE-W |
|
Công suất đầu ra tối đa |
850W |
|
Màu sắc |
Đen |
|
Kích thước |
150mm(W)x86mm(H)x140mm(D) |
|
PFC (Hiệu chỉnh hệ số công suất) |
Active PFC |
|
Nhiệt độ bảo quản |
-40°C to + 70°C |
|
Hệ thống làm mát |
12cm FDB Fan |
|
Hiệu suất |
Đạt chuẩn 80 PLUS Gold |
|
Chứng nhận an toàn |
CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
|
Các tính năng bảo vệ |
OVP/UVP/OCP/OPP/OTP/SCP |

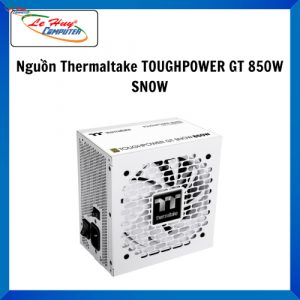

Nguồn máy tính Thermaltake TOUGHPOWER GT 850W SNOW
|
Model |
PS-TPT-0850FNFAGE-W |
|
Công suất đầu ra tối đa |
850W |
|
Màu sắc |
Trắng |
|
Kích thước |
150mm(W)x86mm(H)x140mm(D) |
|
PFC (Hiệu chỉnh hệ số công suất) |
Active PFC |
|
Nhiệt độ bảo quản |
-40°C to + 70°C |
|
Hệ thống làm mát |
12cm FDB Fan |
|
Hiệu suất |
Đạt chuẩn 80 PLUS Gold |
|
Chứng nhận an toàn |
CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
|
Các tính năng bảo vệ |
OVP/UVP/OCP/OPP/OTP/SCP |

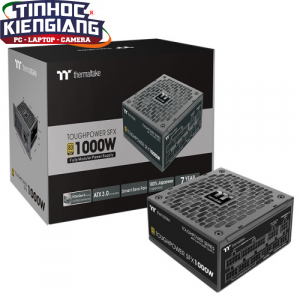

Nguồn máy tính Thermaltake TOUGHPOWER SFX 1000W 80 Plus Gold Fully Modular
| P/N | PS-STP-1000FNFAGx-1 |
|---|---|
| WATTS | 1000W |
| MODEL | SFX-1000AH2FKG |
| MAX. OUTPUT CAPACITY | 1000W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 125mm(W)x63.5mm(H)x126mm(D) |
| WEIGHT | 1.2 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 15A Max. |
| INPUT FREQUENCY RANGE | 50 - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 4 |
| PCIE 12+4PIN | 1 |

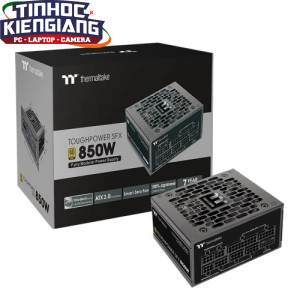

Nguồn máy tính Thermaltake TOUGHPOWER SFX 850W 80 Plus Gold Fully Modular
| P/N | PS-STP-0850FNFAGx-1 |
|---|---|
| WATTS | 850W |
| MODEL | SFX-850AH8FKG |
| MAX. OUTPUT CAPACITY | 850W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 125mm(W)x63.5mm(H)x100mm(D) |
| WEIGHT | 1 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 10A Max. |
| INPUT FREQUENCY RANGE | 50 - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 92mm FDB Fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 2 |
| PCIE 12+4PIN | 1 |

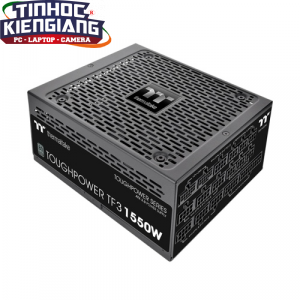

Nguồn máy tính Thermaltake TOUGHPOWER TF3 1550W 80 PLUS Titanium Fully Modular
| P/N | PS-TPD-1550FNFDTx-3 |
|---|---|
| WATTS | 1550W |
| MODEL | TTP-1550AH3FCT-A |
| MAX. OUTPUT CAPACITY | 1550W |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x180mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 15.0A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100-240V~ |
| OPERATING TEMPERATURE | 0°C to + 50°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 14cm PWM fan |
| EFFICIENCY | Meet 80 PLUS® Titanium at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus |
| PCI-E 6+2PIN | 9 |
| PCIE 12+4PIN | 2 |
| INPUT CURRENT | 15.0A |
| PROTECTION | OCP/OVP/UVP/OPP/OTP/SCP |
