Switch TP-LINK TL-SG1218MP 18-Port Gigabit with 16-Port PoE+

Liên hệ

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	• 16× PoE+ gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Fan Quantity	2
Physical Security Lock	Yes
Power Supply	100–240 VAC, 50/60 Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.73 in. (440 × 180 × 44 mm)
Mounting	19″ 1U rack mountable
Max Power Consumption	• 21.4 W (no power device connected) • 286.6 W (with 250 W power devices connected)
Max Heat Dissipation	• 73.0 BTU/h (no PD connected) • 977.4 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame	10 KB

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SG1218MP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet
Environment	• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Danh mục: Switch TP-Link

Thiết bị chuyển mạch Switch TP-Link TL-SG2210MP 8-Port PoE+ và 2-Port Gigabit SFP- Liên hệ giá tốt

TÍNH NĂNG PHẦN CỨNG
Chuẩn và Giao thức	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Giao diện	• 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots
Mạng Media	• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) • 100BASE-FX: MMF, SMF • 1000BASE-X: MMF, SMF
Số lượng quạt	1
Khóa bảo mật vật lý	Yes
Cổng PoE+ (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 150 W
Kích thước ( R x D x C )	11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Lắp	Rackmount/Desktop
Tiêu thụ điện tối đa	• 12.2 W (110 V / 60 Hz with no PD connected) • 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation	• 41.63 BTU/h (with no PD connected) • 539.35 BTU/h (with 150 W PD connected)

HIỆU SUẤT
Switching Capacity	20 Gbps
Tốc độ chuyển gói	14.9 Mpps
Bảng địa chỉ MAC	8K
Bộ nhớ đệm gói	4.1 Mbit
Khung Jumbo	9 KB

TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	• DHCP Relay - DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
L2 Multicast	• 511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
VLAN	• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
Bảo mật	• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
MIBs	• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)

QUẢN LÝ
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• TL-SG2210MP • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Môi trường	• Operating Temperature: 0–50 ℃ (32–122 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Thiết bị chuyển mạch Switch TP-Link TL-SG2210MP 8-Port PoE+ và 2-Port Gigabit SFP- Liên hệ giá tốt

Liên hệ

Thiết bị chuyển mạch Switch TP-Link TL-SG3452X 48 Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Liên hệ giá tốt

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 48× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Số lượng quạt	Fanless
Bộ cấp nguồn	100-240 V AC~50/60 Hz
Kích thước ( R x D x C )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Lắp	Rack Mountable
Tiêu thụ điện tối đa	32.72 W (110V/60Hz)
Max Heat Dissipation	111.65 BTU/h (110 V/60 Hz)

HIỆU SUẤT
Switching Capacity	176 Gbps
Tốc độ chuyển gói	130.9 Mpps
Bảng địa chỉ MAC	16 K
Bộ nhớ đệm gói	12 Mbit
Khung Jumbo	9 KB

TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
L2 and L2+ Features	• Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile
VLAN	• VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN
Access Control List	• Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN
Bảo mật	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
L3 Features	• 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay
Quản lý	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
Advanced Features	• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)*
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

QUẢN LÝ
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• TL-SG3452X Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Môi trường	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Thiết bị chuyển mạch Switch TP-Link TL-SG3452X 48 Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Liên hệ giá tốt

Liên hệ

-74%

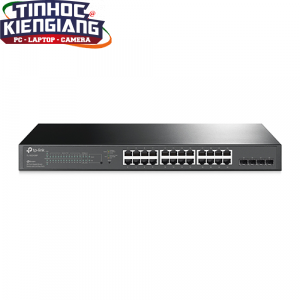

Thiết bị chuyển mạch Switch TP-Link TL-SG2428P 24 Port Gigabit PoE+ và 4 Port SFP- Liên hệ giá tốt

TÍNH NĂNG PHẦN CỨNG
Chuẩn và Giao thức	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Giao diện	• 24 Cổng RJ45 10/100/1000 Mbps ( tự động đàm phán / MDI tự động / MDIX) • 4 Khe cắm SFP Gigabit
Mạng Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
Số lượng quạt	2
Cổng PoE+ (RJ45)	• Tiêu chuẩn: tuân thủ 802.3at / af • Cổng PoE +: 24 Cổng • Nguồn cung cấp: 250 W
Kích thước ( R x D x C )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Lắp	Giá đỡ
Tiêu thụ điện tối đa	• 32.1 W (110 V/ 60 Hz with no PD connected) • 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation	• 109.53 BTU/h (with no PD connected) • 1052.94 BTU/h (with 250 W PD connected)

HIỆU SUẤT
Bandwidth/Backplane	56 Gbps
Tốc độ chuyển gói	41.7 Mpps
Bảng địa chỉ MAC	8K
Bộ nhớ đệm gói	4.1 Mbit
Khung Jumbo	9 KB

TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	• 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
VLAN	• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
Bảo mật	• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP

QUẢN LÝ
Omada App	Có
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Có (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	TL-SG2428P • Dây điện • Hướng dẫn cài đặt • Bộ giá đỡ • Chân đế cao su
System Requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Môi trường	• Nhiệt độ hoạt động: 0–50 ℃ (32–122 ℉); • Nhiệt độ lưu trữ: -40–70 ℃ (-40–158 ℉) • Độ ẩm hoạt động: 10–90% RH không ngưng tụ • Độ ẩm lưu trữ: 5–90% RH không ngưng tụ

Thiết bị chuyển mạch Switch TP-Link TL-SG2428P 24 Port Gigabit PoE+ và 4 Port SFP- Liên hệ giá tốt

Liên hệ

Bộ Chuyển Đổi Quang Điện Multi-Mode Gigabit TPLINK MC200CM

Cổng RJ45 Auto-Negotiation 10/100/1000Mbps hỗ trợ Auto-MDI/MDIX
Auto-Negotiation chuyển đổi chế độ Half-Duplex / Full-Duplex
Tương thích với các chuẩn IEEE 802.3ab và IEEE 802.3z
Mở rộng khoảng cách cáp quang lên tới 0.55km

Bộ Chuyển Đổi Quang Điện Multi-Mode Gigabit TPLINK MC200CM

Liên hệ

Switch TP-LINK 9 Port LS109P (8 port PoE 10/100)

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX
Mạng Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Số lượng quạt	Fanless
Cài đặt	• Desktop • Wall Mounting
Bộ cấp nguồn	External Power Adapter (Output: 53.5VDC / 1.31A)
LED	• Power • Link/Act • PoE Status • PoE MAX
Cổng PoE (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W
Kích thước ( R x D x C )	6.7×3.9×1.1 in (171×98×27 mm)
Tiêu thụ điện tối đa	• 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected)
Max. Heat Dissipation	• 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected)

HIỆU SUẤT
Switching Capacity	1.8 Gbps
Tốc độ chuyển gói	1.3392 Mpps
Bảng địa chỉ MAC	2K
Khung Jumbo	1.5 KB

TÍNH NĂNG PHẦN MỀM
Advanced Features	• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
Transmission Method	Store and Forward

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• LS109P • Power Adapter • Installation Guide • Rubber Feet
Môi trường	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Switch TP-LINK 9 Port LS109P (8 port PoE 10/100)

Liên hệ

Switch TP-LINK TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX
Mạng Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Số lượng quạt	Fanless
Khóa bảo mật vật lý	Yes
Bộ cấp nguồn bên ngoài (EU)	External Power Adapter (Output: 53.5VDC / 2.43A)
Tốc độ truyền tải gói	14.88 Mpps
Cổng PoE (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W
Bảng địa chỉ Mac	4K
Khung Jumbo	16 KB
Công suất chuyển	20 Gbps
Kích thước ( R x D x C )	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Tiêu thụ điện tối đa	• 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation	• 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

TÍNH NĂNG PHẦN MỀM
Transmission Method	Store-And-Forward
Tính năng nâng cao	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

KHÁC
Chứng chỉ	FCC, CE, RoHS
Sản phẩm bao gồm	• TL-SG1210MP • Power Adapter • Installation Guide
Môi trường	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Switch TP-LINK TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+

Liên hệ

Switch TP-LINK TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

TÍNH NĂNG PHẦN CỨNG
Giao diện	8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot
Mạng Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Số lượng quạt	Fanless
Khóa bảo mật vật lý	Yes
Bộ cấp nguồn	External Power Adapter(Output: 53.5VDC / 1.31A)
Tốc độ truyền tải gói	14.88 Mpps
Cổng PoE+ (RJ45)	Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W
Bảng địa chỉ Mac	4K
Khung Jumbo	16 KB
Công suất chuyển	20 Gbps
Kích thước ( R x D x C )	209 × 126 × 26 mm
Tiêu thụ điện tối đa	7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation	24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected)

TÍNH NĂNG PHẦN MỀM
Advanced Features	Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Transmission Method	Store-And-Forward

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	TL-SG1210P, Power Adapter, Installation Guide
Môi trường	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing

Switch TP-LINK TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

Liên hệ

Switch TP-LINK TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 16 cổng RJ45 10/100/1000Mbps • Tự động đàm phán • Tự động MDI/MDIX
Truyền thông mạng	• 10BASE-T: Cáp UTP loại 3, 4, 5 (tối đa 100m) • Cáp STP 100Ω EIA/TIA-568 (tối đa 100m) • 100BASE-TX: Cáp UTP loại 5, 5e (tối đa 100m) • Cáp STP 100Ω EIA/TIA-568 (tối đa 100m) • 1000BASE-T: Cáp UTP loại 5, 5e, 6 trở lên (tối đa 100m) • Cáp STP 100Ω EIA/TIA-568 (tối đa 100m)
Số lượng quạt	Không quạt
Nguồn điện ngoài	Bộ chuyển đổi nguồn ngoài (Đầu ra: 53,5 VDC / 2,43 A)
Tốc độ chuyển tiếp gói tin	23,8 Mpps
Cổng PoE (RJ45)	• Chuẩn: Tuân thủ 802.3 af/at • Cổng PoE: Cổng 1–16 • Nguồn điện: 120 W
Bảng địa chỉ MAC	8K, Tự học, Tự lão hóa
Dung lượng chuyển mạch	32 Gbps
Kích thước (Chiều rộng x Chiều sâu x Chiều cao)	11,3 × 4,4 × 1,0 inch (286 × 111,7 × 25,4 mm)
Công suất tiêu thụ tối đa	• 11,72 W (220 V / 50 Hz, không kết nối PD) / 11,56 W (110 V / 60 Hz, không kết nối PD) • 142,51 W (220 V / 50 Hz, kết nối PD 120 W) / 144,28 W (110 V / 60 Hz, kết nối PD 120 W)
Công suất tản nhiệt tối đa	• 39,85 BTU/h (220 V / 50 Hz, không kết nối PD) / 39,31 BTU/h (110 V / 60 Hz, không kết nối PD) • 484,53 BTU/h (220 V / 50 Hz, kết nối PD 120 W) / 490,55 BTU/h (110 V / 60 Hz, kết nối PD 120 W)

TÍNH NĂNG PHẦN MỀM

Tính năng nâng cao

• Tương thích với các thiết bị PD tuân thủ IEEE 802.3af/at
• Nút Chế độ Mở rộng (Cổng 1–4, Cấp nguồn PoE và truyền dữ liệu lên đến 250 m)
• Nút Chế độ Ưu tiên (Cổng 1–4)
• Nút Chế độ Cách ly (Cổng 1–7 / 8-14)
• Tự động Khôi phục PoE (Cổng 1-16)
• Tự động Học và Tự động Xóa Địa chỉ MAC
• Điều khiển Luồng IEEE 802.3x
• QoS 802.1p/DSCP
• IGMP Snooping

Phương thức truyền tải

Lưu trữ và chuyển tiếp

NGƯỜI KHÁC
Chứng nhận	FCC, CE, RoHS
Nội dung gói hàng	• TL-SG116P • Bộ chuyển đổi nguồn • Hướng dẫn cài đặt
Môi trường	• Nhiệt độ hoạt động: 0–40 ℃ (32–104 ℉); • Nhiệt độ bảo quản: -40–70 ℃ (-40–158 ℉) • Độ ẩm hoạt động: 10–90% RH không ngưng tụ • Độ ẩm bảo quản: 5–90% RH không ngưng tụ

Switch TP-LINK TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+

Liên hệ

Switch TP-LINK TL-SG1218MP 18-Port Gigabit with 16-Port PoE+

Sản phẩm tương tự

Đăng nhập
