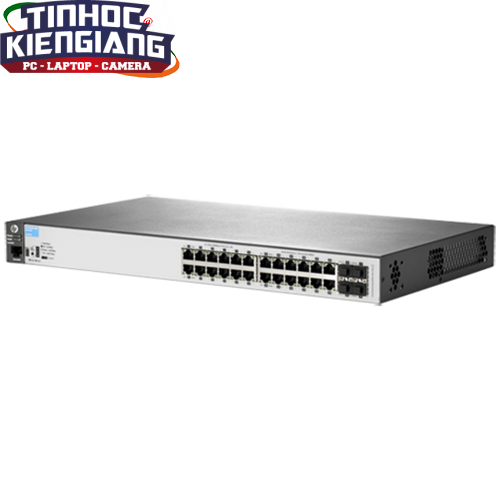

Thiết bị chuyển mạch Switch HP Aruba 2530 24G – J9776A
Liên hệ
| Sản phẩm | Thiết bị chia mạng |
| Hãng sản xuất | HPE |
| Model | Aruba 2530 24G – J9776A |
| Tốc độ LAN | 10/100/1000Mbps |
| Switch thông minh | Đúng |
| Cổng quang | Có |
| Cổng giao tiếp | 24 cổng |
| Kích thước | 17.44 (w) x 10.00 (d) x 1.75 (h) in (44.3 x 25.4 x 4.45 cm) (1U height) |
| Mô tả khác | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fxed Gigabit Ethernet SFP ports 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Sản phẩm tương tự
Thiết bị chuyển mạch Switch HP Aruba 2530 8G 8Ports – J9777A
|
/O ports and slots |
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; |
|
|
1000BASE-T: full only |
||
|
2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports |
||
|
1 dual-personality (RJ-45 or USB micro-B) serial console port |
||
|
Physical characteristics |
Dimensions |
10(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) |
|
Weight |
2.0 lb (0.91 kg) |
|
|
Memory and processor |
Processor |
ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
|
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
|
|
Performance |
IPv6 Ready Certified |
|
|
100 Mb Latency |
|
|
|
1000 Mb Latency |
|
|
|
Throughput |
up to 14.8 million pps (64-byte packets) |
|
|
Switching capacity |
20 Gbps |
|
|
MAC address table size |
16000 entries |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Non-operating/ |
-40°F to 158°F (-40°C to 70°C) |
|
|
Storage temperature |
||
|
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
|
|
Altitude |
up to 10,000 ft (3 km) |
|
|
Acoustic |
Power: 0 dB, Pressure: 0 dB |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
63 BTU/hr (66.46 kJ/hr), (switch only: 63 BTU/hr) |
|
|
AC voltage |
100-127/200-240 VAC |
|
|
Current |
0.5 A |
|
|
Maximum power rating |
18.6 W |
|
|
Idle power |
13.6 W |
|
|
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
|
|
Emissions |
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A |
|
|
Immunity |
Generic |
EN 55024, CISPR 24 |
|
EN |
EN 55024, CISPR 24 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Management |
IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
|
|
Notes |
IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision 'B' or later (product number ends with the letter 'B' or later, e.g., J4858B, J4859C) are required. |
|
Thiết bị chuyển mạch Switch HP 24 Ports 1420-24G-2SFP+ JH018A
| odel | JH018A |
| Type | HPE Officeconnect 1420 24G 2SFP Switch |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only 2 fixed 1000/10000 SFP+ ports |
| Throughput | up to 65.5 Mp/s (64-byte packets) |
| Switching capacity | 88 Gb/s |
| Dimensions | 4.4 x 4.4 x 23.8 cm(1.73 x 17.32 x 9.37in) (1U height) |
| Weight | 2.9 kg (4.85 lb) |
Thiết bị chuyển mạch Switch HP Aruba Instant On 1830 48G 4SFP_ JL814A
THÔNG SỐ KỸ THUẬT:
Thiết bị chuyển mạch Aruba Instant On 1830 48G 4SFP _ Model: JL814A
• 4 Port SFP 1G
• 48 RJ-45 autosensing 10/100/1000 ports
• Hỗ trợ IEEE 802.1Q VLAN: 256 VLAN
• Quản trị : Aruba Instant On Cloud; Web browser; SNMP
• Throughput: 77.37 Mpps
• Switching Capacity: 104 Gbps
• MAC address table size (# of entries): 16000 entries
• Nguồn điện vào : 100-127VAC / 200-240VAC
• Công suất tiêu thụ tối đa : 40.2 W
• Lắp đặt tủ rack
Thiết bị chuyển mạch Switch HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W – JL681A
Aruba Instant On 1930 8G Class4 PoE 2SFP 124W - JL681A
Tính năng kỹ thuật :
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (Công suất mỗi port 30W); 2 SFP 1GbE ports.
Processor and memory: ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Performance : Throughput (Mpps) : 14.88 Mpps; switching capacity : 20 Gbps; Routing Table size (# of static entries) : 32.
Các tính năng về MANAGEMENT, QUALITY OF SERVICE (QoS), ACCESS SWITCHING, NETWORK SECURITY, PERFORMANCE AND EFFICIENCY, SWITCHING Features, FEATURES ACCESSED THROUGH LOCAL WEBMANAGEMENT INTERFACE, WARRANTY, SERVICE AND SUPPORT tham khảo thêm ở Datasheet.
Thiết bị chuyển mạch Switch HP 1420 5G PoE+ (32W) JH328A
| Model | JH328A |
| Ports | 5 RJ-45 autosensing 10/100/1000 ports Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Throughput | 7.4 Mpps |
| Routing/Switching | 10 Gbps |
| Latency | 100 Mb Latency: 1000 Mb Latency: |
| MAC address size | 2048 entries |
| Packet buffer size | 1 MB |
| Power over Ethernet | PoE+ |
| Power Budget | 32W |
| Voltage | 100-240 VAC, 50/60Hz |
| Max. Power rating | 3.0W |
| Operating temperature | 0°C to 40°C |
| Operating relative humidity | 15% to 95%, noncondensing |
| Mounting & Enclosure | Desktop (rear port) |
| Acoustic | Fanless |
| Dimensions | 15.77 x 10.49 x 2.69 cm |
| Weight | 0.5kg |
Thiết bị chuyển mạch Switch HP OfficeConnect 1420 24G PoE+ (124W) Switch – JH019A
| Model | JH019A |
| Type | HPE Officeconnect 1420 24G POE+ (124W) Switch |
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only supports a maximum of 24 autosensing 10/100/1000 ports |
| Throughput | up to 35.7 Mp/s (64-byte packets) |
| Switching capacity | 48 Gb/s |
| Dimensions | 4.4 x 4.4 x 23.8 cm(1.73 x 17.32 x 9.37in) (1U height) |
| Weight | 3.3 kg (4.85 lb) |
Thiết bị chuyển mạch Switch HP OfficeConnect 1920S 8G 8-Port JL380A
| Model | JL380A |
| Ports | 8 RJ-45 autosensing 10/100/1000 ports |
| Processor | ARM Cortex-A9 @ 400 MHz |
| RAM | 256 MB SDRAM |
| Flash | 64 MB |
| Packet buffer size | 1.5 MB |
| Latency | 100 Mb Latency: 1000 Mb Latency: |
| Jumbo frame support | 9216 bytes |
| Throughput | 11.9 Mpps |
| Switching capacity | 16 Gbps |
| MTBF | 144.9 years |
| MAC address size | 8K entries |
| Layer 2 Switching | VLAN, Spanning Tree, BPDU filtering |
| Layer 3 Services | ARP, DHCP Relay |
| Layer 3 Routing | Static IPv4 routing, Link aggregation, Convergence, |
| Voltage | 100 - 240 VAC |
| Maximum power rating | 9.5W |
| Operating temperature | 0°C to 40°C |
| Operating relative humidity | 15% to 95%, noncondensing |
| Dimensions | 25.4 x 15.95 x 4.39 cm (1U height) |
| Weight | 0.82kg |
Thiết bị chuyển mạch Switch HP 2530-24 24 cổng 10/100/1000 Mbps (J9782A)
|
rts and slots |
24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full |
|
|
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
||
|
2 fixed Gigabit Ethernet SFP ports |
||
|
1 dual-personality (RJ-45 or USB micro-B) serial console port |
||
|
Physical characteristics |
Dimensions |
17.4(w) x 9.7(d) x 1.75(h) in (44.2 x 24.64 x 4.45 cm) (1U height) |
|
Weight |
5.7 lb (2.59 kg) |
|
|
Memory and processor |
Processor |
ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
|
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
|
|
Performance |
IPv6 Ready Certified |
|
|
100 Mb Latency |
|
|
|
1000 Mb Latency |
|
|
|
Throughput |
up to 9.5 million pps (64-byte packets) |
|
|
Switching capacity |
12.8 Gbps |
|
|
MAC address table size |
16000 entries |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Non-operating/ |
-40°F to 158°F (-40°C to 70°C) |
|
|
Storage temperature |
||
|
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
|
|
Altitude |
up to 10,000 ft (3 km) |
|
|
Acoustic |
Power: 0 dB, Pressure: 0 dB |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
50 BTU/hr (52.75 kJ/hr) |
|
|
AC voltage |
100-127/200-240 VAC |
|
|
Current |
0.3/0.2 A |
|
|
Maximum power rating |
14.7 W |
|
|
Idle power |
8.4 W |
|
|
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
|
|
Emissions |
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A |
|
|
Immunity |
Generic |
EN 55024, CISPR 24 |
|
EN |
EN 55024, CISPR 24 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Management |
IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
|
|
Notes |
IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision 'B' or later (product number ends with the letter 'B' or later, e.g., J4858B, J4859C) are required. |
|
