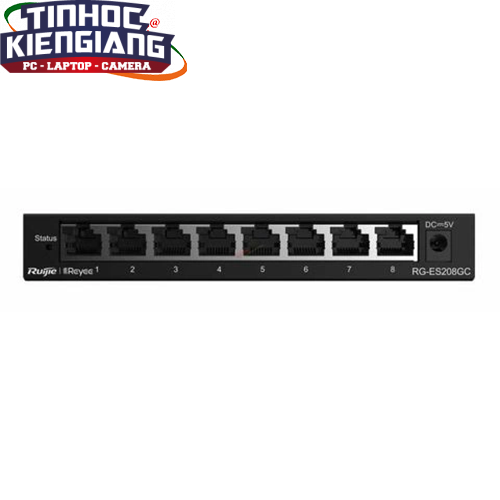

Thiết bị chuyển mạch Switch RUIJIE RG-ES208GC 8-Port Gigabit Smart
Liên hệ
– Layer 2 Smart Managed Switch 8 Cổng 10/100/1000BASE-T.
– 8 cổng 10/100/1000BASE-T.
– Tốc độ chuyển mạch: 16Gbps.
– MAC: 4K.
– Tính năng Layer 2: port mirroring, loop protection, cable detection.
– Tính năng bảo mật: broadcast storm suppression, port speed limit, port isolation.
– Dễ dàng quản lý và cấu hình qua Ruijie cloud.
– Tích hợp Web management.
– Hỗ trợ IEEE802.1Q VLAN, bảo mật giữa các nhóm thiết bị.
– Chống sét: 6KV.
– Nguồn AC 100~240V, 50/60Hz.
– Nhiệt độ hoạt động: 0°C~50°C.
– Kích thước: 160 mm x 75 mm x 24 mm.
– Xuất xứ: Trung Quốc.
– Bảo hành: 36 tháng.
Sản phẩm tương tự
Thiết bị chuyển mạch Switch Ruijie RG-ES08G-L (8 port/ 10/100/1000 Mbps)
| Tính năng |
Chống sét 4kV |
| Tốc độ |
10/100/1000 Mbps |
| Nguồn |
5 V DC power adapter, 1 A (5 W) |
| Cổng kết nối |
8 x 10/100/1000 Mbps LAN RJ-45 |
| Nhiệt độ hoạt động |
0°C đến 40°C |
| MAC Address Table |
4K |
| Kích thước |
124 mm x 60 mm x 24 mm |
| Khối lượng |
0.27 kg |
| Bảo hành |
36 tháng |
| Nhiệt độ lưu trữ |
-40°C đến 70°C |
| Độ ẩm hoạt động |
10% đến 20%, không ngưng tụ |
| Độ ẩm lưu trữ |
10% đến 20%, không ngưng tụ |
| Băng thông chuyển mạch |
16 Gbps |
Thiết bị chuyển mạch Switch RUIJIE RG-EG209GS 9-Port Gigabit Cloud Managed SFP
- LAN/WAN switchable SFP port for adding optical fiber connectivity.
- User friendly configuration, easy to learn.
- Intelligent load balancing and link redundancy between multiple WAN ports.
- New efficient way of bandwidth management based on application and user.
- Network interface: 8 x 10/100/1000 Base-T, 1 × 1G Base-X SFP.
- Max. WAN Ports: 4 × 10/100/1000 Base-T.
- CPU: Dual Cores, 880MHz.
- RAM: 256MB DDRIII.
- Recommended Concurrent Users: 200.
- Recommended Bandwidth: 600Mbps.
- Dimension: 202 x 108 x 28 mm.
- Weight: 0.5kg.
- Power Supply: 100~240V AC, 50/60Hz.
- Power Consumption:
- Certifications: CE, ROHS.
- Operating Temperature: 0°C~40°C.
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-ES118GS-P 16-Port GE PoE + 2-Port GE SFP
- Support 16 x 110/100/1000M copper ports and 2 x 1000M uplink SFP combo ports: 16 ports for PoE/PoE+, with the maximum PoE power up to 247W.
- Max. PoE budget: 247W.
- Layer Type: Unmanaged.
- Switching capacity: 36Gbps.
- Forwarding rate: 26.78Mpps.
- Dimensions (W x D x H): 440 x 240 x 44 mm.
Specifications
| Basic | |
| Downlink Ports | 16 x 10/100/1000BASE-T |
| Uplink Ports | 2 x 1000BASE-X SFP |
| PoE/PoE+ ports | 16 |
| Max. PoE budget | 247W |
| Layer Type | Unmanaged |
| Switching capacity | 36 Gbps |
| Forwarding rate | 26.78 Mpps |
| MAC address table | 8000 |
| Dimensions (W x D x H) | 440 mm x 240 mm x 44 mm |
| Weight (With package) | 4.0 kg |
| Software Features | |
| Auto/Full/Half Duplex Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Switching model | Store-and-forward |
| Cloud Management | Cloud monitoring |
| Hardware Features | |
| Flow Control | Yes |
| Port Isolation | Yes |
| Power Consumption | ≤285W |
| Power Supplies | 100V AC to 240V AC, 3.5A |
| Surge Protection | 6kV |
| Fan | Support |
| Operating Temperature | 0°C to 45°C (32°F to 109°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Certificate | CE, RoHS |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-ES110GDS-P 8-Port GE PoE + 2-Port GE SFP
- Support 8 x 10/100/1000M copper ports and 2 x 1000M uplink SFP ports: 8 ports for PoE/PoE+, with the maximum PoE power up to 120W; unmanaged switch.
- Max. PoE budget: 120W.
- Layer Type: Unmanaged.
- Switching capacity: 20Gbps.
- Forwarding rate: 14.88Mpps.
- Dimensions (W x D x H): 280 x 180 x 44 mm.
Specifications
| Basic | |
| Downlink Ports | 8 x 10/100/1000BASE-T |
| Uplink Ports | 2 x 1000BASE-X SFP |
| PoE/PoE+ ports | 8 |
| Max. PoE budget | 120W |
| Layer Type | Unmanaged |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 4000 |
| Dimensions (W x D x H) | 280 mm x 180 mm x 44 mm |
| Weight (With package) | 2.26 kg |
| Software Features | |
| Auto/Full/Half Duplex Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Switching model | Store-and-forward |
| Cloud Management | Cloud monitoring |
| Hardware Features | |
| Flow Control | Yes |
| Port Isolation | Yes |
| Power Consumption | ≤130W |
| Power Supplies | 100V AC to 240V AC, 2.5A |
| Surge Protection | 6kV |
| Fan | Fanless |
| Operating Temperature | 0°C to 45°C (32°F to 109°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Certificate | CE, RoHS |
Thiết Bị Mạng Switch 16-port Ruijie (RG-ES118FGS-LP)
Thông Số Kỹ Thuật:
- 16 cổng 10/100 BASE-T PoE/PoE+, tổng công suất PoE 120W.
- 2 cổng đồng uplink 10/100/1000Mbps Base-T với 2 cổng combo.
- Tốc độ chuyển mạch: 7.2 Gbps.
- Tốc độ chuyển gói tin: 5.35 Mpps.
- Half-duplex, full-duplex, auto-negotiation mode, support auto MDI/MDIX.
- Hỗ trợ 3 mode: Flow Control On, Flow Control Off, Port Isolation.
- Địa chỉ MAC: 8K.
- Bảo hành: 36 Tháng
Thiết bị chuyển mạch Switch RUIJIE RG-EG105G-P V3 5-port Gigabit Cloud Managed
| Model | RG-EG105G-P |
| Port | 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports, LAN3 can be switched to WAN1 port) |
| RAM | 128MB |
| Flash | 16MB |
| Maximum number of clients | Up to 100 concurrent clients |
| Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled) |
| Local power supply | Support 220V AC local power supply |
| Power consumption | |
| Network | |
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
| Other protocols | DHCP Server, DHCP Client, DHCP Option43/ 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
| Gateway | |
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
| Traffic audit | Real-time traffic audit, IP traffic visualization |
| Behavior management | Time-based and IP policy-based access control |
| VPN | IPsec VPN (8 tunnels) server and client |
| Wireless management | |
| Management capacity | In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches: 128 |
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
| Upgrade management | Per-device upgrade, batch upgrade |
| Value added features | |
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
| Management | Eweb and Ruijie Cloud |
| Physical | |
| Dimensions | 206.5×108.5×28 (mm) |
| Weight | 0.84kg |
| Working Temperature | 0℃~40℃ |
| Storage temperature | -10℃~70℃ |
| Working humidity | 10%~90% RH non-condensing |
| Storage humidity | 5%~95% RH non-condensing |
Thiết bị chuyển mạch Switch RUIJIE RG-EG2100-P V2 8-port 1000BASE-T Smart
- 8 cổng 1000BASE-T ports (7x POE/POE+), tổng công suất 135W
- Hỗ trợ lên đến 2 cổng WAN
- Memory: 512M
- Flash: 4GB EMMC
- Cache: 750MB
- Hỗ trợ 300 user
- Dễ dàng quản lý và cấu hình qua Ruijie cloud
- Hỗ trợ 16 kênh VPN (IPsec)
- Hỗ trợ quảng cáo
- Cân bằng tải giữa các đường truyền internet
- Hỗ trợ cập nhật thư viện signature của các ứng dụng mobile/windows (facebook, youtube, torrent..) để quản lý/ngăn chặn.
- Nguồn điện: 100-240VAC, 50-60Hz, 3A
- Kích thước: 200 × 200 x 43.6 mm
- Nhiệt độ hoạt động: 0°C~45°C
Thiết bị chuyển mạch Switch RUIJIE RG-ES106D-P 4-Port POE + 2 Uplink port 10/100Mbps
4-Port 10/100Mbps + 2 Uplink port 10/100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 58W, unmanaged switch, desktop
