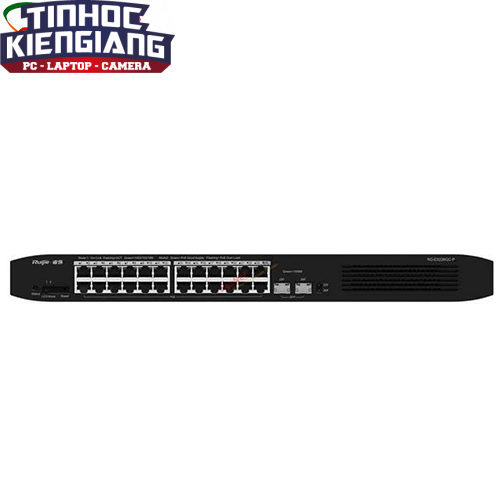

Thiết bị chuyển mạch Switch RUIJIE RG-ES226GC-P 24-port 10/100/1000Base-T PoE
Liên hệ
Tính năng
PoE toàn năng hỗ trợ camera PoE ở công suất tối đa
– Các thiết bị chuyển mạch giám sát thông minh của Switch Ruijie hỗ trợ đầu ra PoE toàn năng, cung cấp năng lượng cho các camera mạng PoE cho tất cả các cổng PoE. Cho dù là ngày hay đêm, đèn hồng ngoại của máy ảnh bật hay tắt, đều có thể đảm bảo rằng tất cả các camera mạng PoE đều được cấp nguồn.
Tự động điều chỉnh nguồn lượng PoE để an toàn và tiết kiệm năng lượng
– Cổng PoE của các công tắc giám sát thông minh cung cấp nguồn điện lên tới 30W cho thiết bị được kết nối. Các công tắc sẽ đàm phán với các thiết bị được kết nối để tự động điều chỉnh nguồn PoE, từ đó tiết kiệm năng lượng. Ngoài ra RG-ES226GC-P sẽ tự động nhận dạng thiết bị và sẽ không cấp nguồn cho thiết bị đó để đảm bảo an toàn cho thiết bị.
Định vị lỗi nhanh
– Các công tắc giám sát thông minh hỗ trợ hiển thị cấu trúc liên kết mạng của toàn bộ mạng và theo dõi trạng thái mạng theo thời gian thực. Khi xảy ra lỗi cho camera mạng, vị trí và nguyên nhân lỗi có thể được hiển thị kịp thời và thông báo có thể được gửi qua ứng dụng Ruijie Cloud.
Cấu hình VLAN theo yêu cầu
– Trong mạng lưới biệt thự/ cửa hàng/ văn phòng, camera mạng và AP không dây có thể được kết nối với cùng một công tắc. Nếu không cách ly mạng, có thể có các vấn đề như độ trễ màn hình camera và tốc độ không dây chậm.
– Các công tắc giám sát thông minh cung cấp phân chia VLAN thuận tiện và linh hoạt, có thể tự động phân chia các VLAN khác nhau theo loại thiết bị được kết nối với cổng, để mạng giám sát và mạng dữ liệu không can thiệp lẫn nhau, cải thiện tính ổn định của toàn bộ mạng.
Ứng dụng quản lý từ xa trên nền tảng đám mây
– Các thiết bị chuyển mạch giám sát thông minh không chỉ hỗ trợ quản lý giao diện web, mà còn hỗ trợ ứng dụng Switch Ruijie và quản lý từ xa trên nền tảng đám mây. Người dùng có thể xem trạng thái mạng, sửa đổi cấu hình và khắc phục sự cố tại nhà. Ngoài ra, cổng PoE có thể được khởi động lại từ xa để khởi động lại camera PoE bị lỗi.
Đặc tính kỹ thuật
| Model | RG-ES226GC-P |
| Hardware | |
| Ports | 24 10/100/1000 Base-T ports (PoE/PoE+) 2 SFP Base-X ports |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 370W |
| Switching capacity | 52Gbps |
| Packet forwarding rate | 38.688Mpps |
| Surge protection | Common mode: 4KV |
| Electrostatic discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power consumption | ≤400W |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440 x 289 x 43.6 mm |
| MTBF | >200K |
| Software | |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
