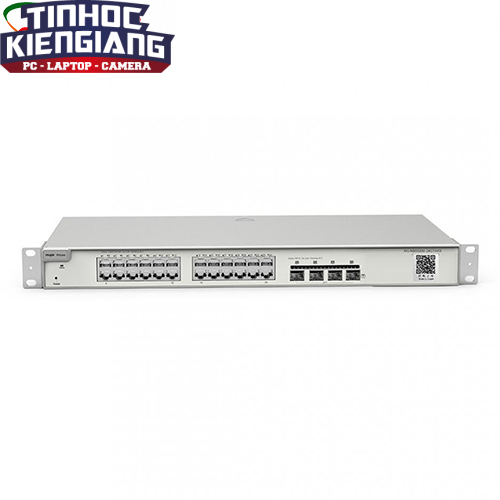

Thiết bị chuyển mạch Switch RUIJIE RG-NBS5100-24GT4SFP 24-Port Gigabit L2+ Managed
Liên hệ
| Model | RG-NBS5100-24GT4SFP |
| Fixed ports | 24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 51Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Layer 3 aggregation ports | 16 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | Support static routing |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud platform or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440×207.5×43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |
Sản phẩm tương tự
Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-24SFP/8GT8XS-X 24-Port Gigabit SFP + 8-Port 10/100/1000BASE-T + 8-Port 1G/10G SFP+
- 24 x 1000M SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 x 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
- Switching Capacity: 880 Gbps/7.92 Tbps.
- MAC Address: 64K.
- Power Consumption (full load): 77W.
- Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 24 x Gigabit SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 77 W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-24GT8XS-X 24-Port 10/100/1000BASE-T + 8-Port 1G/10G SFP+
- 24 x 10/100/1000BASE-T, 8 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
- Switching Capacity: 880 Gbps/7.92 Tbps.
- MAC Address: 64K.
- Power Consumption (full load): 60W.
- Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 24x 10/100/1000BASE-T, 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 60W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-WS6008
- Thiết bị điều khiển WIFI thế hệ mới.
- Hỗ trợ 6 cổng 1000BASE-T.
- Hỗ trợ 2 cổng 1000BASE-T/1000BASE-X combo.
- Hỗ trợ 1 cổng Console Port.
- Hỗ trợ 1 cổng USB ports.
- Tích hợp sẵn license cho 32 Access Point wifi (Tối đa mở rộng lên đến 224 APs hoặc 448 wall APs).
- Hỗ trợ tối đa: 6.400 users.
- Hỗ trợ 4,094 VLAN.
- LAN Protocols: ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s.
- 802.11 LAN Protocols: 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac.
- Các chứng nhận: GB9254, EN301 489, GB4943, EN/IEC 60950-1.
Thiết bị chuyển mạch Switch RUIJIE RG-EG310GH-P-E 10-Port High Performance Cloud Managed PoE
- 1.5Gbps throughput high-performance VPN router for office network.
- Provide powerful VPN for branches and remote workers.
- Provide traffic visualization monitoring, everything in a glance.
- New efficient way of bandwidth management based on application and user.
- Unbreakable multi-WAN, intelligent load balancing.
Specifications
| Physical Basic | |
| Fixed WAN Port | 1×10/100/1000 Base-T |
| Fixed LAN Port(s) | 6×10/100/1000 Base-T |
| LAN/WAN Switchable Port(s) | 3×10/100/1000 Base-T |
| Performance | 1.5Gbps (1518 Byte, NAT+Flow Audit) 1000Mbps (1518 Byte, NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control) |
| Throughput | 1.5Gbps |
| Recommended Clients | 300 |
| Power Consumption | ≤ 130W (With PoE full load) |
| Hardware Feature | |
| CPU | 2 Cores, 1.35 GHz |
| SDRAM/RAM | 512 MB |
| Flash Memory | 256 MB SPI NAND FLASH |
| Power Supplies | DC 54V/2.4A (Adapter included) |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 110 W |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm (Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.39 in. ) |
| Indicator | 1×system LED indicator |
| Buttons | 1×Reset button |
| Dimensions (W × D × H) | 202 mm x 28 mm x 108 mm |
| Weight | 0.55 kg |
| Installation | Desk-mounted |
| Dissipation Mode | Air-cooled Heat Dissipation |
| Fan | Fansless |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% Noncondensing |
| Storage Humidity | 5% to 90% Noncondensing |
| Port Surge | 4 kV |
| IP(Ingress Protection) | IP20 |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch Ruijie RG-ES08G-L (8 port/ 10/100/1000 Mbps)
| Tính năng |
Chống sét 4kV |
| Tốc độ |
10/100/1000 Mbps |
| Nguồn |
5 V DC power adapter, 1 A (5 W) |
| Cổng kết nối |
8 x 10/100/1000 Mbps LAN RJ-45 |
| Nhiệt độ hoạt động |
0°C đến 40°C |
| MAC Address Table |
4K |
| Kích thước |
124 mm x 60 mm x 24 mm |
| Khối lượng |
0.27 kg |
| Bảo hành |
36 tháng |
| Nhiệt độ lưu trữ |
-40°C đến 70°C |
| Độ ẩm hoạt động |
10% đến 20%, không ngưng tụ |
| Độ ẩm lưu trữ |
10% đến 20%, không ngưng tụ |
| Băng thông chuyển mạch |
16 Gbps |
Thiết bị chuyển mạch Switch RUIJIE RG-ES05 5 cổng 10/100 Base-T
– Switch 5 cổng 10/100BASE-T
– Tốc độ chuyển mạch: 1Gbps
– Half-duplex, full-duplex, auto-negotiation mode, support auto MDI/MDIX
– MAC: 1K
– Nguồn DC 5.0V / 600mA
– Nhiệt độ hoạt động: 0°C~40°C
– Kích thước: 108.1mm*64mm*24.8mm
– Chất liệu: vỏ nhựa
– Xuất xứ: Trung Quốc.
– Bảo hành: 36 tháng.
Thiết bị chuyển mạch Switch RUIJIE RG-EG105G-P V3 5-port Gigabit Cloud Managed
| Model | RG-EG105G-P |
| Port | 5 10/100/1000M Base-T ports, supporting up to 2 WAN ports (Default: 1 WAN port, 4 LAN ports, LAN3 can be switched to WAN1 port) |
| RAM | 128MB |
| Flash | 16MB |
| Maximum number of clients | Up to 100 concurrent clients |
| Recommended bandwidth | 500M asymmetric bandwidth (flow control disabled) 300M asymmetric bandwidth (flow control enabled) |
| Local power supply | Support 220V AC local power supply |
| Power consumption | |
| Network | |
| Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
| Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
| Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
| Other protocols | DHCP Server, DHCP Client, DHCP Option43/ 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
| Gateway | |
| Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
| Traffic audit | Real-time traffic audit, IP traffic visualization |
| Behavior management | Time-based and IP policy-based access control |
| VPN | IPsec VPN (8 tunnels) server and client |
| Wireless management | |
| Management capacity | In AC mode, the maximum management capacity is 300 In gateway mode, the maximum management capacity is 32 |
| AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
| Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
| Switch management | |
| Management capacity | Maximum manageable cloud managed switches: 128 |
| Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
| Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
| Upgrade management | Per-device upgrade, batch upgrade |
| Value added features | |
| Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
| Management | Eweb and Ruijie Cloud |
| Physical | |
| Dimensions | 206.5×108.5×28 (mm) |
| Weight | 0.84kg |
| Working Temperature | 0℃~40℃ |
| Storage temperature | -10℃~70℃ |
| Working humidity | 10%~90% RH non-condensing |
| Storage humidity | 5%~95% RH non-condensing |
Thiết bị chuyển mạch Switch RUIJIE RG-S1818G 16-port 10/100/1000 Base-T
- 16 10/100/1000 BASE-T, 2 GE SFP (Non-combo)
- Tốc độ chuyển mạch: 48Gbps
- Nguồn cấp: AC 100~240V, 50Hz~60Hz
- Hỗ trợ chống sét 4KV
- Nhiệt độ hoạt động: 0°C~50°C
- Kích thước: 440 x 205 x 44 mm
- Công suất tiêu thụ: 8.6W
- Các chứng nhận: EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN300 386
