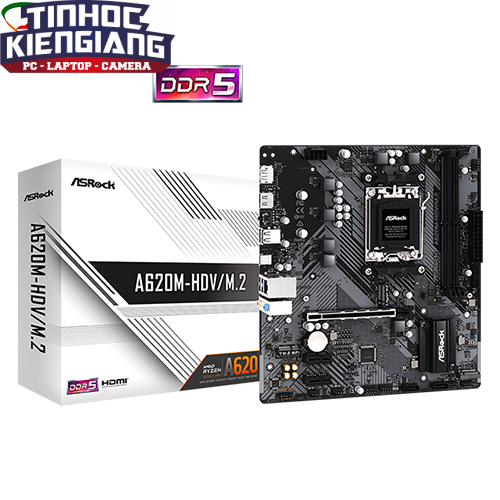

Bo Mạch Chủ – Mainboard Asrock A620M-HDV/M.2+

Liên hệ

Thương hiệu: Asrock

Kích thước: m-ATX

Socket: AM5 Support AMD Ryzen™ 7000

Chipset: AMD A620

Số khe RAM tối đa: 2 (64GB)

Bảo hành: 36 tháng

  •
  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+1+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 7200+ MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback
