Showing all 9 results

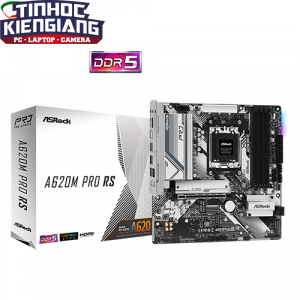

Bo Mạch Chủ - Mainboard Asrock A620M Pro RS

Bo Mạch Chủ – Mainboard Asrock A620M Pro RS

Thương hiệu: Asrock

Kích thước: m-ATX

Socket: AM5 Support AMD Ryzen™ 7000

Chipset: AMD A620

Số khe RAM tối đa: 4 (128GB)

Bảo hành: 36 tháng

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 7200+ MHz (OC)
  • 1 PCIe 4.0 x16, M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec,
    Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
    1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
    5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer,
    BIOS Flashback

Bo Mạch Chủ – Mainboard Asrock A620M Pro RS

Liên hệ

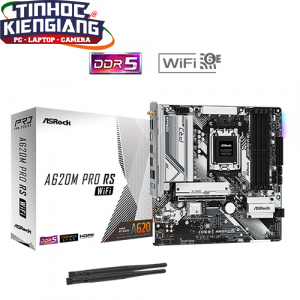

Bo Mạch Chủ - Mainboard Asrock A620M Pro RS WiFi

Bo Mạch Chủ – Mainboard Asrock A620M Pro RS WiFi

Thương hiệu: Asrock

Kích thước: m-ATX

Socket: AM5 Support AMD Ryzen™ 7000

Chipset: AMD A620

Số khe RAM tối đa: 4 (128GB)

Bảo hành: 36 tháng

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 7200+ MHz (OC)
  • 1 PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec,
    Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
    1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
    5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • Realtek Gigabit LAN
    802.11ax Wi-Fi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer,
    BIOS Flashback

Bo Mạch Chủ – Mainboard Asrock A620M Pro RS WiFi

Liên hệ

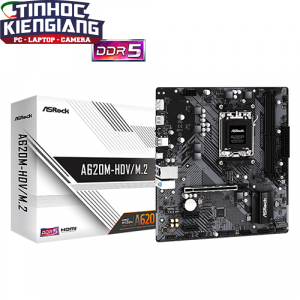

Bo Mạch Chủ - Mainboard Asrock A620M-HDV/M.2+

Bo Mạch Chủ – Mainboard Asrock A620M-HDV/M.2+

Thương hiệu: Asrock

Kích thước: m-ATX

Socket: AM5 Support AMD Ryzen™ 7000

Chipset: AMD A620

Số khe RAM tối đa: 2 (64GB)

Bảo hành: 36 tháng

  •
  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+1+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 7200+ MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

Bo Mạch Chủ – Mainboard Asrock A620M-HDV/M.2+

Liên hệ

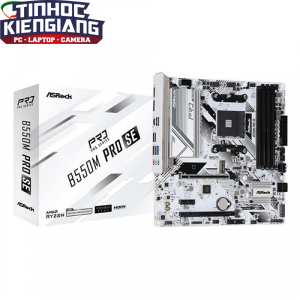

Bo Mạch Chủ - Mainboard Asrock B550M Pro SE

Bo Mạch Chủ – Mainboard Asrock B550M Pro SE

Thương hiệu: Asrock

  • Chipset: AMD B550
  • Socket: AMD AM4
  • Kích thước: M-ATX
  • Số khe RAM: 2

Bảo hành: 36 tháng

  • Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
    1 M.2 (PCIe Gen3 x2 & SATA3)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front)
    6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • Supports Pre-Installed I/O Shield

Bo Mạch Chủ – Mainboard Asrock B550M Pro SE

Liên hệ

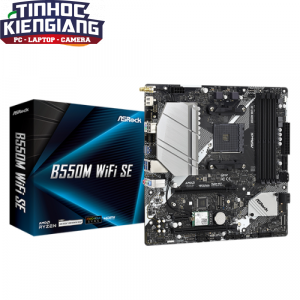

Bo Mạch Chủ - Mainboard ASRock B550M WiFi SE DDR4 AM4

Bo Mạch Chủ – Mainboard ASRock B550M WiFi SE DDR4 AM4

Thông số kỹ thuật:

Loại Ram

DDR4
Chipset

AMD PRO565
Socket

AMD AM4
Khe Ram

4 khe cắm Ram
Dung lượng Ram hỗ trợ tối đa

128 GB
Tốc độ Bus

4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC
Cổng xuất hình

1 x HDMI
Wifi

Intel 802.11ac WiFi (Wifi 5)
Bluetooth

4.2
Kết nối mạng LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H
Khe cắm

4 x SATA3 6.0 Gb/s, 1 x Hyper M.2 PCIe Gen 4x4
Giao Tiếp VGA

2 x PCIe x16
Số cổng USB

4 x USB 3.2 Gen1, 2 x USB 2.0 Ports
Hệ điều hành hỗ trợ

Microsoft Windows 10 64-bit / 11 64-bit
Kích thước

Micro ATX - 244 mm x 244 mm
Bảo hành

36 tháng

Bo Mạch Chủ – Mainboard ASRock B550M WiFi SE DDR4 AM4

Liên hệ

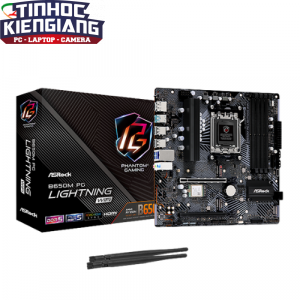

Bo Mạch Chủ - Mainboard ASRock B650M PG Lightning WiFi AM5 DDR5

Bo Mạch Chủ – Mainboard ASRock B650M PG Lightning WiFi AM5 DDR5

THÔNG SỐ KỸ THUẬT:
Thương hiệu

ASRock
Bảo hành

36 tháng
Socket

AMD AM5
Chipset

AMD B650
Bus RAM hỗ trợ

Up to 7200+(OC)
Khe RAM tối đa

4 khe
Hỗ trợ bộ nhớ tối đa

256GB
LAN

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
Lưu trữ

4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
INPUT/OUTPUT PHÍA SAU

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Type-A Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
CỔNG KẾT NỐI

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
Âm thanh

Âm thanh 7.1 CH HD
Nahimic Audio
Kích cỡ Mainboard

M-ATX

Bo Mạch Chủ – Mainboard ASRock B650M PG Lightning WiFi AM5 DDR5

Liên hệ

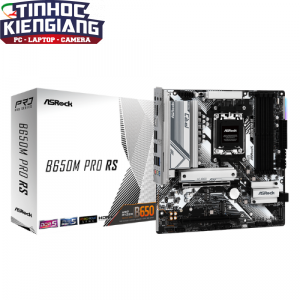

Bo Mạch Chủ - Mainboard ASRock B650M Pro RS AM5 DDR5

Bo Mạch Chủ – Mainboard ASRock B650M Pro RS AM5 DDR5

Thông tin Sản Phẩm:

Unique Feature Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 8+2+1 Power Phase, 50A Dr.MOS
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker

CPU

– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Chipset

– AMD B650

Memory

 – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List for more information.

BIOS

 – 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

 Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control

Slots

 CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

RAID

 – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10

USB

 – 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)

*All USB ports support ESD Protection
Connector – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

 – 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

 Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories

– 1 x User Manual
– 2 x SATA Data Cables
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket

Form Factor

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB

OS

– Microsoft Windows® 10 64-bit / 11 64-bit
Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Bo Mạch Chủ – Mainboard ASRock B650M Pro RS AM5 DDR5

Liên hệ

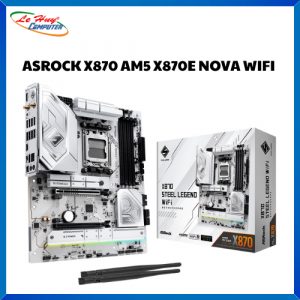

Bo Mạch Chủ - Mainboard Asrock X870 Steel Legend Wifi DDR5 AM5

Bo Mạch Chủ – Mainboard Asrock X870 Steel Legend Wifi DDR5 AM5

Thông số kỹ thuật:

×
Tên thông số Giá trị
Nhà sản xuất ASRock
Model
  • X870-STEEL-LEGEND-WIFI
Mainboard Form Factor ATX
Chipset AMD X870 Chipset
Socket CPU LGA AM5
CPU Hỗ trợ
  • AMD Ryzen 7000, 8000, 9000 Series
RAM Hỗ trợ 4x DDR5 DIMM Slot
Dung lượng RAM tối đa 256GB
Khe cắm mở rộng
  • 1x PCIe 4.0 x16 slot (x4 Mode)
  • 1x PCIe 5.0 x16 (AMD Ryzen 9000 & 7000)/ PCIe 4.0 x8 slot (AMD Ryzen 8000-Phoenix 1)/ PCIe 4.0 x4 slot (AMD Ryzen 8000-Phoenix 2)
Lưu trữ mở rộng
  • 1x M.2 2280 PCIe 5.0 x4 (CPU)
  • 1x M.2 2230/2260/2280 PCIe 4.0 x4
  • 1x M.2 2260/2280 PCIe 4.0 x4
  • 4x SATA 6Gb/s
Kết nối không dây
  • 1x M.2 2230 PCle Wifi/BT Socket (Key E)
  • Wi-Fi 7
  • Bluetooth 5.4
Cổng kết nối phía sau
  • 2x Antenna Ports
  • 1x HDMI 2.1
  • 1x Optical S/PDIF Out
  • 2x Thunderbolt 4 (DisplayPort)
  • 3x USB-A 3.2 Gen 1
  • 2x USB-A 3.2 Gen 2
  • 4x USB-A 2.0
  • 1x LAN 2.5Gb
  • 1x BIOS Flashback Button
  • 2x Gold-plated audio Jack
Phụ kiện
  • 2x SATA 6Gb/s cables
  • 2x ASRock WiFi 2.4/5/6 GHz Antennas
  • 1x Thermistor Cable
Thời gian bảo hành 36 tháng


Bo Mạch Chủ – Mainboard Asrock X870 Steel Legend Wifi DDR5 AM5

Liên hệ

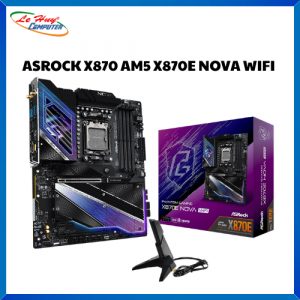

Bo Mạch Chủ - Mainboard ASRock X870E Nova Wifi DDR5 AM5

Bo Mạch Chủ – Mainboard ASRock X870E Nova Wifi DDR5 AM5

THÔNG SỐ KỸ THUẬT:

Thương hiệu

ASRock
Bảo hành

36 tháng
Socket

AMD AM5
Chipset

AMD X870E
Bus RAM hỗ trợ

8200+(OC)
Khe RAM tối đa

4 khe
Khe cắm mở rộng

2 x PCIe 5.0 x16 Slot
Hỗ trợ bộ nhớ tối đa

256GB
WIRELESS / BLUETOOTH

Wi-Fi 7
Bluetooth 5.4
Lưu trữ

1 x Blazing M.2 Socket (CPU)
3 x Hyper M.2 Socket
1 x M.2 Socket
Kích cỡ Mainboard

ATX
Cổng xuất hình

1x HDMI 2.1
2 x USB4
Cổng mạng

LAN 5Gb
Realtek RTL8126
USB

CPU:
– 2 x USB4 Type-C (Rear)
– 2 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 3 x USB 3.2 Gen2 Type-A (Rear)
– 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
INPUT/OUTPUT phía sau

2 x Cổng Ăng-ten
1 x Cổng HDMI
1 x Cổng ra SPDIF quang
2 x Cổng USB4 Type-C
5 x Cổng USB 3.2 Gen2 Type-A.
3 x Cổng USB 3.2 Gen1 Type-A.
2 x Cổng USB 2.0
1 x Cổng LAN RJ-45
1 x Nút Clear CMOS
1 x Nút BIOS Flashback
1 x Line Out Jack
1 x Microphone Input Jack
Connector

3 x Thermistor Cable Headers
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin)
3 x Chassis Fan Connectors
1 x AIO Pump Fan Connector
1 x Water Pump Fan Connector
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers
1 x Front Panel Type C USB 3.2 Gen2x2 Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED

Bo Mạch Chủ – Mainboard ASRock X870E Nova Wifi DDR5 AM5

Liên hệ
