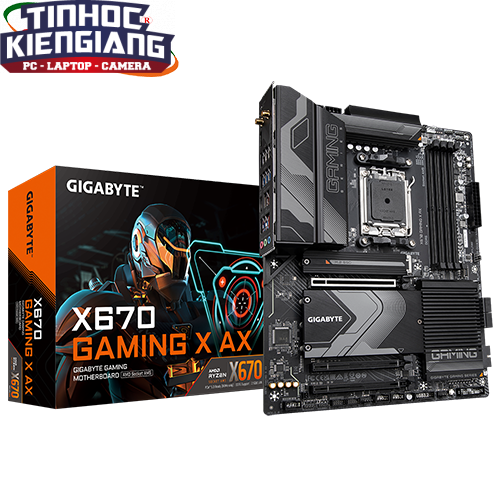

Bo Mạch Chủ – Mainboard Gigabyte X670 GAMING X AX V2

Liên hệ

  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

    (Please refer “CPU Support List” for more information.)

  • Chipset

    1. AMD X670

  • Bộ nhớ

    1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MHz memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Card đồ họa tích hợp

    Integrated Graphics Processor:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

  • Âm thanh

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    AMD Wi-Fi 6E RZ616 (MT7922A22M)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    (Actual data rate may vary depending on environment and equipment.)

  • Khe cắm mở rộng

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

  • Giao diện lưu trữ

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
      (Note) Actual support may vary by CPU.
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:

    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports on the back panel

    CPU + USB 2.0 Hub:

    1. 4 x USB 2.0/1.1 ports on the back panel

    Chipset:

    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Kết nối I/O bên trong

    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x CPU cooler LED strip/RGB LED strip header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 4 x SATA 6Gb/s connectors
    10. 4 x M.2 Socket 3 connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x THB_U4 add-in card connector
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x power button
    19. 1 x reset button
    20. 1 x Clear CMOS button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

  • Kết nối bảng phía sau

    1. 1 x Q-Flash Plus button
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x HDMI port
    4. 6 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 2 x USB 3.2 Gen 2 Type-A ports (red)
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks

  • Điều khiển I/O

    1. iTE® I/O Controller Chip

  • Theo dõi phần cứng

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Tính năng duy nhất

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup

  • Gói phần mềm

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Hệ điều hành

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Hệ số khuôn

    1. ATX Form Factor; 30.5cm x 24.4cm
Danh mục:

Sản phẩm tương tự

Mainboard Gigabyte X870E AORUS MASTER

Mainboard Gigabyte X870E AORUS MASTER

Mainboard Gigabyte X870E AORUS MASTER

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte X570S AERO G

Bo Mạch Chủ – Mainboard Gigabyte X570S AERO G

  • CPU

    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD X570

  • Memory

    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors:
      Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
    2. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors:
      Support for DDR4 2933/2667/2400/2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
      * Support for drawing tablets and 20V@3A of power delivery.
      * Support for DisplayPort 1.4 version and HDCP 2.3
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
    * For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only.

  • Audio

    1. Realtek® ALC1220-VB Audio CODEC
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out

  • LAN

    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Intel® Wi-Fi 6 AX200
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.

  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode
    3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode
    1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x8 mode
    2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x8 mode
    3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 4.0* /3.0 x4 mode
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
      * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.

  • Multi-Graphics Technology

    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.

  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1. Supporting PCIe 4.0* /3.0 x4/x2 SSDs
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
    1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
    1. Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
      * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    6 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  • USB

    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports on the back panel
    Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+2 USB 2.0 Hubs:
    1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 4 x M.2 Socket 3 connectors
    12. 6 x SATA 6Gb/s connectors
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    16. 2 x USB 3.2 Gen 1 headers
    17. 2 x USB 2.0/1.1 headers
    18. 1 x noise detection header
    19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    20. 1 x Thunderbolt™ add-in card connector
    21. 1 x serial port header
    22. 1 x Clear CMOS jumper
    23. 2 x temperature sensor headers
    24. 1 x Q-Flash Plus button

  • Back Panel Connectors

    1. 2 x USB 2.0/1.1 ports
    2. 2 x SMA antenna connectors (2T2R)Š Š 1 x HDMI port
    3. 1 x DisplayPort In port
    4. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    5. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    6. 4 x USB 3.2 Gen 2 Type-A ports (red)
    7. 2 x USB 3.2 Gen 1 ports
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 5 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. cFosSpeed

  • Operating System

    1. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte X570S AERO G

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte A520M Aorus Elite

Bo Mạch Chủ – Mainboard Gigabyte A520M Aorus Elite

CPU AMD Socket AM4, hỗ trợ cho: Bộ xử lý AMD Ryzen ™ thế hệ thứ 3 / AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™
Chipset AMD A520
Bộ nhớ
  1. 4 x Socket DDR4 DIMM hỗ trợ bộ nhớ hệ thống lên đến 128 GB (dung lượng 32 GB đơn DIMM)
  2. Bộ xử lý AMD Ryzen ™ thế hệ thứ 3:
    Hỗ trợ các mô-đun bộ nhớ DDR4 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz
  3. AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™:
    Hỗ trợ DDR4 4733 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667 / Mô-đun bộ nhớ 2400/22133 MHz
  4. Kiến trúc bộ nhớ kênh đôi
  5. Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 không đệm ECC
  6. Hỗ trợ cho các mô-đun bộ nhớ DIMM 1Rx8 / 2Rx8 / 1Rx16 không phải ECC Un-buffer
  7. Hỗ trợ mô-đun bộ nhớ Extreme Memory Profile (XMP)
Đồ họa Được tích hợp trong AMD Ryzen ™ thế hệ thứ 3 với bộ xử lý Đồ họa Radeon ™:



  1. 1 x cổng DVI-D, hỗ trợ độ phân giải tối đa 1920×1200 @ 60 Hz
    * Cổng DVI-D không hỗ trợ kết nối D-Sub bằng bộ chuyển đổi.
  2. 1 x cổng HDMI, hỗ trợ độ phân giải tối đa 4096×2160 @ 60 Hz
    * Hỗ trợ phiên bản HDMI 2.1, HDCP 2.3 và HDR.

Bộ nhớ chia sẻ tối đa 16 GB
Âm thanh
  1. Bộ giải mã Realtek ® ALC887
  2. Âm thanh độ nét cao
  3. 2/4 / 5.1 / 7.1 kênh
    * Để định cấu hình âm thanh 7.1 kênh, bạn cần mở phần mềm âm thanh và chọn Cài đặt nâng cao của thiết bị> Thiết bị phát lại để thay đổi cài đặt mặc định trước. Vui lòng truy cập trang web của GIGABYTE để biết chi tiết về cách định cấu hình phần mềm âm thanh.
LAN Chip Realtek ® GbE LAN (1000 Mbit / 100 Mbit)
Khe mở rộng CPU:



  1. 1 x khe cắm PCI Express x16, hỗ trợ PCIe 3.0 và chạy ở x16

Bộ chip:

  1. 2 x khe cắm PCI Express x1, hỗ trợ PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Giao diện lưu trữ CPU:



  1. 1 x đầu nối M.2 (Socket 3, M key, loại 2242/2260/2280 SATA và hỗ trợ SSD PCIe 3.0 x4 / x2)

Bộ chip:

  1. 4 x đầu nối SATA 6Gb / s
  2. Hỗ trợ RAID 0, RAID 1 và RAID 10
Kết nối I / O nội bộ
  1. 1 x đầu nối nguồn chính ATX 24 chân
  2. 1 x đầu nối nguồn ATX 12V 8 chân
  3. 1 x đầu cắm quạt CPU
  4. 2 x đầu cắm quạt hệ thống
  5. 2 x đầu cắm dải LED có thể định địa chỉ
  6. 2 x đầu cắm dải LED RGB
  7. 1 x đầu nối M.2 Socket 3
  8. 4 x đầu nối SATA 6Gb / s
  9. 1 x tiêu đề bảng điều khiển phía trước
  10. 1 x tiêu đề âm thanh mặt trước
  11. 1 x đầu cắm USB 3.2 Gen 1
  12. 1 x đầu cắm USB 2.0 / 1.1
  13. 1 x tiêu đề Mô-đun nền tảng đáng tin cậy (TPM) (chân 2×6, chỉ dành cho mô-đun GC-TPM2.0_S)
  14. 1 x tiêu đề cổng nối tiếp
  15. 1 x Clear CMOS jumper
  16. 1 x nút Q-Flash Plus
Kết nối bảng mặt sau
  1. 1 x cổng PS / 2 bàn phím / chuột
  2. 1 x cổng DVI-D
  3. 1 x cổng HDMI
  4. 4 x cổng USB 3.2 Gen 1
  5. 2 x cổng USB 2.0 / 1.1
  6. 1 x cổng RJ-45
  7. 3 x giắc cắm âm thanh
BIOS
  1. 1 x 128 Mbit flash
  2. Sử dụng AMI UEFI BIOS được cấp phép
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hệ điều hành Hỗ trợ cho Windows 10 64-bit
Yếu tố hình thức Micro ATX; 24,4cm x 24,4cm

Bo Mạch Chủ – Mainboard Gigabyte A520M Aorus Elite

Liên hệ
Mainboard Gigabyte TRX50 AI TOP

Mainboard Gigabyte TRX50 AI TOP

THÔNG SỐ KỸ THUẬT:

  • CPU

    AMD Socket sTR5, support for:
    AMD Ryzen™ Threadripper™ PRO 7000 processors/
    AMD Ryzen™ Threadripper™ 7000 Series processors
    (Go to GIGABYTE's website for the latest CPU support list.)

  • Chipset

    AMD TRX50

  • Memory

    Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
    8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
    - AMD Ryzen™ Threadripper™ PRO 7000 Processors support 8-Channel memory architecture
    - AMD Ryzen™ Threadripper™ 7000 Processors support Quad Channel memory architecture
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

  • Audio

    Realtek® ALC4080 CODEC (rear panel audio)
    - Support for DTS:X® Ultra
    - High Definition Audio
    - 2-channel
    Realtek® ALC897 CODEC (front panel audio)

  • LAN

    2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

  • Wireless Communication module

    Qualcomm® Wi-Fi 7 QCNCM865
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
    - AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode
    - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 5.0 x16 mode
    (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
    1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
    - AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode
    - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x16 mode

  • Storage Interface

    3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    - AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD
    - AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x4/x2 SSD
    1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    - AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD
    * The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 7000 Processors.

    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+Intel® USB4® controller:
    - 2 x USB4® USB Type-C® ports on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+USB 3.2 Gen 1 Hub:
    - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    4 x PCIe power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    2 x system fan headers
    4 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x Clear CMOS button
    1 x reset button
    1 x reset jumper
    2 x temperature sensor headers
    1 x Clear CMOS jumper

  • Back Panel Connectors

    1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort In port
    1 x USB4® USB Type-C® port (DisplayPort)
    1 x USB4® USB Type-C® port
    6 x USB 3.2 Gen 2 Type-A ports (red)
    2 x RJ-45 port
    2 x audio jacks

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


    Noise detection

  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup

  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit
    (Go to GIGABYTE's website for operating system support information.)

  • Form Factor

    E-ATX Form Factor; 30.5cm x 33.0cm

Mainboard Gigabyte TRX50 AI TOP

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte B650M GAMING X AX

Bo Mạch Chủ – Mainboard Gigabyte B650M GAMING X AX

  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD B650

  • Memory

    1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:
    1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

    Support for up to 3 displays at the same time

  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0/1.2)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

  • Storage Interface

    CPU:
    1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    CPU + USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    12. 1 x USB 3.2 Gen 1 header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x serial port header
    16. 1 x reset button
    17. 1 x reset jumper
    18. 1 x Clear CMOS jumper

  • Back Panel Connectors

    1. 4 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x SMA antenna connectors (2T2R)
    4. 2 x DisplayPorts
    5. 1 x HDMI port
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    8. 1 x Q-Flash Plus button
    9. 1 x RJ-45 port
    10. 2 x USB 3.2 Gen 1 ports
    11. 3 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Form Factor

    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte B650M GAMING X AX

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte A620M GAMING X

Bo Mạch Chủ – Mainboard Gigabyte A620M GAMING X

  • Hỗ trợ CPU AMD Ryzen 7000 series

  • Chipset: A620Socket: AMD AM5

  • Hỗ trợ ram: 4 x DDR5 6400MHz tối đa 128GB

  • Kích thước: ATX (24.4cm x 24.4cm

  • )Kết nối: 1 x DisplayPort, 1 x HDMI port

Bo Mạch Chủ – Mainboard Gigabyte A620M GAMING X

Liên hệ
Bo Mạch Chủ - Mainboard Gigabyte WRX80-SU8-IPMI

Bo Mạch Chủ – Mainboard Gigabyte WRX80-SU8-IPMI

  • CPU

    1. Ryzen™ Threadripper™ PRO 3000WX (up to 64C)
    2. Single sWRX8 4094 socket; CPU TDP supports up to 280W

  • Chipset

    1. AMD WRX80 Chipset

  • Memory

    1. 8 x DDR4 DIMM slots supports
    2. 8 channels memory architecture (1 DIMM per channel)
    3. Support up to DDR4 3200/2933/2600 MHz
    4. Support for UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM memory modules
    5. Support system memory capacity up to 1024GB

  • Audio

    1. Realtek® ALC1220-VB codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out

  • LAN

    1. Dual Intel® X550 10GbE LAN
    2. Dual Intel® i210AT GbE LAN (NCSI MLAN)

  • Expansion Slots

    (Slot7) PCIe x16 (running at Gen4 x16)
    (Slot6) PCIe x16 (running at Gen4 x16)
    (Slot5) PCIe x16 (running at Gen4 x16)
    (Slot4) PCIe x16 (running at Gen4 x16)
    (Slot3) PCIe x16 (running at Gen4 x16)
    (Slot2) PCIe x16 (running at Gen4 x8)
    (Slot1) PCIe x16 (running at Gen4 x16)

  • Storage Interface

    1. 4 x SATA 6Gb/s connectors (support software RAID 0; RAID1; RAID5; RAID10)
    2. 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode)
    3. 2 x slimSAS (PCIe gen4 x4 or 4x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors

  • USB

    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 1 x USB Type-C™ header onboard, with USB3.2 Gen2 support
    4. 2 x USB 3.2 Gen 1 header onboard
    5. 1 x USB 3.2 Gen 1 vertical connector onboard
    6. 1 x USB 2.0 header on board

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V CPU power connector
    3. 1 x 8-pin ATX 12V GPU power connector
    4. 1 x CPU fan header
    5. 6 x system fan headers
    6. 4 x SATA 6Gb/s connectors
    7. 2 x M.2 Socket 3 connectors
    8. 3 x slimSAS connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
    12. 1 x USB 3.2 Gen 1 vertical connector
    13. 2 x USB 3.2 Gen 1 header
    14. 1 x USB 2.0 header
    15. 1 x Thunderbolt™ add-in card connector
    16. 1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x serial port header
    18. 1 x chassis intrusion header
    19. 1 x Clear CMOS jumper
    20. 2 x SATA SGPIO headers
    21. 1 x BMC_VGA jumper
    22. 1 x BMC_WATCHD jumper
    23. 1 x SMB_IPMB connector
    24. 1 x PMBUS header
    25. 1 x Speaker

  • Back Panel Connectors

    1. 1 x D-sub port
    2. 1 x serial port
    3. 1 x USB 3.2 Gen 2 Type-C port (red)
    4. 5 x USB 3.2 Gen 2 Type-A port (red)
    5. 2 x GbE RJ-45 ports
    6. 2 x 10GbE RJ-45 ports
    7. 1 x optical S/PDIF Out connector
    8. 5 x audio jacks

  • I/O Controller

    1. ASPEED® AST2500 BMC chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.

  • Operating Properties

    1. Operating temperature: 10°C to 40°C
    2. Operating humidity: 8 - 80%
    3. Non-operating temperature: -40°C to 70°C
    4. Non-operating humidity: 5% - 95%

  • Form Factor

    1. CEB Form Factor; 30.5cm x 26.7cm

  • Support OS

    1. Windows 10
    2. Linux

Bo Mạch Chủ – Mainboard Gigabyte WRX80-SU8-IPMI

Liên hệ

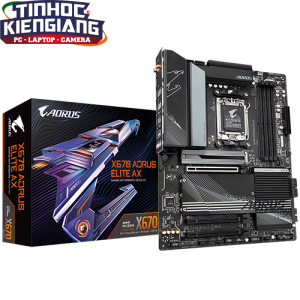

Bo Mạch Chủ - Mainboard Gigabyte X670 AORUS ELITE AX

Bo Mạch Chủ – Mainboard Gigabyte X670 AORUS ELITE AX

  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD X670

  • Memory

    1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MHz memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    AMD Wi-Fi 6E RZ616 (MT7922A22M)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

  • Storage Interface

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
      (Note) Actual support may vary by CPU.
    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports on the back panel
    CPU + USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x CPU cooler LED strip/RGB LED strip header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 4 x SATA 6Gb/s connectors
    10. 4 x M.2 Socket 3 connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x THB_U4 add-in card connector
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x power button
    19. 1 x reset button
    20. 1 x Clear CMOS button
    21. 1 x reset jumper
    22. 1 x Clear CMOS jumper

  • Back Panel Connectors

    1. 1 x Q-Flash Plus button
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x HDMI port
    4. 6 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 2 x USB 3.2 Gen 2 Type-A ports (red)
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

Bo Mạch Chủ – Mainboard Gigabyte X670 AORUS ELITE AX

Liên hệ
