Bo Mạch Chủ – Mainboard MSI A520M PRO

Liên hệ

CPU

Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors

See supported processors

Chipset

AMD A520 Chipset

Memory

  • 2x DDR4 memory slots, support up to 64GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHz
      • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

  • 1x PCIe x16 slot (PCI_E2) 1
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.

Onboard Graphics

  • 1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz2
  • 1x HDMI2.1, supports a maximum resolution of 4096×2160@60Hz1 2
  • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz1
  • Maximum shared memory of 2048 MB
  1. Graphics specifications may vary depending on the CPU installed
  2. Available for the processor with integrated graphics.

Storage

AMD A520 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

AMD A520 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® RTL8111H LAN controller

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x Serial port connector
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper

Back panel ports

  1. VGA
  2. Keyboard / Mouse
  3. LAN port
  4. HDMI
  5. DisplayPort
  6. USB 2.0 Ports
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. Audio Connectors

B550M PRO-VDH WIFI

Dimensions

  • M-ATX Form Factor
  • 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Danh mục:

Sản phẩm tương tự

Bo Mạch Chủ - Mainboard MSI TRX40 PRO WIFI

Bo Mạch Chủ – Mainboard MSI TRX40 PRO WIFI

Sản phẩm

Main - Bo mạch chủ

Tên Hãng

MSI

Model

 TRX40 PRO WIFI

CPU hỗ trợ

3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors

Chipset

AMD® TRX40 Chipset

RAM hỗ trợ
  • 8 x DDR4 memory slots, support up to 256GB
  • Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
    • 1DPC 1R max speed 4666 MHz
    • 1DPC 2R max speed 4000 MHz
    • 2DPC 1R max speed 4000 MHz
    • 2DPC 2R max speed 3600 MHz
  • Quad channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory

Khe cắm mở rộng
  • 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
  • 1 x PCIe 3.0 x1 slot
Multi-GPU
  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

Lưu Trữ

AMD® TRX40 Chipset

  • 8 x SATA 6Gb/s ports

AMD® Processor

  • 2 x M.2 slots (Key M)
    • M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
    • M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® TRX40 Chipset

  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
  • 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors

AMD® Processor

  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

ASMedia® ASM3242 Chipset

  • 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Âm Thanh

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN / Wireless

2 x Intel® I211AT Gigabit LAN controller

Intel® Wi-Fi 6 AX200

  • The Wireless module is pre-install in the M2_4 (Key-E)slot
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5.1

Cổng kết nối ( I/O bên trong)
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 8x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump Fan connector (supports up to 2A)
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x Slow mode booting jumper
  • 1x Power button
  • 1x Reset button

Cổng kết nối ( I/O Phía sau)
  1. Clear CMOS Button
  2. Wireless / Bluetooth
  3. Gigabit LAN
  4. Gigabit LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen1 Type-A
  8. USB 3.2 Gen2 Type-A
  9. USB 3.2 Gen2x2 20G Type-C
  10. Optical S/PDIF out
 msi trx40 pro wifi io

Kích cỡ
  • 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
  • ATX Form Factor

Bo Mạch Chủ – Mainboard MSI TRX40 PRO WIFI

Liên hệ

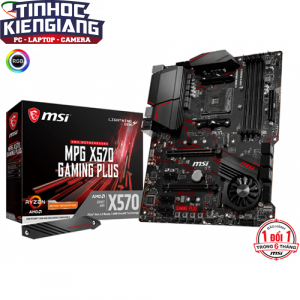

Mainboard MSI MPG X570 GAMING PLUS

Mainboard MSI MPG X570 GAMING PLUS

Thông tin sản phẩm

Mã hàng: MPG X570 GAMING PLUS
Bảo hành: 36
Hãng sản xuất: MSI

Mô tả sản phẩm

Mainboard MSI MPG X570 GAMING PLUS

Liên hệ
Mainboard MSI B450M PRO-VDH MAX

Mainboard MSI B450M PRO-VDH MAX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3466+(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

Mainboard MSI B450M PRO-VDH MAX

Liên hệ
Bo Mạch Chủ - Mainboard MSI PRO X870-P WIFI AM5

Bo Mạch Chủ – Mainboard MSI PRO X870-P WIFI AM5

Thông số kỹ thuật

Nhà sản xuất MSI
Model
  • PRO-X870-P-WIFI
Mainboard Form Factor ATX
Chipset AMD X870 Chipset
Socket CPU LGA AM5
CPU Hỗ trợ
  • AMD Ryzen 7000, 8000, 9000 Series
RAM Hỗ trợ 4x DDR5 DIMM Slot
Dung lượng RAM tối đa 256GB
Khe cắm mở rộng
  • 1x PCIe_E1 5.0 x16 (CPU) (Khả dụng với Ryzen 9000/7000 Series)
  • 1x PCIe_E1 4.0 x8 (CPU) (Khả dụng với Ryzen 8700/8600/8400 Series)
  • 1x PCIe_E1 4.0 x4 (CPU) (Khả dụng với Ryzen 8500/8300 Series)
  • 1x PCIe_E2 3.0 x1 (Chipset)
  • 1x PCIe_E3 3.0 x1 (Chipset)
  • 1x PCIe_E4 4.0 x4 (Chipset)
Lưu trữ mở rộng
  • 1x M.2_1 2280/2260 PCIe 5.0 x4 (CPU) (Khả dụng với Ryzen 9000/7000 Series)
  • 1x M.2_1 2280/2260 PCIe 4.0 x4 (CPU) (Khả dụng với Ryzen 8000 Series)
  • 1x M.2_2 22110/2280 PCIe 4.0 x4 (Chipset)
  • 1x M.2_3 2280/2260 PCIe 4.0 x2 (Chipset)
  • 4x SATA 6Gb/s
Kết nối không dây
  • Wi-Fi 7
  • Bluetooth 5.4
Cổng kết nối phía sau
  • 1x Thunderbolt 4 (DisplayPort)
  • 1x USB-C 3.2 Gen 2x2 20Gbps
  • 2x USB-A 3.2 Gen 2
  • 2x USB-A 3.2 Gen 1
  • 1x HDMI 2.1
  • 3x Audio Jack
  • 1x Wi-Fi/Bluetooth
  • 1x LAN 5Gb
  • 4x USB-A 2.0
  • 1x Clear CMOS Button
  • 1x BIOS Flashback Button
Phụ kiện
  • 1x 1 to 2 EZ Conn-Cable (V1)
  • 2x SATA 6Gb/s cables
  • 1x EZ WiFi Antenna
  • 1x EZ M.2 Clips II Remover
  • 3x EZ M.2 Clips

Bo Mạch Chủ – Mainboard MSI PRO X870-P WIFI AM5

Liên hệ

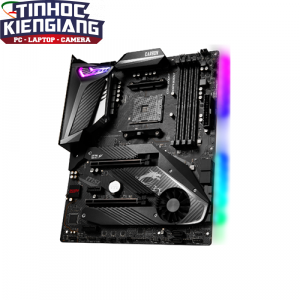

Mainboard MSI MPG X570 GAMING PRO CARBON WIFI
