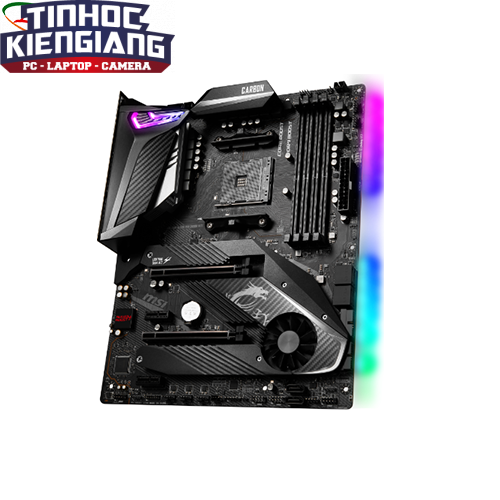

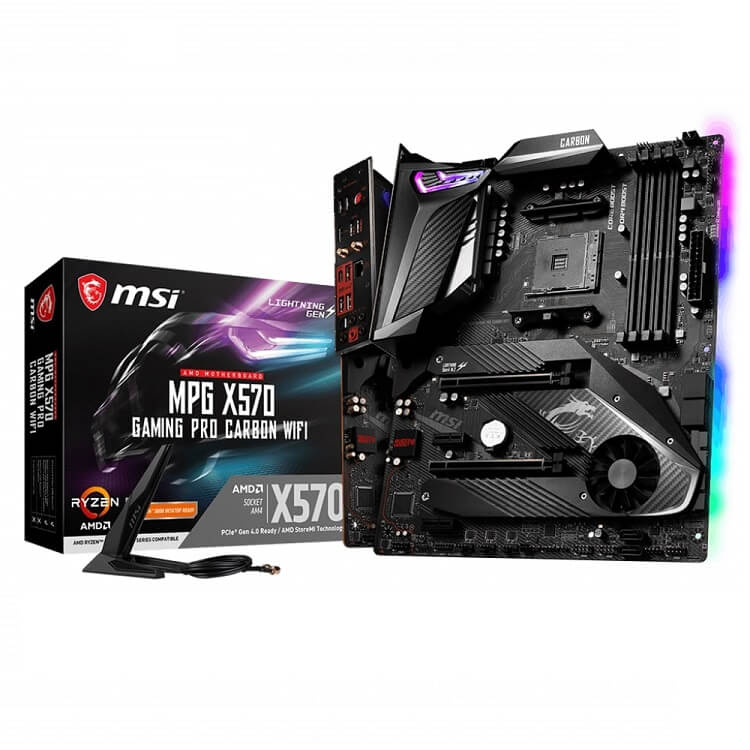

Mainboard MSI MPG X570 GAMING PRO CARBON WIFI
Liên hệ
Thông tin sản phẩm
Mã hàng: MPG X570 GAMING PRO CARBON
Bảo hành: 36
Hãng sản xuất: MSI
Mô tả sản phẩm
MSI MPG X570 GAMING PRO CARBON NVi
Sản phẩm tương tự
Bo Mạch Chủ – Mainboard MSI B550M PRO-VDH WIFI
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |
| Model | B550M PRO-VDH WIFI |
| Socket | AM4 |
| Hỗ trợ CPU | Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors |
| Chipset | AMD B550 |
| Hỗ trợ RAM | 4 DIMMs, Dual Channel DDR4-4400 MHz (OC) |
| Cạc đồ họa | VGA onboard |
| Âm thanh | 8-Channel (7.1) HD Audio with Audio Boost |
| Cạc mạng | 1x Realtek® 8111HN Gigabit LAN controller Intel® Wireless-AC 3168, Bluetooth 4.2 |
| Khe cắm trong | 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports |
| Cổng giao tiếp ngoài | 7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C) + 6x USB 2.0 |
| Kích thước | MATX |
| Phụ kiện kèm theo | Sách, đĩa, cáp SATA, … |
Bo Mạch Chủ – Mainboard MSI B550M PRO-VDH
- Thương hiệu: MSI
- Bảo hành: 36 tháng
- Tên sản phẩm: B550M PRO
- CPU hỗ trợ: Ryzen Gen 3, Ryzen 4000 G-Series
- Socket: AM4
- Kích thước: M-ATX
- Chipset: AMD B550
- Loại ram: DDR4, Dual
- Số khe ram: 2 Slost
- Bus ram hỗ trợ: 1866/2333/2400/…/ 4400 / 4600+ MHz bởi A-XMP OC Mode
- Bộ nhớ tối đa: 64GB
- Khe PCI-E X16: 1 Slost
- Thế hệ PCI-E: Gen4 / Gen3
- Khe PCI-E X1: 2 Slost
- Khe ổ cứng SATAIII: 4 Slost
- Khe ổ cứng: M.2: 1 Slost
- Raid: 0/1/10
- Lan: Realtek RTL8111H Gigabit LAN
- Cổng USB 3.2: 2 (Gen 1, Loại A)
- Cổng USB 3.2: 4 (Gen 1, Loại A)
- Cổng USB 2.0: 4 Slost
- Cổng USB 2.0: 2 Slost
- Cổng nối tiếp:1 Slost
- Cổng âm thanh: Realtek ALC892 / ALC897
- Xuất màn hình: 1 x Displayport / 1 x Vga / 1 x HDMI
- Hỗ trợ Directx: 12
- Hệ điều hành: Hỗ trợ cho Windows 10 64-bit
Bo Mạch Chủ – Mainboard MSI MAG X570 TOMAHAWK WIFI
Processor
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
See supported processors
Chipset
AMD® X570 Chipset
Memory
- 4x DDR4 memory slots, support up to 128GB 1
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
See supported memory
Expansion Slots
- 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
- 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
- 2x PCIe 3.0 x1 slots
- The speeds may vary for different devices
Onboard Graphics
- Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Maximum shared memory of 2048 MB
Multi-GPU
- Supports 2-Way AMD® CrossFire™ Technology
LAN
- 1x Realtek® 8125B 2.5Gbps LAN Controller
Wireless LAN & Bluetooth®
Intel® Wi-Fi 6 AX200
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- Supports Bluetooth® 5.1
- The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
Storage
- 6x SATA 6Gb/s ports (from AMD® X570 Chipset)
- 2x M.2 slots (Key M) 1
- M2_1 slot (from AMD® Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD® X570 Chipset)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD® Processor)
- The speeds may vary for different devices
RAID
- Supports RAID 0, RAID 1 and RAID 10
USB
AMD® X570 Chipset
- 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
- 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC1200 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
Internal connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 1x USB 3.2 Gen 2 10Gbps Type-C Port
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x TPM module connector
- 1x Serial port connector
- 1x Clear CMOS jumper
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LEDs
Back panel ports
- Keyboard / Mouse
- Wireless / Bluetooth
- USB 3.2 Gen 1 5Gbps Type A
- USB 3.2 Gen 2 10Gbps Type A
- 2.5G LAN port
- Audio Connectors
- Flash BIOS button
- USB 2.0
- HDMI port
- USB 3.2 Gen 2 10Gbps Type C
- USB 3.2 Gen 2 10Gbps Type A
- Optical S/PDIF out
I/O Controller
- NUVOTON NCT6797 Controller Chip
Hardware Monitor
- CPU/ System/ Chipset temperature detection
- CPU/ System/ Chipset fan speed detection
- CPU/ System/ Chipset fan speed control
BIOS Features
- 1x 256 Mb flash
- UEFI AMI BIOS
- ACPI 6.1, SM BIOS 2.8
- Multi-language
Form Factor
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Box content
Bo Mạch Chủ – Mainboard MSI MPG X670E CARBON WIFI DDR5
| Bộ xử lý |
|
| Chipset | Bộ chip AMD X670 |
| Bộ nhớ |
|
|
|
| Multi GPU | Hỗ trợ công nghệ AMD MULTI-GPU |
| Đồ họa tích hợp |
*Chỉ khả dụng trên bộ vi xử lý có đồ họa tích hợp. Thông số kỹ thuật đồ họa có thể khác nhau tùy thuộc vào CPU được cài đặt. |
| Lưu trữ |
|
| RAID | Hỗ trợ RAID 0, RAID 1 và RAID 10 cho các thiết bị lưu trữ SATA Hỗ trợ RAID 0, RAID 1 và RAID 10 cho các thiết bị lưu trữ M.2 NVMe |
| USB |
|
| Âm thanh |
|
| LAN | Mạng LAN Realtek ® RTL8125BG 2,5Gbps |
| Mạng không dây & Bluetooth |
AMD Wi-Fi 6E
Hỗ trợ Bluetooth ® 5.2 ** * Wi-Fi 6E 6GHz có thể tùy thuộc vào quy định của mỗi quốc gia và sẽ sẵn sàng trong Windows 10 bản dựng 21H1 và Windows 11. |
| Kết nối bên trong |
|
| Tính năng LED |
|
| Cổng mặt sau |
|
| Kích thước | ATX 304.8mmx243.84mm |
| Hệ điều hành | Hỗ trợ cho Windows® 11 64-bit, Windows® 10 64-bit |
Mainboard MSI MPG X570 GAMING PLUS
Thông tin sản phẩm
Mã hàng: MPG X570 GAMING PLUS
Bảo hành: 36
Hãng sản xuất: MSI
Mô tả sản phẩm
Bo Mạch Chủ – Mainboard MSI B550-A PRO
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |
| Model | B550-A PRO |
| Socket | AM4 |
| Hỗ trợ CPU | Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors |
| Chipset | AMD B550 |
| Hỗ trợ RAM | 4 DIMMs, Dual Channel DDR4-4400 MHz (OC) |
| Cạc đồ họa | VGA onboard |
| Âm thanh | 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| Cạc mạng | Realtek® RTL8111H Gigabit LAN |
| Khe cắm trong | 1 x M.2 Gen4 x4, 1 x M.2 Gen3 x4 slot 6x SATA 6Gb/s ports |
| Cổng giao tiếp ngoài | 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C) + 5x USB 3.2 Gen 1 5Gbps (4 Type-A+ 1 Type-C) + 8 x USB 2.0 DisplayPort, HDMI – Requires Processor Graphics |
| Kích thước | ATX |
| Phụ kiện kèm theo | Sách, đĩa, cáp SATA, … |
Bo Mạch Chủ – Mainboard MSI A520M PRO
CPU
Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
See supported processors
Chipset
AMD A520 Chipset
Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
See supported memory
Expansion Slot
- 1x PCIe x16 slot (PCI_E2) 1
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
Onboard Graphics
- 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2
- 1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz1 2
- 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1
- Maximum shared memory of 2048 MB
- Graphics specifications may vary depending on the CPU installed
- Available for the processor with integrated graphics.
Storage
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- M2_1 slot (from AMD Processor)
- Supports PCIe 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
- The supported specification depends on installed processor.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H LAN controller
Internal connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x Serial port connector
- 1x M.2 slot (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connector
- 1x TPM module connector
- 1x Clear CMOS jumper
Back panel ports
- VGA
- Keyboard / Mouse
- LAN port
- HDMI
- DisplayPort
- USB 2.0 Ports
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- Audio Connectors
Dimensions
- M-ATX Form Factor
- 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
