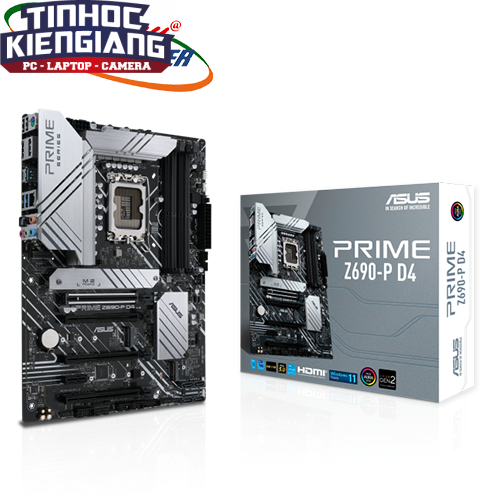

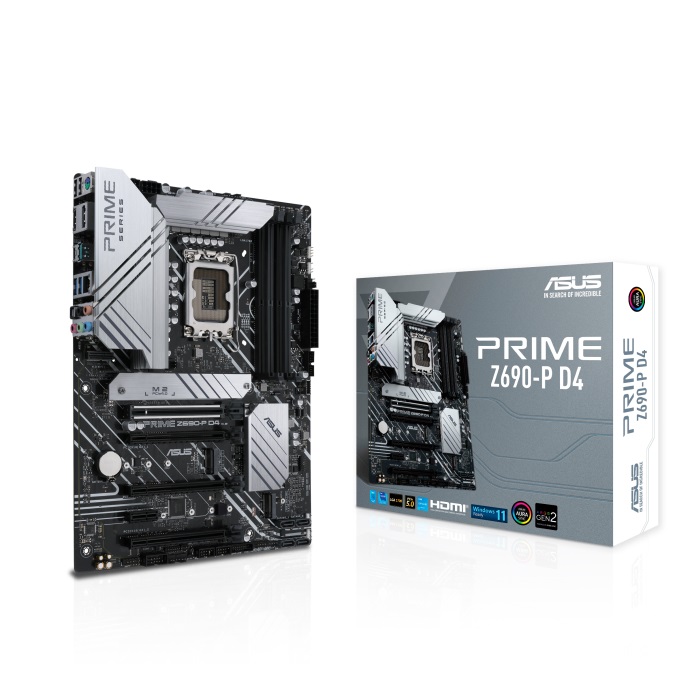

Mainboard ASUS PRIME Z690-P D4
Liên hệ
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z690
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x HDMI® Port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 12th Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
V-M.2 slot only (Key E, CNVi & PCIe)*
|
* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. |
USB
Rear USB:Total 6 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 9 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
AURA Sync
– AURA RGB header
– Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
– AURA Sync
– Fan Xpert 4
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX
30.5cm x 23.4cm
