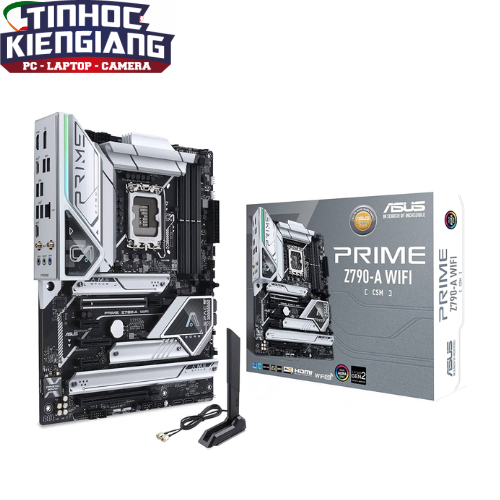

Bo Mạch Chủ – Mainboard ASUS PRIME Z790-A WIFI-CSM
Liên hệ
MÔ TẢ SẢN PHẨM:
CPU:
- Intel® LGA 1700 socket, ready for various Intel® Core™ processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- CPU support list available on the ASUS website
Chipset:
- Intel® Z790 Chipset
Memory:
- 4 x DIMM slots, max. 192GB, DDR5 memory support
- Supports a wide range of DDR5 memory speeds and Intel® Extreme Memory Profile (XMP)
- ASUS Enhanced Memory Profile II (AEMP II)
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Graphics:
- 1 x DisplayPort
- 1 x HDMI™ port
- Graphics specifications may vary depending on the CPU type
Expansion Slots:
- Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
- 1 x PCIe 5.0 x16 slot
- Intel® Z790 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 3.0 x16 slot (supports x1 mode)
- 1 x PCIe 3.0 x1 slot
- PCIe bifurcation table available on the support site
Storage:
- Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
- Various M.2 slots support PCIe 4.0 x4 mode
- Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Ethernet:
- 1 x Intel® 2.5Gb Ethernet
- TUF LANGuard
Wireless & Bluetooth:
- Wi-Fi 6E (802.11 a/b/g/n/ac/ax) with 2×2 configuration
- Supports 2.4/5/6GHz frequency bands
- Bluetooth® v5.3
USB:
- Rear USB (Total 8 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio:
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio amplifier to enhance sound quality for headphones and speakers
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192 kHz playback
Back Panel I/O Ports:
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
Internal I/O Connectors:
- Various connectors for fans, cooling, power, storage, USB, and more
Special Features:
- ASUS TUF PROTECTION, including DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, and more
- ASUS Q-Design, with features like M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, and Q-LED
- ASUS Thermal Solution, including M.2 heatsinks and VRM heatsink design
- ASUS EZ DIY, with features like CPU Socket lever protector, ProCool, pre-mounted I/O shield, and SafeDIMM
- AURA Sync for RGB lighting customization
- Front Panel USB 20Gbps with PD Fast Charge Support
- ASUS Exclusive Software, including Armoury Crate, Aura Creator, Fan Xpert 4, and more
BIOS:
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability:
- WOL by PME, PXE
Accessories:
- Cables and connectors
- ASUS WiFi Q-Antenna
- TUF GAMING sticker
- M.2 rubber packages
- Screw package for M.2 SSD
- TUF certification card
- Quick start guide
Operating System:
- Windows® 11, Windows® 10 64-bit
Form Factor:
- ATX Form Factor
- 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Sản phẩm tương tự
Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z790-F GAMING WIFI II
Thông số kỹ thuật:
|
CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
|
Chipset |
Intel® Z790 Chipset |
|
Bộ nhớ |
4 x khe DIMM, Tối đa. 192GB, DDR5 |
|
Đồ họa tích hợp |
1 x DisplayPort** |
|
Khe mở rộng |
Intel® CoreTM Processors (14th & 13th & 12th Gen)* |
|
Lưu trữ |
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|
Ethernet |
1 x Intel® 2.5Gb Ethernet |
|
Wireless & Bluetooth |
Intel® Wi-Fi 7* |
|
USB |
Rear USB (Total 14 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 6x USB 2.0 ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge* ) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports *USB Type-C® power delivery output: max. 5V/3A *USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A |
|
Audio |
ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover **The LINE OUT port on the rear I/O does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use an USB interface audio device. |
|
Cổng I / O mặt sau |
|
|
Đầu nối I / O Intrernal |
Fan and Cooling related |
|
Các tính năng đặc biệt |
Extreme Engine Digi+ - Tụ điện kim loại đen 5K ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [màu đỏ], DRAM [màu vàng], VGA [màu trắng], Boot Device [màu xanh lá]) - Q-Slot Giải pháp Nhiệt ASUS - Tấm ốp tản nhiệt M.2 - Bộ làm mát M.2 - Thiết kế tản nhiệt VRM ASUS EZ DIY - Nút BIOS FlashBack™ - BIOS FlashBack™ LED - Nút Xóa CMOS - Bộ bảo vệ CPU Socket - ProCool II - Tấm chắn I/O lắp đặt sẵn - SafeSlot - SafeDIMM Aura Sync - Đầu cắm Aura RGB - Cổng RGB Addressable Gen 2 Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0 |
|
Các tính năng phần mềm |
Phần mềm độc quyền ROG |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|
Phụ kiện đi kèm |
Cables |
| Hệ điều hành | Windows® 11, Windows® 10 64-bit |
|
Yếu tố hình thức |
Hình dạng ATX 12 inch x 9,6 inch (30,5 cm x 24,4 cm) |
Mainboard Asus B760M-AYW WIFI DDR5
|
Sản phẩm |
Bo Mạch Chủ |
|
Tên Hãng |
Asus |
|
Model |
B760M-AYW WIFI |
|
CPU hỗ trợ |
Intel |
|
Chipset |
B760 |
|
RAM hỗ trợ |
2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC) 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* |
|
Khe cắm mở rộng |
Intel® Core™ Processors (14th & 13th & 12th Gen) |
|
Ổ cứng hỗ trợ |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
Cổng kết nối (Internal) |
Fan and Cooling related |
|
Cổng kết nối (Back Panel) |
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
|
LAN / Wireless |
1 x Realtek 2.5Gb Ethernet Wi-Fi 6 |
|
Kích cỡ |
mATX Form Factor |
Bo Mạch Chủ – Mainboard ASUS TUF GAMING B760M-PLUS WIFI II D5
Thông số kỹ thuật:
| Tên thông số | Giá trị |
|---|---|
| Nhà sản xuất | Asus |
| Model |
|
| Mainboard Form Factor | mATX |
| Chipset | Intel B760 Chipset |
| Socket CPU | LGA 1700 |
| CPU Hỗ trợ |
|
| RAM Hỗ trợ | 4x DDR5 DIMM Slot |
| Dung lượng RAM tối đa | 192GB |
| Khe cắm mở rộng |
|
| Lưu trữ mở rộng |
|
| Kết nối không dây |
|
| Cổng kết nối phía sau |
|
| Phụ kiện |
|
| Thời gian bảo hành | 36 tháng |
Bo Mạch Chủ – Mainboard Asus ROG STRIX B760-A GAMING WIFI DDR5
Thông số kỹ thuật:
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASUS |
| Model | ROG STRIX B760-A GAMING WIFI |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700 |
| Chipset | B760 |
| RAM hỗ trợ | 4 khe DIMM, tối đa 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz bộ nhớ Non-ECC, Un-buffered*. |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode. |
| Ổ cứng hỗ trợ | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Cổng kết nối (Internal) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
| Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Lan | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
| WIRELESS/BLUETOOTH | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 |
| Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Bo Mạch Chủ – Mainboard Asus Prime Z790M-PLUS-CSM
Thông số kỹ thuật:
|
Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z790-A GAMING WIFI II
⚙ THÔNG SỐ CƠ BẢN:
| Thông số | Chi tiết |
| CPU | Ổ cắm Intel® LGA1700 dành cho bộ xử lý Intel® Core™ thế hệ thứ 14 và 13, bộ xử lý Intel® Core™ thế hệ thứ 12, Pentium® Gold và Celeron® Hỗ trợ công nghệ Intel® Turbo Boost 2.0 và công nghệ Intel® Turbo Boost Max 3.0 |
| Bộ chip | Intel® Z790 Chipset |
| Bộ nhớ | 4 x khe DIMM, Tối đa. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Bộ nhớ không đệm* Kiến trúc bộ nhớ kênh đôi Hỗ trợ mô-đun bộ nhớ Intel® Extreme Memory Profile (XMP) Hỗ trợ DIMM Flex OptiMem II ASUS Enhanced Memory Profile II (AEMP II) |
| Đồ họa | 1 x DisplayPort 1 cổng HDMI |
| Khe cắm mở rộng |
Bộ xử lý Intel® Core™ (thế hệ thứ 14 & 13 & 12)* Intel® Z790 Chipset |
| Lưu trữ |
Hỗ trợ 5 khe cắm M.2 và 4 x cổng SATA 6Gb/s* Bộ xử lý Intel® Core™ (thế hệ thứ 14 & 13 & 12) Chipset Intel® Z790 |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Không dây & Bluetooth | intel® Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Hỗ trợ băng tần 2,4/5/6GHz Hỗ trợ băng thông Wi-Fi 7 160 MHz, tốc độ truyền lên tới 2,4Gbps. Bluetooth® v5.4 |
| USB |
USB phía sau (Tổng cộng 12 cổng) USB phía trước (Tổng cộng 7 cổng) |
Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z790 FORMULA
Thông số kỹ thuật:
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASUS |
| Model | ROG MAXIMUS Z790 FORMULA |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700 |
| Chipset | Z790 |
| RAM hỗ trợ | 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Khe cắm mở rộng | Intel® Core™ Processors (14th & 13th & 12th Gen)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel® Z790 Chipset 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Ổ cứng hỗ trợ | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. |
| Cổng kết nối (Internal) | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connectors 1 x 8-pin PCIe power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Aura RGB header 1 x CPU over voltage jumper 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header |
| Cổng kết nối (Back Panel) | 2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Lan | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| WIRELESS/BLUETOOTH | Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." |
| Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Bo Mạch Chủ – Mainboard ASUS ROG STRIX Z790-H GAMING WIFI
Thông số kỹ thuật:
| Loại Ram |
DDR5 |
| Chipset |
Intel Z790 Chipset |
| Socket |
LGA 1700 |
| Khe Ram |
4 khe cắm Ram |
| Dung lượng Ram hỗ trợ tối đa |
192 GB |
| Tốc độ Bus |
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Cổng xuất hình |
1 x DisplayPort, 1 x HDMI |
| Wifi |
Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Bluetooth |
5.3 |
| Kết nối mạng LAN |
1 x Intel 2.5Gb Ethernet, ASUS LANGuard |
| Khe cắm |
4 x M.2, 4 x SATA 6Gb/s |
| Giao Tiếp VGA |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Số cổng USB |
1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen (2 x Type-A + 1 x Type-C), 4 x USB 3.2 Gen 1 (4 x Type-A), 2 x USB 2.0 (2 x Type-A) |
| Hệ điều hành hỗ trợ |
Windows 11, Windows 10 64-bit |
| Kích thước |
30.5 mm x 24.4 mm, ATX |
| Bảo hành |
36 tháng |
