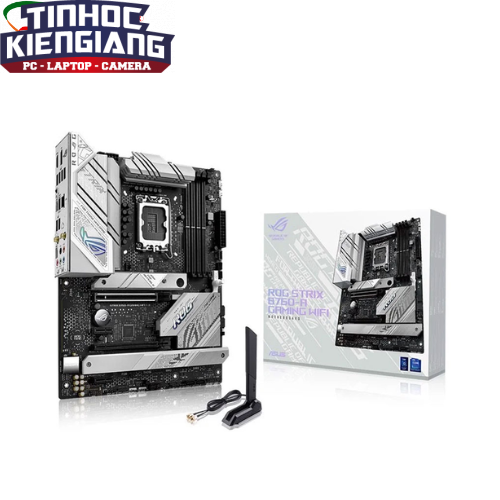

Bo Mạch Chủ – Mainboard Asus ROG STRIX B760-A GAMING WIFI DDR5

MÔ TẢ SẢN PHẨM:

CPU:

• Intel® LGA 1700 socket, ready for various Intel® Core™ processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• CPU support list available on the ASUS website

Chipset:

• Intel® Z790 Chipset

Memory:

• 4 x DIMM slots, max. 192GB, DDR5 memory support
• Supports a wide range of DDR5 memory speeds and Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile II (AEMP II)
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Graphics:

• 1 x DisplayPort
• 1 x HDMI™ port
• Graphics specifications may vary depending on the CPU type

Expansion Slots:

• Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
  • 1 x PCIe 5.0 x16 slot
• Intel® Z790 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slot
  • 1 x PCIe 3.0 x16 slot (supports x1 mode)
  • 1 x PCIe 3.0 x1 slot
  • PCIe bifurcation table available on the support site

Storage:

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Various M.2 slots support PCIe 4.0 x4 mode
• Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Ethernet:

• 1 x Intel® 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth:

• Wi-Fi 6E (802.11 a/b/g/n/ac/ax) with 2x2 configuration
• Supports 2.4/5/6GHz frequency bands
• Bluetooth® v5.3

USB:

• Rear USB (Total 8 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 7 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio amplifier to enhance sound quality for headphones and speakers
• Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/192 kHz playback

Back Panel I/O Ports:

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Internal I/O Connectors:

• Various connectors for fans, cooling, power, storage, USB, and more

Special Features:

• ASUS TUF PROTECTION, including DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, and more
• ASUS Q-Design, with features like M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, and Q-LED
• ASUS Thermal Solution, including M.2 heatsinks and VRM heatsink design
• ASUS EZ DIY, with features like CPU Socket lever protector, ProCool, pre-mounted I/O shield, and SafeDIMM
• AURA Sync for RGB lighting customization
• Front Panel USB 20Gbps with PD Fast Charge Support
• ASUS Exclusive Software, including Armoury Crate, Aura Creator, Fan Xpert 4, and more

BIOS:

• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability:

• WOL by PME, PXE

Accessories:

• Cables and connectors
• ASUS WiFi Q-Antenna
• TUF GAMING sticker
• M.2 rubber packages
• Screw package for M.2 SSD
• TUF certification card
• Quick start guide

Operating System:

• Windows® 11, Windows® 10 64-bit

Form Factor:

• ATX Form Factor
• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Thông số kỹ thuật:

Loại sản phẩm Main - Bo mạch chủ Hãng sản xuất Asus Model PRIME Z790M-PLUS Tên sản phẩm  Mainboard Asus PRIME Z790M PLUS CSM DDR5 Socket Intel LGA 1700 Kích thước MATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) Hỗ trợ CPU Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors Khe cắm RAM 4 khe ram Bus RAM hỗ trợ 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Thông số (Lan/Wireless) 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Khe cắm trong Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Khe cắm mở rộng Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots Cổng giao tiếp ngoài 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks Socket Intel LGA 1700 Hỗ trợ CPU Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors Chipset Intel Z790 Khe cắm RAM 4 khe ram Card đồ họa 1 x DisplayPort 1 x HDMI® port Âm thanh Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC Kích thước MATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) Phụ kiện kèm theo Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide
