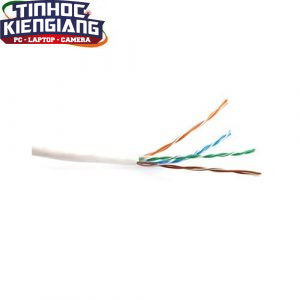

Dây Cable mạng PureNet Category 5E U/UTP 25AWG Cable U5100-004-GY1
Thông tin sản phẩm
Mã hàng: U5100-004-GY1
Hãng sản xuất: LS Việt Nam
Xuất xứ: Việt Nam
Mô tả sản phẩm
• 99.98% Pure Copper
• Reference ISO/IEC 11801,ANSI/TIA-568.2-D, IEC 61156-5
standards
• Solid bare copper to reduce resistance
• Excellent performance in the Fluke 100m channel test
• Lightweight, easy-pull, easy-installation
• RoHS co
Application
• Optimized design for CCTV
Cable Properties
| ITEM | UNIT | U/UTP Category 5E | |
| Conductor | Material | Solid bare copper | |
| Copper Purity | % | 99.98 | |
| Diameter | mm | 0.45 ± 0.005 (25AWG) | |
| Insulation | Material | HDPE | |
| Thickness | mm | 0.21 ± 0.05 | |
| Outer Sheath | Material | PVC (CMX) | |
| Thickness | mm | 0.45 ± 0.05 | |
| Cable Diameter | mm | 4.6 ± 0.2 | |
Product Number
| Part No. | Description |
| U5100-004-GY1 | Category 5E U/UTP Cable, 4 Pairs, 25AWG, Solid Copper, PVC, CMX, Gray |
Outer Packing
| Packing type | 305m/ Reelex I |
| Dimension (cm) | 35 x 35 x 21 |
| Weight (kg) | 7.1 ± 0.5 |
| Pallet packing | 45 boxes |
Dây Cáp Mạng PURENET CAT6,24AWG,Lõi Đồng Đặc, 4 Đôi,Vỏ PVC,CMX,Màu Xanh (U6250-004-BL1)
Cable Properties
| ITEM | UNIT | U/UTP Category 5E | |
| Conductor | Material | Solid bare copper | |
| Copper Purity | % | 99.98 | |
| Diameter | mm | 0.516 ± 0.005 (23AWG) | |
| Insulation | Material | HDPE | |
| Thickness | mm | 0.235 ± 0.05 | |
| Outer Sheath | Material | PVC (CMX) | |
| Thickness | mm | 0.45 ± 0.05 | |
| Cable Diameter | mm | 5.9 ± 0.2 | |
Product Number
| Part No. | Description |
| U6250-004-BL1 | Category 6 U/UTP Cable, 4 Pairs, 24AWG, Solid Copper, PVC, CMX, Blue |
Outer Packing
| Packing type | 305m/ Reelex I |
| Dimension (cm) | 37 x 25 x 37 |
| Weight (kg) | 10 ± 0.5 |
| Pallet packing | 30 boxes |
