MainBoard Biostar

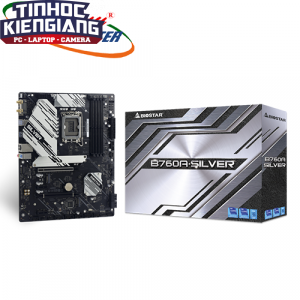

Bo Mạch Chủ – Mainboard BIOSTAR B760A-SILVER

Chipset	Intel B760
CPU SUPPORT	Support for 12th / 13th / 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR5 - 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 5200(OC)/ 5000(OC)/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	Supports DX12 Supports HDCP
STORAGE	Total supports 3 x M.2 socket and 4x SATA III (6Gb/s) ports Intel 12th/13th/14th Processors 1 x M.2 (M Key) Socket (M2M_CPU) Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD Intel B760 Chipset 1 x M.2 (M Key) Socket (M2M_SB1): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2_SB2): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology * When using PCI-E module on M.2 Socket (M2M_SB1), the PCI-E slot (PCIEx16_2) will be disabled. * Specifications vary by CPU types
LAN	Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC1220 7.1 Channels, High Definition Audio, Hi-Fi
USB	2 x USB 3.2 (Gen2) Type-C port (1 on rear I/O and 1 via internal header) 5 x USB 3.2 (Gen2) port (5 on rear I/Os) 2 x USB 3.2 (Gen1) port (2 via internal header) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT	INTEL 12th/13th/14th Processors 1 x PCIe 5.0 x16 Slot (x16 mode) INTEL B760 Chipset 1 x PCIe 4.0 x16 Slot (x4 mode) 2 x PCIe 3.0 x1 Slot * Specifications vary by CPU types
REAR I/O	2 x WIFI Antenna Port 1 x HDMI Port (HDMI2.1) 1 x DP Port (DP1.2) 1 x USB 3.2 (Gen2) Type-C Port 5 x USB 3.2 (Gen2) Port 2 x USB 2.0 port 1 x LAN port 3 x Audio Jack 1 x SMART BIOS UPDATE Button 1 x SMART BIOS USB Port
INTERNAL I/O	4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type C Header. 1 x 4-Pin Power Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 4 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E key) Wi-Fi card is not provided
H/W MONITORING	CPU / System Temperature Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION	ATX Form Factor Dimension: 30.5 cm x 24.4cm ( W x L )
OS SUPPORT	Supports Windows Windows 10(64bit) / Windows 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard
ACCESSORIES	4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual
FEATURES	VIVID LED DJ BIO-FLASHER A.I FAN LED ROCK ZONE

Bo Mạch Chủ – Mainboard BIOSTAR B760A-SILVER

Liên hệ

Bo Mạch Chủ – MainBoard BIOSTAR B760MX2-E D4

Bộ vi xử lý	Intel B760
HỖ TRỢ CPU	Hỗ trợ bộ xử lý Intel Core™ i9/ i7/ i5/ i3 thế hệ thứ 12/13/14 và bộ xử lý Intel Pentium/ Intel Celeron trong gói LGA1700 * Vui lòng tham khảo www.biostar.com.tw để biết danh sách hỗ trợ CPU.
KÝ ỨC	Hỗ trợ kênh đôi DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC) 2 khe cắm bộ nhớ DDR4 DIMM, tối đa hỗ trợ bộ nhớ lên đến 64 GB Mỗi DIMM hỗ trợ mô-đun DDR4 4/8/16/32GB không phải ECC Hỗ trợ mô-đun bộ nhớ Intel® Extreme Memory Profile (XMP) * Vui lòng tham khảo www.biostar.com.tw để biết danh sách hỗ trợ bộ nhớ.
VIDEO TÍCH HỢP	Hỗ trợ DX12 Hỗ trợ HDCP
KHO	Tổng số hỗ trợ 1 ổ cắm M.2 và 4 cổng SATA III (6Gb/giây) Chipset Intel B760 1 ổ cắm M.2 (M Key) (M2_PCIEG4_64G_SATA): Hỗ trợ mô-đun SSD M.2 loại 2242 /2260 /2280 Hỗ trợ PCIe 4.0 x4 (64Gb/giây) - NVMe/ AHCI SSD & SATA SSD 4 đầu nối SATA III (6Gb/giây): Hỗ trợ AHCI, RAID 0, 1, 5, 10 & Công nghệ lưu trữ nhanh Intel * Thông số kỹ thuật thay đổi tùy theo loại CPU
Mạng LAN	RTL8125B 10/ 100/ 1000/ 2500 Mb/giây tự động đàm phán, khả năng bán song công/toàn phần
Bộ giải mã âm thanh	ALC897 7.1 kênh, Âm thanh độ nét cao
USB	4 cổng USB 3.2 (Gen1) (2 ở I/O phía sau và 2 qua đầu cắm bên trong) 8 cổng USB 2.0 (4 ở I/O phía sau và 4 qua đầu cắm bên trong)
Khe cắm mở rộng	Bộ xử lý INTEL thế hệ 12/13/14 1 khe cắm PCIe 4.0 x16 (chế độ x16) Chipset INTEL B760 1 khe cắm PCIe 3.0 x1 * Thông số kỹ thuật thay đổi tùy theo loại CPU
I/O PHÍA SAU	1 x Cổng Ăng-ten WIFI 1 x Cổng Bàn phím/Chuột PS/2 1 x HDMI® 1 x Cổng VGA+DVI 2 x Cổng USB 3.2 (Gen1) 4 x Cổng USB 2.0 1 x Cổng LAN 3 x Giắc cắm âm thanh
I/O NỘI BỘ	4 x Đầu nối SATA III (6Gb/giây) 1 x Ổ cắm M.2 (Khóa E): Hỗ trợ mô-đun Wi-Fi & Bluetooth loại 2230 và Intel CNVi 2 x Đầu cắm USB 2.0 (mỗi đầu cắm hỗ trợ 2 cổng USB 2.0) 1 x Đầu cắm USB 3.2 (Gen1) (mỗi đầu cắm hỗ trợ 2 cổng USB 3.2 (Gen1)) 1 x Đầu nối nguồn 8 chân 1 x Đầu nối nguồn 24 chân 1 x Đầu nối quạt CPU 1 x Đầu nối quạt hệ thống 1 x Đầu cắm bảng điều khiển phía trước 1 x Đầu cắm âm thanh phía trước 1 x Đầu cắm loa 1 x Đầu cắm CMOS trong suốt 1 x Đầu cắm cổng COM 1 x Đầu cắm TPM * Không cung cấp card Wi-Fi M.2 (Khóa E)
GIÁM SÁT H/W	Giám sát nhiệt độ CPU / Hệ thống Giám sát quạt CPU / Hệ thống Kiểm soát quạt CPU thông minh / thủ công Giám sát điện áp CPU / DDR
KÍCH THƯỚC	Kích thước hệ số dạng Micro ATX: 23,6cm x 20,8cm (Rộng x Dài)
HỖ TRỢ HỆ ĐIỀU HÀNH	Hỗ trợ Windows 10 (64bit) / 11 (64bit) ※Biostar có quyền thêm hoặc xóa hỗ trợ cho bất kỳ hệ điều hành nào có hoặc không có thông báo.
BỘ PHẦN MỀM	BullGuard
PHỤ KIỆN	2 x Cáp SATA 1 x Tấm chắn I/O 1 x Trình điều khiển DVD 1 x Hướng dẫn nhanh 1 x Mỏ neo M.2 1 x Phụ kiện ăng-ten WiFi

Bo Mạch Chủ – MainBoard BIOSTAR B760MX2-E D4

Liên hệ

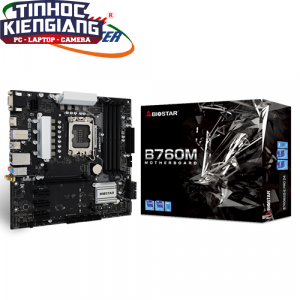

Bo Mạch Chủ – Mainboard BIOSTAR B760MX2-E PRO D4

Chipset	Intel B760
CPU SUPPORT	Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	Total supports 2 x M.2 socket and 8 x SATA III (6Gb/s) ports Intel 12th/13th/14th Processors 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD Intel B760 Chipset 1 x M.2 (M Key) Socket (M2M_SB): Supports M.2 Type 2242/2260/2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD 8 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology (Only SATA 1~4) * Specifications vary by CPU types
LAN	Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC897 7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB	1 x USB 3.2 (Gen2) Type-C port (1 via internal headers) 5 x USB 3.2 (Gen1) Ports (3 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (2 on rear I/Os and 6 via internal headers)
EXPANSION SLOT	INTEL 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot (x16 mode) INTEL B760 Chipset 3 x PCIe 3.0 x1 Slot (x1 mode) * Specifications vary by CPU types
REAR I/O	2 x WIFI Antenna Ports 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x DP 1 x VGA Port 3 x USB 3.2(Gen1) ports 2 x USB 2.0 ports 1 x LAN port 3 x Audio Jack
INTERNAL I/O	8 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 3 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E Key) Wi-Fi card is not provided
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION	Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
OS SUPPORT	Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 2 x M.2 Anchor 2 x WiFi antenna accessories

Bo Mạch Chủ – Mainboard BIOSTAR B760MX2-E PRO D4

Liên hệ

Incorrect MIME type(2026/03/vi-tinh-le-huy-1751343155-0-1-300x300.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1751343155-0-1-100x100.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1751343155-0-1-150x150.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1751343155-0-1-300x300.png)Incorrect MIME type(2026/03/vi-tinh-le-huy-1751343155-0-1.png)Attachment do not have sizes or watermark do not setuped(214902)

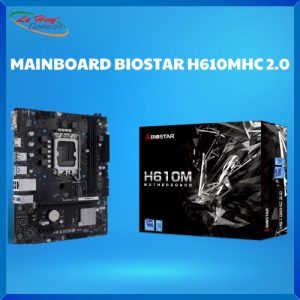

Bo Mạch Chủ – Mainboard BIOSTAR H610MHC 2.0

Chipset	Intel H610
Socket CPU	LGA1700
Hỗ trợ CPU	Intel Core i9/i7/i5/i3, Pentium, Celeron thế hệ 12/13/14
RAM hỗ trợ	2 khe DDR4 (Dual Channel), hỗ trợ tối đa 64GB, bus 3200/2933/2666/2400 MHz
XMP Support	Có
Khe mở rộng	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Lưu trữ	1 x M.2 PCIe 3.0 x4 (NVMe), 4 x SATA III (6Gb/s)
Đồ họa tích hợp	Tùy theo CPU, hỗ trợ DirectX 12, HDCP, HDMI 1.4, VGA
Cổng USB	4 x USB 3.2 Gen1 (2 sau + 2 header), 6 x USB 2.0 (4 sau + 2 header)
LAN	Realtek RTL8111H Gigabit LAN (10/100/1000 Mbps)
Âm thanh	Realtek ALC897, 7.1 HD Audio
I/O mặt sau	1 x HDMI, 1 x VGA, 2 x USB 3.2, 4 x USB 2.0, 1 x LAN, 3 x Audio jack
Kết nối nội bộ	SATA, USB headers, CPU/System fan, Front Panel, Audio, Clear CMOS
Giám sát hệ thống	Theo dõi nhiệt độ, điện áp, tốc độ quạt
Form Factor	Micro-ATX – Kích thước: 18.5cm x 22.6cm
Hệ điều hành hỗ trợ	Windows 10/11 64-bit
Phụ kiện đi kèm	2 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x Quick Guide, 1 x M.2 Anchor
Phần mềm đi kèm	BullGuard

Bo Mạch Chủ – Mainboard BIOSTAR H610MHC 2.0

Liên hệ

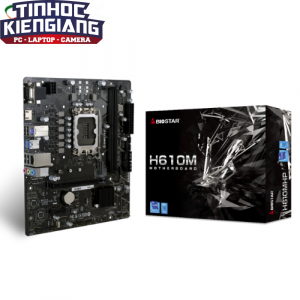

Bo Mạch Chủ – Mainboard BIOSTAR H610MHP

Chipset	Intel H610
CPU SUPPORT	Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel H610 Chipset 1 x M.2 (M Key) Socket (M2M_SB): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD 4 x SATA III Connector (6Gb/s) * Specifications vary by CPU types
LAN	Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC897 7.1 Channels, High Definition Audio
USB	4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT	Intel 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot Intel H610 Chipset 1 x PCIe 3.0 x1 Slot * Specifications vary by CPU types
REAR I/O	1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA Port 2 x USB 3.2 (Gen1) ports 4 x USB 2.0 ports 1 x LAN port 3 x Audio Jack
INTERNAL I/O	4 x SATA III Connector (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION	Micro ATX Form Factor Dimension: 19.8cm x 22.8cm ( W x L )
OS SUPPORT	Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor

Bo Mạch Chủ – Mainboard BIOSTAR H610MHP

Liên hệ

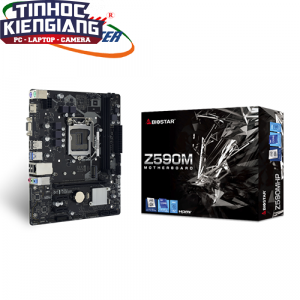

Bo Mạch Chủ – Mainboard BIOSTAR Z590MHP

Chipset	Intel Z590
CPU SUPPORT	Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 - 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32 GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	4 x SATA III Connector (6Gb/s) Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD * When using SATA SSD module on PCIE-M2_1 slot, the SATA_1 connector will be disabled. * Specifications vary by CPU types
LAN	Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	Realtek ALC897 7.1 Channels, High Definition Audio
USB	4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT	2 x PCIe 3.0 x1 Slot 1 x PCle 3.0/ 4.0 x16 Slot (x16 mode) The PCle 4.0 only depends on Rocket Lake CPUs. Specifications vary by CPU types
REAR I/O	1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x HDMI Port (HDMI1.4) 1 x VGA Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack
INTERNAL I/O	4 x SATA III Connector (6Gb/s) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION	Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
OS SUPPORT	Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide

Bo Mạch Chủ – Mainboard BIOSTAR Z590MHP

Liên hệ
