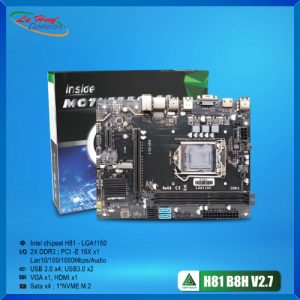

MainBoard Vsp

Mã sản phẩm: H81 B8HV2.7
Bộ xử lý trung tâm: Intel® H81 Chipset
Khe cắm hỗ trợ: INTEL® Socket 1150
CPU hỗ trợ: Supports 4th generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® processors
RAM hỗ trợ: 1066/1333/1600MHz Dual Channel DDR3 1066/1333/1600MHz Memory up to 16GB; 2 x Memory Slots (Max. up to 8GB each)
Đồ họa: Integrated Graphics Processor/ 1 x VGA port/ 1 x HDMI port
Thiết bị nhập xuất mặt sau: 1 x VGA port; 1 x HDMI port; 2 x USB 2.0 port + 2x USB 3.0; 1 x LAN jack; 3 x Audio jack
Thiết bị nhập xuất mặt trước: 2x USB 2.0 pinheaders support additional 4 USB 2.0 ports, 1 USB3.0; 1 x Front Panel Audio pinheader; 1 x PCI Express x16 slot.
Hệ điều hành hỗ trợ: Win 7/10, Lunix
LAN - Wifi: Realtek 8103E 10/1000Mbps Gigabit Ethernet on board
Linh kiện kèm theo: Mounting holes; 1 x SATA II cable
Âm thanh: Realtek 662 integrated on board
Cổng Sata/ATA: 2*SATA 3Gb/s,2*SATA 3.0 / NVME x1 M2
Kích cỡ ATX: Micro-ATX (17 x 21 cm)
Linh kiện kèm theo: Mounting holes; 1 x SATA II cable

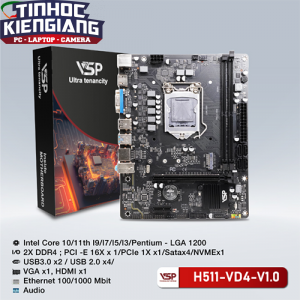

• Model/Mã sản phẩm

  H511-VD4-V1.0

• Chipset/Bộ vi xử lý

  Intel® H511 Chipset

• Sockets Support/ Khe cắm hỗ trợ

  INTEL® Socket 1200

• CPU support/CPU hỗ trợ

  Intel Core 10/11th I9/I7/I5/I3/Pentium

• RAM support/RAM hỗ trợ

  2X DDR4 ; 2133/2400/2666/2933MHz Max Capacity 64GB (32G*2)

• Graphic

  Integrated Graphics Processor/ 1 x VGA port/ 1x HDMI

• LAN - Wifi

  1 x Realtek 100/1000Mbps Gigabit Ethernet on board

• Audio

  Realtek integrated on board

• Input/output I / O back

  1* VGA Port
  1* HDMI Port
  1* PS/2 Mouse/Keyboard Port
  2* USB 3.0
  4* USB 2.0 Ports
  1* RJ45 Lan Realtek 10/100/1000Mbps Gigabit Ethernet on board
  HD Audio Jacks: Line in / Front Speaker / Microphon

• port I/O on mainboard

  1* PCIe 4.0 x16
  1* PCIe 3.0 x1 Slot
  1* NVMe PCIe 3.0 x4 (Support 2242/2260/2280 6Gb/s)
  4* SATA3 6.0 Gb/s Connectors
  1* USB3.0 Connectors
  2* USB2.0 Connectors
  2* Fan Connector (4-pin)
  1* Fan Connector (3-pin)
  1* Front Panel Audio Connector

• Sata/ATA port

  4 * SATA 3.0 port
  1* NVMe PCIe 3.0 x4 (Support 2242/2260/2280 6Gb/s)

• Operating System Support

  Windows OS

• Dimension ATX

  215 x 170 x 40mm

• Warranty

  3 year
