Size : 489 x 229 x 469mm (LxWxH)
S/P :ATX, Micro-ATX, Mini-ITX
USB 3.0 x 2, USB2.0 x2,Audio In / Out, ARGB control button
Drive bays : 2x 3.5" , 4x 2.5" (max)
ARGB Controller included
2 to 3 ARGB Splitter cable included
3 fan 12cm RGB trước , 1 fan 12cm sau, mở rộng tối đa 6 fan ,  có thể gắn tản nhiệt nước 360 mm phía trước ,  240mm phía trên , hỗ trợ VGA dài đến 410mm , tản nhiệt khí 165mm
Lưới lọc bụi phía trên , trước , đáy

MasterCase 5

WITH FREEFORM™ MODULAR SYSTEM

The MasterCase 5 Series

At heart, the MasterCase 5 advocates a new relationship that binds component makers and users closer together. Its elegantly smooth, flexible FreeForm Modular System supports multiple outlooks, allowing you to upgrade rather than entirely replace your case as your needs change over time. Go with either basic dual top handles and standard door of the MasterCase 5 or an elevated mesh top cover of the MasterCase Pro 5.

•
•





FreeForm™ Modular System

We want you to have absolute control over how your case looks and functions. The FreeForm™ Modular System of the MasterCase 5 lets you adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout.

EXPLORE NOW

Customize

with external modularity

Adjust

the interior layout

Upgrade

to meet your needs



Customize with
External Modularity

Easily customize your case by adding a top cover and water bracket for a new look along with liquid cooling radiator support, freeing up space inside the case. And if you want to show off your system, a window side panel is also available. These options are included in MasterCase Pro 5 version or available separately.









Adjust Internal Layout Clip-and-Click Panel

But this isn't just about aesthetics. Each decision opens new possibilities.
Leveraging our unique clip-and-click panel, FreeForm lets users vertically adjust or entirely remove your optical disk drive (ODD) and HDD via sliding locks so intuitive you'll play with your configurations just for fun. Well, some people will. Just click-in the cages, and adjust the height to suit your needs. Position them at the top to allow room for up to three extra-long graphics cards, or retain only the bottom positioned cages to add a front-mounted radiator for even more cooling options.

• Integrate replacement accessories like:
• Fan brackets
• Water cooling reservoirs
• GPU support brackets

Slip-and-Clip Pockets

The first Cooler Master case to incorporate two easy to install slip-and-clip solid-state drive pockets (2.5") with four easy mounting positions. Showcase them on the partition panel or hide them behind the motherboard tray for a cleaner look.
A.Two behind the motherboard tray
B.Two on top of power supply partition

Unmatched Ventilation

FreeForm enables the option to install three front-mounted 140mm fans and a 280mm radiator for unmatchable ventilation due to a unique facility to horizontally shift the bottom-mounted hard disk drives. There's also support for up to six 140mm fans through the case, unique for a mid-sized tower.

Show Us What You Got

Post or send us your MasterCase projects







Accessories

FreeForm extends beyond the case to include all the support you need in terms of selecting
and purchasing components through a range of accessories to truly help you Make It Yours.

MasterAccessories List

Each case comes with a different number of MasterAccessories, from our MasterCase 5 with its basic package, to our MasterCase Maker 5 coming with a wider range of accessories. Buying a basic package always leaves you freedom to enhance your case by buying additional accessories in the future.

	MASTERCASE 5 Novice builders can start with just the right specs	MASTERCASE PRO 5 Pro builders that want to push their systems to the fullest	MASTERCASE MAKER 5 Enthusiasts that look for state-of-the-art technologies	MASTERCASE MAKER 5t Gamers looking for high turbo performance
(System pictures for reference only )

TOP COVER
LIQUID COOLING BRACKET
WINDOW SIDE PANEL
ADDITIONAL DRIVE CAGES
FRONT DOOR PANEL
FAN CONTROLLER
LED STRIP
LED LIGHT CONTROLLER
MASTERCASE GRAPHICS CARD HOLDER
DUAL TEMPERED GLASS PANELS

Compare

	MasterCase 5	MasterCase Pro 5	MasterCase Maker 5
Model Number	MCX-0005-KKN00 MCX-0005-KWN00	MCY-005P-KWN00	MCZ-005M-KWN00
Dimensions	512(L) x 235(W) x 548(H) mm	512(L) x 235(W) x 548(H) mm	528.6(L) x 235(W) x 548(H) mm
Net Weight	10.6 kg / 23.4 lb	10.7 kg / 23.6 lb	12.3 kg / 27.2 lb
M/B Type	ATX, mATX, Mini-ITX	ATX, mATX, Mini-ITX	ATX, mATX, Mini-ITX
5.25" Drive Bays	2	2	2
3.5" Drive Bays	2	5	5
2.5" Drive Bays	2+2	2+5	2+5
I/O Panel	USB 3.0 x2, Audio In & Out (supports HD Audio)	USB 3.0 x2, Audio In & Out (supports HD Audio)	USB 3.0 x1, USB 3.0 (type C) x1, USB 2.0 x2, Audio In & Out (supports HD Audio)
Expansion Slots	7	7	7
Cooling Support
Front	140mm x1 (pre-Installed) 120/140mm x2 (optional)	140mm x2 (pre-Installed) 120/140mm x1 (optional)	140x25mm fan x2, 1200RPM (pre-Installed) 140 x 25mm fanx1 (optional)
Rear	140mm x1 (pre-Installed)	140mm x1 (pre-Installed)	140x25mm fan x1, 1200RPM (pre-Installed) 120mm fan x1 (optional)
Top	120/140mm x2 (optional)	120/140mm x2 (optional)	120/140mm fan x2 (optional)
Radiator Support
Front	240mm, 280mm (up to 40mm thickness without fan)	240mm, 280mm (up to 40mm thickness without fan)	120mm, 140mm, 240mm, 280mm (requires removal of ODD cage)
Rear	120mm, 140mm	120mm, 140mm	120mm, 140mm
Top	N/A	240mm / 280mm (max. 297mm radiator length)	120mm, 140mm, 240mm, 280mm (max. 297mm radiator length)
Lighting Support	N/A	N/A	Red LED strip x 1 (pre-Installed) 4 LED connections available
Power Supply	Bottom Mount, ATX PS2	Bottom Mount, ATX PS2	Bottom Mount, ATX PS2 (maximum length: 200mm)
Compatibility (Maximum)
VGA Card Length	412mm/16.2inches (without 3.5" HDD cage) 296mm/11.7inches (with 3.5" HDD cage)	412mm/16.2inches (without 3.5" HDD cage) 296mm/11.7inches (with 3.5" HDD cage)	412mm/16.22 inch (without 3.5" HDD cage) 296mm/11.7 inch (with 3.5" HDD cage)
CPU Cooler Height	190mm/7.5inches	190mm/7.5inches	190mm/7.48 inch

Specifications

Model Number	MCX-0005-KKN00 (not windowed) MCX-0005-KWN00 (windowed)
Available Color	Dark metallic grey exterior with black interior
Materials	SECC, Plastic
Weight	10.6 kg / 23.4 lb
Dimensions	All	512(L) x 235(W) x 548(H) mm
Body	460(L) x 235(W) x 460(H) mm
M/B Type	ATX, microATX, Mini-ITX
Expansion Slots	7
Drive Bay	5.25" ODD	2
3.5" HDD	2
2.5" SSD	2 + 2
I/O Panel	USB 3.0 x 2, Audio In & Out (supports HD-Audio)
Cooling Support	Front	140mm x1 (pre-Installed) 120/140mm x2 (optional)
Rear	140mm x1 (pre-Installed)
Top	120/140mm x2 (optional)
Radiator Support	Front	240mm/280mm (up to 40mm thickness without fan)
Rear	120mm/140mm
Top	N/A
CPU Air Cooling Support	190mm/7.5 inch
VGA Card Support	w/ 3.5" HDD Cage	296mm/11.7 inch
w/o 3.5" HDD Cage	412mm/16.2 inch
Cable Management	25mm
Dust Filters	Front/Top/Bottom
Power Supply Type	Bottom Mount, ATX PS2
EAN Code	4719512048283 (MCX-0005-KKN00) 4719512052488 (MCX-0005-KWN00)
UPC Code	884102027246 (MCX-0005-KKN00) 884102028595 (MCX-0005-KWN00)

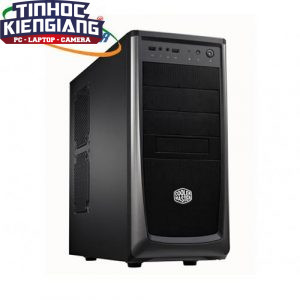

Model	RC-372-KKN1
Available Color	Black (interior non-coating)
Materials	Steel body, Plastic front bezel
Dimension (W x H x D)	192.5 x 427 x 498.3mm / 7.5 x 16.8 x 19.6 inch
Weight	4.6 kg / 10.14 lbs
M/B Type	Micro-ATX, ATX
5.25" Drive Bays	3 (exposed)
3.5" Drive Bays	1 (exposed), 5 (hidden)
I/O Panel	USB 2.0 x 2, Mic x 1, Audio x 1
Expansion Slots	7
Cooling System	Top: 120mm fan x 2 (optional) Front: 120/140mm fan x 1 (optional) Rear: 120mm fan x 1 (pre-installed), or 80/90mm fan x 1(optional) Side: 120/140mm fan x 2 (optional) Bottom: 80/90/120mm fan x 1 (optional)
Power Supply Type	Standard ATX PS2
Maximum Compatibility	VGA card length: 315mm / 12.4 inch CPU cooler height: 163mm / 6.4 inch
