Bo Mạch Chủ – MainBoard ASUS PRIME H610M-F WIFI D4

Model

PRIME H610M-F WIFI D4

Tin tức & Cập nhật

Vui lòng ghé thăm trang web của chúng tôi.Trang web TOÀN CẦU để kiểm tra và tải xuống các bản cập nhật mới nhất.

CPU

Socket Intel® LGA1700 dành cho bộ xử lý Intel® Core ™ thế hệ 14 & 13 , Intel® Core ™ thế hệ 12, Pentium® Gold và Celeron® * Hỗ trợ CPU Intel® lên đến 65W Hỗ trợ công nghệ Intel® Turbo Boost 2.0 và Intel® Turbo Boost Max 3.0** * Tham khảo https://www.asus.com/support/download-center/ để biết danh sách CPU được hỗ trợ. ** Việc hỗ trợ công nghệ Intel® Turbo Boost Max 3.0 tùy thuộc vào loại CPU.

Chipset

Bộ vi xử lý Intel ® H610

Ký ức

2 khe cắm DIMM, tối đa 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, bộ nhớ không đệm*
Kiến trúc bộ nhớ kênh đôi Hỗ trợ mô-đun bộ nhớ Intel® Extreme Memory Profile (XMP)
* Các loại bộ nhớ được hỗ trợ, tốc độ dữ liệu và số lượng mô-đun DRAM có thể khác nhau tùy thuộc vào CPU và cấu hình bộ nhớ. Để biết thêm thông tin, vui lòng tham khảo danh sách Hỗ trợ CPU/Bộ nhớ trong tab Hỗ trợ của trang thông tin sản phẩm hoặc truy cập https://www.asus.com/support/download-center/ . Việc điều chỉnh sẽ được thực hiện dựa trên thông số kỹ thuật của các sản phẩm bộ nhớ được sản xuất hàng loạt có sẵn trên thị trường.

Đồ họa

2 cổng HDMI ™
** * Thông số đồ họa có thể khác nhau tùy thuộc vào loại CPU. Vui lòng tham khảo www.intel.com để biết bất kỳ cập nhật nào.
** Hỗ trợ 4K@30Hz theo tiêu chuẩn HDMI 1.4.

Khe mở rộng

Bộ xử lý Intel ® Core™ (thế hệ thứ 14 , 13 và 12 ) 1
khe cắm PCIe 4.0 x16 Chipset
Intel ® H610
1 khe cắm PCIe 3.0 x1
- Để đảm bảo tính tương thích của thiết bị được cài đặt, vui lòng tham khảo https://www.asus.com/support/ để xem danh sách các thiết bị ngoại vi được hỗ trợ.

Kho

Hỗ trợ 1 khe cắm M.2 và 2 cổng SATA 6Gb/s Chipset
Intel ®
H610 Khe cắm M.2 (Key M), loại 2242/2260/2280 (hỗ trợ chế độ PCIe 3.0 x4)
2 cổng SATA 6Gb/s

Ethernet

1 x Card mạng Ethernet Realtek 1Gb

Không dây & Bluetooth

Wi -
Fi 6 (802.11 a/b/g/n/ac/ax)
Hỗ trợ băng tần 2.4/5GHz
Bluetooth® v5.3 *
*Phiên bản Bluetooth có thể khác nhau, vui lòng tham khảo trang web của nhà sản xuất mô-đun Wi-Fi để biết thông số kỹ thuật mới nhất.

USB

Cổng USB phía sau (Tổng cộng 5 cổng):
2 cổng USB 5Gbps (2 cổng Type-A),
3 cổng USB 2.0 (3 cổng Type-A). Cổng
USB phía trước (Tổng cộng 4 cổng)
: 1 đầu cắm USB 5Gbps hỗ trợ thêm 2 cổng USB 5Gbps,
1 đầu cắm USB 2.0 hỗ trợ thêm 2 cổng USB 2.0.

Âm thanh

Bộ giải mã âm thanh độ nét cao Realtek 7.1 Surround Sound*
- Hỗ trợ: Phát hiện jack cắm, Đa luồng, Tái cấu hình jack cắm bảng điều khiển phía trước
- Hỗ trợ phát lại lên đến 24-bit/192 kHz. Tính
năng âm thanh
: - Chống nhiễu âm thanh
- Tụ điện âm thanh cao cấp
- Các lớp PCB âm thanh chuyên dụng
. *Cần có khung máy với mô-đun âm thanh HD ở bảng điều khiển phía trước để hỗ trợ đầu ra âm thanh vòm 7.1.

Cổng I/O mặt sau

2 cổng USB 5Gbps (2 cổng Type-A)
3 cổng USB 2.0 (3 cổng Type-A)
2 cổng HDMI ™
1 mô-đun Wi-Fi
1 cổng Ethernet Realtek 1Gb
3 giắc cắm âm thanh

Đầu nối I/O bên trong

Kết nối quạt và làm mát:
1 x đầu cắm quạt CPU 4 chân
, 1 x đầu cắm quạt khung máy 4 chân.
Kết nối
nguồn: 1 x đầu nối nguồn chính 24 chân,
1 x đầu nối nguồn +12V 4 chân .
Kết nối lưu trữ:
1 x khe cắm M.2 (Key M),
2 x cổng SATA 6Gb/s. Kết nối
USB:
1 x đầu cắm USB 5Gbps hỗ trợ thêm 2
cổng USB 5Gbps,
1 x đầu cắm USB 2.0 hỗ trợ thêm 2
cổng USB 2.0. Kết nối
khác:
1 x đầu cắm xóa CMOS,
1 x đầu cắm âm thanh mặt trước (F_AUDIO),
1 x đầu cắm loa,
1 x đầu cắm hệ thống mặt trước 10-1 chân.

Tính năng đặc biệt

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Bảo vệ quá áp
- Lõi SafeSlot
- Mặt sau I/O bằng thép không gỉ
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Lõi Q-LED
ASUS Thermal Solution
- Thiết kế tản nhiệt bằng nhôm

Tính năng phần mềm

Phần mềm độc quyền của ASUS:
Armoury Crate
- Chế độ tiết kiệm năng lượng,
ASUS DriverHub
, ASUS CPU-Z,
Norton 360 Deluxe (dùng thử miễn phí 60 ngày)
, WinRAR (dùng thử miễn phí 40 ngày),
BIOS UEFI
, ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- Chế độ ASUS UEFI BIOS EZ

BIOS

ROM Flash 128 Mb, BIOS UEFI AMI

Khả năng quản lý

WOL bởi PME, PXE

Phụ kiện

Dây cáp:
2 x cáp SATA 6Gb/s
Phụ kiện:
1 x ăng-ten Wi-Fi di động ASUS,
1 x tấm chắn I/O,
1 x neo M.2
Tài liệu:
1 x hướng dẫn nhanh

Hệ điều hành

Windows ® 11, Windows ® 10 64-bit

Hình thức

Kích thước micro-ATX
: 8,9 inch x 7,4 inch (22,6 cm x 18,8 cm)

Bo Mạch Chủ – MainBoard ASUS PRIME H610M-F WIFI D4

Liên hệ

Bo Mạch Chủ – Mainboard Asus PRIME H610M-K D4 CSM

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	H610M-K D4 CSM
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 13 và 12 Intel® Core Socket LGA1700
Chipset	Intel® H610
RAM hỗ trợ	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Cổng kết nối (Back Panel)	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN	1 x Realtek 1Gb Ethernet
Kích cỡ	mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Bo Mạch Chủ – Mainboard Asus PRIME H610M-K D4 CSM

Liên hệ

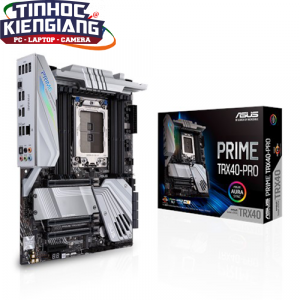

Bo Mạch Chủ – Mainboard ASUS PRIME TRX40-PRO

CPU	AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list
Chipset	Build in AMD TRX40
Bộ nhớ	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
	8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI® Technology
	Supports NVIDIA® 2-Way SLI® Technology
	Supports AMD Quad-GPU CrossFireX™ Technology
	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
	3 x PCIe 4.0 x16 (x16/x16/x16) *
	AMD TRX40 chipset
	1 x PCIe 4.0 (x4 mode)
Storage	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
	2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
	AMD TRX40 chipset :
	1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	8 x SATA 6Gb/s port(s),
	Support Raid 0, 1, 10
LAN	Intel® I211-AT
	ASUS Turbo LAN Utility
	ASUS LAN Guard
Audio	Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)
	Audio Feature :
	- DTS X®:Ultra
	- Optical S/PDIF out port(s) at back panel
	Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
	- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
	#NAME?
	- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports	AMD Ryzen™ Threadripper™ Processors :
	4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
	AMD TRX40 chipset :
	1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)
	AMD TRX40 chipset :
	6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
	AMD TRX40 chipset :
	2 x USB 2.0 port(s) (2 at mid-board)
	ASMedia® USB 3.2 Gen 1 controller :
	4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A)
	GL852G USB Hub :
	2 x USB 2.0 port(s) (2 at mid-board)
Special Features	ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
	5Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
	ASUS SafeSlot - Protect your graphics card Investment
	AURA :
	- Aura RGB Strip Headers
	- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
	- Addressable Gen 2 Header
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger
	- Onboard Button : Power
	- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
	- Turbo LAN
	- Crystal Sound 3
	- Armoury Crate
	- Pre-mounted I/O Shield
	ASUS Quiet Thermal Solution :
	- Stylish Design Heat-pipe solution
	- Stylish Fanless Design with M.2 Heat-sink solution
	- ASUS Fan Xpert 4
	ASUS EZ DIY :
	- ASUS EZ Flash 3
	- ASUS USB BIOS FlashBack™
	- ASUS UEFI BIOS EZ Mode
	- Multi-language BIOS
	ASUS Q-Design :
	- ASUS Q-Code
	- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
	- ASUS Q-Slot
	- ASUS Q-DIMM
	- ASUS Q-Connector
Back I/O Ports	1 x LAN (RJ45) port(s)
	4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)
	6 x USB 3.2 Gen 1 (blue)
	1 x Optical S/PDIF out
	5 x Audio jack(s)
	1 x USB BIOS FlashBack™ Button(s)
Internal I/O Ports	1 x Q_Code
	2 x Aura RGB Strip Header(s)
	2 x Addressable Gen 2 header(s)
	2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	1 x M.2 with E key for Wi-Fi module
	8 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x CPU OPT Fan connector(s) (1 x 4 -pin)
	3 x Chassis Fan connector(s) (3 x 4 -pin)
	1 x AIO_PUMP connector (1 x 4 -pin)
	1 x W_PUMP+ connector (1 x 4 -pin)
	1 x 24-pin EATX Power connector(s)
	2 x 8-pin ATX 12V Power connector(s)
	1 x Front panel audio connector(s) (AAFP)
	1 x System panel(s) (Q-Connector) x With flexkey function
	1 x Thermal sensor connector(s)
	1 x Power-on button(s)
	1 x Clear CMOS jumper(s)
	1 x Node Connector(s)
	1 x USB 3.2 Gen 2 front panel connector
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability	WfM 2.0, WOL by PME, PXE
Hệ điều hành	Support for Windows 10 64-bit
Kích Thước	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS PRIME TRX40-PRO

Liên hệ

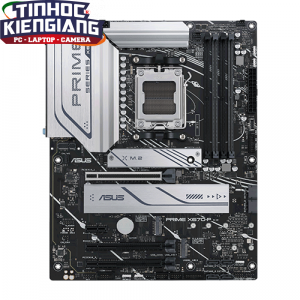

Bo Mạch Chủ – Mainboard ASUS PRIME X670-P-CSM

Model

PRIME X670-P-CSM

CPU

AMD Socket AM5 for AMD Ryzen^™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset

AMD X670 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI^® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^® 2.1.

Expansion Slots

AMD Ryzen^™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot**
* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen^™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports**
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

V-M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^™ button
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt^™ (USB4^®) header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^™ button
- BIOS FlashBack^™ LED
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Rubber Package for M.2
2 x Screw Packages for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Operating System

Windows^® 11, Windows^® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS PRIME X670-P-CSM

Liên hệ

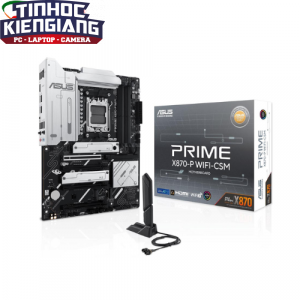

Bo Mạch Chủ – Mainboard ASUS Prime X870-P WIFI-CSM DDR5 AM5

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	AMD
Chipset	AMD X870 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO^™) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Khe cắm mở rộng	AMD Ryzen^™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen^™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 3 x PCIe 4.0 x16 slots (support x1 mode)* * Please check the PCIe bifurcation table on the support site
Ổ cứng hỗ trợ	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen^™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen^™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** 2 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C^®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
Cổng kết nối (Back Panel)	2 x USB4^® (40Gbps) ports (2 x USB Type-C^®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI^™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack^™ button
LAN / Wireless	1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth^® v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS Prime X870-P WIFI-CSM DDR5 AM5

Liên hệ

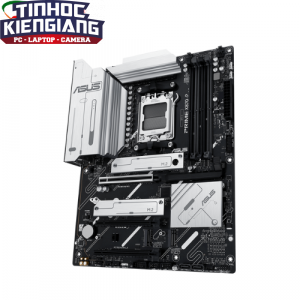

Bo Mạch Chủ – Mainboard ASUS PRIME X870-P-CSM DDR5 AM5

Thông số kỹ thuật Mainboard ASUS PRIME X870-P-CSM

Thương hiệu	ASUS
Model	PRIME X870-P-CSM
CPU	AMD Socket AM5 cho AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870 Chipset
Bộ nhớ	4 x DIMM, tối đa 192GB, DDR5, hỗ trợ lên đến 8000+MT/s (OC)
Đồ họa	1 x HDMI™ port, 2 x USB4® (40Gbps) ports hỗ trợ USB Type-C®
Khe mở rộng	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x16 (AMD X870)
Lưu trữ	4 x M.2 slots, 2 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
USB	Tổng cộng 17 cổng USB (10 cổng phía sau, 7 cổng phía trước)
Âm thanh	Realtek 7.1 Surround Sound, hỗ trợ playback 24-Bit/192 kHz
Cổng I/O phía sau	2 x USB4®, 1 x USB 10Gbps, 3 x USB 5Gbps, 4 x USB 2.0, 1 x HDMI™, 1 x Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button
Kết nối nội bộ	Nhiều đầu nối cho quạt, nguồn, lưu trữ, USB
Tính năng đặc biệt	ASUS 5X PROTECTION III, Q-Design, Thermal Solution
Phần mềm	Armoury Crate, UEFI BIOS, Norton 360 (60 ngày dùng thử)
Hệ điều hành	Windows 11, Windows 10 64-bit
Kích thước	ATX Form Factor (30.5 cm x 24.4 cm)

Bo Mạch Chủ – Mainboard ASUS PRIME X870-P-CSM DDR5 AM5

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRIME Z390-P

ASUS PRIME Z390-P - Socket: LGA1151 hỗ trợ CPU intel thế hệ 8 và 9 - Kích thước: ATX - Khe cắm RAM: 4 khe (Tối đa 64GB) - Khe cắm mở rộng: 2x PCIe 3.0/2.0 x16, 4 x PCIe 3.0/2.0 x1 - Khe cắm ổ cứng: 4 x SATA 6Gb/s, 2x M.2 Socket 3

Bo Mạch Chủ – Mainboard ASUS PRIME Z390-P

Liên hệ

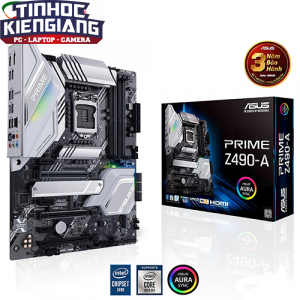

Bo Mạch Chủ – Mainboard ASUS PRIME Z490-A

CPU	Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z490
Memory	4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
Graphic	Integrated Graphics Processor 1 x DisplayPort 1.4 * 1 x HDMI 1.4b Graphics specifications may vary between CPU types. *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Multi-GPU Support	Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) ¹ Intel® Z490 Chipset* 1 x PCIe 3.0 x16 (max at x4 mode) 3 x PCIe 3.0 x1 *²
Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)³ 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)⁴ 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready
LAN	Intel® I225-V 2.5Gb Ethernet ASUS LANGuard
Wireless Data Network	M.2 slot only (Key E) (Support CNVI & PCIe interface)* *Wi-Fi module is sold separately.
Bluetooth
Audio	Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - Optical S/PDIF in port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit - Power pre-regulator: Reduces power input noise to ensure consistent performance * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports	Rear USB Port ( Total 8 ) 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C^®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
ROG Exclusive Features
Software Features	ASUS Exclusive Software: Armoury Crate: - Aura Creator - Aura Sync AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger ASUS Turbo LAN DTS:X® Ultra UEFI BIOS: AI Overclocking Guide ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - EZ Tuning Wizard FlexKey
Operating System Support	Windows® 10 64-bit
Special Features	ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection AURA : - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - Pre- mounted I/O shield ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector DIY Friendly Design - Procool - SafeSlot
ASUS Special Features
Back I/O Ports	1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C^®) 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 2 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x M.2 Fan Header
Accessories	User's manual 3 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x Q-Connector 1 x CPU Fan Holder 1 x M.2 SSD screw package(s) 1 x M.2 Key E screw package(s) 1 x M.2 Rubber Package(s)
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	1 The PCIe x1_2 slot shares bandwidth with M.2 slot (Key E). 2 Support PCIe bifurcation for RAID on CPU function. 3 The M.2_1 socket shares bandwidth with SATA_2. 4 M.2_2 slot shares bandwidth with SATA_56. When M.2_2 slot is operating in PCIe x4 mode, SATA_56 will be disabled.

Bo Mạch Chủ – Mainboard ASUS PRIME Z490-A

Liên hệ

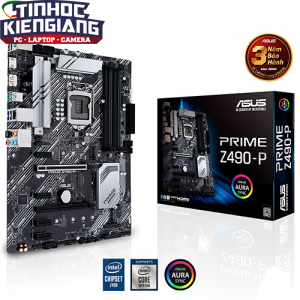

Bo Mạch Chủ – Mainboard ASUS PRIME Z490-P

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	PRIME Z490-P
CPU hỗ trợ	Intel
Socket	LGA 1200
Chipset	Z490
RAM hỗ trợ	4 x DDR4 DIMM slots, support up to 128GB DDR4
Khe cắm mở rộng	2 x PCI Express x16 slot 4 x PCI Express x1 slot
Ổ cứng hỗ trợ	2 x NVM.e 4 x SATA 6Gb/s connectors
Cổng kết nối (Internal)
Cổng kết nối (Back Panel)
LAN / Wireless	Realtek 8111H 1Gb
Kích cỡ	ATX Form Factor

Bo Mạch Chủ – Mainboard ASUS PRIME Z490-P

Liên hệ

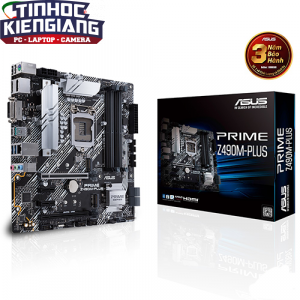

Bo Mạch Chủ – Mainboard ASUS PRIME Z490M-PLUS

CPU	Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z490
Memory	4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
Graphic	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b 1 x DVI-D Graphics specifications may vary between CPU types. *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) ¹ Intel® Z490 Chipset* 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1
Storage	Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*² 5 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Intel® I219-V 1Gb Ethernet
Wireless Data Network	M.2 slot only (Key E) (Support CNVI & PCIe interface)* *Wi-Fi module is sold separately.
Bluetooth
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
USB Ports	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
ROG Exclusive Features
Software Features	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Operating System Support	Windows® 10 64-bit
Special Features
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Lighting Control RGB Strip Header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 5 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Accessories	I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD User manual
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note	1 Support PCIe bifurcation for RAID on CPU function. 2 When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used.

Bo Mạch Chủ – Mainboard ASUS PRIME Z490M-PLUS

Liên hệ

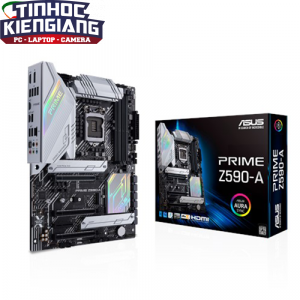

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-A

CPU	Intel® Socket LGA1200 dành cho bộ xử lý Intel® Core ™ thế hệ thứ 11 và bộ xử lý Intel® Core ™, Pentium® Gold và Celeron® thế hệ thứ 10 hỗ trợ CPU Intel® 14 nm Hỗ trợ công nghệ Intel® Turbo Boost 2.0 và công nghệ Intel® Turbo Boost Max 3.0 **
Chipset	Bộ chip Intel® Z590
Bộ nhớ	4 x DIMM, Tối đa 128GB, DDR4 DDR4 5333 (OC) / 5133 (OC) / 5000 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200/3000/2933/2800/2666/2400 / 2133 MHz Không phải ECC, Bộ nhớ không đệm * Kiến trúc bộ nhớ kênh đôi hỗ trợ cấu hình bộ nhớ Intel® Extreme (XMP) OptiMem II * Bộ xử lý Intel® Core ™ i7 / i9 thế hệ thứ 10 hỗ trợ 2933/2800/2666/2400/2133 nguyên bản, những cái khác sẽ chạy ở tốc độ truyền tối đa của DDR4 2666MHz. * Bộ xử lý Intel® Core ™ thế hệ thứ 11 hỗ trợ 3200/2933/2800/2666/2400/2133 nguyên bản.
Đồ họa	1 x DisplayPort 1.4 1 x HDMITM 2.0 *
Khe cắm mở rộng	Bộ xử lý Intel® thế hệ thứ 11 & thứ 10 3 x khe cắm PCIe 4.0 / 3.0 x16 * – Bộ xử lý Intel® Core ™ thứ 11 hỗ trợ PCIe 4.0 x16 – Bộ xử lý Intel® thứ 10 hỗ trợ PCIe 3.0 x16 Chipset Intel® Z590 1 x khe cắm PCIe 3.0 x4
Lưu trữ	Total hỗ trợ 3 khe cắm M.2 và 6 cổng SATA 6Gb / s Bộ xử lý thế hệ thứ 11 Khe cắm M.2_1 (Khóa M), loại 2242/2260/2280/22110 – Chỉ bộ xử lý Intel® Core ™ thứ 11 hỗ trợ PCIe 4.0 x4 chế độ này, khe cắm này sẽ bị vô hiệu hóa đối với các CPU khác Khe cắm Chipset Intel® Z590 M.2_2 (Phím M), loại 2242/2260/2280/22110 (hỗ trợ chế độ PCIe 3.0 x4 & SATA) * Khe cắm M.2_3 (Phím M ), loại 2242/2260/22110 (hỗ trợ chế độ PCIe 3.0 x4 & SATA) ** 6 x cổng SATA 6Gb / s * Chức năng đột kích cho SSD chế độ PCIe trong Công nghệ lưu trữ nhanh Intel® khả dụng với 1. SSD Intel® được cài đặt trong cả hai khe gắn CPU và gắn với PCH, hoặc 2. bất kỳ SSD nào khác của bên thứ 3 được lắp trong các khe gắn PCH. Để bật Bộ nhớ Intel® Optane ™ (Thiết bị lưu trữ kết hợp), nó phải được lắp đặt trong các khe gắn PCH với Công nghệ lưu trữ nhanh Intel®. * M.2_2 chia sẻ băng thông với SATA6G_2. Khi M.2_2 chạy chế độ SATA, SATA6G_2 sẽ bị tắt. **** M.2_3 chia sẻ băng thông với SATA6G_6. Khi M.2_6 chạy chế độ SATA, SATA6G_6 sẽ bị vô hiệu hóa.
LAN	1 x Intel® I225-V 2.5Gb Ethernet
Âm thanh	Âm thanh vòm Realtek S1220A 7.1 CODEC Âm thanh độ nét cao
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Dạng thiết kế	Hệ số hình thức ATX 12 inch x 9,6 inch (30,5 cm x 24,4 cm)

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-A

Liên hệ

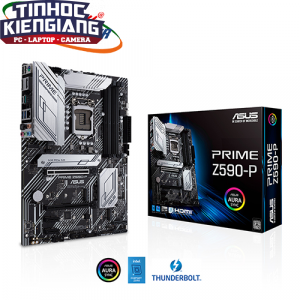

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-P

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	PRIME Z590-P
CPU hỗ trợ	Intel
Chipset	Z590
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC) /4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC) /3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	LAN 1 x Realtek 2.5Gb Ethernet WIFI V-M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Kích cỡ	ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-P

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-P/CSM

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Modela	PRIME X570-P/CSM
CPU hỗ trợ	AMD
Chipset	X570
RAM hỗ trợ	4 x DDR4 memory slots, support up to 128GB
Khe cắm mở rộng	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode)
Ổ cứng hỗ trợ	6 x SATA 6Gb/s ports, 1 x M.2 slot
Cổng kết nối (Internal)	2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A ) The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors
LAN / Wireless	Realtek® RTL8111H
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS PRIME Z590-P/CSM

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRIME Z790-A WIFI-CSM

MÔ TẢ SẢN PHẨM:

CPU:

Intel® LGA 1700 socket, ready for various Intel® Core™ processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
CPU support list available on the ASUS website

Chipset:

Intel® Z790 Chipset

Memory:

4 x DIMM slots, max. 192GB, DDR5 memory support
Supports a wide range of DDR5 memory speeds and Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Graphics:

1 x DisplayPort
1 x HDMI™ port
Graphics specifications may vary depending on the CPU type

Expansion Slots:

Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
- 1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 3.0 x16 slot (supports x1 mode)
- 1 x PCIe 3.0 x1 slot
- PCIe bifurcation table available on the support site

Storage:

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Various M.2 slots support PCIe 4.0 x4 mode
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Ethernet:

1 x Intel® 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 6E (802.11 a/b/g/n/ac/ax) with 2x2 configuration
Supports 2.4/5/6GHz frequency bands
Bluetooth® v5.3

USB:

Rear USB (Total 8 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio amplifier to enhance sound quality for headphones and speakers
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/192 kHz playback

Back Panel I/O Ports:

1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors:

Various connectors for fans, cooling, power, storage, USB, and more

Special Features:

ASUS TUF PROTECTION, including DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, and more
ASUS Q-Design, with features like M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, and Q-LED
ASUS Thermal Solution, including M.2 heatsinks and VRM heatsink design
ASUS EZ DIY, with features like CPU Socket lever protector, ProCool, pre-mounted I/O shield, and SafeDIMM
AURA Sync for RGB lighting customization
Front Panel USB 20Gbps with PD Fast Charge Support
ASUS Exclusive Software, including Armoury Crate, Aura Creator, Fan Xpert 4, and more

BIOS:

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Accessories:

Cables and connectors
ASUS WiFi Q-Antenna
TUF GAMING sticker
M.2 rubber packages
Screw package for M.2 SSD
TUF certification card
Quick start guide

Operating System:

Windows® 11, Windows® 10 64-bit

Form Factor:

ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Bo Mạch Chủ – Mainboard ASUS PRIME Z790-A WIFI-CSM

Liên hệ

Bo Mạch Chủ – Mainboard Asus PRIME Z790-P-CSM DDR5

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	PRIME Z790-P CSM
CPU hỗ trợ	Intel
Chipset	Intel Z790 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)
RAM hỗ trợ	5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors*
	1 x PCIe 5.0 x16 slot
	Intel® Z790 Chipset
	3 x PCIe 4.0 x16 slots (support x4 mode)
	1 x PCIe 3.0 x1 slot
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	Intel® Z790 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
Cổng kết nối (Internal	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x Aura RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderbolt™ (USB4®) Header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI® port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	Vertical M.2 slot only (Key E, CNVi & PCIe)*
	*Wi-Fi module is sold separately.
	1 x Realtek 2.5Gb Ethernet
Kích cỡ	ATX Form Factor
Kích cỡ	12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

Bo Mạch Chủ – Mainboard Asus PRIME Z790-P-CSM DDR5

Liên hệ

Bo Mạch Chủ – Mainboard Asus Prime Z790M-PLUS-CSM

Thông số kỹ thuật:

Loại sản phẩm	Main - Bo mạch chủ
Hãng sản xuất	Asus
Model	PRIME Z790M-PLUS
Tên sản phẩm	Mainboard Asus PRIME Z790M PLUS CSM DDR5
Socket	Intel LGA 1700
Kích thước	MATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Hỗ trợ CPU	Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors
Khe cắm RAM	4 khe ram
Bus RAM hỗ trợ	4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Thông số (Lan/Wireless)	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Khe cắm trong	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots
Cổng giao tiếp ngoài	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks
Socket	Intel LGA 1700
Hỗ trợ CPU	Intel® Socket LGA1700 for 13th Gen Intel® CoreTM Processors & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors
Chipset	Intel Z790
Khe cắm RAM	4 khe ram
Card đồ họa	1 x DisplayPort 1 x HDMI® port
Âm thanh	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Kích thước	MATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Phụ kiện kèm theo	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide

Bo Mạch Chủ – Mainboard Asus Prime Z790M-PLUS-CSM

Liên hệ

Bo Mạch Chủ – Mainboard Asus PRIME Z890-P WIFI-CSM

THÔNG SỐ KỸ THUẬT:

Thương hiệu: ASUS

Loại sản phẩm: Mainboard

Model: Prime Z890-P WIFI-CSM

Hỗ trợ RAM: 4 x DIMM slots, Max. 192GB, DDR5

Hỗ trợ Socket: Intel® Core™ Ultra Processors (Series 2), LGA1851

Form Factor: ATX

Bo Mạch Chủ – Mainboard Asus PRIME Z890-P WIFI-CSM

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRIME Z890-P-CSM

THÔNG SỐ KỸ THUẬT:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z890 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 Support up to 8400+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Khe cắm mở rộng	Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
Ổ cứng hỗ trợ	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header
Cổng kết nối (Back Panel)	1 x Thunderbolt 4 USB Type-C port 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
LAN / Wireless	LAN 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS PRIME Z890-P-CSM

Liên hệ

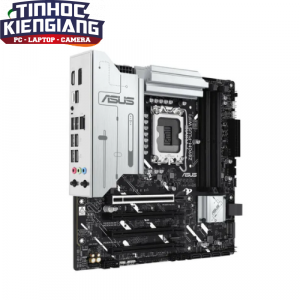

Bo Mạch Chủ – Mainboard Asus PRIME Z890M-PLUS WIFI-CSM

THÔNG SỐ KỸ THUẬT:

Thương hiệu: ASUS

Loại sản phẩm: Mainboard

Model: Prime Z890M-PLUS WIFI-CSM

Hỗ trợ RAM: 4 x DIMM slots, Max. 192GB, DDR5

Hỗ trợ Socket: Intel® Core™ Ultra Processors (Series 2), LGA1851

Form Factor: M-ATX

Bo Mạch Chủ – Mainboard Asus PRIME Z890M-PLUS WIFI-CSM

Liên hệ

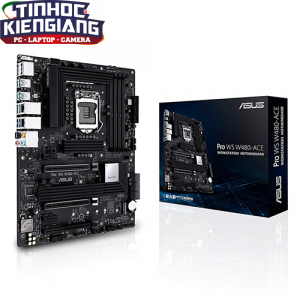

Bo Mạch Chủ – Mainboard ASUS Pro WS W480-ACE

CPU

Intel® Socket 1200 for 10th Gen Intel^® Xeon^® Core^™ , Pentium^® Gold and Celeron^® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® W480

Memory

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
ECC Memory (ECC mode) support varies by CPU.

Thunderbolt

2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards´ resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support

Graphic

Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *¹
Intel^® W480 Chipset
1 x PCIe 3.0 x16 (x4 mode) *²
2 x PCIe 3.0 x1

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® W480 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*⁴
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

LAN

Intel® I225-LM 2.5Gb Ethernet
Realtek® RTL8117

Audio

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

Intel® Thunderbolt™ 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C^®)
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C^®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)

Operating System Support

Windows® 10 64-bit

Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance And Power Saving Utility
- TPU
- EPU
- Digi+ VRM
- EZ update
- Fan Xpert 4
- Turbo app
IT Management software supported
- ASUS Control Center Express(ACCE)
AI Charger
ASUS Turbo LAN
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

ASUS Special Features

ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED
- ASUS Q-Shield
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool II
- SafeSlot
Out-of-band Management
- BIOS Update Indicator LED
- LAN Initialization Indicator LED

Back I/O Ports

2 x Thunderbolt 3 ports TypeC^™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (RJ45) port(s)
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Accessories

1 x ACC Express Activation Key Card
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x DisplayPort cable
User manual
1 x CPU Fan Holder
1 x 2-in-1 Rubber pad

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

Bo Mạch Chủ – Mainboard ASUS Pro WS W480-ACE

Liên hệ

Bo Mạch Chủ – Mainboard ASUS Pro WS W680-ACE

Hãng sản xuất	Asus
Tên sản phẩm	Pro WS W680-ACE
CPU hỗ trợ	Socket LGA1700, Bộ vi xử lý Intel Core thế hệ 12 & 13
Chipset	W680
Ram hỗ trợ	4 DIMM, tối đa 192GB, Bộ nhớ DDR5 ECC và không ECC Unbuffered
Cổng xuất hình	Đồ họa tích hợp dựa trên CPU* 1 x DisplayPort 1 x HDMI® port* 1 x VGA port * Thông số kỹ thuật đồ họa có thể khác nhau giữa các loại CPU. Hỗ trợ 8K@60Hz tối đa như được chỉ định trong DisplayPort 1.4. * Hỗ trợ 4K@60Hz như được chỉ định trong HDMI 2.1.
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel® W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot
Cổng SATA & M.2	3 x M.2 và 8 x SATA 6Gb/s* Intel® 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® W680 Chipset - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)* * Intel Rapid Storage Technology hỗ trợ PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Intel Rapid Storage Technology hỗ trợ Intel Optane Memory H Series on PCH attached M.2 slots. * SlimSAS slot có thể hỗ trợ lên tới 4 thiết bị SATA qua 1 cáp. Không đi kèm cáp
LAN	2 x Intel® 2.5Gb Ethernet ASUS LANGuard
Không dây	Chỉ có khe cắm M.2 (Key E, CNVi & PCIe) - Module Wifi không đi kèm
Cổng USB	USB ra mặt sau (tổng cộng 8 cổng) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) USB ra mặt trước (tổng cộng 7 cổng) - 1 kết nối USB 3.2 Gen 2x2 (hỗ trợ USB Type-C®) - 1 chân cắm USB 3.2 Gen 1 hỗ trợ ra 2 cổng USB 3.2 Gen 1 - 2 chân cắm USB 2.0 hỗ trợ ra 4 cổng USB 2.0
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Hỗ trợ: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Hỗ trợ lên tới 24-Bit/192 kHz playback" Tính năng Audio - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit
Cổng kết nối mặt sau	-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -2 x USB 2.0 ports (2 x Type-A) -1 x DisplayPort -1 x HDMI® port -1 x VGA port -2 x Intel® 2.5Gb Ethernet ports -5 x Audio jacks -1 x BIOS FlashbackTM button
Kích thước	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS Pro WS W680-ACE

Liên hệ

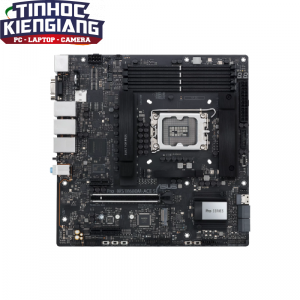

Bo Mạch Chủ – Mainboard ASUS Pro WS W680M-ACE SE

⚙ THÔNG SỐ CƠ BẢN:

Socket: LGA1700
Kích thước: micro-ATX
Khe cắm RAM: 4 khe DDR5

⚙ THÔNG SỐ KỸ THUẬT:
CPU Support:

Intel® 13th Gen & 12th Gen Processors (LGA1700)
Memory:

4 DDR5 DIMM slots, max 192GB, ECC and Non-ECC Un-buffered
Supports Intel® XMP
Storage:

2x M.2 slots (PCIe 4.0 x4)
4x SATA 6Gb/s ports
1x SlimSAS slot (supports PCIe 4.0 x4 or SATA)
Networking:

2x Intel® 2.5 Gb Ethernet ports
1x Realtek 1 Gb Ethernet port (BMC dedicated)
Expansion Slots:

1x PCIe 5.0 x16 slot
1x PCIe 4.0 x4 slot
1x PCIe 3.0 x1 slot
USB Ports:

Rear: 2x USB 3.2 Gen 2 (1x Type-A, 1x Type-C), 4x USB 3.2 Gen 1
Front: 1x USB 3.2 Gen 2x2 (Type-C), additional headers for 2x USB 3.2 Gen 1 and 4x USB 2.0
Other Features:

DisplayPort, HDMI, VGA outputs
7.1 surround sound audio
Wi-Fi module sold separately (M.2 slot)
ASUS 5X Protection III
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
UEFI BIOS
24/7 reliability
Dimensions:

micro-ATX (9.6 x 9.6 inch)
Operating System:

Windows 11, Windows 10 64-bit

Bo Mạch Chủ – Mainboard ASUS Pro WS W680M-ACE SE

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRO WS W790-ACE

Thông số kỹ thuật:

Hãng sản xuất	Asus
Tên sản phẩm	Pro WS W790-ACE
CPU hỗ trợ	Socket LGA4677 dành cho các dòng sản phẩm vi xử lý Intel Xeon® W-3400 và W-2400
Chipset	W790
Ram hỗ trợ	8 khe cắm ram, tối đa 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered
Khe cắm mở rộng	Intel® Xeon™ W-3400 and W-2400 Series Processors 5 x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)
Cổng SATA & M.2	2 x M.2 slots, 4 x SATA 6Gb/s ports and 3 x SlimSAS* Intel® W790 Chipset** M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) SlimSAS_1 slot hỗ trợ PCIe 3.0 x4 mode NVMe device SlimSAS_2 slot hỗ trợ PCIe 4.0 x4 mode hoặc lên tới 4 thiết bị SATA qua 1 cáp. (Cáp không bao gồm) SlimSAS_3 slot hỗ trợ PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports* * Hỗ trợ Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD) ** Intel® VROC Technology hỗ trợ PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC HW_Key không bao gồm.
LAN	1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Cổng USB	USB phía sau (Tổng cộng 13 cổng) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A ) 8 x USB 2.0 port(s) (8 x Type-A) USB phía trước (Tổng cộng 7 cổng) 1 x USB 3.2 Gen 2x2 (hỗ trợ USB Type-C®) 1 đầu cắm USB 3.2 Gen 1 hỗ trợ ra 2 cổng USB 3.2 Gen 1 2 đầu cắm USB 2.0 hỗ trợ ra 4 cổng USB 2.0
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Cổng kết nối mặt sau	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 8 x USB 2.0 port(s) (8 x Type-A) 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Kích thước	CEB Form Factor 12 inch x 10.5 inch (30.5 cm x 26.67 cm)

Bo Mạch Chủ – Mainboard ASUS PRO WS W790-ACE

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PRO WS W790E-SAGE SE

Thông số kỹ thuật:

Hãng sản xuất	Asus
Tên sản phẩm	Pro WS W790E-SAGE SE
CPU hỗ trợ	Socket LGA4677 dành cho các dòng sản phẩm vi xử lý Intel Xeon® W-3400 và W-2400
Chipset	W790
Ram hỗ trợ	8 khe cắm ram, tối đa 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered
Cổng xuất hình	1 x VGA từ AST2600
Khe cắm mở rộng	Intel® Xeon® W-3400 Series Processors 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16) Intel® Xeon® W-2400 Series Processors 4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)
Cổng SATA & M.2	3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s* Intel® Xeon® W-3400 Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)* Intel® W790 Chipet** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device 8 x SATA 6Gb/s ports * Hỗ trợ Intel® Virtual RAID trên CPU (Intel® VROC) và Intel Volume Management Device (Intel®VMD) Intel® VROC Technology hỗ trợ PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key không bao gồm. * Các khe cắm M.2_1 và M.2_2 sẽ bị vô hiệu hóa sau khi Bộ vi xử lý Intel® Xeon® W-2400 Series được cài đặt
LAN	1 x Intel® dual 10Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard
Cổng USB	Cổng USB phía sau (tổng 8 cổng) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) Cổng USB phía trước (Tổng 7 cổng) 1 x USB 3.2 Gen 2 connector (hỗ trợ USB Type-C® ) 1 đầu cắm USB 3.2 Gen 1 hỗ trợ ra 2 cổng USB 3.2 Gen 1 2 đầu cắm USB 2.0 hỗ trợ ra 4 cổng USB 2.0
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Cổng kết nối mặt sau	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) 1 x VGA port 2 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Kích thước	EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)

Bo Mạch Chủ – Mainboard ASUS PRO WS W790E-SAGE SE

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PROART X670E-CREATOR WIFI DDR5

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	PROART X670E-CREATOR WIFI
CPU hỗ trợ	AMD
Chipset	AMD X670
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Khe cắm mở rộng	AMD Ryzen™ 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x2 mode)
Ổ cứng hỗ trợ	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x 6-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header
Cổng kết nối (Back Panel)	2 x USB4^® with Intel® JHL8540 USB4^® controller ports (2 x USB Type-C^®) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®) 7 x USB 3.2 Gen 2 ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI^® port 1 x Wi-Fi Module 1 x Marvell^® AQtion 10Gb Ethernet 1 x Intel^® 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button
LAN / Wireless	1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS PROART X670E-CREATOR WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PROART X870E-CREATOR WIFI DDR5 AM5

Thông số kỹ thuật:

Thông Tin	Chi Tiết
Tên sản phẩm	ASUS PROART X870E-CREATOR WIFI D5
CPU hỗ trợ	AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors, Socket AM5
Chipset	AMD X870E
Bộ nhớ	- 4 x DIMM DDR5, tối đa 192GB - Hỗ trợ tốc độ lên đến 8000+ MT/s (OC) - Hỗ trợ ECC và Non-ECC, Un-buffered, AEMP, AMD EXPO
Đồ họa tích hợp	- 1 x HDMI 2.1 (4K@60Hz) - 2 x USB4 (40Gbps, DisplayPort 1.4, hỗ trợ 8K@60Hz)
Khe cắm mở rộng	- 2 x PCIe 5.0 x16 - 1 x PCIe 4.0 x16 (hỗ trợ x4 mode)
Lưu trữ	- 4 x M.2 NVMe (2 x PCIe 5.0, 2 x PCIe 4.0) - 4 x SATA 6Gb/s - Hỗ trợ AMD RAIDXpert2 RAID 0/1/5/10
Mạng có dây	- 1 x Marvell® AQtion 10Gb Ethernet - 1 x Intel® 2.5Gb Ethernet
Kết nối không dây	- Wi-Fi 7 (802.11be) - Bluetooth® 5.4
USB phía sau	- 2 x USB4 (40Gbps, Type-C) - 1 x USB 20Gbps (Type-C) - 7 x USB 10Gbps (Type-A) - 1 x USB 2.0 (Type-A)
USB phía trước	- 1 x USB 20Gbps (Type-C) với PD/QC4+ - 2 x USB 5Gbps - 6 x USB 2.0
Âm thanh	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Hỗ trợ phát lại 32-bit/192kHz - Jack-detection, Multi-streaming, Front Panel Jack-retasking
Kích thước	ATX Form Factor

Bo Mạch Chủ – Mainboard ASUS PROART X870E-CREATOR WIFI DDR5 AM5

Liên hệ

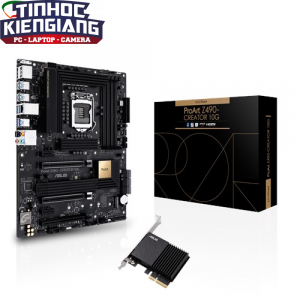

Bo Mạch Chủ – Mainboard ASUS ProArt Z490-CREATOR 10G

CPU	Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z490
Memory	4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt	2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution. Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support
Graphic	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b Graphics specifications may vary between CPU types. *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Multi-GPU Support	Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) ¹ Intel® Z490 Chipset* 1 x PCIe 3.0 x16 (x4 mode) *² 2 x PCIe 3.0 x1
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)³ 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)⁴ 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Intel® I225-V 2.5Gb Ethernet
Wireless Data Network
Bluetooth
Audio	Realtek® ALC S1220A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports	Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C^®) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C^®) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)
ROG Exclusive Features
Software Features	ASUS Exclusive Software ProArt Creator Hub CreationFirst Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Operating System Support	Windows® 10 64-bit
Special Features
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED - ASUS Q-Shield - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header(s) - Addressable Gen 2 RGB header
Back I/O Ports	2 x Thunderbolt 3 ports TypeC^™ 2 x DisplayPort IN ports for Thunderbolt™ 3 1 x HDMI 1 x LAN (2.5G) port(s) 4 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 1 x Optical S/PDIF out 5 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x COM port header
Accessories	I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x DisplayPort cable User manual 1 x CPU Fan Holder 1 x 2-in-1 Rubber pad 1 x HYPER 10G LAN CARD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Note	1 Support PCIe bifurcation for RAID on CPU function. 2 PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 3 will have no output. 3 When M.2_1 is operating in SATA device, SATA6G_2 will be disabled. 4 M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled. *5 Please refer to the user manual for more details about DisplayPort input and Type-C output settings

Bo Mạch Chủ – Mainboard ASUS ProArt Z490-CREATOR 10G

Liên hệ

Bo Mạch Chủ – Mainboard ASUS PROART Z790-CREATOR WIFI DDR5

MÔ TẢ SẢN PHẨM:

CPU:

Intel® LGA 1700 socket, ready for various Intel® Core™ processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
CPU support list available on the ASUS website

Chipset:

Intel® Z790 Chipset

Memory:

4 x DIMM slots, max. 192GB, DDR5 memory support
Supports a wide range of DDR5 memory speeds and Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Graphics:

1 x DisplayPort
1 x HDMI™ port
Graphics specifications may vary depending on the CPU type

Expansion Slots:

Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
- 1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 3.0 x16 slot (supports x1 mode)
- 1 x PCIe 3.0 x1 slot
- PCIe bifurcation table available on the support site

Storage:

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Various M.2 slots support PCIe 4.0 x4 mode
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Ethernet:

1 x Intel® 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth:

Wi-Fi 6E (802.11 a/b/g/n/ac/ax) with 2x2 configuration
Supports 2.4/5/6GHz frequency bands
Bluetooth® v5.3

USB:

Rear USB (Total 8 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio amplifier to enhance sound quality for headphones and speakers
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/192 kHz playback

Back Panel I/O Ports:

1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors:

Various connectors for fans, cooling, power, storage, USB, and more

Special Features:

ASUS TUF PROTECTION, including DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, and more
ASUS Q-Design, with features like M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, and Q-LED
ASUS Thermal Solution, including M.2 heatsinks and VRM heatsink design
ASUS EZ DIY, with features like CPU Socket lever protector, ProCool, pre-mounted I/O shield, and SafeDIMM
AURA Sync for RGB lighting customization
Front Panel USB 20Gbps with PD Fast Charge Support
ASUS Exclusive Software, including Armoury Crate, Aura Creator, Fan Xpert 4, and more

BIOS:

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Accessories:

Cables and connectors
ASUS WiFi Q-Antenna
TUF GAMING sticker
M.2 rubber packages
Screw package for M.2 SSD
TUF certification card
Quick start guide

Operating System:

Windows® 11, Windows® 10 64-bit

Form Factor:

ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Bo Mạch Chủ – Mainboard ASUS PROART Z790-CREATOR WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard Asus ProArt Z890-CREATOR WIFI

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z890 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) DIMM Fit
Khe cắm mở rộng	Intel Core Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Ổ cứng hỗ trợ	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x RTC Battery header 1 x Thermal Sensor header
Cổng kết nối (Back Panel)	2 x Thunderbolt 5 USB Type-C ports 1 x Thunderbolt 4 USB Type-C port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Wi-Fi module1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x BIOS FlashBack™ button
LAN / Wireless	LAN 1 x Intel 2.5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard Wireless Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard Asus ProArt Z890-CREATOR WIFI

Liên hệ

Bo Mạch Chủ – Mainboard Asus ProArt Z890-CREATOR WIFI DDR5 (Thunderbolt 5+Bluetooth)

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z890 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) DIMM Fit
Khe cắm mở rộng	Intel Core Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Ổ cứng hỗ trợ	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x RTC Battery header 1 x Thermal Sensor header
Cổng kết nối (Back Panel)	2 x Thunderbolt 5 USB Type-C ports 1 x Thunderbolt 4 USB Type-C port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Wi-Fi module1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x BIOS FlashBack™ button
LAN / Wireless	LAN 1 x Intel 2.5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard Wireless Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard Asus ProArt Z890-CREATOR WIFI DDR5 (Thunderbolt 5+Bluetooth)

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG CROSSHAIR X670E GENE DDR5

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	ROG CROSSHAIR X670E GENE
CPU hỗ trợ	AMD
Chipset	AMD X670
RAM hỗ trợ	2x DDR5 memory slots, support up to 64GB DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
Khe cắm mở rộng	1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x1 slot
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) GEN-Z.2_1 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4) AMD X670 Chipset** GEN-Z.2_2 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header 3 x 4-pin Full Speed Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 1 x M.2 slots (Key M) 1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^{^®}) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 2 x Addressable Gen 2 headers 1 x Alteration Mode Switch 1 x Aura RGB header 2 x BCLK button 1 x FlexKey button 1 x 10-1 pin Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Cổng kết nối (Back Panel)	2 x USB4^{^®} ports with Intel^{^®} JHL8540 USB4^{^®}controller (2 x USB Type-C^{^®}) 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C^{^®}) 2 x USB 2.0 ports (2 x Type-A) 1 x Wi-Fi Module 1 x Intel^{^®} 2.5Gb Ethernet 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	1 x Intel^{^®} 2.5Gb Ethernet Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Kích cỡ	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Bo Mạch Chủ – Mainboard ASUS ROG CROSSHAIR X670E GENE DDR5

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG CROSSHAIR X670E HERO DDR5

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD^{^®} Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x HDMI^{^®} port*
2 xUSB4^{^®} ports support USB Type-C^{^®} display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
**VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.

Storage

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
**Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.

Ethernet

1 x Intel^{^®} 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.3**

* WiFi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 12 ports)
2 x USB4^{^®} ports with Intel^{^®} JHL8540 USB4^{^®} controller (2 x USB Type-C^{^®})
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^{^®})
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C^{^®})
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^{^®} with up to 60W PD/QC4+)*
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

Audio

ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- ESS^® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports

2 x USB4^{^®} ports with Intel^{^®} JHL8540 USB4^{^®}
controller (2 x USB Type-C^{^®})
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^{^®})
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C^{^®})
1 x HDMI^{^®} port
1 x Wi-Fi Module
1 x Intel^{^®} 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^{^®})
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Special Features

Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W

Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS^{^®} Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Polymo Lighting
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

256Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for PCIe 5.0 M.2 Card
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
3 x Rubber Packages for M.2 backplate
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide

Operating System

Windows^{^®} 11 64-bit, Windows^{^®} 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS ROG CROSSHAIR X670E HERO DDR5

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS XI HERO (WIFI)

Tên gọi	ASUS ROG MAXIMUS XI HERO
CPU hỗ trợ	- Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors - Supports Intel® 14 nm CPU - Supports Intel® Turbo Boost Technology 2.0
Chipset / Socket	Intel® Z390
Bộ nhớ (RAM)	- 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory - Dual Channel Memory Architecture
Công nghệ đa GPU	- Supports NVIDIA® 2-Way SLI™ Technology - Supports AMD 3-Way CrossFireX™ Technology
Khe cắm mở rộng	- 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) - 1 x PCIe 3.0 x16 (x4 mode) ¹ - 3 x PCIe 3.0 x1 - 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)² - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) - 6 x SATA 6Gb/s port(s) - Support Raid 0, 1, 5, 10 - Intel® Optane™ Memory Ready
LAN	- Intel® Wireless-AC 9560 - Wi-Fi 802.11 a/b/g/n/ac - Supports dual band frequency 2.4/5 GHz - Supports MU-MIMO - Supports channel bandwidth: HT20/HT40/HT80/HT160
Âm thanh	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *³ Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
Cổng kết nối (Internal)	- 2 x Aura Addressable Strip Header(s) - 2 x Aura RGB Strip Headers - 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) - 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) - 1 x TPM connector(s) - 6 x SATA 6Gb/s connector(s) - 1 x CPU Fan connector(s) (1 x 4 -pin) - 1 x CPU OPT Fan connector(s) (1 x 4 -pin) - 3 x Chassis Fan connector(s) (3 x 4 -pin) - 1 x AIO_PUMP connector (1 x 4 -pin) - 1 x H_AMP fan connector - 1 x W_PUMP+ connector (1 x 4 -pin) - 1 x 24-pin EATX Power connector(s) - 1 x 8-pin EATX 12V Power connectors - 1 x 4-pin ATX 12V Power connector(s) - 1 x Front panel audio connector(s) (AAFP) - 1 x MemOK! II switch(es) - 1 x Reset button(s) - 1 x ReTry button - 1 x System panel connector - 1 x EXT_Fan header - 1 x W_IN header - 1 x W_OUT header - 1 x W_FLOW header - 1 x Thermal sensor connector - 1 x Start button - 1 x USB 3.1 Gen 2 front panel connector
Cổng kết nối (Back Panel)	- 1 x PS/2 keyboard/mouse combo port(s) - 1 x DisplayPort - 1 x HDMI - 1 x LAN (RJ45) port(s) - 4 x USB 3.1 Gen 2 1 x Type-C+3 x Type-A - 2 x USB 3.1 Gen 1 (blue) Type-A, - 2 x USB 2.0 - 1 x Optical S/PDIF out - 1 x Clear CMOS button(s) - 1 x USB BIOS Flashback Button(s) - 1 x ASUS Wi-Fi Module - 5 x Gold-plated audio jacks
Công nghệ độc quyền	ReTry Button Start Button Reset Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors - OptiMOS™ MOSFET Mem TweakIt Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback - MemOK! II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - BIOS Flashback Button - Clear CMOS Button - Reset Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Phụ kiện đi kèm	- Hướng dẫn sử dụng - 2 x cáp SATA 6Gb / s - I/O Shield - 1 x Gói Đinh vít M.2 - 1 x Nhãn dính TUF Gaming - 1 x Chứng nhận TUF - 1 x SCD
Hệ điều hành khuyến nghị	- Microsoft^® Windows^® 10 64-bit
Chuẩn kích cỡ	- ATX - 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS XI HERO (WIFI)

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS XII HERO (WI-FI)

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	ROG MAXIMUS XII HERO WIFI
CPU hỗ trợ	Intel
Socket	LGA 1200
Chipset	Z490
RAM hỗ trợ	4 x DDR4 DIMM slots, support up to 128GB DDR4
Khe cắm mở rộng	3 x PCI Express x16 slot 3 x PCI Express x1 slot
Ổ cứng hỗ trợ	3 x NVM.e 6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)
Cổng kết nối (Back Panel)
LAN / Wireless	Marvell AQC111C 5G Intel I219-V 1Gb Wifi 6 AX201
Kích cỡ	ATX Form Factor

VIDEO

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS XII HERO (WI-FI)

Liên hệ

Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z790 FORMULA

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	ROG MAXIMUS Z790 FORMULA
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700
Chipset	Z790
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Khe cắm mở rộng	Intel® Core™ Processors (14th & 13th & 12th Gen)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel® Z790 Chipset 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. * To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Ổ cứng hỗ trợ	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connectors 1 x 8-pin PCIe power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Aura RGB header 1 x CPU over voltage jumper 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header
Cổng kết nối (Back Panel)	2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Lan	1 x Realtek 5Gb Ethernet ASUS LANGuard
WIRELESS/BLUETOOTH	Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z790 FORMULA

Liên hệ

Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z890 APEX

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z890 Chipset
RAM hỗ trợ	2 x Khe DIMM, tối đa 96GB, DDR5 Supports up to 9000+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Kiến trúc bộ nhớ kênh kép DIMM Fit Hỗ trợ mô-đun bộ nhớ Intel^{^®} Extreme Memory Profile (XMP) Hỗ trợ DIMM Flex ASUS Enhanced Memory Profile III (AEMP III)
Khe cắm mở rộng	Intel Core Ultra Processors(Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel Z890 Chipset 2 x PCIe 4.0x4 slot
Ổ cứng hỗ trợ	Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports Support Intel Core Ultra Processors(Series 2) Khe cắm M.2_1 (Key M), loại 2242/2260/2280/22110 (hỗ trợ chế độ PCIe 5.0 x4) Khe cắm M.2_2 (Khóa M), loại 2242/2260/2280 (hỗ trợ PCIe 4.0 x4 chế độ) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel Z890 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x Cổng SATA 6Gb/s
Cổng kết nối (Internal)	Fan and cooling ports 1 x 4-pin CPU fan header 1 x 4-pin CPU OPT fan header 1 x 4-pin AIO pump header 2 x 4-pin chassis fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x 8-pin PCIe power connector Related Storage 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Accessories 1 x 80 Light Bar jumper 3 x Accessible Gen 2 headers 1 x PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x Pause switch 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Boot button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x Thunderbolt (USB4) header
Cổng kết nối (Back Panel)	2 x Thunderbolt 4 ports (USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps port (4 x Type-A) 4 x USB 5Gbps port (4 x Type-A) 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 port for keyboard/mouse combo
LAN / Wireless	LAN 1 x Realtek 5Gb Ethernet ASUS LANGuard Wireless Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z890 APEX

Liên hệ

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS Z890 EXTREME

Tên thông số	Giá trị
Nhà sản xuất	Asus
Model	ROG-MAXIMUS-Z890-EXTREME
Mainboard Form Factor	E-ATX
Chipset	Intel Z890 Chipset
Socket CPU	LGA 1851
CPU Hỗ trợ	Intel Core Ultra Processor (Series 2)
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	192GB
Khe cắm mở rộng	1x PCIe 5.0 x16 (CPU) (hỗ trợ x16 hoặc x8/x8 hoặc x8/x4/x4 modes) 1x PCIe 4.0 x4 (Chipset)
Lưu trữ mở rộng	1x M.2_1 22110/2280/2260/2242 PCIe 5.0 x4 (CPU) 1x M.2_2 2280/2260/2242 PCIe 4.0 x4 (CPU) 1x M.2_3 22110/2280/2260/2242 PCIe 5.0 x4 (CPU) 1x M.2_4 2280/2260/2242 PCIe 5.0 x4 (CPU)
Kết nối không dây	Wi-Fi 7 Bluetooth 5.4
Cổng kết nối phía sau	2x Thunderbolt 5 (DisplayPort) 1x USB-C 3.2 Gen 2x2 20Gbps 5x USB-A 3.2 Gen 2 2x USB-C 3.2 Gen 2 1x HDMI 2.1 1x LAN 2.5Gb 1x Marvell AQtion 10Gb Ethernet 2x LED-illuminated audio jacks 1x Optical S/PDIF Out 1x BIOS Flashback Button 1x Clear CMOS Button
Phụ kiện	1x 1-to-3 ARGB splitter cable 1x 1-to-2 ARGB splitter cable 2x 1-to-4 fan splitter cable 2x ROG weave SATA 6G cable packages 1x 3-in-1 Thermistor cables pack 1x ROG Q-DIMM.2 with heatsink 1x M.2 pad package for ROG Q-DIMM.2 2x Thermal pad for ROG Q-DIMM.2 2x Thermal pad for M.2 22110 1x DDR5 Fan holder 1x ASUS WiFi Q-Antenna 1x Q-connector 1x USB drive with utilities and drivers Documentation 1x Quick start guide 1x ROG Bottle Opener Installation Media 6x M.2 backplate rubber packages 2x M.2 Q-Slide packages 1x ROG screwdriver 1x ROG logo plate sticker
Thời gian bảo hành	36 tháng

Bo Mạch Chủ – Mainboard ASUS ROG MAXIMUS Z890 EXTREME

Liên hệ

Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z890 HERO

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z890 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM FIT ASUS Enhanced Memory Profile III (AEMP III)
Khe cắm mở rộng	Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Ổ cứng hỗ trợ	Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
Cổng kết nối (Internal)	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x 8-pin PCIe Power connector Storage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gps connector (supports USB Type-C ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header
Cổng kết nối (Back Panel)	2 x Thunderbolt™ 4 USB Type-C ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
LAN / Wireless	LAN 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet Wireless Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth^® v5.4
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard Asus ROG MAXIMUS Z890 HERO

Liên hệ

Bo Mạch Chủ – Mainboard Asus ROG STRIX B760-A GAMING WIFI DDR5

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	ROG STRIX B760-A GAMING WIFI
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700
Chipset	B760
RAM hỗ trợ	4 khe DIMM, tối đa 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz bộ nhớ Non-ECC, Un-buffered*.
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Lan	1 x Intel® 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard
WIRELESS/BLUETOOTH	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Bo Mạch Chủ – Mainboard Asus ROG STRIX B760-A GAMING WIFI DDR5

Liên hệ

Bo Mạch Chủ – Mainboard Asus ROG STRIX B760-G GAMING WIFI DDR5

Thông số kỹ thuật:

Sản phẩm	Bo mạch chủ
Tên Hãng	ASUS
Model	ROG STRIX B760-G GAMING WIFI
CPU hỗ trợ	Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700
Chipset	B760
RAM hỗ trợ	4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot(s) Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Lan	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
WIRELESS/BLUETOOTH	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 * WiFi 6E 6GHz regulatory may vary between countries.
Kích cỡ	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Bo Mạch Chủ – Mainboard Asus ROG STRIX B760-G GAMING WIFI DDR5

Liên hệ

Thông số kỹ thuật:

Thông số kỹ thuật:

Thông số kỹ thuật:

Thông số kỹ thuật:

THÔNG SỐ KỸ THUẬT:

CPU

Chipset

Memory

Thunderbolt

Graphic

Multi-GPU Support

Expansion Slots

Storage

LAN

Audio

USB Ports

Operating System Support

Software Features

ASUS Special Features

Back I/O Ports

Internal I/O Ports

Accessories

BIOS

Manageability

Operating System

Form Factor

Thông số kỹ thuật:

Thông số kỹ thuật:

THÔNG SỐ KỸ THUẬT

CPU

Chipset

Memory

Graphics

Expansion Slots

Storage

Ethernet

Wireless & Bluetooth

USB

Audio

Back Panel I/O Ports

Internal I/O Connectors

Special Features

Software Features

BIOS

Manageability

Accessories

Operating System

Form Factor

Thông số kỹ thuật:

THÔNG SỐ KỸ THUẬT

THÔNG SỐ KỸ THUẬT

Thông số kỹ thuật:

Thông số kỹ thuật:

Đăng nhập
