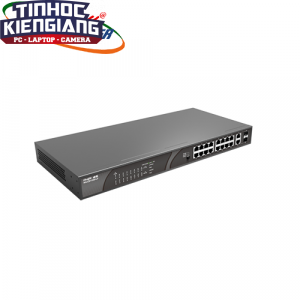

Thiết bị chuyển mạch Switch RUIJIE RG-ES118S-LP 16 Port 100Mbps + 2 Gigabit RJ45/SFP
4-Port 10/100Mbps + 2 Uplink port 10/100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 58W, unmanaged switch, desktop

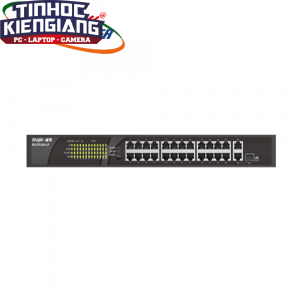

Thiết bị chuyển mạch Switch RUIJIE RG-ES126S-LP 24 Port 10/100Mbps + 1 Gigabit RJ45 Port + 1 Gigabit RJ45/SFP
24-Port 10/100Mbps + 1 Gigabit RJ45 Port, 1 Gigabit RJ45/SFP combo Port, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 180W, unmanaged switch

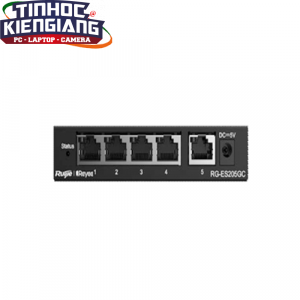

Thiết bị chuyển mạch Switch RUIJIE RG-ES205GC 5-Port Gigabit Smart
5-Port Gigabit Smart Switch, 5 Gigabit RJ45 Ports, Desktop Steel Case

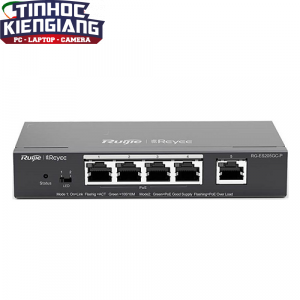

Thiết bị chuyển mạch Switch RUIJIE RG-ES205GC-P 4-port 10/100/1000Base-T PoE
Tính năng
PoE toàn năng hỗ trợ camera PoE ở công suất tối đa
- Các thiết bị chuyển mạch giám sát thông minh của Switch Ruijie hỗ trợ đầu ra PoE toàn năng, cung cấp năng lượng cho các camera mạng PoE cho tất cả các cổng PoE. Cho dù là ngày hay đêm, đèn hồng ngoại của máy ảnh bật hay tắt, đều có thể đảm bảo rằng tất cả các camera mạng PoE đều được cấp nguồn.
Tự động điều chỉnh nguồn PoE để an toàn và tiết kiệm năng lượng
- Cổng PoE của các công tắc giám sát thông minh cung cấp nguồn điện lên tới 30W cho thiết bị được kết nối. Các công tắc sẽ đàm phán với các thiết bị được kết nối để tự động điều chỉnh nguồn PoE, từ đó tiết kiệm năng lượng. Ngoài ra RG-ES205GC-P sẽ tự động nhận dạng thiết bị và sẽ không cấp nguồn cho thiết bị đó để đảm bảo an toàn cho thiết bị.
Định vị lỗi nhanh
- Các công tắc giám sát thông minh hỗ trợ hiển thị cấu trúc liên kết mạng của toàn bộ mạng và theo dõi trạng thái mạng theo thời gian thực. Khi xảy ra lỗi cho camera mạng, vị trí và nguyên nhân lỗi có thể được hiển thị kịp thời và thông báo có thể được gửi qua ứng dụng Ruijie Cloud.
Cấu hình VLAN theo yêu cầu
- Trong mạng lưới biệt thự/ cửa hàng/ văn phòng, camera mạng và AP không dây có thể được kết nối với cùng một công tắc. Nếu không cách ly mạng, có thể có các vấn đề như độ trễ màn hình camera và tốc độ không dây chậm.
- Các công tắc giám sát thông minh cung cấp phân chia VLAN thuận tiện và linh hoạt, có thể tự động phân chia các VLAN khác nhau theo loại thiết bị được kết nối với cổng, để mạng giám sát và mạng dữ liệu không can thiệp lẫn nhau, cải thiện tính ổn định của toàn bộ mạng.
Ứng dụng quản lý từ xa trên nền tảng đám mây
- Các thiết bị chuyển mạch giám sát thông minh không chỉ hỗ trợ quản lý giao diện web, mà còn hỗ trợ ứng dụng Switch Ruijie và quản lý từ xa trên nền tảng đám mây. Người dùng có thể xem trạng thái mạng, sửa đổi cấu hình và khắc phục sự cố tại nhà. Ngoài ra, cổng PoE có thể được khởi động lại từ xa để khởi động lại camera PoE bị lỗi.
Đặc tính kỹ thuật
| Model | RG-ES205GC-P |
| Hardware | |
| Ports | 4 10/100/1000 Base-T ports (PoE/PoE+) 1 10/100/1000 Base-T port |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 45W |
| Switching capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Surge protection | Common mode: 4KV |
| Electrostatic discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power consumption | ≤60W |
| Power supply | External power adapter |
| Dimensions (W x D x H) | 148 x 78 x 26 mm |
| MTBF | >200K |
| Software | |
| MAC capacity | 2K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |

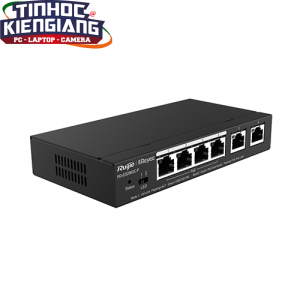

Thiết bị chuyển mạch Switch RUIJIE RG-ES206GC-P 4 ports POE + 2 ports RJ45 uplink
- 4 × 10/100/1000 Base-T ports (PoE/ PoE+), and 2 x 10/100/1000 Base-T uplink ports.
- Tiêu chuẩn IEEE 802.3at / 802.af.
- Tổng công suất POE 54W.
- Hỗ trợ bảo vệ quá áp 4KV.
- Quản lý Cloud dễ dàng.
- Vỏ kim loại.
- Nguồn 220V
| Model | RG-ES206GC-P |
| Switching capacity | 12Gbps |
| Switching Cache | 1Mbit |
| Package forwarding rate | 8.9Mpps |
| Ports | 4 10/100/1000 Base-T ports (PoE/PoE+) |
| 2 10/100/1000 Base-T uplink port | |
| PoE Standard | IEEE 802.3at / 802.af |
| PoE Power Budget | 54W |
| Speed / Duplex mode | Auto / Half / Full duplex Speed auto / 10/ 100 /1000 |
| MAC address | 4K |
| Maximum Number of VLANs | 16 |
| Allowed VLAN ID | 1 ~ 4094 |
| Port-based VLAN | Support |
| Flow Control | Support |
| Loop Protection | Support |
| Unknown Unicast Suppression | Support |
| Multicast / Broadcast Storm Suppression | Support |
| Mirroring | Many-to-One Mirroring |
| Port Isolation | Support |
| Cable Testing | Support |
| ICMP Ping | Support |
| DNS | DNS Client |
| Telnet | Support |
| MACC | Support |
| Port Surge | Common mode: 4KV |
| Electrostatic Discharge | Air discharge: 6KV |
| Contact discharge: 4KV |

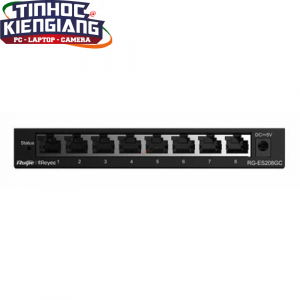

Thiết bị chuyển mạch Switch RUIJIE RG-ES208GC 8-Port Gigabit Smart
– Layer 2 Smart Managed Switch 8 Cổng 10/100/1000BASE-T.
– 8 cổng 10/100/1000BASE-T.
– Tốc độ chuyển mạch: 16Gbps.
– MAC: 4K.
– Tính năng Layer 2: port mirroring, loop protection, cable detection.
– Tính năng bảo mật: broadcast storm suppression, port speed limit, port isolation.
– Dễ dàng quản lý và cấu hình qua Ruijie cloud.
– Tích hợp Web management.
– Hỗ trợ IEEE802.1Q VLAN, bảo mật giữa các nhóm thiết bị.
– Chống sét: 6KV.
– Nguồn AC 100~240V, 50/60Hz.
– Nhiệt độ hoạt động: 0°C~50°C.
– Kích thước: 160 mm x 75 mm x 24 mm.
– Xuất xứ: Trung Quốc.
– Bảo hành: 36 tháng.

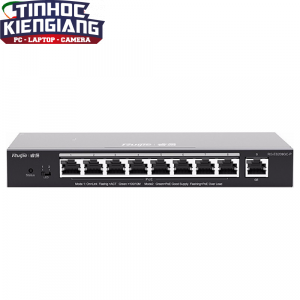

Thiết bị chuyển mạch Switch RUIJIE RG-ES209GC-P 8-port 10/100/1000Base-T PoE
Tính năng
PoE toàn năng hỗ trợ camera PoE ở công suất tối đa
- Các thiết bị chuyển mạch giám sát thông minh của Switch Ruijie hỗ trợ đầu ra PoE toàn năng, cung cấp năng lượng cho các camera mạng PoE cho tất cả các cổng PoE. Cho dù là ngày hay đêm, đèn hồng ngoại của máy ảnh bật hay tắt, đều có thể đảm bảo rằng tất cả các camera mạng PoE đều được cấp nguồn.
Tự động điều chỉnh nguồn PoE để an toàn và tiết kiệm năng lượng
- Cổng PoE của các công tắc giám sát thông minh cung cấp nguồn điện lên tới 30W cho thiết bị được kết nối. Các công tắc sẽ đàm phán với các thiết bị được kết nối để tự động điều chỉnh nguồn PoE, từ đó tiết kiệm năng lượng. Ngoài ra RG-ES209GC-P sẽ tự động nhận dạng thiết bị và sẽ không cấp nguồn cho thiết bị đó để đảm bảo an toàn cho thiết bị.
Định vị lỗi nhanh
- Các công tắc giám sát thông minh hỗ trợ hiển thị cấu trúc liên kết mạng của toàn bộ mạng và theo dõi trạng thái mạng theo thời gian thực. Khi xảy ra lỗi cho camera mạng, vị trí và nguyên nhân lỗi có thể được hiển thị kịp thời và thông báo có thể được gửi qua ứng dụng Ruijie Cloud.
Cấu hình VLAN theo yêu cầu
- Trong mạng lưới biệt thự/ cửa hàng/ văn phòng, camera mạng và AP không dây có thể được kết nối với cùng một công tắc. Nếu không cách ly mạng, có thể có các vấn đề như độ trễ màn hình camera và tốc độ không dây chậm.
- Các công tắc giám sát thông minh cung cấp phân chia VLAN thuận tiện và linh hoạt, có thể tự động phân chia các VLAN khác nhau theo loại thiết bị được kết nối với cổng, để mạng giám sát và mạng dữ liệu không can thiệp lẫn nhau, cải thiện tính ổn định của toàn bộ mạng.
Ứng dụng quản lý từ xa trên nền tảng đám mây
- Các thiết bị chuyển mạch giám sát thông minh không chỉ hỗ trợ quản lý giao diện web, mà còn hỗ trợ ứng dụng Switch Ruijie và quản lý từ xa trên nền tảng đám mây. Người dùng có thể xem trạng thái mạng, sửa đổi cấu hình và khắc phục sự cố tại nhà. Ngoài ra, cổng PoE có thể được khởi động lại từ xa để khởi động lại camera PoE bị lỗi.
Đặc tính kỹ thuật
| Model | RG-ES209GC-P |
| Hardware | |
| Ports | 8 10/100/1000 Base-T ports (PoE/PoE+) 1 10/100/1000 Base-T port |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 120W |
| Switching capacity | 18Gbps |
| Packet forwarding rate | 13.392Mpps |
| Surge protection | Common mode: 4KV |
| Electrostatic discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power consumption | ≤130W |
| Power supply | External power adapter |
| Dimensions (W x D x H) | 202 x 108 x 28 mm |
| MTBF | >200K |
| Software | |
| MAC capacity | 4K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |

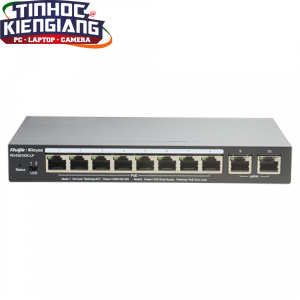

Thiết bị chuyển mạch Switch RUIJIE RG-ES210GC-LP 8 ports POE + 2 ports RJ45 uplink
| Brand | Ruijie |
| Interface | 8 ports RJ45 10/100/1000 Mbps + 2 RJ45 10/100/1000 Mbps uplink |
| Port speed RJ45 | 10 x 10/100/1000Mbps |
| Power supply | Up to 70W |
| Power | 100 ~240 V with external power adapter |
| Operating temperature | 0° C ~ 40° C |
| Dimensions | 108 (D) x 28 (H) x 202 (W) mm |
| Weight | 1300 g (with package) |

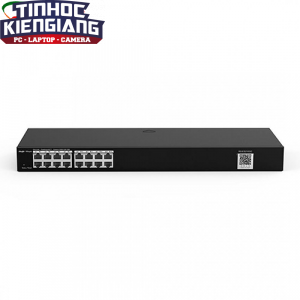

Thiết bị chuyển mạch Switch RUIJIE RG-ES216GC 16-Port Gigabit Smart
| Model Specifications | RG-ES216GC |
| Hardware specifications | |
| Ports | 16 10/100/1000Base-T ports |
| Switching capacity | 32Gbps |
| Package forwarding rate | 24Mpps |
| Surge protection | Common mode: 6KV |
| Power consumption | |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440x165x44mm |
| MTBF | >200K |
| Operating environment | |
| Operating temperature | 0 to 50°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features | |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration |
| Security | Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud |

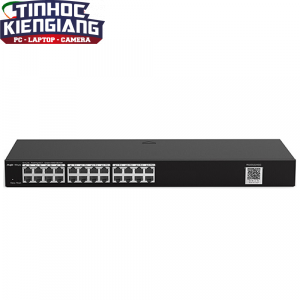

Thiết bị chuyển mạch Switch RUIJIE RG-ES224GC 24-port 10/100/1000Base-T
Tính năng
Khả năng tương thích cao cho cáp mạng
- Các thiết bị chuyển mạch giám sát thông minh không chỉ hỗ trợ cáp mạng cat5/ 5e/ 6 hỗ trợ truyền dữ liệu qua cáp mạng của các vật liệu không chuẩn (như thép/ sắt có đường kính 0.38/ 0.40/ 0.45), tạo thuận lợi cho việc xây dựng và cáp.
Bảo vệ đột biến cao cho sự ổn định của thiết bị
- Các cổng của thiết bị chuyển mạch giám sát thông minh cung cấp khả năng bảo vệ đột biến lên đến 6KV, giảm khả năng bị hư hại do sự đột biến và cải thiện sự ổn định của thiết bị mạng lưới khách hàng.
Định vị lỗi nhanh
- Các công tắc giám sát thông minh hỗ trợ hiển thị cấu trúc liên kết mạng của toàn bộ mạng và theo dõi trạng thái mạng theo thời gian thực. Khi xảy ra lỗi cho camera mạng, vị trí và nguyên nhân lỗi có thể được hiển thị kịp thời và thông báo có thể được gửi qua ứng dụng di động.
Cấu hình VLAN theo yêu cầu
- Trong mạng lưới biệt thự/ cửa hàng/ văn phòng, camera mạng và AP không dây có thể được kết nối với cùng một công tắc. Nếu không cách ly mạng, có thể có các vấn đề như độ trễ màn hình camera và tốc độ không dây chậm.
- Các công tắc giám sát thông minh cung cấp phân chia VLAN thuận tiện và linh hoạt, có thể tự động phân chia các VLAN khác nhau theo loại thiết bị được kết nối với cổng, để mạng giám sát và mạng dữ liệu không can thiệp lẫn nhau, cải thiện tính ổn định của toàn bộ mạng.
Đặc tính kỹ thuật
| Model | RG-ES224GC |
| Hardware | |
| Ports | 24 10/100/1000Base-T ports |
| Switching capacity | 48Gbps |
| Package forwarding rate | 36Mpps |
| Surge protection | Common mode: 6KV |
| Power consumption | |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440 x 165 x 44 mm |
| MTBF | >200K |
| Software | |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, port duplex/ negotiation rate configuration, flow control configuration |
| Security | Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud |
| Operating environment | |
| Operating temperature | 0 to 50°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |

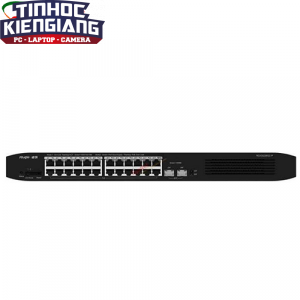

Thiết bị chuyển mạch Switch RUIJIE RG-ES226GC-P 24-port 10/100/1000Base-T PoE
Tính năng
PoE toàn năng hỗ trợ camera PoE ở công suất tối đa
- Các thiết bị chuyển mạch giám sát thông minh của Switch Ruijie hỗ trợ đầu ra PoE toàn năng, cung cấp năng lượng cho các camera mạng PoE cho tất cả các cổng PoE. Cho dù là ngày hay đêm, đèn hồng ngoại của máy ảnh bật hay tắt, đều có thể đảm bảo rằng tất cả các camera mạng PoE đều được cấp nguồn.
Tự động điều chỉnh nguồn lượng PoE để an toàn và tiết kiệm năng lượng
- Cổng PoE của các công tắc giám sát thông minh cung cấp nguồn điện lên tới 30W cho thiết bị được kết nối. Các công tắc sẽ đàm phán với các thiết bị được kết nối để tự động điều chỉnh nguồn PoE, từ đó tiết kiệm năng lượng. Ngoài ra RG-ES226GC-P sẽ tự động nhận dạng thiết bị và sẽ không cấp nguồn cho thiết bị đó để đảm bảo an toàn cho thiết bị.
Định vị lỗi nhanh
- Các công tắc giám sát thông minh hỗ trợ hiển thị cấu trúc liên kết mạng của toàn bộ mạng và theo dõi trạng thái mạng theo thời gian thực. Khi xảy ra lỗi cho camera mạng, vị trí và nguyên nhân lỗi có thể được hiển thị kịp thời và thông báo có thể được gửi qua ứng dụng Ruijie Cloud.
Cấu hình VLAN theo yêu cầu
- Trong mạng lưới biệt thự/ cửa hàng/ văn phòng, camera mạng và AP không dây có thể được kết nối với cùng một công tắc. Nếu không cách ly mạng, có thể có các vấn đề như độ trễ màn hình camera và tốc độ không dây chậm.
- Các công tắc giám sát thông minh cung cấp phân chia VLAN thuận tiện và linh hoạt, có thể tự động phân chia các VLAN khác nhau theo loại thiết bị được kết nối với cổng, để mạng giám sát và mạng dữ liệu không can thiệp lẫn nhau, cải thiện tính ổn định của toàn bộ mạng.
Ứng dụng quản lý từ xa trên nền tảng đám mây
- Các thiết bị chuyển mạch giám sát thông minh không chỉ hỗ trợ quản lý giao diện web, mà còn hỗ trợ ứng dụng Switch Ruijie và quản lý từ xa trên nền tảng đám mây. Người dùng có thể xem trạng thái mạng, sửa đổi cấu hình và khắc phục sự cố tại nhà. Ngoài ra, cổng PoE có thể được khởi động lại từ xa để khởi động lại camera PoE bị lỗi.
Đặc tính kỹ thuật
| Model | RG-ES226GC-P |
| Hardware | |
| Ports | 24 10/100/1000 Base-T ports (PoE/PoE+) 2 SFP Base-X ports |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 370W |
| Switching capacity | 52Gbps |
| Packet forwarding rate | 38.688Mpps |
| Surge protection | Common mode: 4KV |
| Electrostatic discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power consumption | ≤400W |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440 x 289 x 43.6 mm |
| MTBF | >200K |
| Software | |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
| Operating environment | |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |

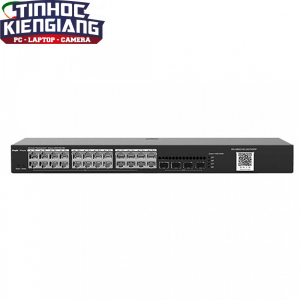

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3100-24GT4SFP 24-Port Gigabit L2 Managed
| Model | RG-NBS3100-24GT4SFP |
| Fixed ports | 24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 42Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 8K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×165×44mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

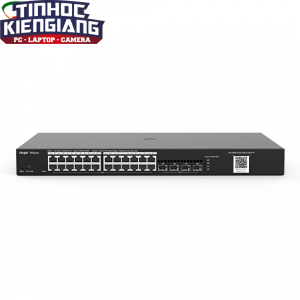

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3100-24GT4SFP-P 24-Port Gigabit L2 Managed POE
| Model | RG-NBS3100-24GT4SFP-P |
| Fixed ports | 24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP 1000Base-X ports, 370W PoE power |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 42Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 8K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×293×44mm |
| PoE | 24 Base-T ports (support PoE and PoE+) |
| Maximum PoE / PoE+ output power per switch: 370W | |
| Maximum output power per port: 30W | |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

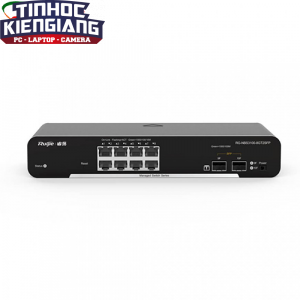

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3100-8GT2SFP 8-Port Gigabit L2 Managed
| Model | RG-NBS3100-8GT2SFP |
| Fixed ports | 8 10/100/1000Base-T ports, 2 SFP 1000Base-X ports |
| Switching capacity | 192Gbps |
| Packet forwarding rate | 15Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 8K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 260x120x43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

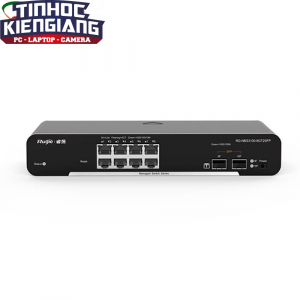

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3100-8GT2SFP-P 8-Port Gigabit L2 Managed POE
| Model | RG-NBS3100-8GT2SFP-P |
| Fixed ports | 8 10/100/1000Base-T ports (support PoE and PoE+), 2 SFP 1000Base-X ports, 125W PoE power |
| Switching capacity | 192Gbps |
| Packet forwarding rate | 15Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 8K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 300x220x43.6mm |
| PoE | 8 Base-T ports (support PoE and PoE+) |
| Maximum PoE / PoE+ output power per switch: 125W | |
| Maximum output power per port: 30W | |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

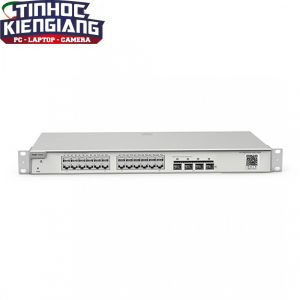

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-24GT4XS 24-Port 10G L2 Managed
| Model | RG-NBS3200-24GT4XS |
| Fixed ports | 24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 96Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440x207.5x43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

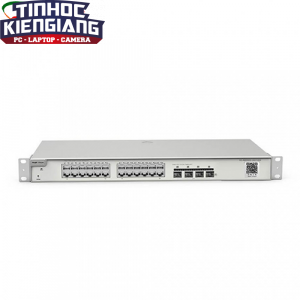

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-24GT4XS-P 24-Port 10G L2 Managed POE
| Model | RG-NBS3200-24GT4XS-P |
| Fixed ports | 24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 96Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440x357.6x43.6mm |
| PoE | 24 Base-T ports (support PoE and PoE+) |
| Maximum PoE / PoE+ output power per switch: 370W | |
| Maximum output power per port: 30W | |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

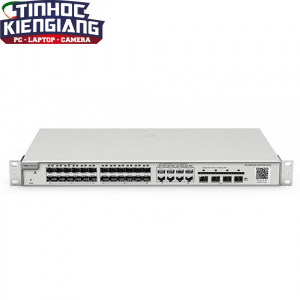

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-24SFP/8GT4XS 24-Port SFP L2 Managed Switch
| Model | RG-NBS3200-24SFP/8GT4XS |
| Fixed ports | 24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 96Mpp |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×267.5×43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |
Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-48GT4XS 48-Port 10G L2 Managed
| Model | RG-NBS3200-48GT4XS |
| Fixed ports | 48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 132Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×267.5×43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

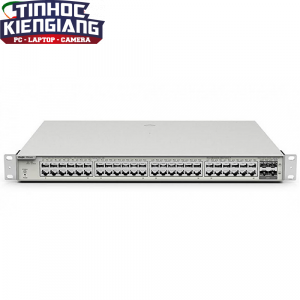

Thiết bị chuyển mạch Switch RUIJIE RG-NBS3200-48GT4XS-P 48-Port 10G L2 Managed POE
| Model | RG-NBS3200-48GT4XS-P |
| Fixed ports | 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 132Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440x357.6x43.6mm |
| PoE | 48 Base-T ports (support PoE and PoE+) |
| Maximum PoE / PoE+ output power per switch: 370W | |
| Maximum output power per port: 30W | |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

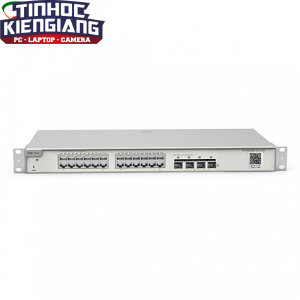

Thiết bị chuyển mạch Switch RUIJIE RG-NBS5100-24GT4SFP 24-Port Gigabit L2+ Managed
| Model | RG-NBS5100-24GT4SFP |
| Fixed ports | 24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 51Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Layer 3 aggregation ports | 16 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | Support static routing |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud platform or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440x207.5x43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

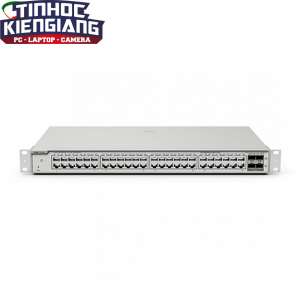

Thiết bị chuyển mạch Switch RUIJIE RG-NBS5100-48GT4SFP 48-Port Gigabit L2+ Managed
| Model | RG-NBS5100-48GT4SFP |
| Fixed ports | 48 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 87Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Layer 3 aggregation ports | 16 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | Support static routing |
| ACL | IP standard ACL |
| MAC extended ACL | |
| IP extended ACL | |
| Port ACL for Layer 2 ports (physical port / AP) | |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| Hardware CPP | |
| Management | Web management, Ruijie Cloud platform or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440x207.5x43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ | |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |

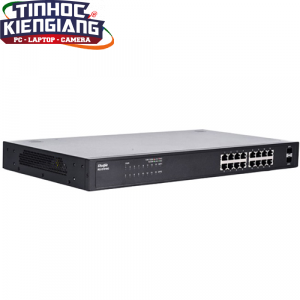

Thiết bị chuyển mạch Switch RUIJIE RG-S1818G 16-port 10/100/1000 Base-T
- 16 10/100/1000 BASE-T, 2 GE SFP (Non-combo)
- Tốc độ chuyển mạch: 48Gbps
- Nguồn cấp: AC 100~240V, 50Hz~60Hz
- Hỗ trợ chống sét 4KV
- Nhiệt độ hoạt động: 0°C~50°C
- Kích thước: 440 x 205 x 44 mm
- Công suất tiêu thụ: 8.6W
- Các chứng nhận: EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN300 386

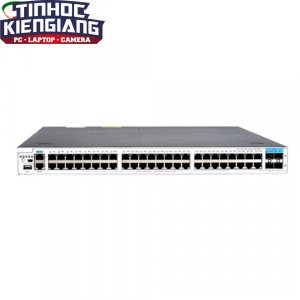

Thiết bị chuyển mạch Switch RUIJIE RG-S5750-48GT4XS-HP-H 48-port 10/100/1000BASE-T PoE+ 4-port 10GE SFP+
- Hỗ trợ 48 cổng 10/100/1000BASE-T PoE+.
- Hỗ trợ 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 132Mpps.
- Công suất PoE: 1480W (với 2 RG-PA1150P-F).
- Kích thước (WxDxH): 440 x 420 x 44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28SFP4XS-H |
| Fixed port | GE RJ45 port: 48 10GE SFP+ port: 4 |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 132Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Power over Ethernet | Maximum PoE power budget: 1480W (w/2 RGPA1150P-F) PoE/PoE+ enabled port: 48 Standard: IEEE802.3af/at |
| Physical | Dimensions (WxDxH): 440 x 420 x 44 mm/ 440 x 450 x 44mm w/ PGPA1150P-F Unit weight: 6.1kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 2300W - Idle power rating: 70W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 451400 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.

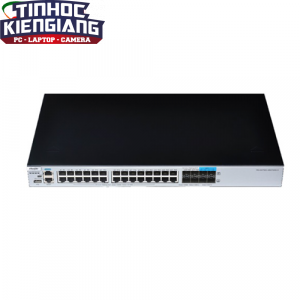

Thiết bị chuyển mạch Switch RUIJIE RG-S5750C-28GT4XS-H 28-port GE RJ45 + 4-port 10GE SFP+
- Hỗ trợ 28 cổng GE RJ45 port.
- Hỗ trợ 4 (Combo) cổng GE SFP.
- Hỗ trợ 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 222Mpps.
- Kích thước (WxDxH): 440 x 280 x 44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28GT4XS-H |
| Fixed port | GE RJ45 port: 28 GE SFP port: 4 (Combo) 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 222Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 280 x44 mm Unit weight: 3.9kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 140W - Idle power rating: 45W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1, IEC 60950-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 555960 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.

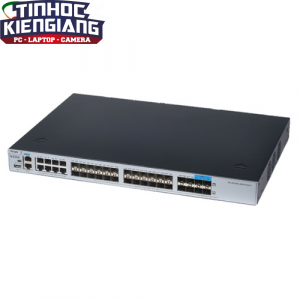

Thiết bị chuyển mạch Switch RUIJIE RG-S5750C-28SFP4XS-H 28-port GE SFP + 8-port Combo GE RJ45 SFP+
- Hỗ trợ 8 (Combo) GE RJ45.
- Hỗ trợ 28 cổng GE SFP, 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 222Mpps.
- Kích thước (WxDxH): 440×300×44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-28SFP4XS-H |
| Fixed port | GE RJ45 port: 8 (Combo) GE SFP port: 28 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 222Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 300 x 44 mm Unit weight: 4.2kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 140W - Idle power rating: 55W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1, IEC 60950-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 506320 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.

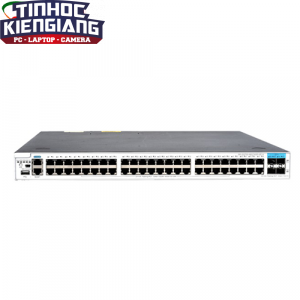

Thiết bị chuyển mạch Switch RUIJIE RG-S5750C-48GT4XS-H 48-port GE RJ45 + 4-port 10GE SFP+
- Hỗ trợ 48 cổng GE RJ45.
- 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 252Mpps.
- Kích thước (WxDxH): 440 x 300 x 44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-48GT4XS-H |
| Fixed port | GE RJ45 port: 48 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card 4-port 10GE SFP+ interface card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 252Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 300 x 44 mm Unit weight: 4.2kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 140W - Idle power rating: 45W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1, IEC 60950-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 513460 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.

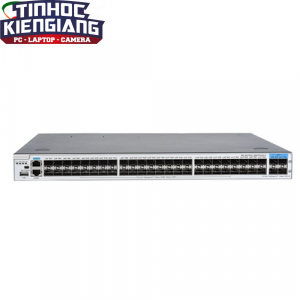

Thiết bị chuyển mạch Switch RUIJIE RG-S5750C-48SFP4XS-H 48-port GE SFP + 4-port 10GE SFP+
- Hỗ trợ 48 cổng GE SFP, 4 cổng 10GE SFP+.
- Tốc độ chuyển mạch: 598Gbps.
- Tốc độ chuyển gói tin: 252Mpps.
- Kích thước (WxDxH): 440×340×44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-S5750C-48SFP4XS-H |
| Fixed port | GE SFP port: 48 10GE SFP+ port: 4 |
| Flexible card | Card slot: 2 Card type: 1-port QSFP+ dedicated stack card 4-port 10GE SFP+ interface card |
| Management port | ETH management port: 1 Console port (RJ45): 1 Console port (Mini USB): 1 USB 2.0 port: 1 |
| Performance | Switching capacity: 598Gbps/5.98Tbps Forwarding rate: 252Mpps MAC table size: 64,000 ARP table size: 20,000 Jumbo frame: 9216 Bytes Packet buffer: 32Mbit |
| Physical | Dimensions (WxDxH): 440 x 340 x 44 mm Unit weight: 4.7kg |
| Power supply | - Type: Hot swappable - Redundancy: 1+1 - AC frequency: 50/60Hz - Rated AC voltage: 100~240V - Maximum AC voltage: 90~264V - Rated HVDC voltage: 240V DC - Maximum HVDC voltage: 192~288V DC - Rated DC voltage: -36V ~ -72V DC - Maximum power rating: 300W - Idle power rating: 100W |
| Heat dissipation system | - Dissipation mode: Air-cooled heat dissipation. Intelligent speed adjustment - Number of fans: 3 - Airflow: Air flows in from the left and exhausts from the right |
| Certifications | - Safety: EN 60960-1 - EMC: EN 300 386 - Emissions: EN 55022, EN55032 - Immunity generic: EN 55024 - ESD: EN 61000-4-2 - Radiated: EN 61000-4-3 - EFT/Burst: EN 61000-4-4 - Surge: EN 61000-4-5 - Conducted: EN 61000-4-6 - Power frequency magnetic field: EN 61000-4-8 - Voltage dips and interruptions: EN 61000-4-11 - Harmonics: EN 61000-3-2 - Flicker: EN 61000-3-3 - Anti-gascorrosion: GB-T2423.51-2012(Refer to IEC 60068-2-60) |
| Operating temperature | 0°C~ 50°C |
| Storage temperature | -40°C~ 70°C |
| Operating humidity | 10%~90% RH |
| Storage humidity | 5%~95% RH |
| Operating altitude | -500 ~ 5000m |
| MTBF(hours) | 523510 |
| Ethernet features | Ethernet: Full-duplex, Half-duplex, Auto negotiation, Flow control on interface, Jumbo frames, Link aggregation(IEEE802.3ad, LACP, maximum 8 member ports per AP), 2048 maximum aggregation ports, Load balancing, Broadcast storm control |
| VLAN: IEEE802.1Q, 4094 VLAN ID, 4094 VLANIF interface, Access mode, Trunk mode, Default VLAN, Port-based VLAN, MAC-based VLAN, Protocol based VLAN, IP subnet-based VLAN, Voice VLAN, GVRP, Super VLAN, Private VLAN, Guest VLAN | |
| MAC: Automatic learning and aging of MAC addresses, Static and dynamic MAC address entries, Interface-based and VLAN-based MAC address learning limiting, Sticky MAC, MAC address spoofing guard | |
| ARP: Static ARP, Trusted ARP, Gratuitous ARP, Proxy ARP, Local proxy ARP, ARP trustworthiness detection, ARP-based IP guard | |
| STP: STP(IEEE802.1D), RSTP(IEEE802.1w), MSTP (IEEE802.1s), 64 MST instances, Port Fast, BPDU guard, BPDU filter, TC guard, TC filter, Root guard, Auto edge, BPDU transparent transmission, BPDU tunnel, VLAN-Specific Spanning Tree(VSST, working with PVST, PVST+ and RPVST) | |
| ERPS: G.8032 v1/v2, Single-ring, Tangent-ring, Intersecting-ring, Load balancing | |
| L2 multicast: IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, IGMP querier, IGMP security control, IGMP profile, MLD v1/v2 snooping, MLD filter, MLD fast leave, MLD source check | |
| QinQ: Basic QinQ, Selective QinQ(Flexible QinQ), 1:1 VLAN switching, N:1 VLAN switching VLAN mapping, TPID configuration, MAC address replication, L2 transparent transmission, Priority replication, Priority mapping | |
| IPv4/IPv6 | IPv4 unicast routing: IPv4 static routing, RIPv1/v2, OSPFv2, BGP4, MBGP, IS-IS, PBR, VRF, ECMP, WCMP, Routing policies, 12000 IPv4 routing table |
| IPv6 unicast routing: IPv6 static routing, RIPng, OSPFv3, BGP4+, IS-ISv6, PBRv6, VRFv6, Packet–based load balancing and flow-based load balancing, 6000 IPv6 routing table | |
| IPv6 feature: ND (Neighbor Discovery), 10000 ND entries, ND snooping, 6 over 4 manual tunnel, 6 to 4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel (4 over 6), GRE tunnel (6 over 6), IPv6 extender option head, Manually configure local address, Automatically create local address, 0-64 bit mask, 65-128 bit mask | |
| Multicast routing: IGMPv1/v2/v3, MLDv1/v2, PIM-DM, PIM-SM, PIM-SSM, PIM-DMv6, PIM-SMv6, MSDP, MCE, IGMP proxy, MLD proxy, Multicast static routing, 8000 IPv4 multicast routing table, 4000 IPv6 multicast routing table |
|
| DHCP: DHCP server/relay/client, DHCPv6 server/relay/client, DHCP option 43/82/138 | |
| MPLS | MPLS: MPLS labels and forwarding, LSP, LDP, Inter-domain LDP LSP |
| MPLS L3 VPN: BGP VPN, IS-IS VPN, OSPF VPN | |
| Reliability | BFD: Single-hop BFD, BFD for IPv4 static routes/OSPF/IS-IS/ BGP4/ VRRP/MPLS/PBR, BFD for IPv6 static routes/OSPFv3/IS-ISv6/BGP4+/VRRPv6/PBRv6 |
| DLDP: DLDP for IPv4 static routes/OSPF/BGP4/VRRP/PBR | |
| LLDP: IEEE802.1AB 2005, ANSI/TIA-1057, LLDP, LLDP-MED, LLDP-PoE | |
| RLDP: Uni-directional link detection, Bi-directional forwarding detection, Downlink loop detection | |
| VSU: 9 VSU(Virtual Switch Unit) stacked members, 80Gbps maximum stacking bandwidth with service port VSL connection, Traffic balancing | |
| VRRP: VRRPv3, VRRP+ | |
| REUP: REUP(Ruijie Rapid Ethernet Uplink Protection Protocol for dual uplink backup, VLAN load balancing | |
| GR: GR for RIP/OSPF/IS-IS/BGP/MPLS L3 VPN/LDP | |
| RNS: RNS test for ICMP/DNS/TCP, Track support for RNS | |
| QoS | Stream classification: Classification based on IEEE802.1p/DSCP/TOS |
| Shaping: Rate-limit on ingress/egress traffic on interface | |
| Congestion avoidance: RED, WRED, Tail drop | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port | |
| ACL | ACL entries: 3500 IPv4/v6 rules |
| ACL type: Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port, Port security | |
| Security | ARP security: ARP check, DAI, Trusted ARP, ARP trustworthiness detection, Gateway-targeted ARP spoofing prevention, ARP rate-limit |
| Attack defense: CPP (CPU Protection Policy), NFPP(Network Foundation Protection Policy) guard for ARP/IP/ICMP/DHCP/DHCPv6/ND/Self-defined attack, URPF | |
| IP: IP source guard v4/v6, 3500 IPv4 source guard user capacity, 1500 IPv6 source guard user capacity | |
| DHCP: DHCP snooping, DHCPv6 snooping, DHCP snooping on option 82 | |
| AAA: Local, RADIUS, RADIUS v6, TACACS+ | |
| IEEE802.1X: IEEE802.1X port/MAC based authentication, Dynamic VLAN and ACL assignment, MAC authentication bypass | |
| Web portal: Ruijie 1st-Gen and 2nd-Gen portal authentication, Portal authentication/accounting, Portal detection and escape | |
| Configuration | Login: CLI, Console, Telnet, Telnet for IPv6, SSH v1.5/v2.0, SSH for IPv6, SCP, SNMPbased NMS, Web-based UI, Fast deploy(Ruijie Cloud App), Cloud management |
| File: Multiple boot configuration, Multiple firmware | |
| Management | Network: Ping(v4/v6), Traceroute(v4/v6), sFlow, SNMPv1/v2c/v3, HTTP, HTTPS, RMON(1,2,3,9), CWMP(TR069), Syslog, MIB, |
| Application: DNS client v4/v6, TFTP Server/Client, TFTP Client v6, FTP Server/Client, FTP Server/Client v6, NTP Server/Client, NTP Server/Client v6, SNTP, EEE(IEEE802.3az), OpenFlow v1.0, OpenFlow v1.3, Hot patch, Z-PoE (Non-stop PoE) | |
| Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, SPAN, RSPAN, ERSPAN | |
| Hardware monitoring: Power supply monitoring, Fan status and alarm monitoring |
- Bảo hành: 3 năm.

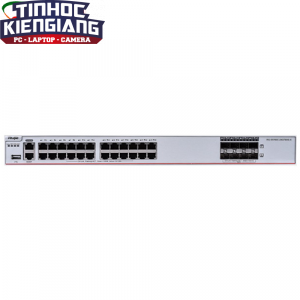

Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-24GT8XS-X 24-Port 10/100/1000BASE-T + 8-Port 1G/10G SFP+
- 24 x 10/100/1000BASE-T, 8 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
- Switching Capacity: 880 Gbps/7.92 Tbps.
- MAC Address: 64K.
- Power Consumption (full load): 60W.
- Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 24x 10/100/1000BASE-T, 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 60W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-24SFP/8GT8XS-X 24-Port Gigabit SFP + 8-Port 10/100/1000BASE-T + 8-Port 1G/10G SFP+
- 24 x 1000M SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 x 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
- Switching Capacity: 880 Gbps/7.92 Tbps.
- MAC Address: 64K.
- Power Consumption (full load): 77W.
- Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 24 x Gigabit SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 426 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 77 W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-S5760C-48GT4XS-X 48-Port 10/100/1000BASE-T + 4-Port 1G/10G SFP+
- 48 x 10/100/1000BASE-T, 4 x 1G/10G SFP+ ports, reserved expansion slots, 2 built-in fixed fans, 2 power module slots (at least 1 RG-PA150IB-F power modules needed).
- Switching Capacity: 880 Gbps/7.92 Tbps.
- MAC Address: 64K.
- Power Consumption (full load): 70W.
- Dimensions (W × D × H): 442 × 340 × 44 mm.
Specifications
| Basic Features | |
| Fixed Ports | 48x 10/100/1000BASE-T, 4 x 1G/10G SFP+ ports, 2 power module slots |
| Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
| Expansion Slot | Single expansion slot is reserved to for service modules |
| Switching Capacity | 880 Gbps/7.92 Tbps |
| Packet Forwarding Rate | 402 Mpps/600 Mpps |
| MAC Address | 64K |
| ARP Table | 24K |
| Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
| Physical Features | |
| Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
| Rack Height | 1RU |
| MTBF (hours) | >200K |
| Power Supply | AC input: Rated voltage range: 100 V to 240 V Maximum voltage range: 90 V to 264 V Frequency: 50/60 Hz HVDC input: Rated voltage range: 240 V Maximum voltage range: 192 V to 288 V |
| Power Consumption (full load) | 70W |
| Fan | 2 built-in fans Fan speed regulating and alarm function |
| Temperature Alarm | Supported |
| Temperature | Operating temperature: 0°C to 45°C(without an expansion card), 0°C to 40°C (with an expansion card) Storage temperature: -40°C to 70°C |
| Relative Humidity | Operating humidity: 5% to 95%(no condensation) Storage humidity: 5% to 95% |
| Operating Altitude | 500m to 5,000m |
| Lightening Protection on Communication Port | 6kV (Common Mode) |
| Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
- Bảo hành: 3 năm.
Thiết bị chuyển mạch Switch RUIJIE RG-WS6008
- Thiết bị điều khiển WIFI thế hệ mới.
- Hỗ trợ 6 cổng 1000BASE-T.
- Hỗ trợ 2 cổng 1000BASE-T/1000BASE-X combo.
- Hỗ trợ 1 cổng Console Port.
- Hỗ trợ 1 cổng USB ports.
- Tích hợp sẵn license cho 32 Access Point wifi (Tối đa mở rộng lên đến 224 APs hoặc 448 wall APs).
- Hỗ trợ tối đa: 6.400 users.
- Hỗ trợ 4,094 VLAN.
- LAN Protocols: ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s.
- 802.11 LAN Protocols: 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac.
- Các chứng nhận: GB9254, EN301 489, GB4943, EN/IEC 60950-1.
Thiết bị chuyển mạch Switch Tenda 24 Port TEG1024D 10/100/1000
Hãng sản xuất : Tenda
- Tốc độ : 10/100/1000Mbps
- Giao diện : RJ45
- Số cổng : 24 port RJ45
- Tính năng : MDI-MDIX, Plug&Play, tự động dò tìm tốc độ (Vỏ thép 13 inch) nguồn trực tiếp. Chống sét nguồn và trên Port
